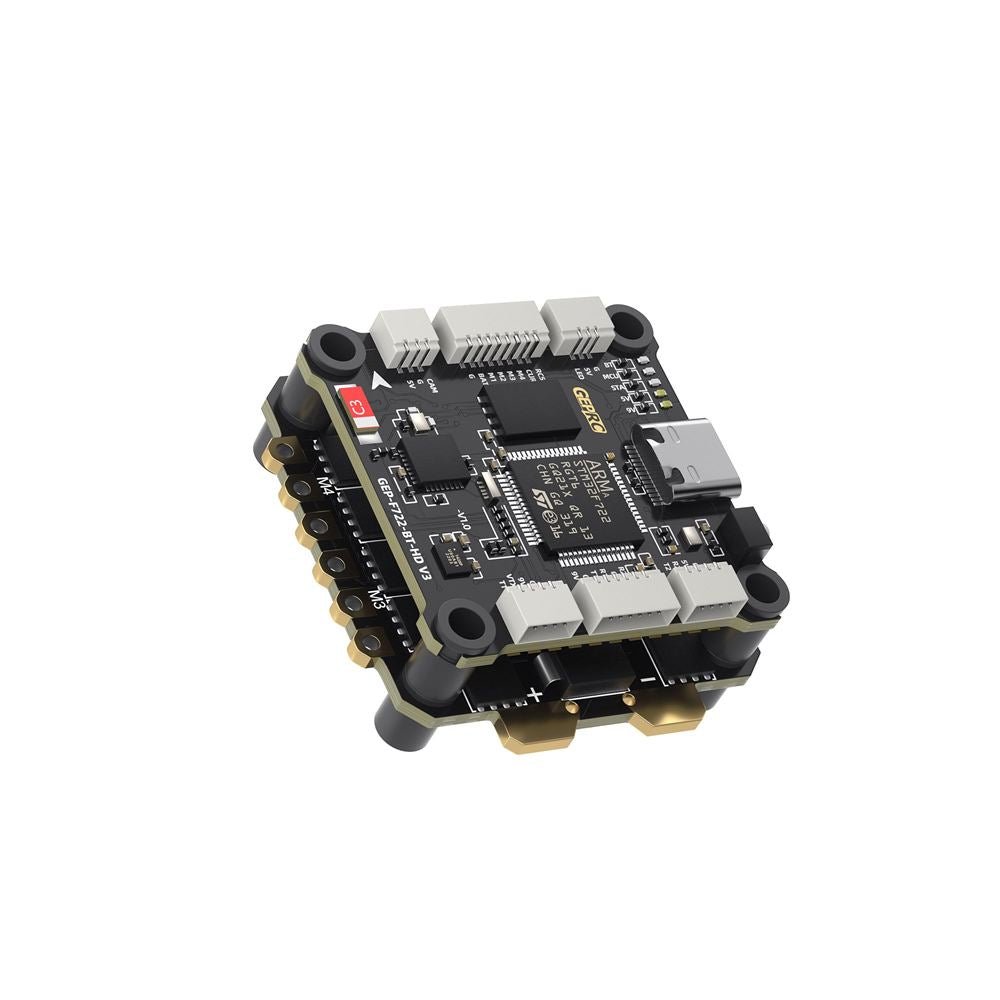

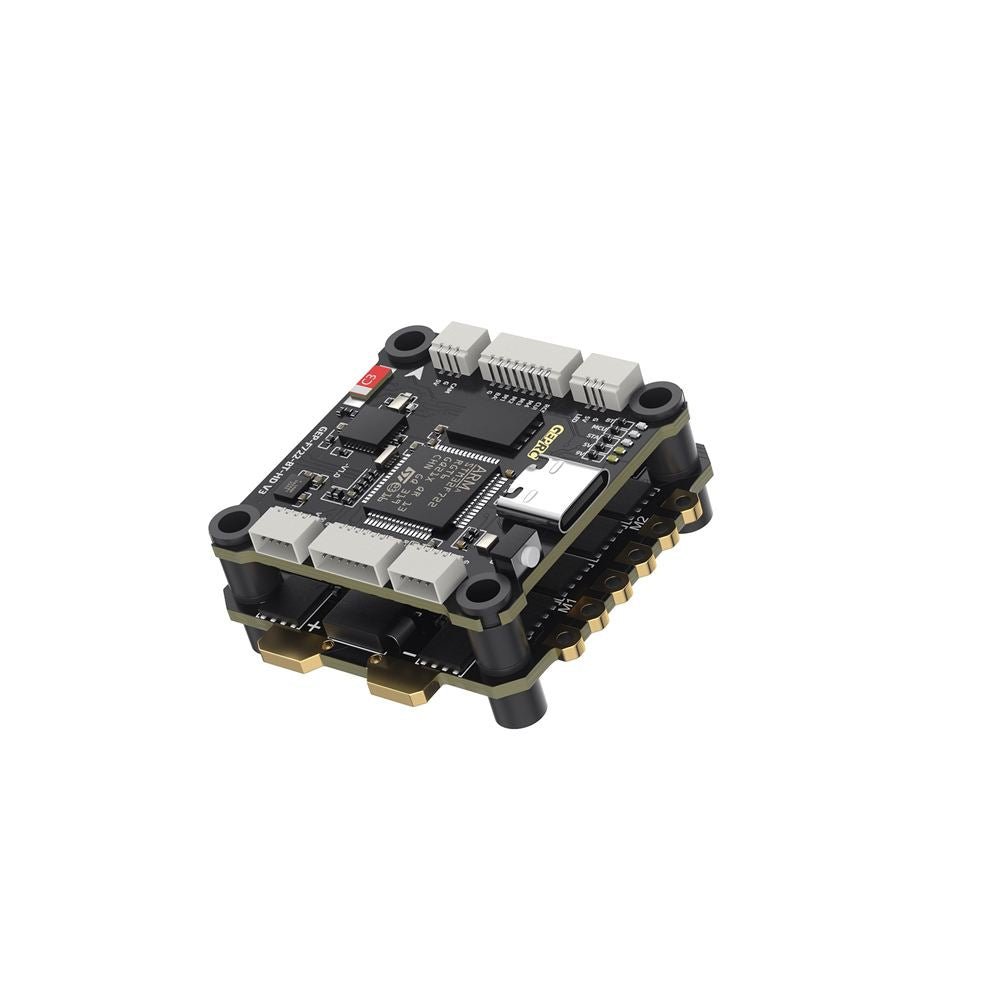

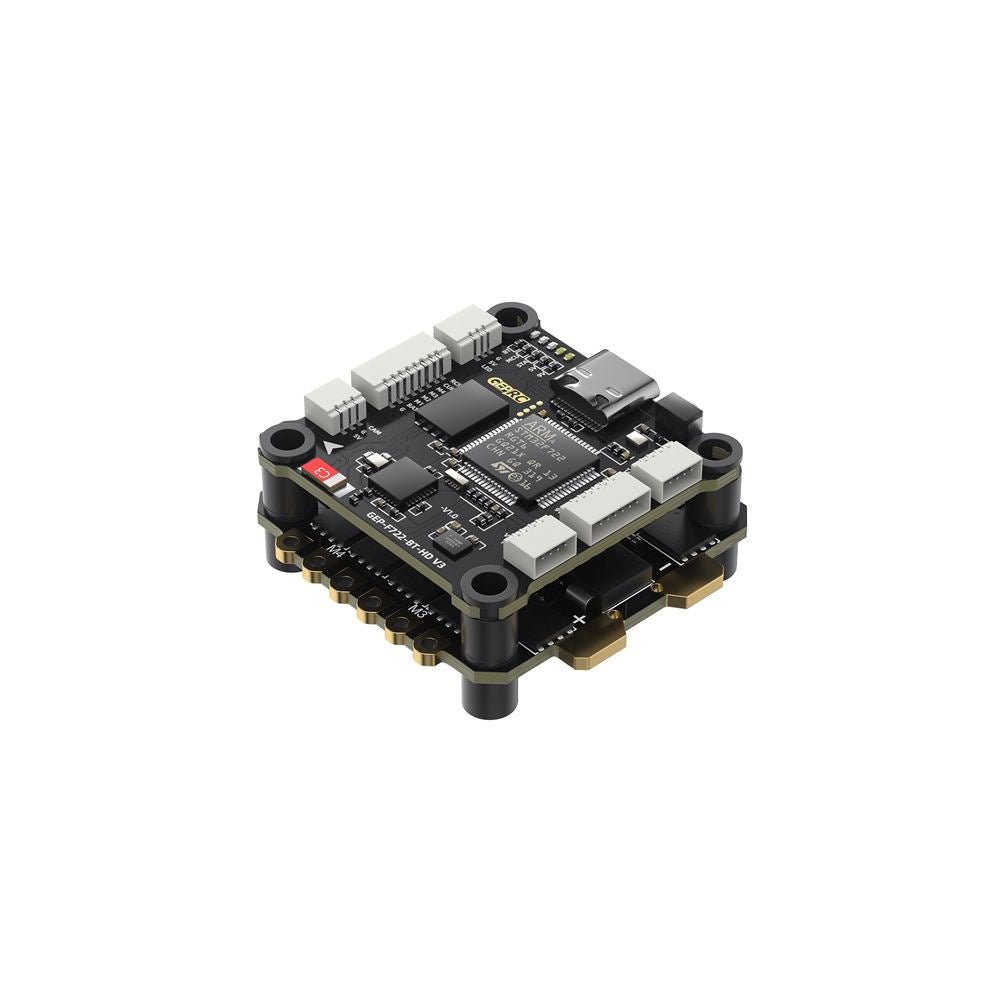

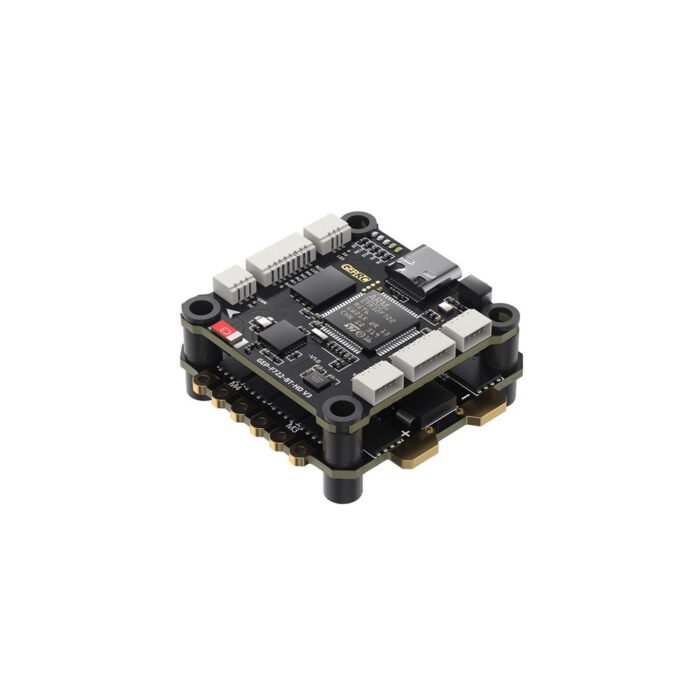

With the GEPRC TAKER F722 BT 32Bit 50A BL32 3-6S Stack, you’ll have access to advanced BL32 technology that enhances performance and increases efficiency. This stack is designed to provide unparalleled power and precision, giving you the ultimate edge in your flights.

Check out all our 30x30mm Stacks and the rest of our GEPRC products.

1 1f04f85c dc11 40e2 ad3d 89b6ac4cd013

3 1ce2ad05 c63b 4b0c b5ac 524e7fe70162

4 f5208026 332b 4e88 a0e7 9256541d4d18

Features:

1. Use mainstream STM32F722 chip
2. Equipped with the latest 42688-P gyroscope
3. 512M black box storage
4. Support Bluetooth parameter tuning
5. Integrated LC filter
6. Upgrade type-C USB interface
7.With GEP-BL32 50A 96K 4IN1 32Bit ESC, silky flight
8. Directly plugs into the DJI Air Unit
9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
10. Integrated Barometer
11. 9V@2.5A + 5V@3A dual independent BEC

Specifications:

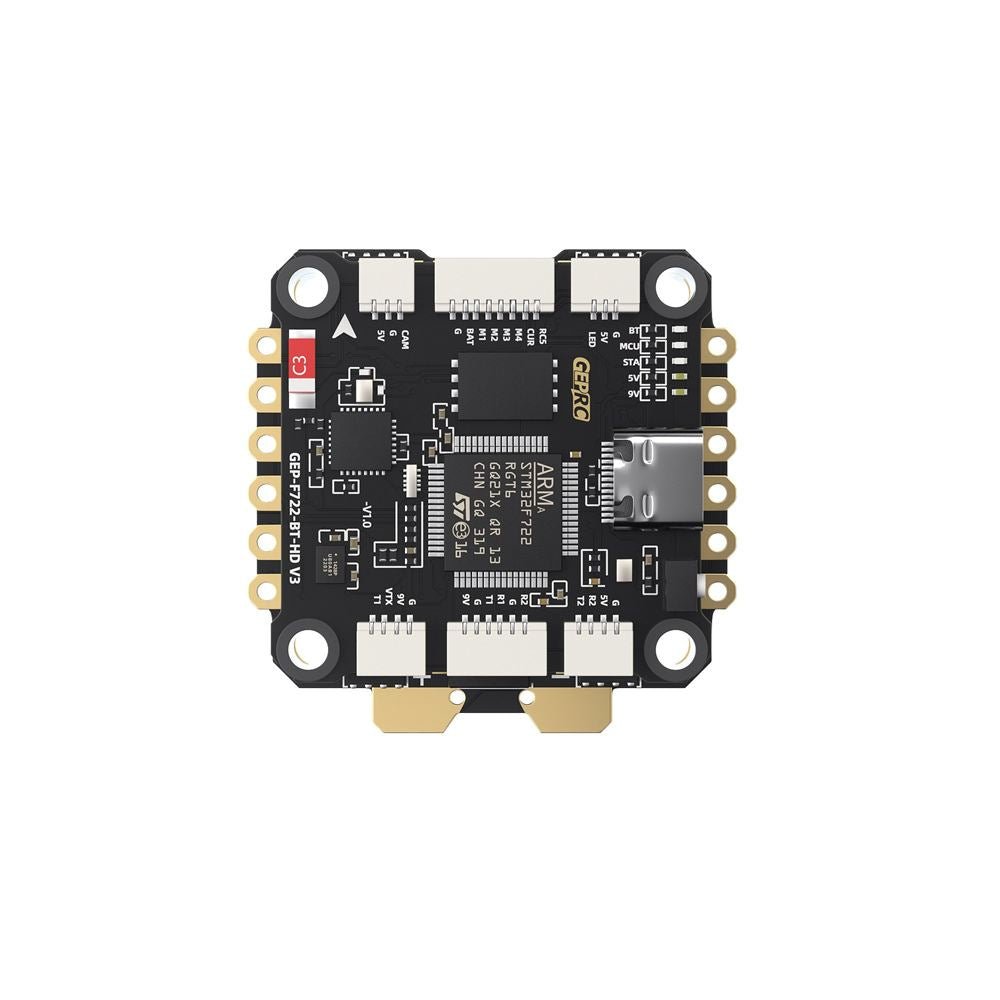

GEP-F722-BT-HD V3 Flight Controller

MCU: STM32F722
IMU：ICM42688-P(SPI)
Air Unit Connection: Directly plugs into the DJI Air Unit
Black Box: 512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD: BetaFlight OSD w/ AT7456E chip
BEC: 5V@3A, 9V@2.5A dual BEC
Firmware Target: GEPRCF722_BT_HD_V3
Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
Input Voltage: 3-6S LiPo
UART: 5 groups (UART4 fixed for Bluetooth)
Power Filter: Integrated LC filter
Weight: 8.2g

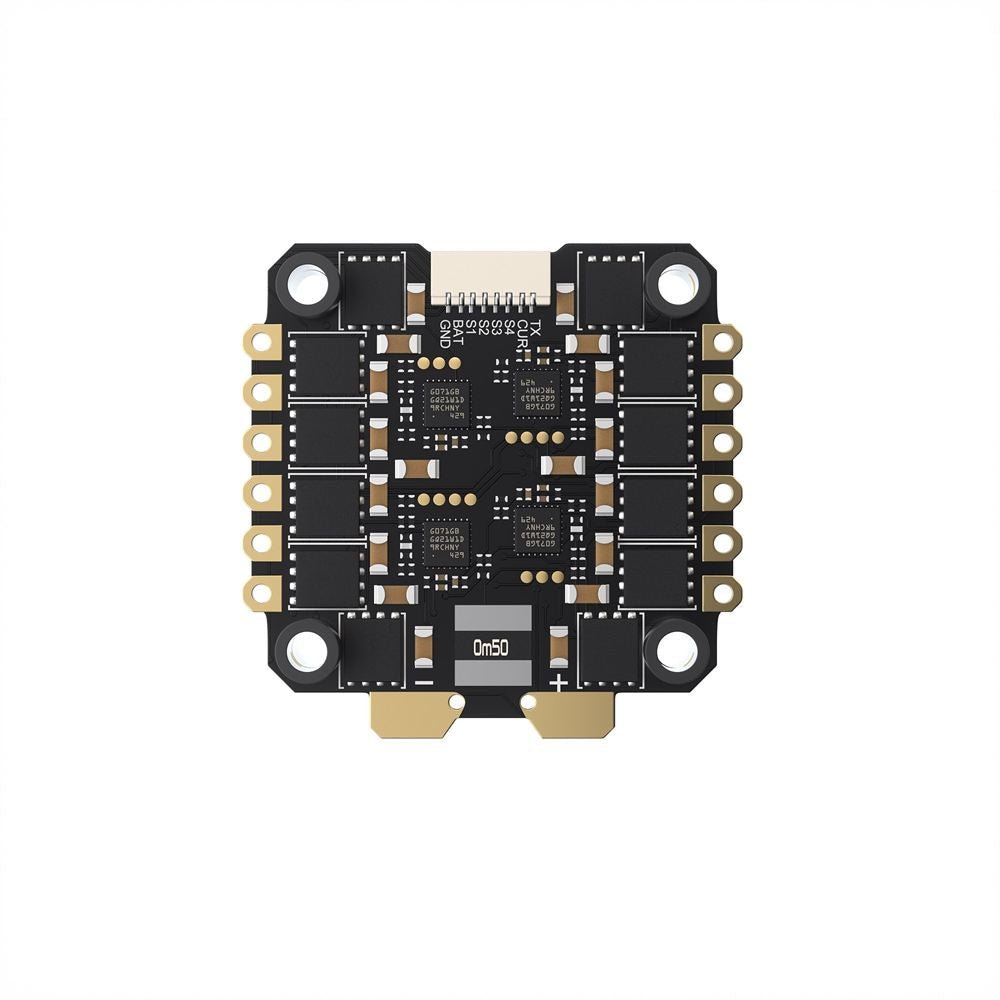

GEP-BL32 50A 96K 4IN1 ESC

Model: GEP-BL32 50A 96K 4IN1 ESC
Input Voltage: 3-6S Lipo
Continue Current：50A
Burst Current: 55A (5 second)
Galvanometer：Support
Telemetry: Support
Support Protocol: Dshot 150/300/600
Size：42.5×42.1mm，hole30.5×30.5mm
Weight：14g
Target: ST_G0_05 – 31.92
Note: Pre-installed with BL32 test firmware, extensively tested for safety and reliability
(AM32 also supported; customer flashing required.)

Package Includes:

1 x FC board
1 x ESC board
1 x Capacitor
1 x O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x XT90 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads
