Not only does the GEPRC TAKER F722 BT 8Bit 65A BLS Stack boast advanced 8-bit technology and a compact size of 30*30mm, but it also offers high performance with its 60A BLS stack. Perfect for experienced pilots looking to take their flights to the next level with precision and control.

Check out all our 30x30mm Stacks and the rest of our GEPRC products.

1 2bd26d5b ed0b 4ce9 aea6 96efac3c5f29

3 6ffbd93f 642d 4ec8 80fd b7bf63c1d777

4 60ec685e e05d 4cb7 9669 8bf22314b49f

Features:

1. Use mainstream STM32F722 chip
2. Equipped with the latest 42688-P gyroscope
3. 512M black box storage
4. Support Bluetooth parameter tuning
5. Integrated LC filter
6. Upgrade type-C USB interface
7.With TAKER H65_8S_BLS 65A 4IN1 ESC, silky flight
8. Directly plugs into the DJI Air Unit
9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
10. Integrated Barometer
11. 9V@2.5A + 5V@3A dual independent BEC

Specifications:

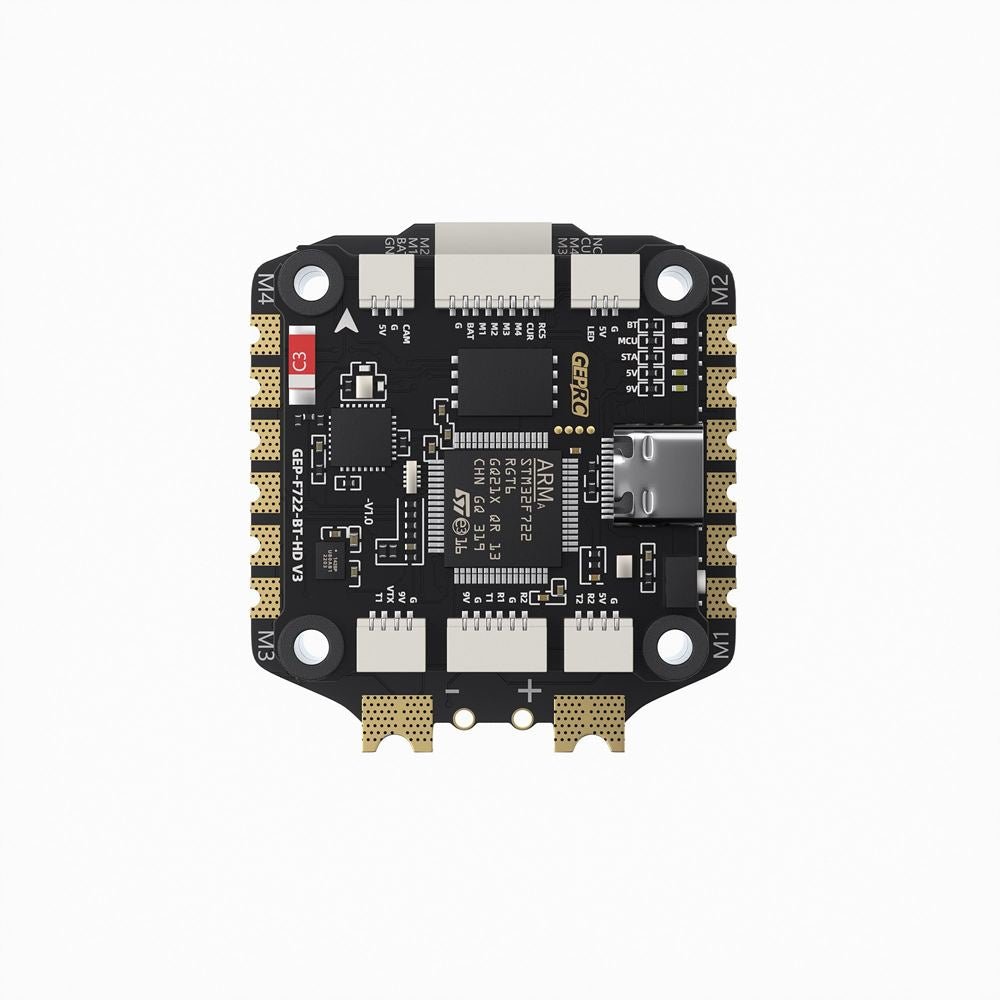

GEP-F722-BT-HD V3 Flight Controller

MCU: STM32F722
IMU：ICM42688-P(SPI)
Air Unit Connection: Directly plugs into the DJI Air Unit
Black Box: 512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD: BetaFlight OSD w/ AT7456E chip
BEC: 5V@3A, 9V@2.5A dual BEC
Firmware Target: GEPRCF722_BT_HD_V3
Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
Input Voltage: 3-6S LiPo
UART: 5 groups (UART4 fixed for Bluetooth)
Power Filter: Integrated LC filter
Weight: 8.2g

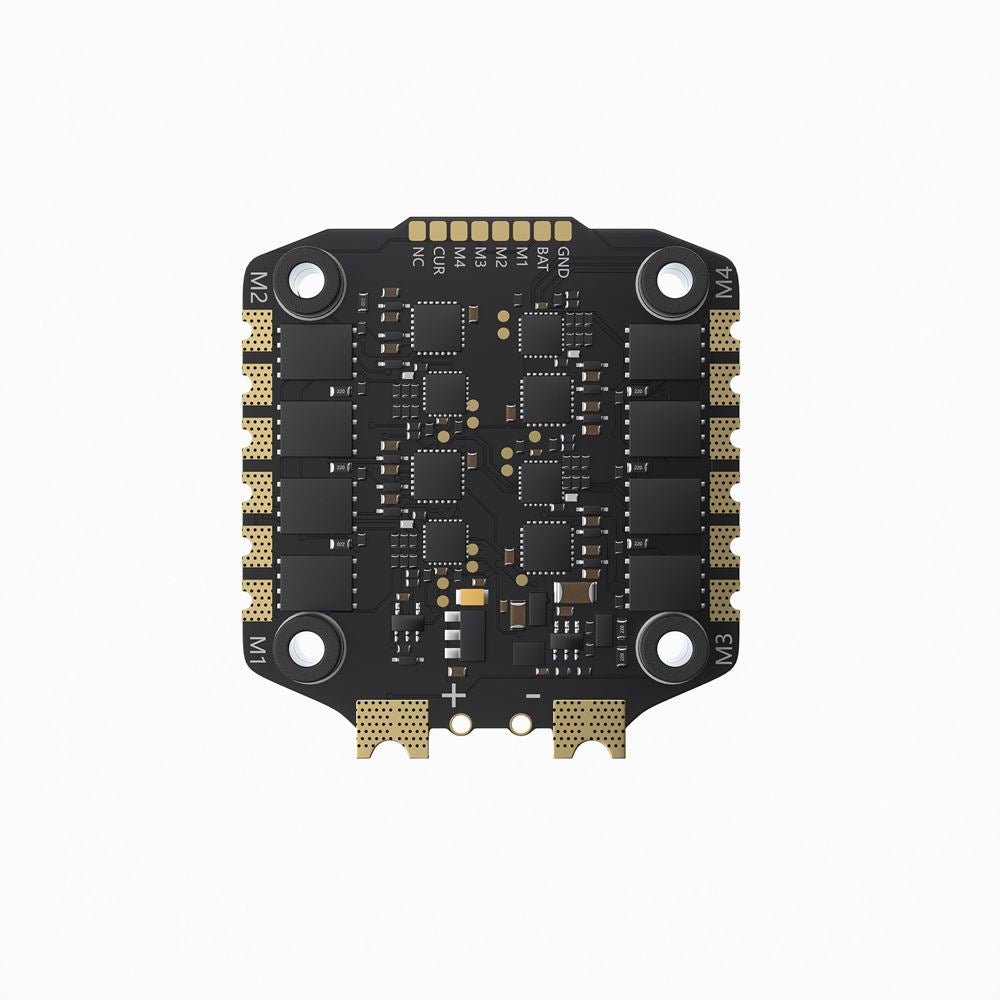

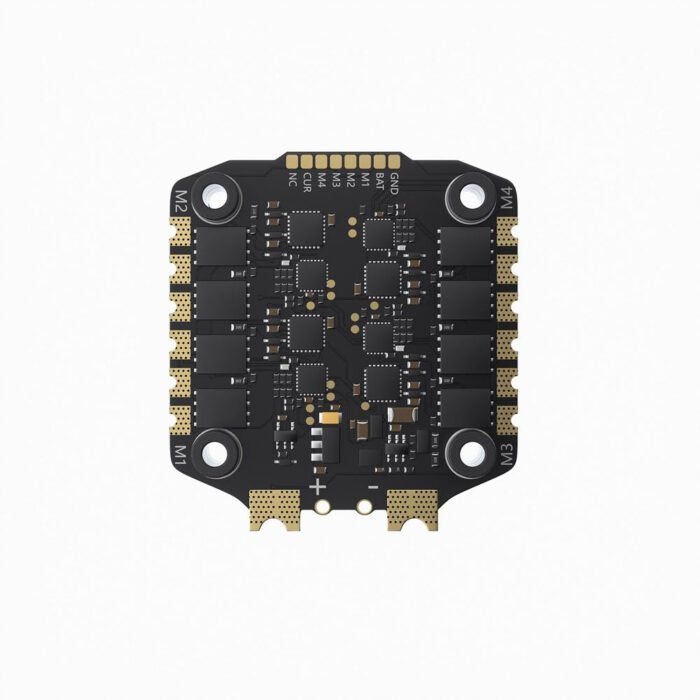

TAKER H60_BLS 60A 4IN1 ESC

Input Voltage: 3-6S Lipo
Ammeter: Support
Continue Current：60A
Burst Current: 65A (5 second)
Support Protocol: Dshot 150/300/600
Size: 42×45.7mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring
Weight: 14.9g
Target: B_X_30

Package Includes:

1 x FC board
1 x ESC board
1 x Capacitor
1 x O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x XT90 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads
