Not only does the GEPRC TAKER F722 BT 8Bit 65A BLS Stack boast advanced 8-bit technology and a compact size of 30*30mm, but it also offers high performance with its 65A BLS stack. Perfect for experienced pilots looking to take their flights to the next level with precision and control.

Check out all our 30x30mm Stacks and the rest of our GEPRC products.

1 df92bf10 7ee6 4e8f 8bf0 272f5e215acf

3 5484073e dd31 4d79 a914 81ff2d496f08

4 f0ecb731 51a3 4b00 acf1 3a441bee0eb3

Features:

1. Use mainstream STM32F722 chip
2. Equipped with the latest 42688-P gyroscope
3. 512M black box storage
4. Support Bluetooth parameter tuning
5. Integrated LC filter
6. Upgrade type-C USB interface
7.With TAKER H65_8S_BLS 65A 4IN1 ESC, silky flight
8. Directly plugs into the DJI Air Unit
9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
10. Integrated Barometer
11. 9V@2.5A + 5V@3A dual independent BEC

Specifications:

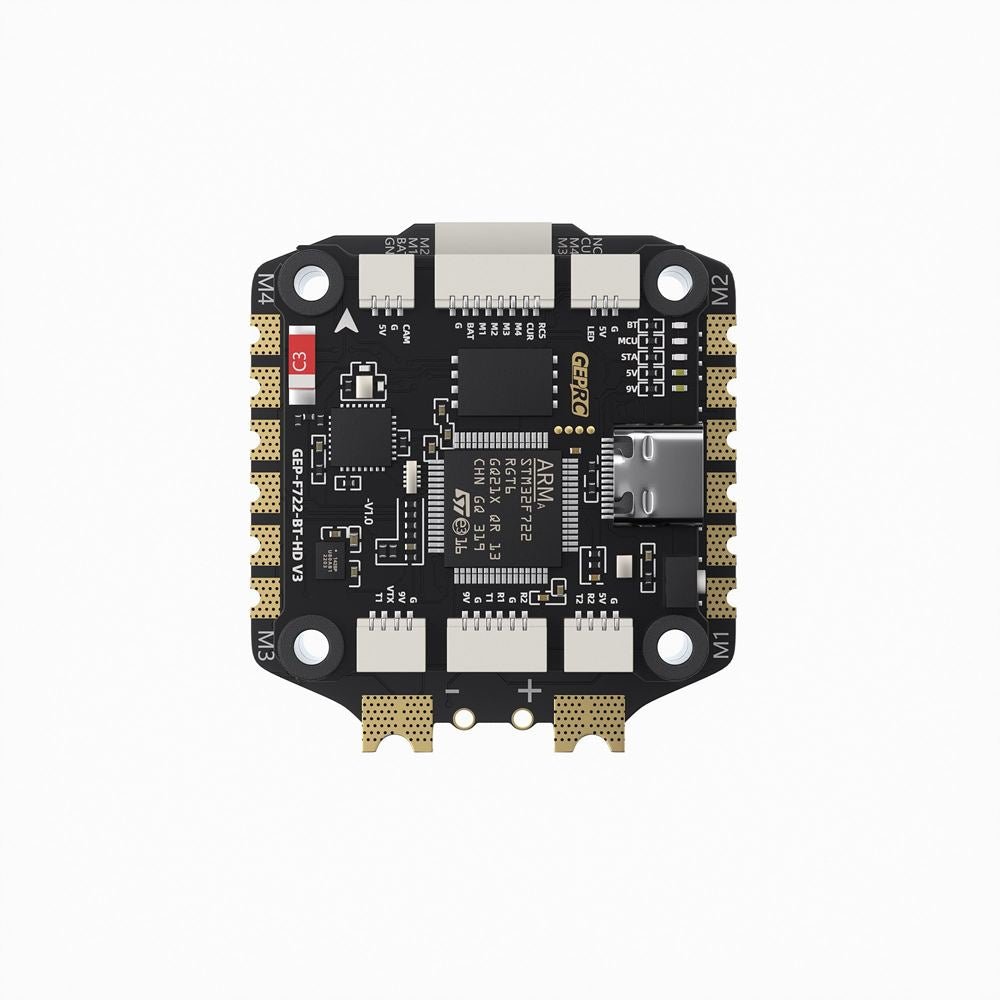

GEP-F722-BT-HD V3 Flight Controller

MCU: STM32F722
IMU：ICM42688-P(SPI)
Air Unit Connection: Directly plugs into the DJI Air Unit
Black Box: 512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD: BetaFlight OSD w/ AT7456E chip
BEC: 5V@3A, 9V@2.5A dual BEC
Firmware Target: GEPRCF722_BT_HD_V3
Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
Input Voltage: 3-6S LiPo
UART: 5 groups (UART4 fixed for Bluetooth)
Power Filter: Integrated LC filter
Weight: 8.2g

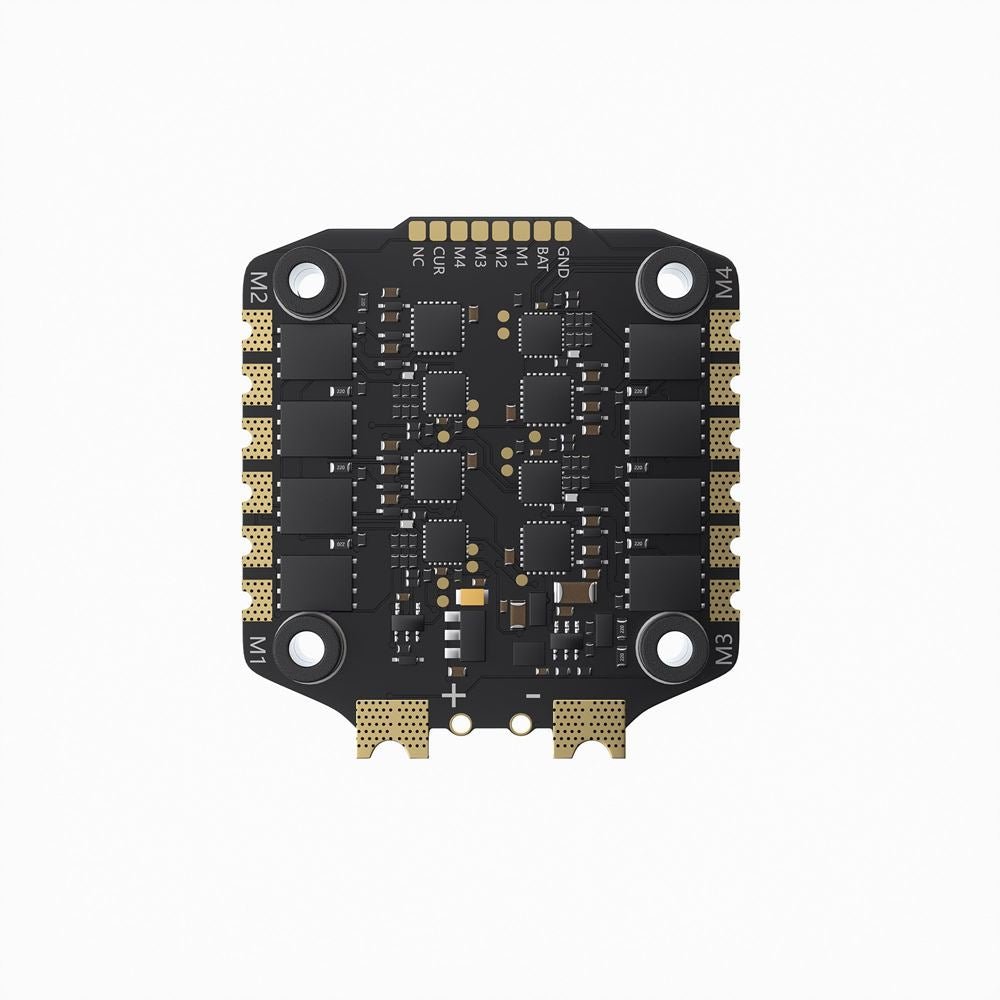

TAKER H65_8S_BLS 65A 4IN1 ESC

Input Voltage: 3-6S Lipo
Ammeter: Support
Continue Current：65A
Burst Current: 70A (5 second)
Support Protocol: Dshot 150/300/600
Size: 42×45.7mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring
Weight: 14.9g
Target: B_X_30

Package Includes:

1 x FC board
1 x ESC board
1 x Capacitor
1 x O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x XT60 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads
