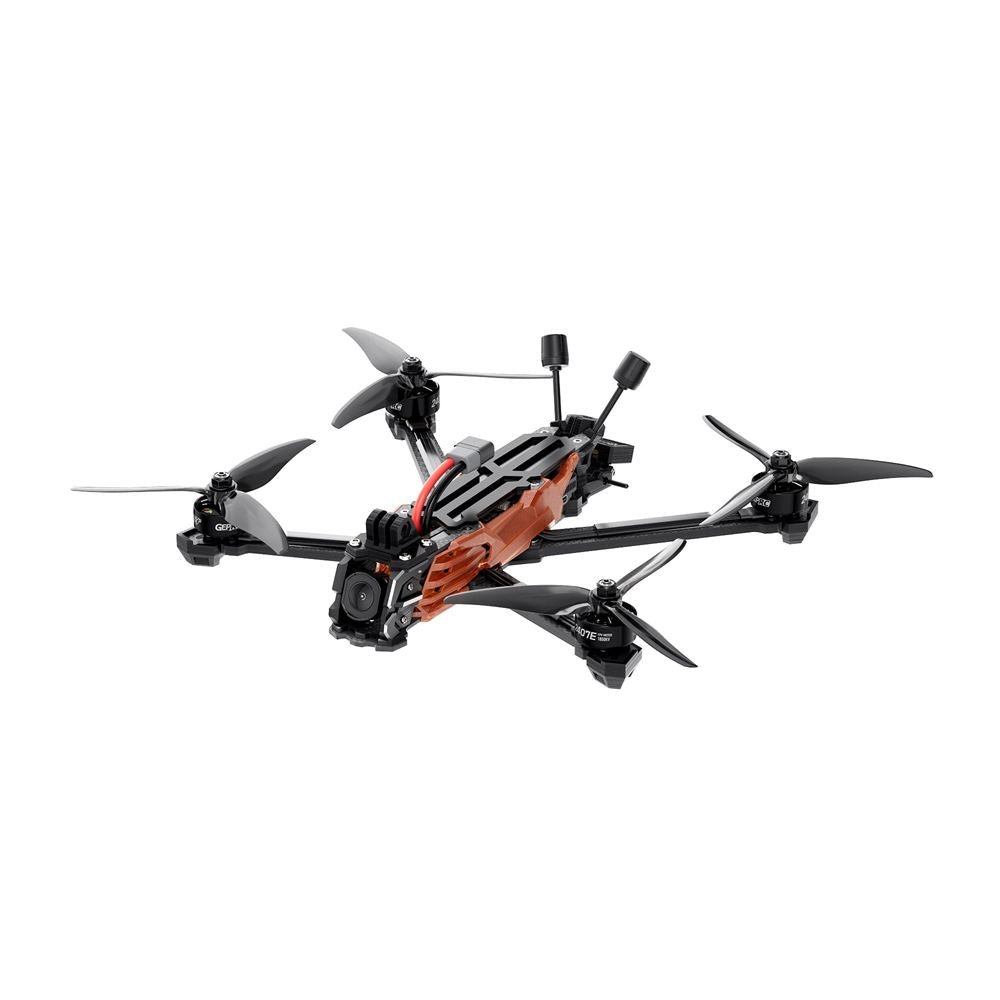

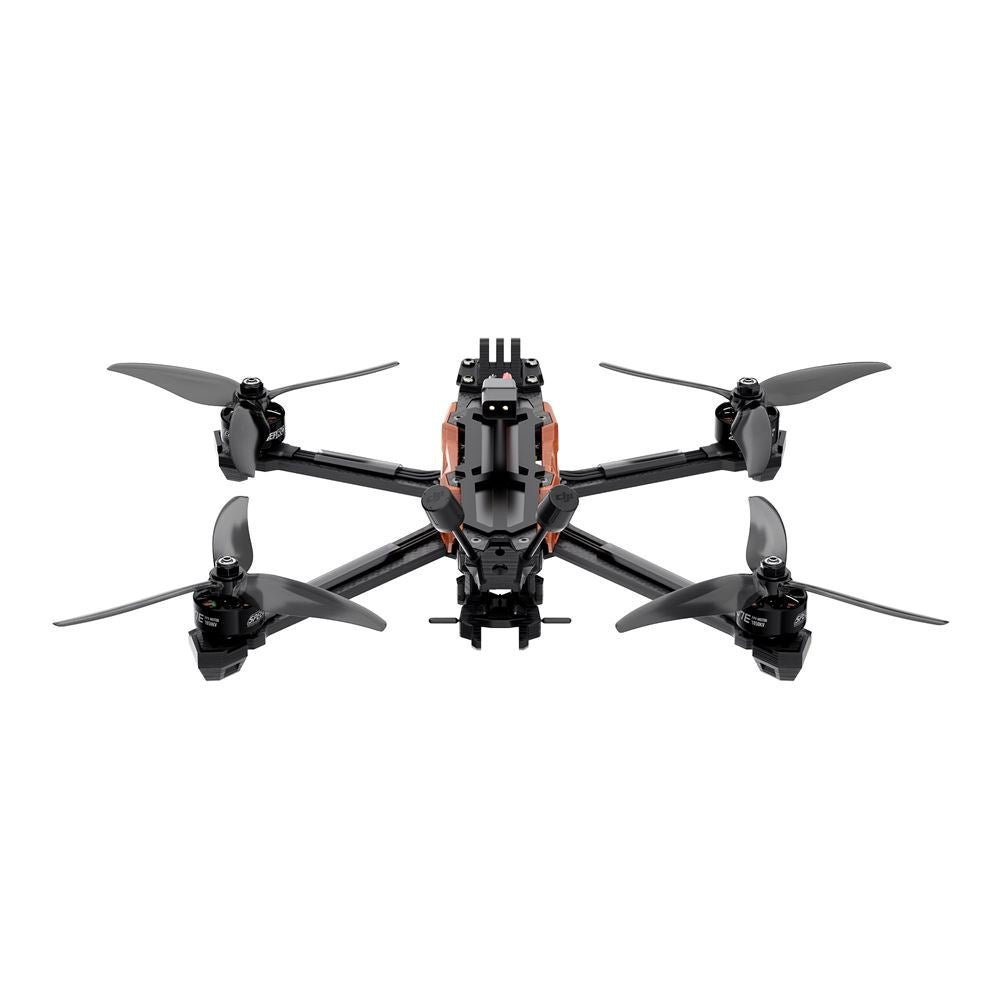

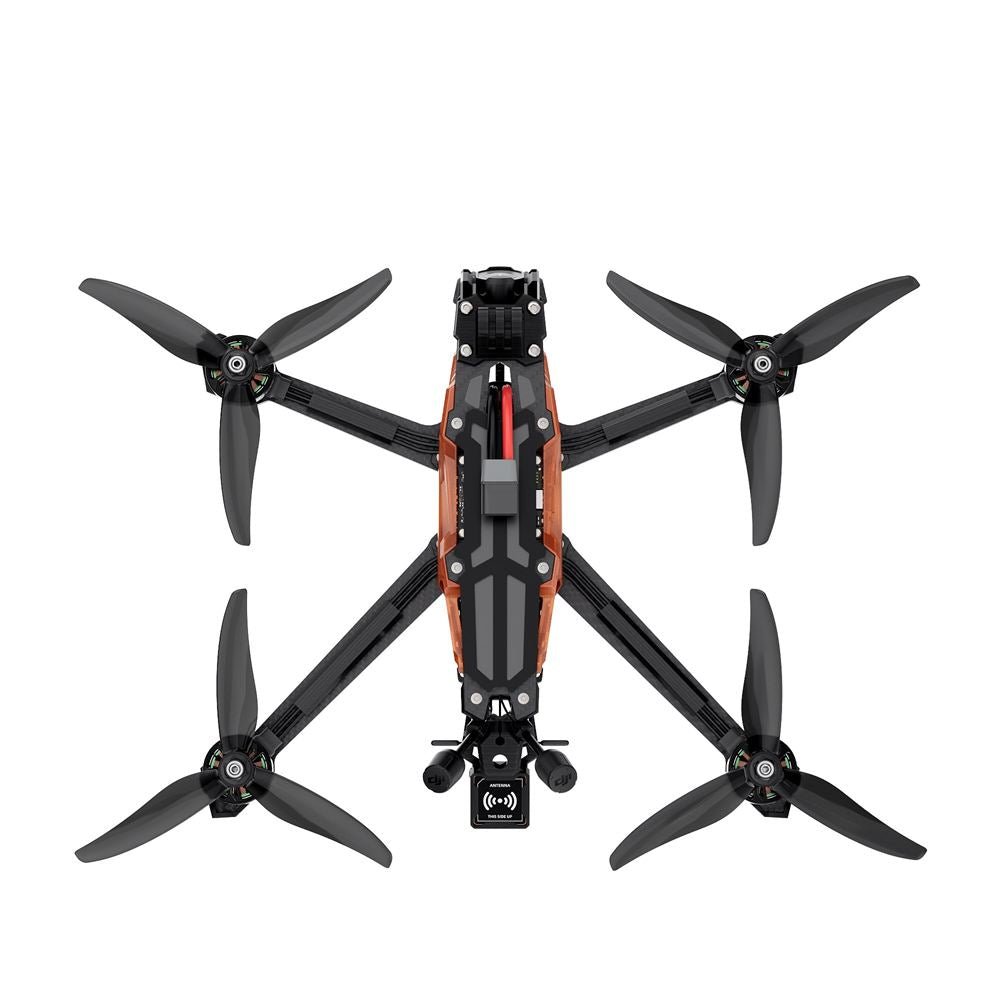

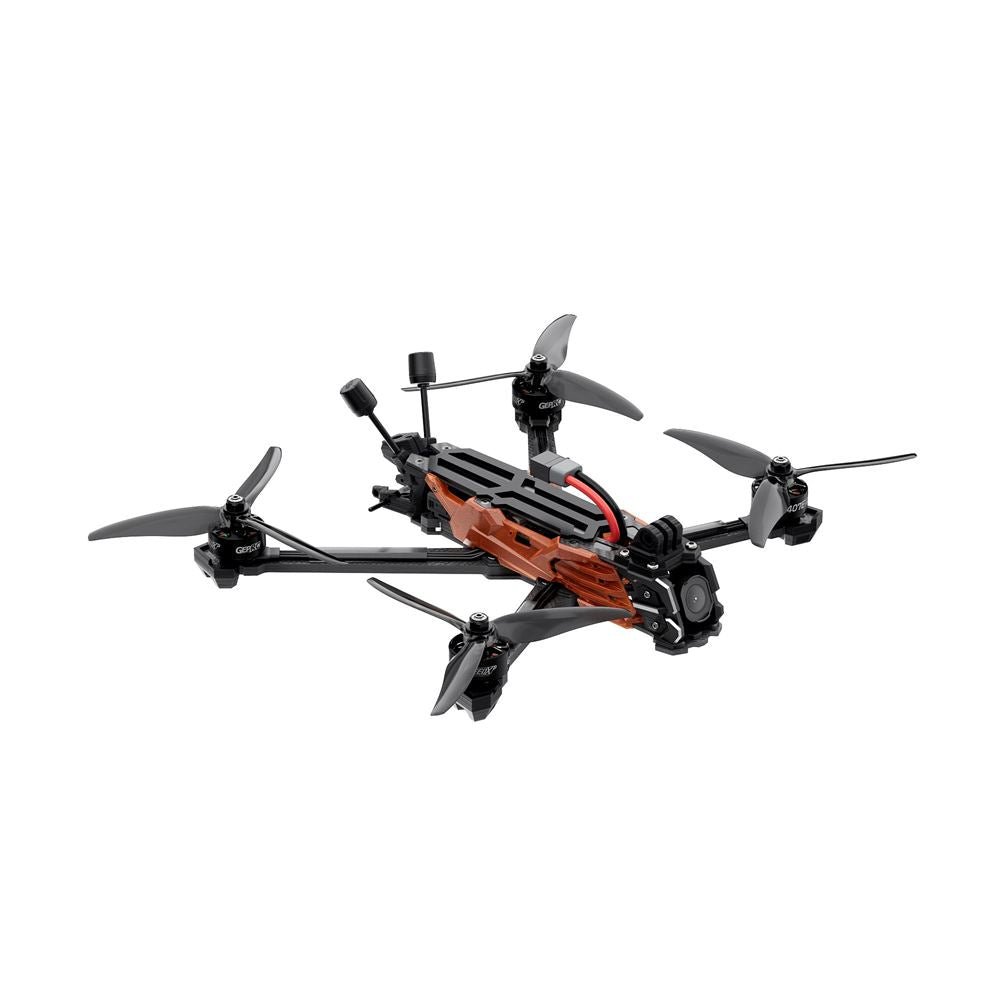

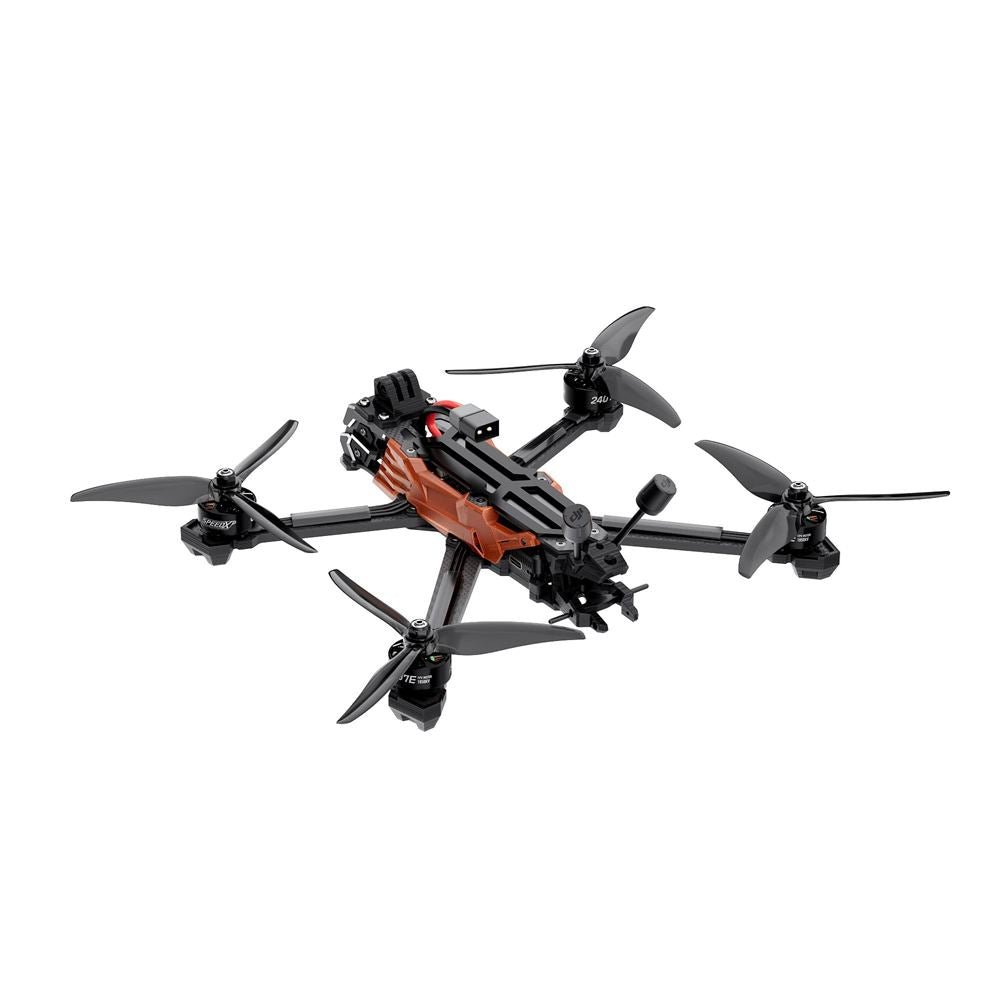

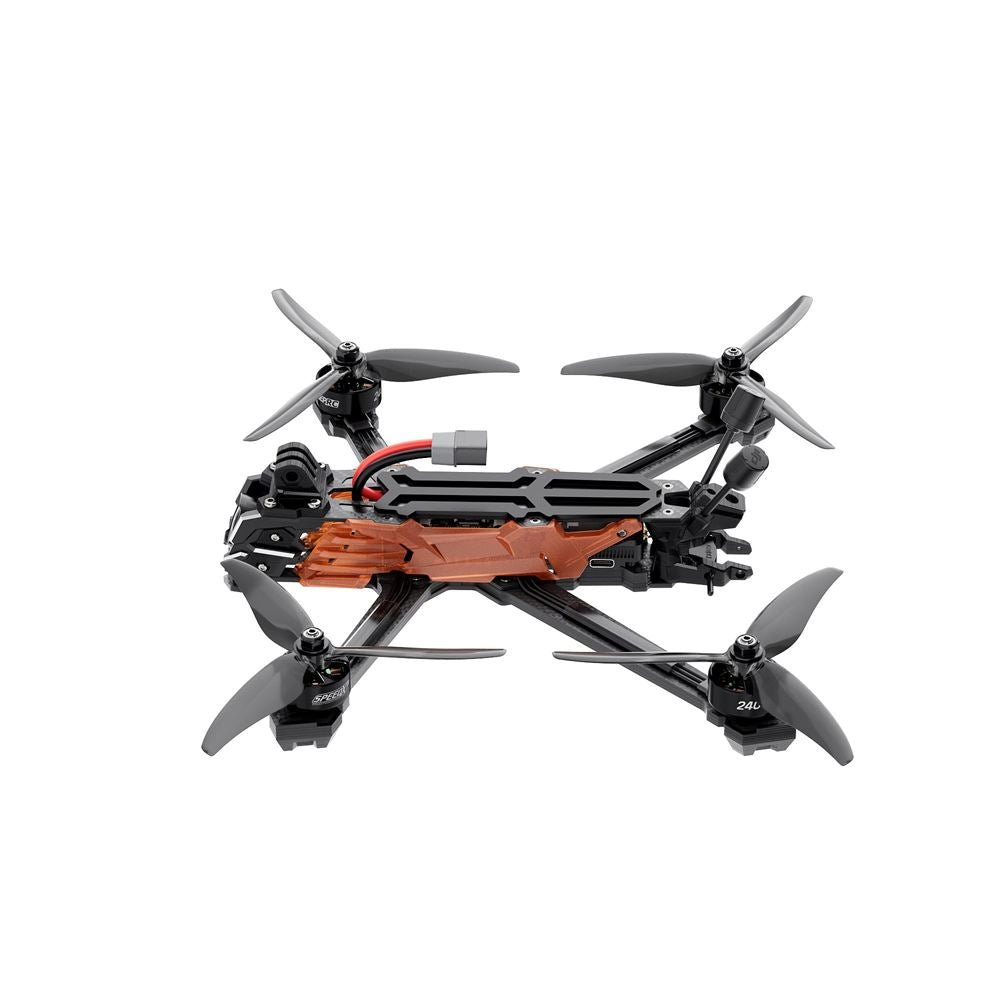

GEPRC Vapor-D6 HD 6S 6″ BNF W/ DJI O4 Pro and GPS – Choose Receiver Type

The GEPRC team has redesigned the Vapor series for optimal compatibility with the DJI O4 Air Unit Pro VTX.

New aluminum lens components and shock-absorbing silicone reduce vibrations, while the sharp new side panels give it a bold, mech-inspired look. The DJI O4 Air Unit Pro??s larger CMOS sensor enhances image detail and sensitivity, and the GEPRC-tuned PID settings ensure a smooth and immersive flight experience.

Available in two models, Wide X and DC, to suit different flight needs.

Here You can find all the Vapor Frames and Parts Collection.

Check out our other?Digital BNF/PNP/RTFs and the rest of our?GEPRC products!

Features:

• DJI O4 Air Unit Pro features a powerful CMOS sensor for improved image clarity and enhanced light sensitivity.
• CNC aluminum lens housing for a durable, bold design.
• GEPRC SPEEDX2 E-series motors for smooth, powerful performance.
• Front lip design provides extra lens protection for confident flying.
• Wider 5mm carbon fiber arms for increased durability and a sleek build.

Specifications:

• Model: Vapor-D6 O4 Pro
• Frame: GEP-Vapor-D6 O4 Pro frame
• Wheelbase: 274.60 mm
• Top Plate: 2.0 mm
• Middle Plate: 2.0 mm
• Bottom Plate: 2.5 mm
• Arm Thickness: 5.0 mm
• FC: GEP-F722-HD v2
• MCU: STM32F722
• Gyro: ICM42688-P(SPI)
• Barometer: YES
• OSD: Betaflight OSD w/AT7456E
• ESC: TAKER H60_BLS 60A 4IN1 ESC
• VTX: DJI O4 Air Unit Pro Transmission Module
• Camera: DJI O4 Air Unit Pro Transmission Module
• Antenna: DJI O4 Air Unit Pro Antenna
• Connector: XT60
• Optional GPS: GEP-M10 GPS
• 6-inch Motor: GEPRC SPEEDX2 2407E 1750KV
• 6-inch Propeller: HQprop 6X3.5X3
• Vapor-D6 O4 Pro PNP ?Version Weight: 465 g??5g
• Receiver: PNP/GEPRC ELRS24/TBS Nano RX
• Recommended Battery: 6S LiPo1500mAh ?C 2000mAh
• Flight Time: 14-19 min

Package Includes:

• 1 x Vapor-D6 O4 Pro
• 2 x HQprop 6X3.5X3
• 2 x Battery anti-slip pads
• 1 x Spare screw pack
• 1 x Vapor side panel
• 2 x M20*250mm battery straps
• 1 x L-shaped screwdriver 1.5mm
• 1 x L-shaped screwdriver 2.0mm
• 1 x GoPro mount

The spare screws include

• 6 x M3*10mm round head screws
• 6 x M3*8mm round head screws
• 2 x M3*6mm flat head screws
• 1 x M5*28mm thin head screw
• 1 x M5 flange nut
• 4 x M3 rivet nuts
