Happymodel Moblite7 HDZero 1S 75mm Brushless HD FPV Whoop Drone – Choose Receiver

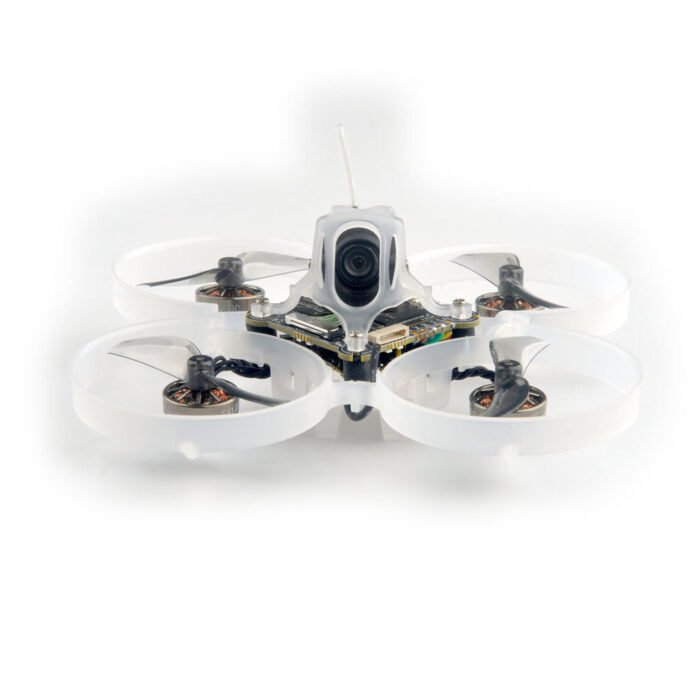

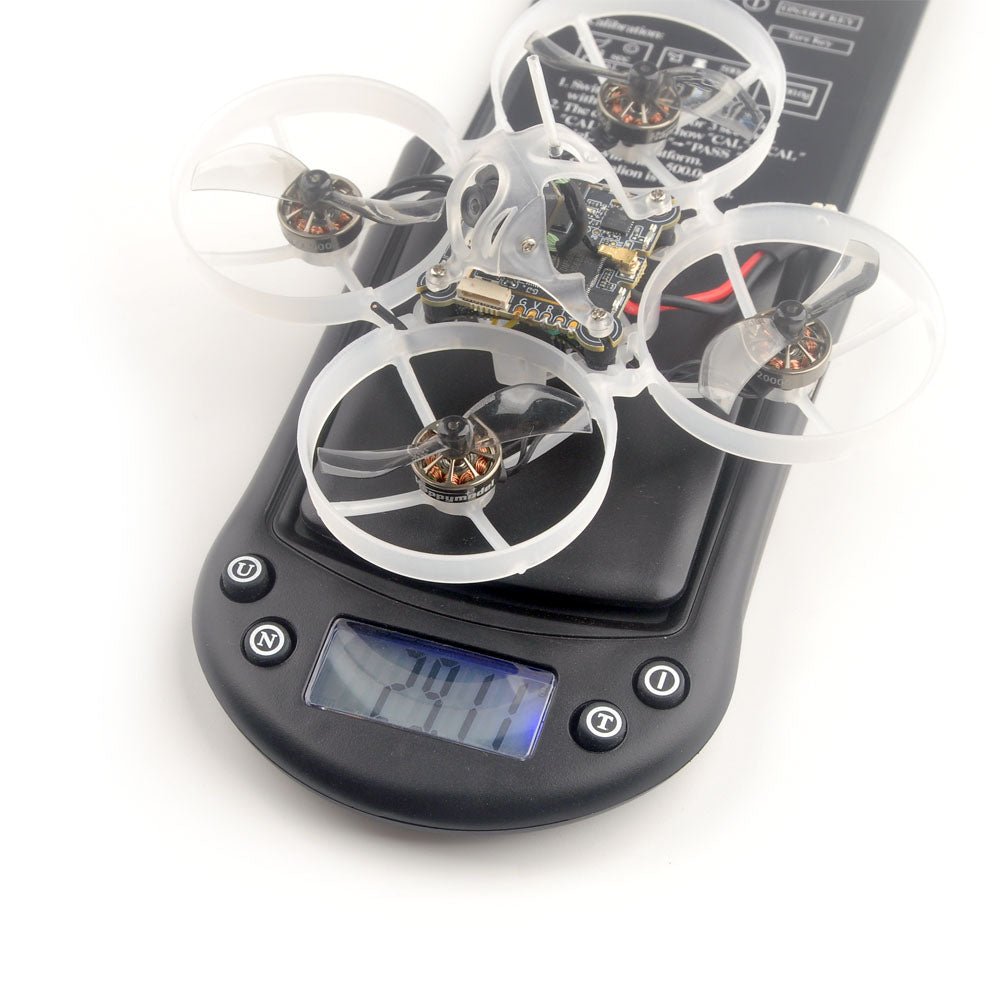

The Happymodel Moblite7 HDZero Whoop is a 75mm HD brushless whoop weighing just 29.5 grams. It features the HDZero Whoop Lite VTX and Nano Camera and built-in SPI ELRS 2.4GHz or FrSky 2.4GHz receiver.  With powerful EX1002 KV20000 motors, and Superbee F4 Lite flight controller, this should be a great performing high-definition whoop you can fly just about anywhere.

Check out our Micro Whoop Drones and our entire Happymodel Collection!

FC Specifications:

• SPI ELRS version Firmware target: CrazybeeF4SX1280
• MCU: STM32F411CEU6 (100MHz, 512K FLASH)

• Sensor: ICM42688P

• Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V)

• Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

• Built-in Betaflight OSD(SPI Control)

• Built-in SPI Frsky/ExpressLRS receiver

• Built-in 5V 1A BEC

• Built-in voltage detection

4-in-1 ESC Specifications:

• MCU upgraded to EFM8BB21
• Power supply: 1S LiPo/LiPo HV (2.8v~4.35v)
• Currents: 5A continuous peak 6A (5 seconds)
• Support BLHeliSuite programmable
• Factory firmware: O_H_5_REV16_8.HEX
• Default protocol: DSHOT150/DSHOT300/DSHOT600

ELRS SPI Receiver Specifications:

• Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz

• RF Frequency: 2.4GHz

• Telemetry output Power: <12dBm

• Receiver protocol:  SPI ExpressLRS

• Could bind with ELRS V2.0 firmware TX module

FRSky SPI Receiver Specifications:

• SPI BUS receiver Frsky D8/D16 compatible

• Compatible Non EU transmitter D8 model and EU-LBT(Frsky_x_lbt)

• Channels: 8ch or 16ch

• Failsafe support

• No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m

• Based on CC2500 RF module Compatible with Futaba S-FHSS , Redpine protocol

Motor Specifications:

• Model: EX1002 20000KV

• Configuration: 9N12P

• Stator Diameter: 10mm

• Stator Length: 2mm

• Shaft Diameter: Φ1.5mm

• Motor Dimension(Dia.*Len): Φ13.5mm*12.5mm

• Weight(g): 2.5g

• No. of Cells(Lipo): 1S only

Gemfan 1610-2 Propeller Specifications:

• Weight: 0.24g

• Material: PC

• Pitch: 1 inch
• Props Dia: 40mm

• Center Hole Dia: 1.5mm

HDZero Nano Lite Camera Specifications:

• Dimensions: 14x16x11 mm

• Weight: 1.5gram

• Sensor: 0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor

• Excellent low light performance

• FOV:
  4:3: D:130° H:108° v:84°
  16:9:D:122° H:108° V:65°

HDZero Whoop Lite VTX Specifications:

• 1S Input

• 25mW/200mW RF Output-SmartAudio Support

• 25.5×25.5 M2 Soft Mounting- Antenna Retention

• Removable Shielding Box- 32.5×32.5mm(29x29mm inner)

• 4.5grams/4mm Thickness (without shielding)

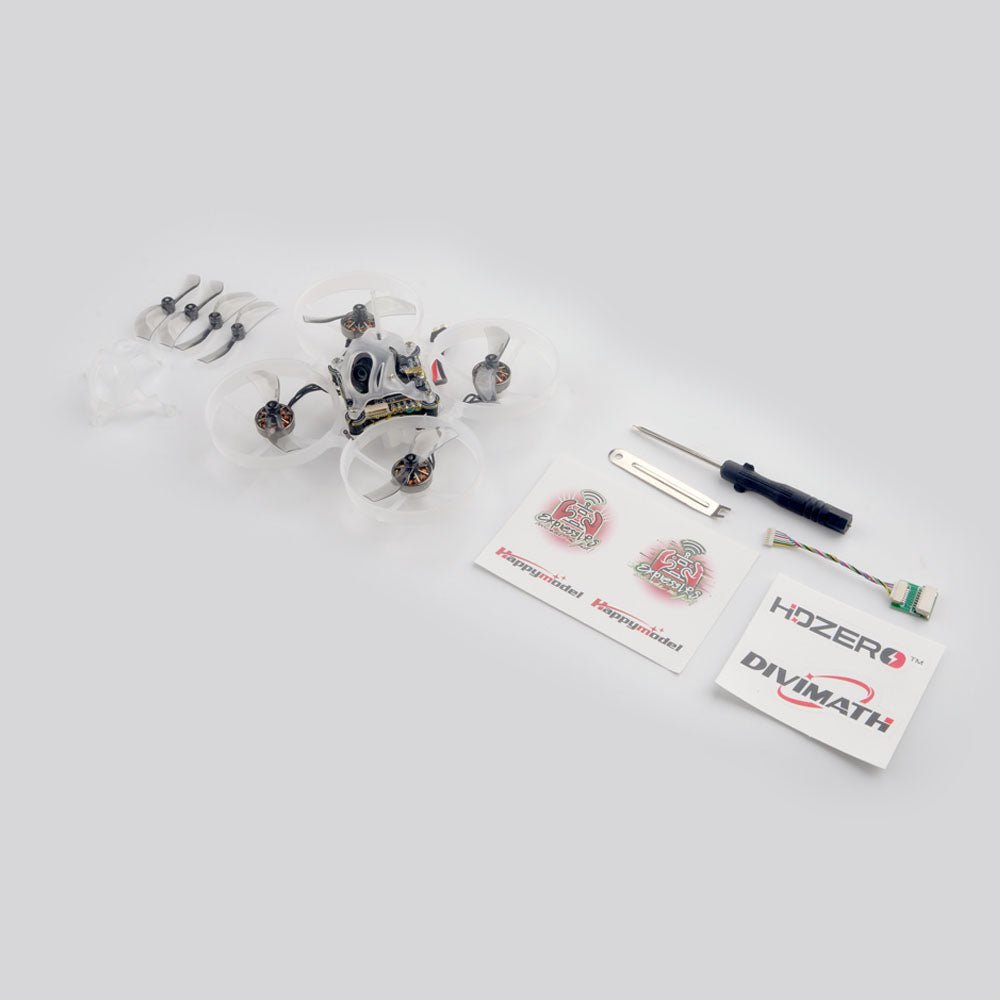

Package Includes:

• 1 x Happymodel Moblite7 HDZero 1S 75mm Brushless HD FPV Whoop Drone – Chosen Receiver
• 1 x Moblite7 Spare Canopy
• 1 x Gemfan 1610 propeller Set (4cw+4ccw)
• 1 x Propeller disassemble tool
• 1 x Screwdriver
