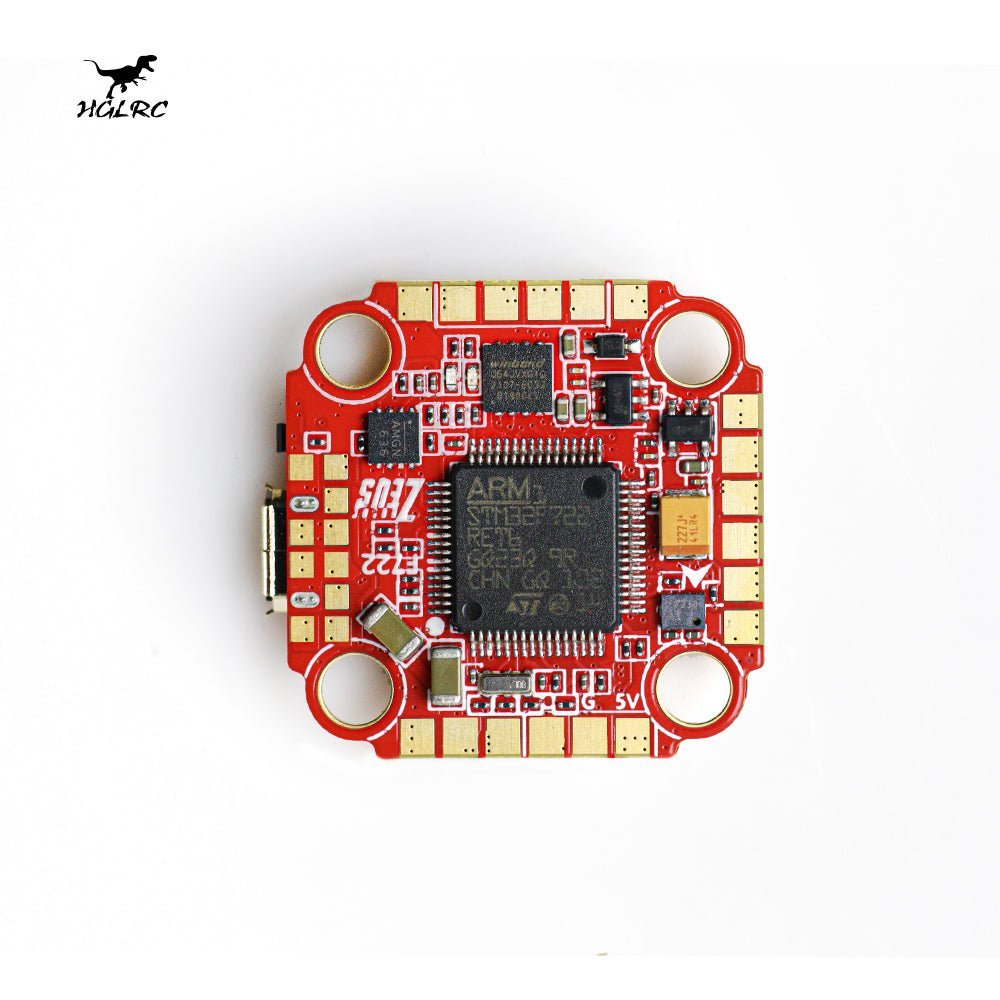

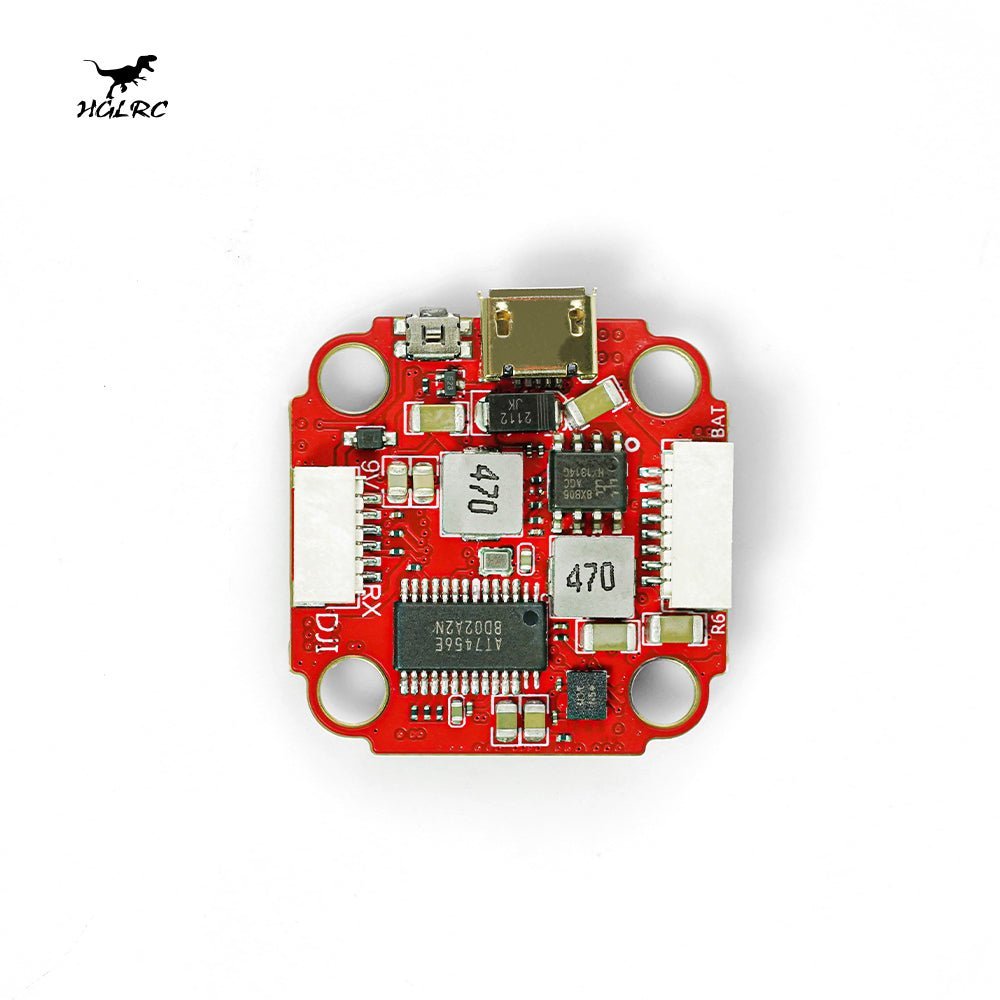

HGLRC DJI Zeus F722 mini 3-6S F7 Flight Controller Betaflight | Emuflight | iNav – 20x20mm

HGLRC DJI Zeus F722 mini 3-6S F7 Flight Controller Betaflight | Emuflight | iNav – 20x20mm

Check out all our 20×20 Flight Controllers and the rest of our HGLRC Products!

See all our DJI Plug and Play Flight Controllers and Stacks!

Features:

• 1. You can connect quickly to the DJI Air Unit via the socket

• 2. The processor STM32F722 is used to operate more stably.

• 3. The GYRO BMI270 is used to improve the flight stability.

• 4. 8M black box is integrated to record flight data accurately.

• 5. Maximum output is up to BEC 9V1.5A / BEC 5V2A

• 6. TVS diode is added to reduce the damage of strong current to FC while crashing.

Specifications:

• Usage: for 100mm-450mm Frame Kit
• FC Firmware: BF HGLRCF722(HGLR)
• MPU: BMI270
• Barometer: DPS310
• UARTS: 5
• CPU: STM32F722 RET6
• Input Voltage: 3-6S Lipo
• Built-in Betaflight OSD to adjust PID
• BEC Output: 9V/1.5A
• 5V/2A
• BlackBox: 8M
• Size: 29x28mm
• Installing Hole: 20X20mm/M3
• Weight: 5g

Package Includes:

• 1 x Zeus F722 mini Flight Controller
• 5 x M3 silicone dampener
• 1 x SH1.0 8PIN 60mm Cable
• 1 x DJI AIR UNIT PORT CABLE 90mm
