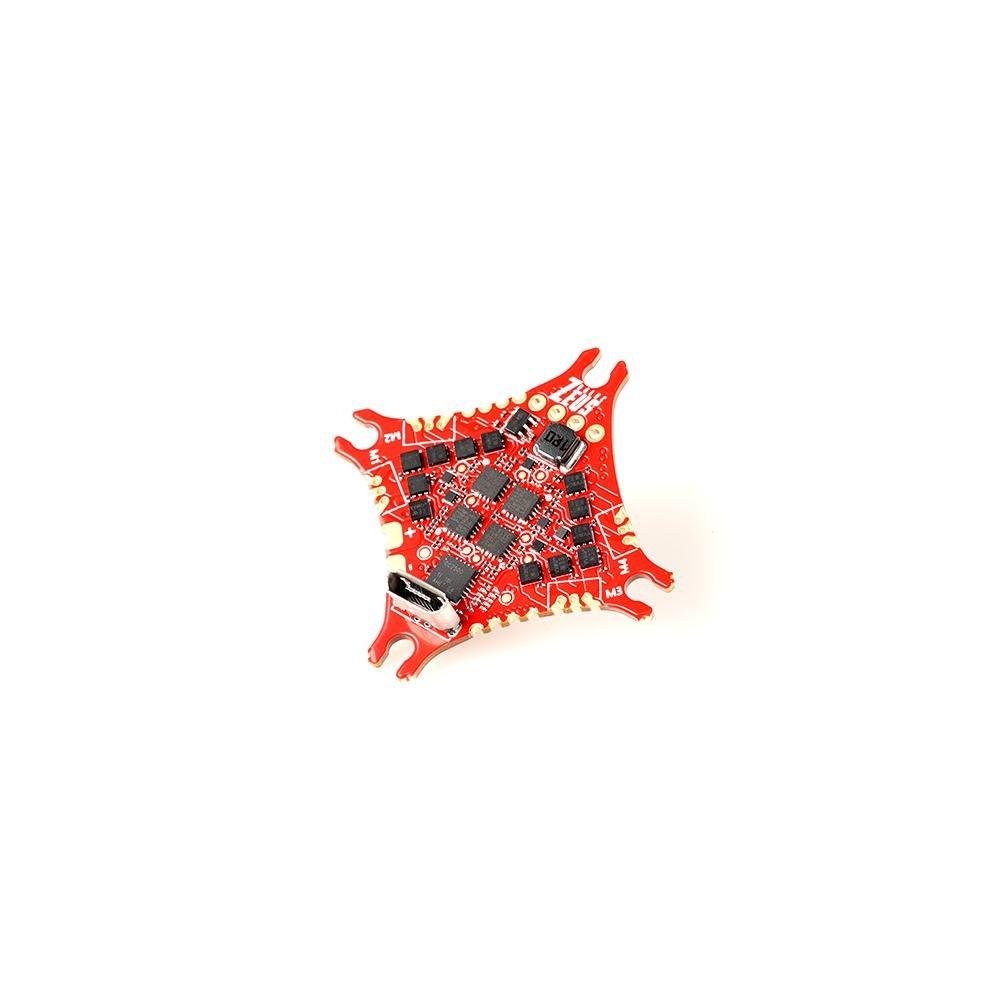

HGLRC Zeus5 FR AIO 1-2S F411 Flight Controller 5A BL_S 4in1 ESC Frsky SPI RX

An ultralight whoop style flight controller with integrated SPI Frsky receiver (separate RX can be used), replacement for thr Rekon 3 NLR or similar lightweight builds.

Checkout all our Whoop Style Flight Controllers and the rest of our HGLRC products!

Features:

• Integrated SPI receiver / supports external receiver with CRSF protocol
• Motors can be plugged on the FC directly or soldered on the pads
• Comes with 8M black box and barometer, perfect to be used with a GPS for FPV drones

Specifications:

• Brand name:HGLRC
• Item Name:ZEUS5 FR AIO
• Input Voltage:1-2S Lipo
• Usage:for 65mm-150mm Frame
• Installing Hole:25.5X25.5mm.M2
• Size:41.5×41.5mm
• Weight:4.3g
• F411 Flight Controller
• FC Firmware:ZEUSF4 FR
• CPU:STM32F411
• MPU:MPU6000
• BEC Output:5V1A
• UARTS:2
• OSD:Support
• BlackBox:8M
• Barometer:BMP280

Receiver:

• Frsky SPI Receiver
• Protocol:FRSKY_D / Frsky D16
• FRSKY_X / Frsky D8

ESC:

• 5A BL_S 4in1 ESC
• ESC Firmware:S-H-90
• Constant Current:5A
• Peak Current:6A（5 Sec）
• Support Protocols:DShot600/300/150/Oneshot125/42,MultiShot

Package Includes:

• 1x ZEUS5 FR AIO
• 1x Accessory bag
