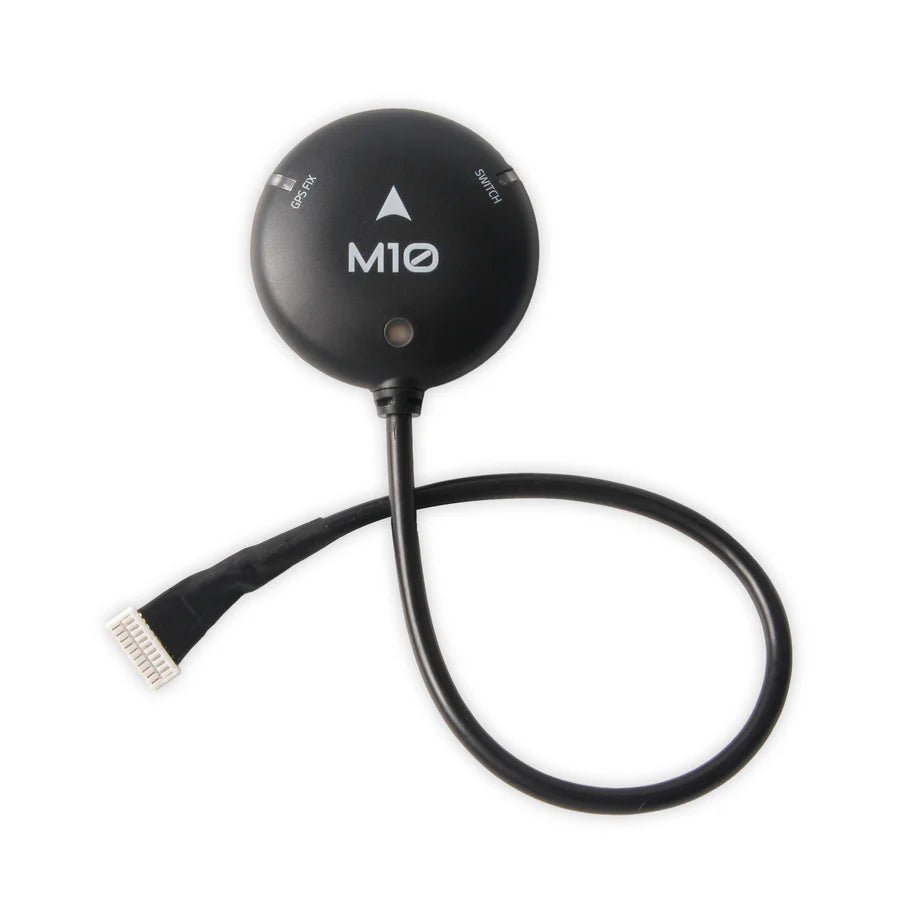

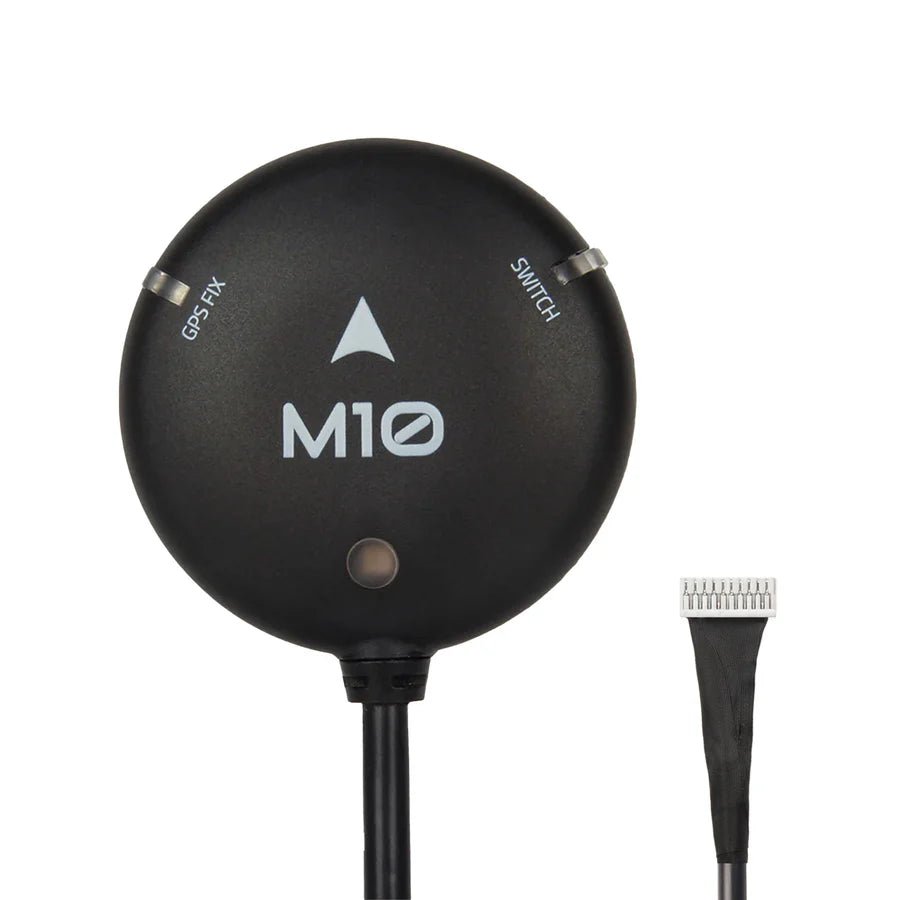

HolyBro M10 GPS Module – Standard
$57.99
| Weight | 0.095 kg |
|---|
Out of stock
Description
The M10 GPS uses multi-constellation GNSS powered by the u-blox M10 series, a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations, GPS, Galileo, GLONASS, and BeiDou, can be received concurrently.
It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connector options for different purposes. This module ships with a baud rate of 115200 5Hz.
The high-gain 25 x 25 mm patch antenna provides excellent performance, and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna and a rechargeable backup battery for warm starts.
High-Speed Drone GPS Comparison
This blog post put the Holybro M10, M9N, F9P, and Matek M10Q to an ultimate test to determine which GPS units could keep pace with a high-speed drone in acro mode while ensuring precision during RTL and autonomous missions.
Check out all our GPS and Lost Model Devices and the rest of our Holybro Collection!
Features:
- Newest Ublox 10th Gen GNSS
- Fast & Accurate Positioning
- High-gain 25*25*4mm antenna
- IST8310 Compass
- Internal Buzzer, Safety switch
- Ultra Bright UI RGB LED
Specifications:
| Holybro M10 GPS | Holybro M9N GPS | ||||
| GNSS Receiver | Ublox M10 | Ublox M9N | |||
| Number of Concurrent GNSS | Up to 4 GNSS | Up to 4 GNSS | |||
| BeiDou | BeiDou | ||||
| Galileo | Galileo | ||||
| GLONASS | GLONASS | ||||
| GPS | GPS | ||||
| QZSS | QZSS | ||||
| Frequency Band | GPS L1 | GPS L1 | |||
| Galileo E1 | Galileo E1 | ||||
| GLONASS L1 | GLONASS L1 | ||||
| BeiDou B1 | BeiDou B1 | ||||
| SBAS L1 | SBAS L1 | ||||
| QZSS L1 | QZSS L1 | ||||
| Compass | IST8310 | IST8310 | |||
| Output Protocol | UBX (U-blox) | UBX (U-blox) | |||
| NMEA | NMEA | ||||
| Accuracy | 2.0m CEP | 1.5m CEP | |||
| Nav. Update Rate | Up to 25 Hz (single GNSS), | Up to 25 Hz (4 concerrent GNSS) | |||
| Up to 10 Hz (4 concurrent GNSS) | |||||
| GNSS Augmentation System | EGNOS, GAGAN, MSAS and WAAS | EGNOS, GAGAN, MSAS and WAAS | |||
| QZSS: L1S | QZSS: L1S | ||||
| Default Baud Rate | 115200 | 115200 | |||
| Input Voltage | 4.7-5.2V | 4.7-5.2V | |||
| Connector Type |
| ||||
| Antenna | 25 x 25 x 4 mm ceramic patch antenna | ||||
| Antenna Gain | 1.5dbi | ||||
| Antenna LNA Gain | 22dB | ||||
| Power consumption | Less than 200mA @ 5V | Less than 200mA @ 5V | |||
| Operating Temperature | -40~80℃ | -40~80℃ | |||
| Dimension | φ50 x14.4 mm | φ50 x14.4 mm | |||

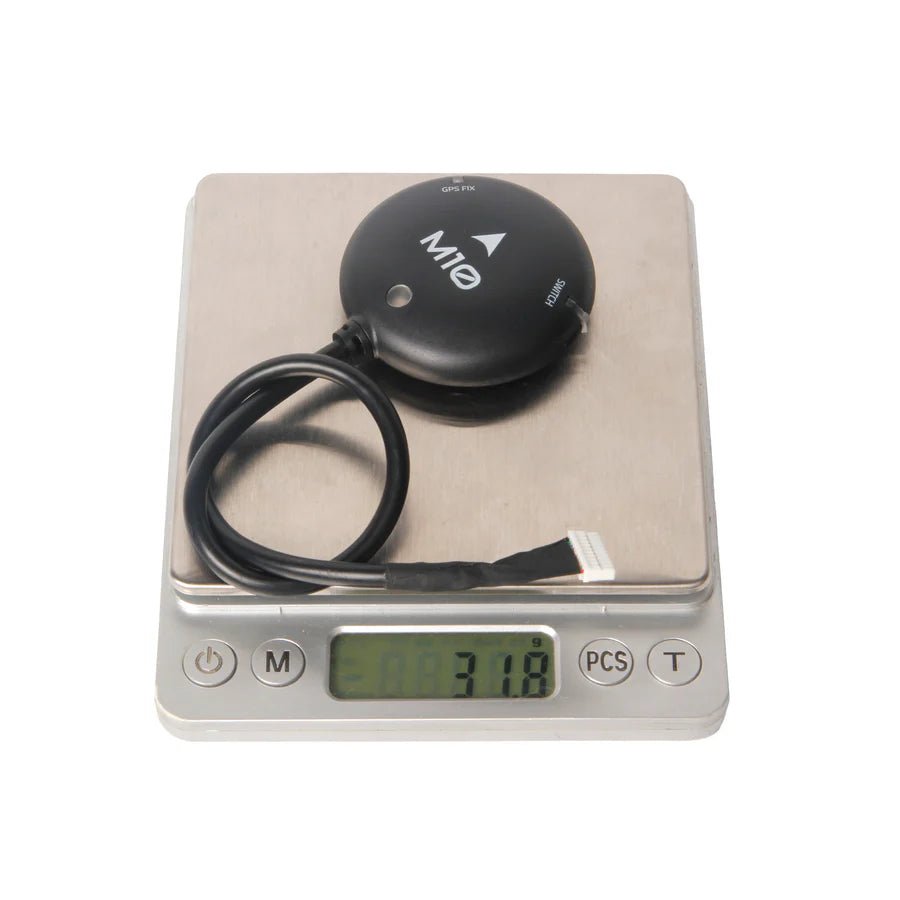

| Weight | 32g | 32g | |||
| Cable Length | 26cm (42cm cable purchase separately) | 26cm (42cm cable purchase separately) | |||
| Other | Tri-color LED | Tri-color LED | |||
| Onboard Buzzer | Onboard Buzzer | ||||
| Safety Switch | Safety Switch | ||||
| LNA MAX2659ELT+ RF Amplifier | LNA MAX2659ELT+ RF Amplifier | ||||
| Rechargeable Farah capacitance | Rechargeable Farah capacitance | ||||
| Low noise 3.3V regulator | Low noise 3.3V regulator | ||||
Note
- PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.
- The Status LED driver has changed. This LED is supported in PX4 1.14, ArduPilot 4.4.0 & later. (More info)
Package Includes:
- 1 x M10 GPS Module
- 1 x Fixed Carbon Fiber GPS mount
