HTRC LiPo Charger 1-6S AC/DC C150 for NiCd Li-ion Life NiMH LiHV PB Smart Battery

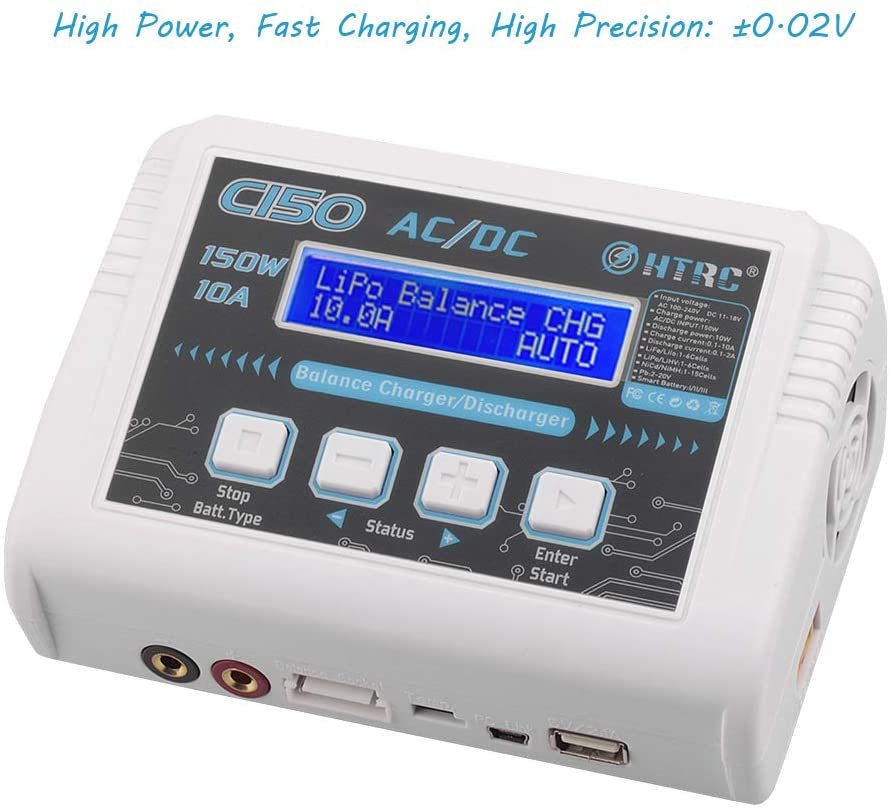

HTRC BLACK C150 battery charger is a new design, multi-functional, high power, high quality balance charger. Utilizing 2×16 LED display, built-in cooling fan, DC 11-18V or AC 100-240V dual power. Max charge power: 150W. Max charge current: 10A. Max discharge power: 20W. Designed for charging LiPo, LiFe, Lilon, LiHV, NiCd, NiMh, Pb, Smart Batteries.

Check out all our Chargers!

Specifications:

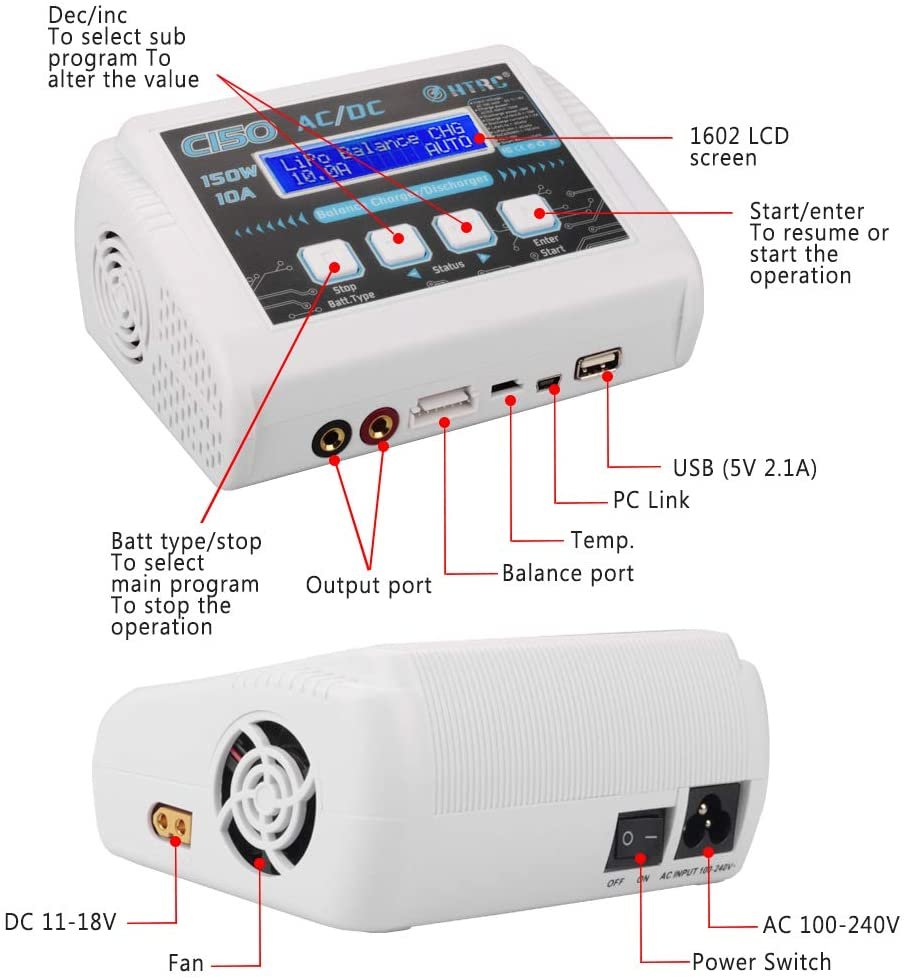

• Fast Charging: AC DC dual input, AC: 100-240V; DC: 11-18V. High power and high performance circuit – maximum output power 150W. Charge current: 0.1-10A; Discharge current: 0.1-2A; Max discharge power: 10W. Built-in cooling fan, it also has power switch and a 5V 2.1A USB output ports. When you charge the battery, please don’t use the AC power cable and DC cord at the same time.
• Supports for Many Different Batteries: 1-6s LiPo LiFe LiHV Li-ion, 1-15s NiCd/NiMH, 2-20V PB and Smart Battery I/II/III. Automatic identification of lithium batteries cells counts. Multiple charging modes: Charge, Balance Charge, Discharge, etc. When the battery is full charged, the battery charger will automatically stop charging. Tips: Please choose the right type of battery when charge.
• Multi-extra Function: 1.Battery meter- display lithium battery cell counts, total voltage, battery capacity percentage, and each cell’s voltage; 2. Lithium battery internal resistance checking; 3.Battery balancer; 4.Digital DC power; 5.Supports for smart battery.
• Terminal Voltage Control: This Charger allows user to set the charge/discharge end voltage of the battery. For an example: lipo battery end voltage is 4.2V /cell when charing, while on this charger, the end voltage is adjustable, rangs from 3.85V to 4.3V. Warning: this feature for expert only!
• Max Safety: Low input voltage limit, automatic charge current limit, Delta-peak sensitivity, capacity limit, processing time limit, temperature threshold. Data storage and loading: 20 memory data. Allow firmware to update.

Features:

• Full plastic shell, safe, compact, beautiful.
• 150W high power circuit.high charging efficiency.
• Practical for variety of batteries. LiPo LiFe Lilon NiCd NiMh Pb,and high power battery LiHV.
• Automatic identification of LiPo batteries cells counts.
• Adjustable digital DC Power.
• Built in smart cooling fan for easy heat dissipation.

Multi-extra Functions:

• Battery Meter:Display lithium battery cell counts, total voltage, battery capacity percentage, each cell’s voltage.(does not support 1s battery).
• TVC(Terminal voltage control): The Charger allows user to set the charge/discharge end voltage.
• Lithium Battery internal Resistance Check: can display each cell’s resistance.(does not support 1s battery).
• Balancer: individual-cell-voltage balancing, cell voltage Monitoring.
• Smart battery:Smart battery I,II,III,(Need optional DJI Charging cable).
• 5V 2.1A USB port.
• Data storage and loading.

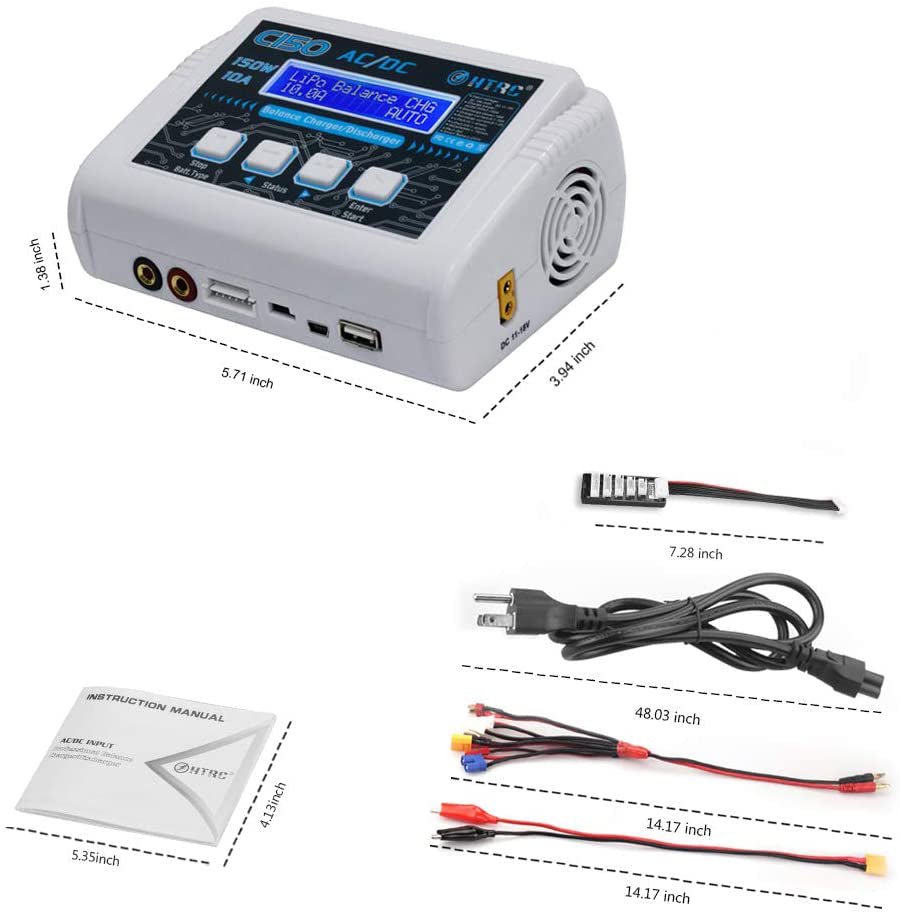

Package List:

• 1 x C150 battery charger
• 1 x Balance board with pin cord
• 1 x AC power cable
• 1 x DC cord
• 1 x User’s manual
