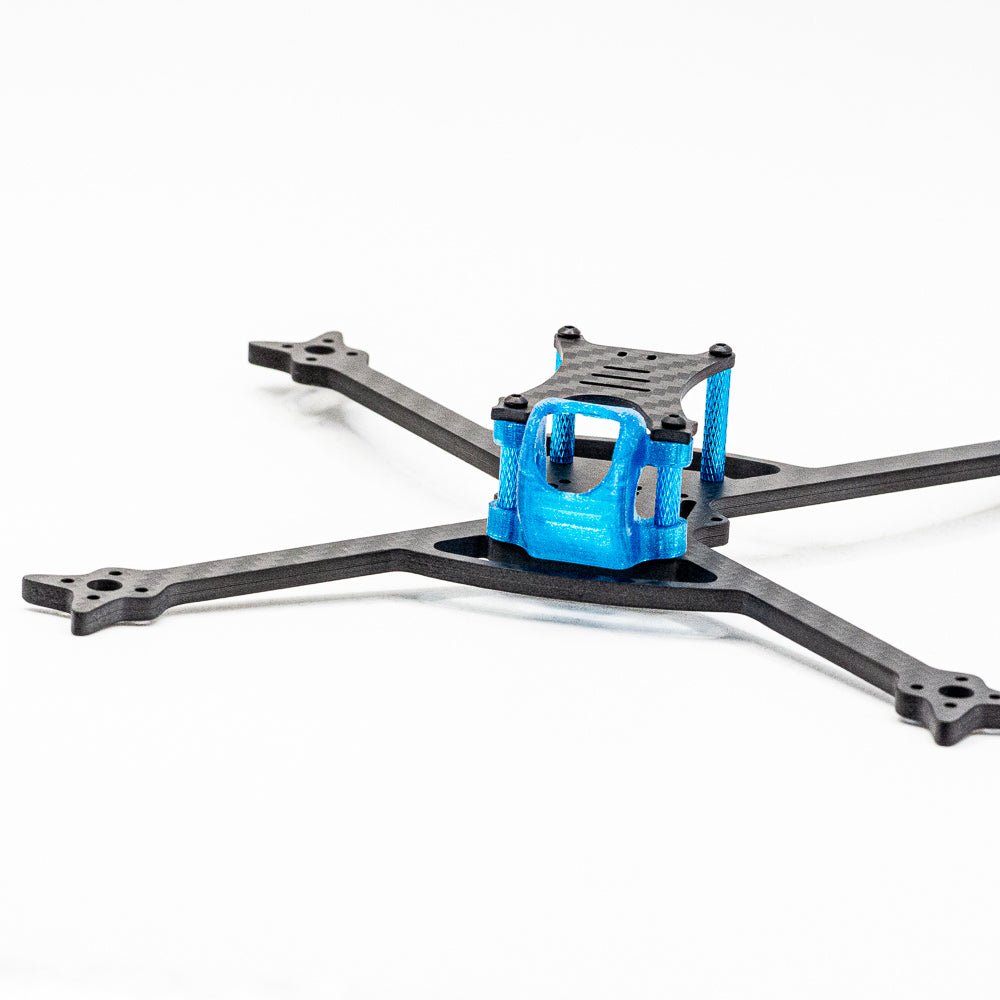

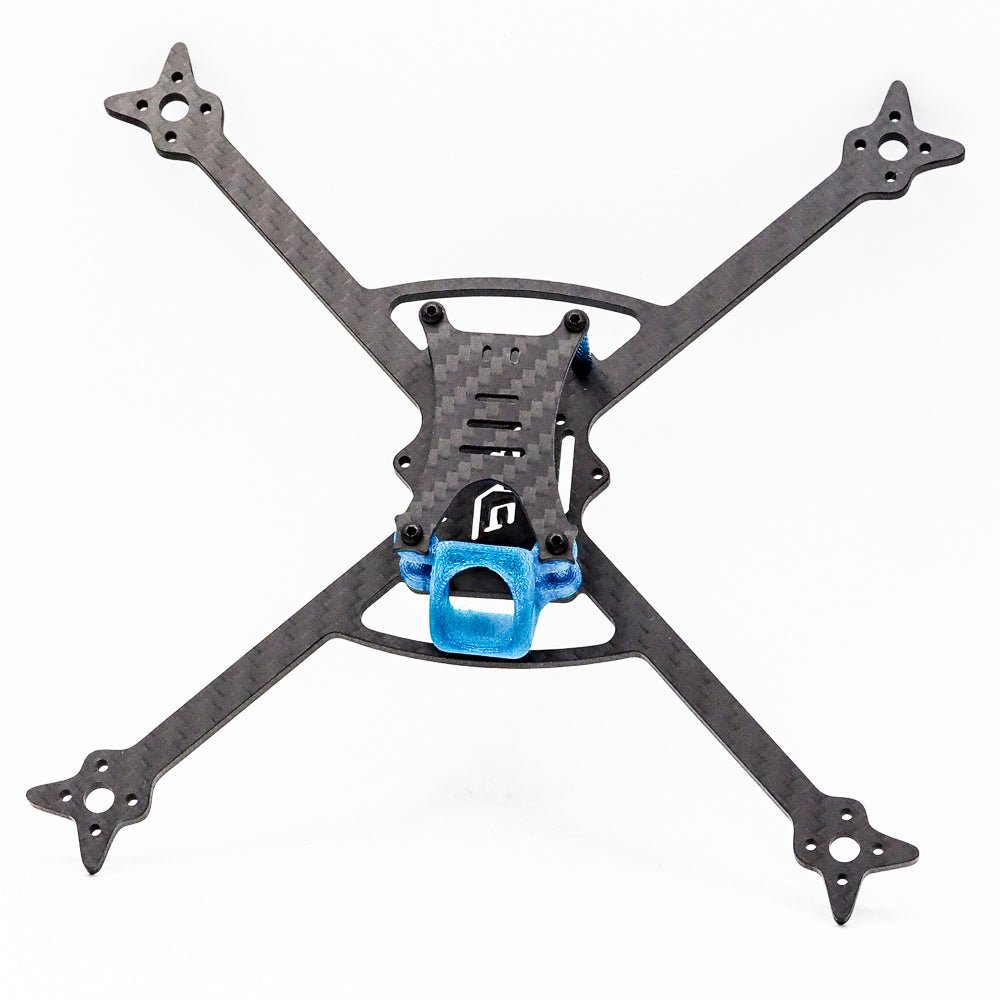

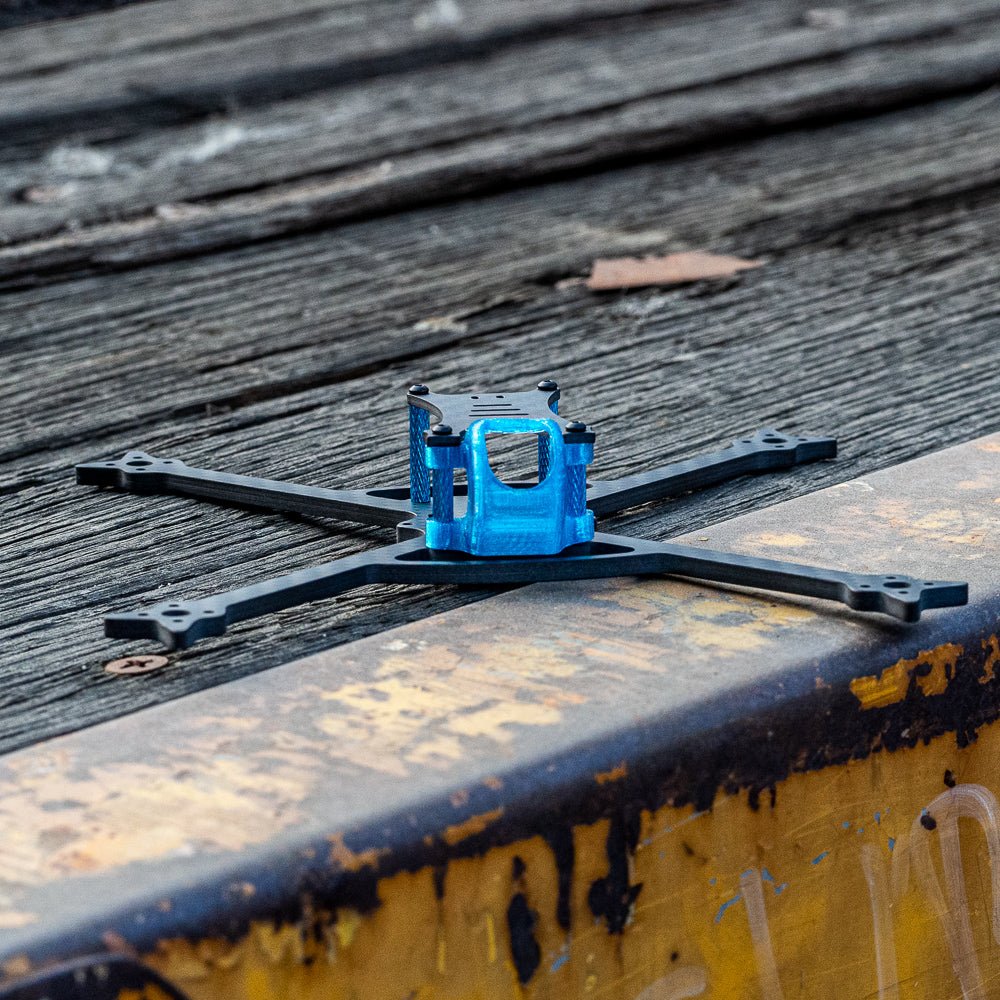

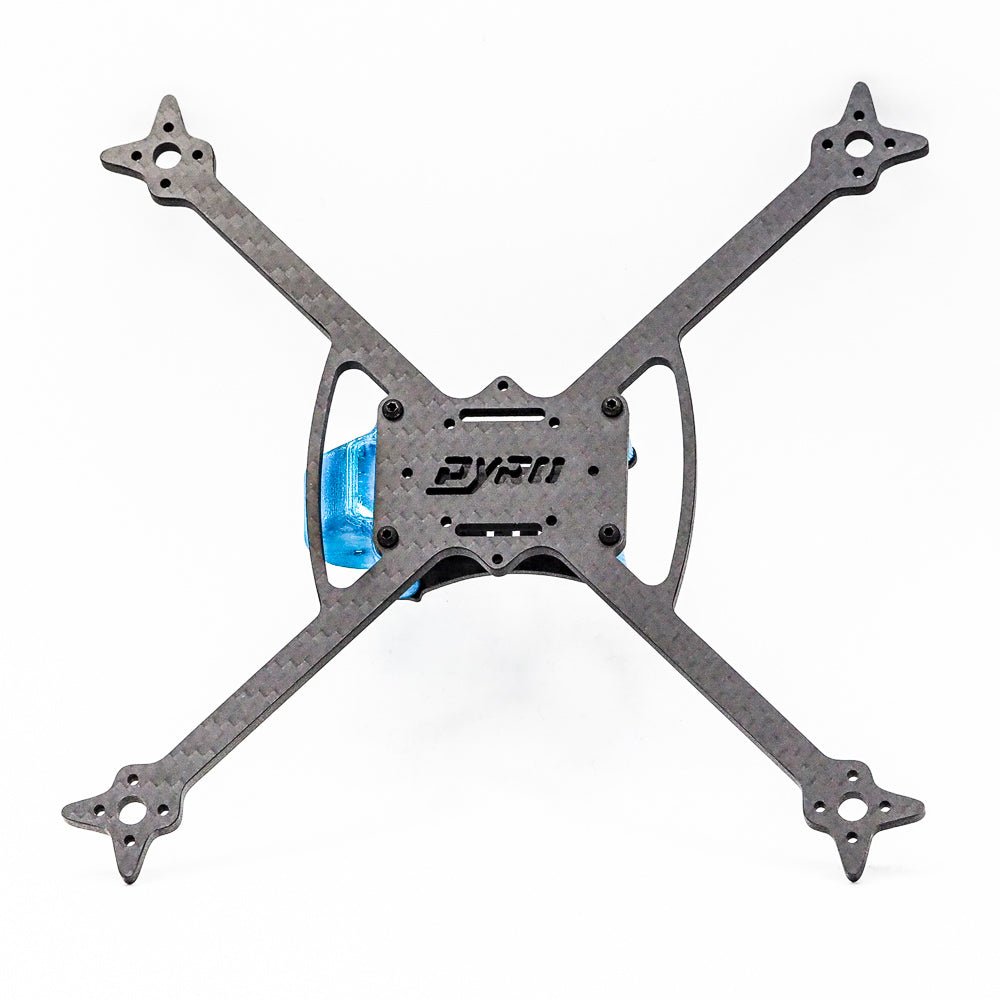

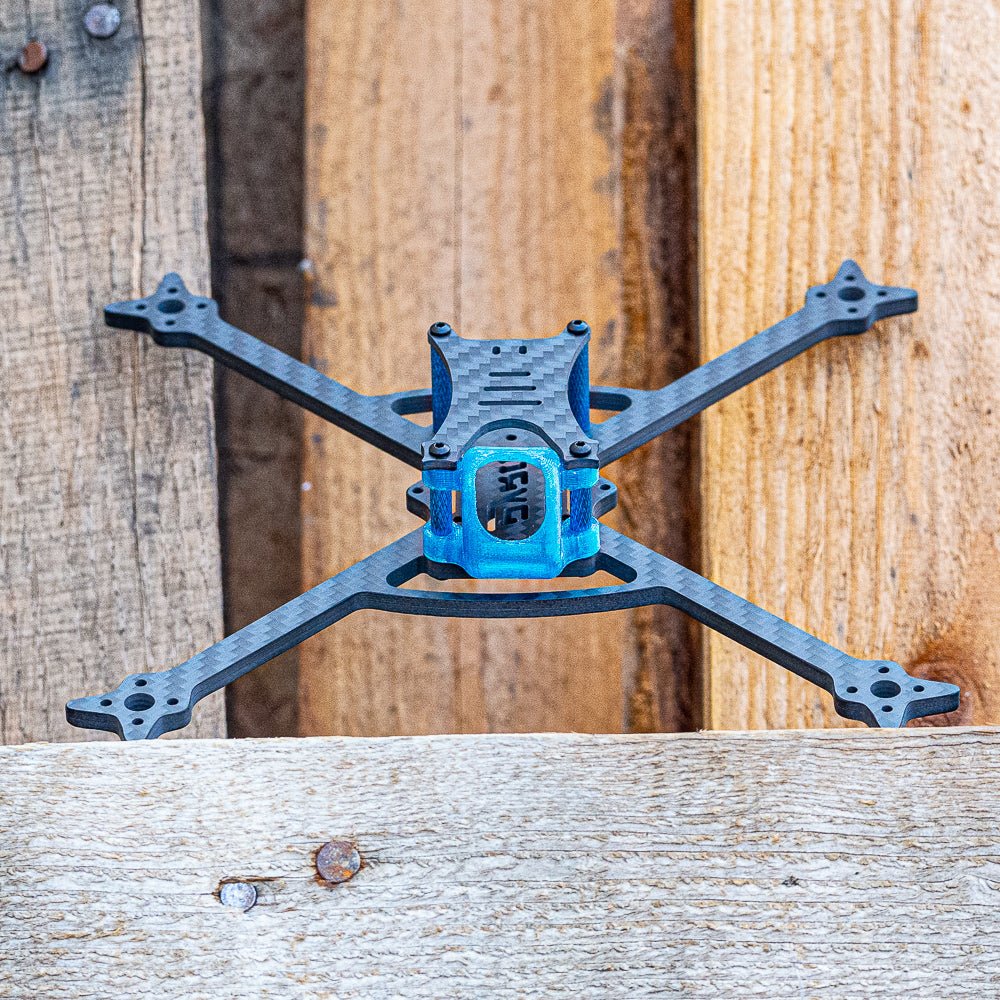

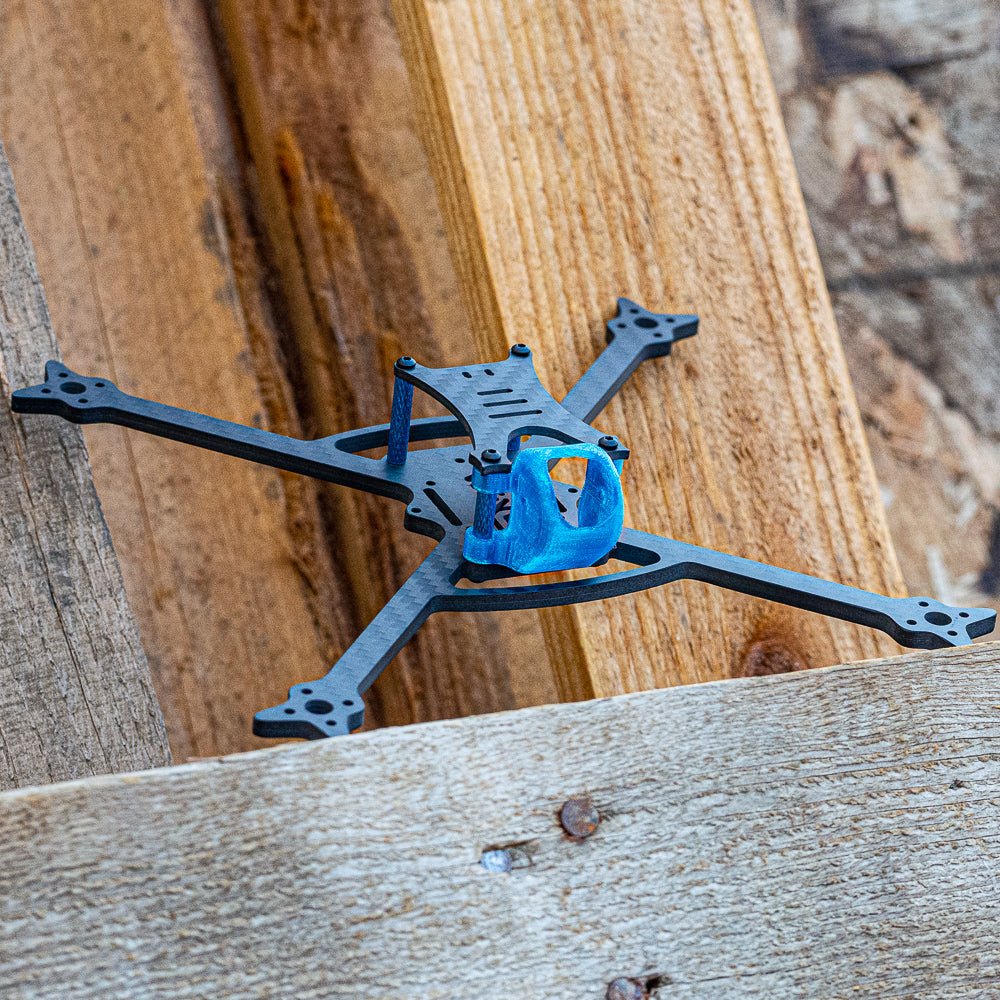

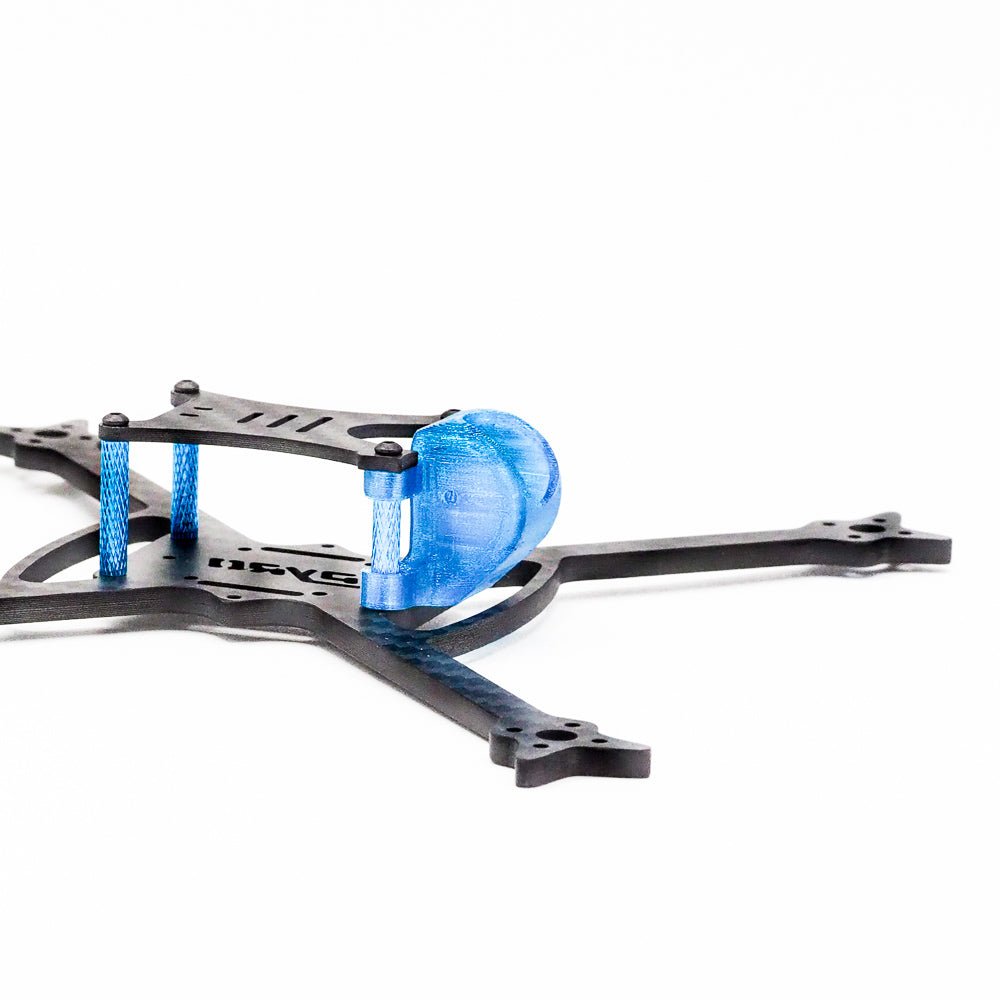

Hyperlite UL5 V1.1 Frame -5 Inch Lightweight FPV Racing Frame

This is Pyrodrone’s approach to the Ultralite scene with a unique design that provides best of both worlds, light-weight and super durability!

The frame is available in 3″ and 5″ variations.
Hyperlite UL3 Frame – 3 Inch

This frame is also compatible with the Hyperlite Whoop Style Racing Pod!

Features:

• Super rigid unibody plate thanks to the brace design and 4mm carbon fiber
• Compatible with Whoop style boards or 20*20 Stacks
• Extended body design to accommodate racing style canopies with standoffs and turtle fin
• Compatible with all current Whoop/Toothpick style pods
• The V1.1 now uses a 12×12 motor mounting pattern, more durable than the 9mm-12mm from the V1
• Accepts up to 5.1″ props
• TPU FPV Camera mount is designed to hold Nano 14mm Cameras

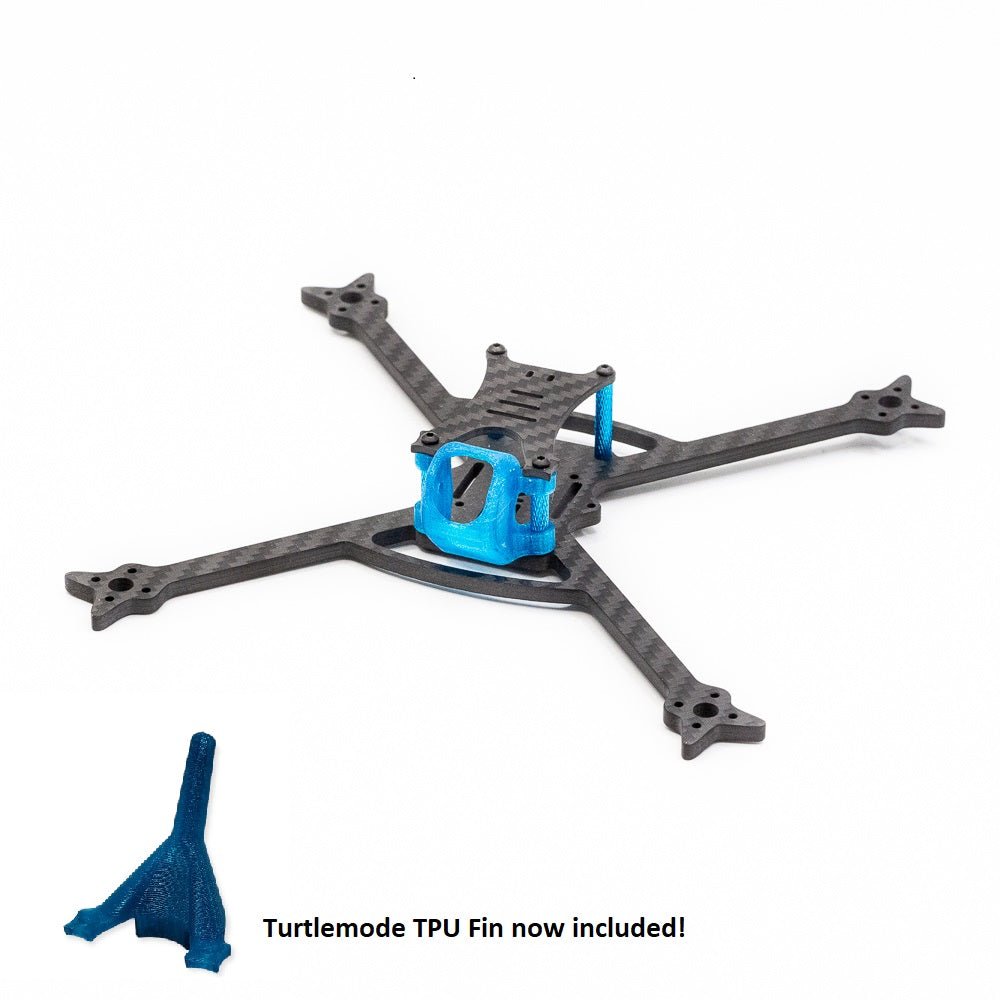

• Now comes with a turtle mode TPU flipstick

Specifications:

• Thickness: 4mm Carbon fiber unibody
• Weight With Top Plate and Hardware: 30.5 Grams
• Unibody Plate Weight: 25 Grams
• Dimensions: 190x190mm Diagonally True-X geometry

Includes:

• 1 x Hyperlite UL5 5mm Unibody Carbon Plate
• 1 x Hyperlite UL5 2mm Carbon Top Plate
• 4 x M2*20mm Light Blue Anodized Stand Off
• 4 x M2*25mm Orange Anodized Stand Off
• 1 x TPU Nano FPV Camera Mount
• 1 x Turtle mode TPU Flipstick
• 8 x M2*8mm Screw
• 5 x M2*20mm Screw
• 5 x M2*25mm Screw
• 5 x M2 anodized locknut
• 1 x XT30 pigtail
• 1 x 16V 100uF Capacitor
