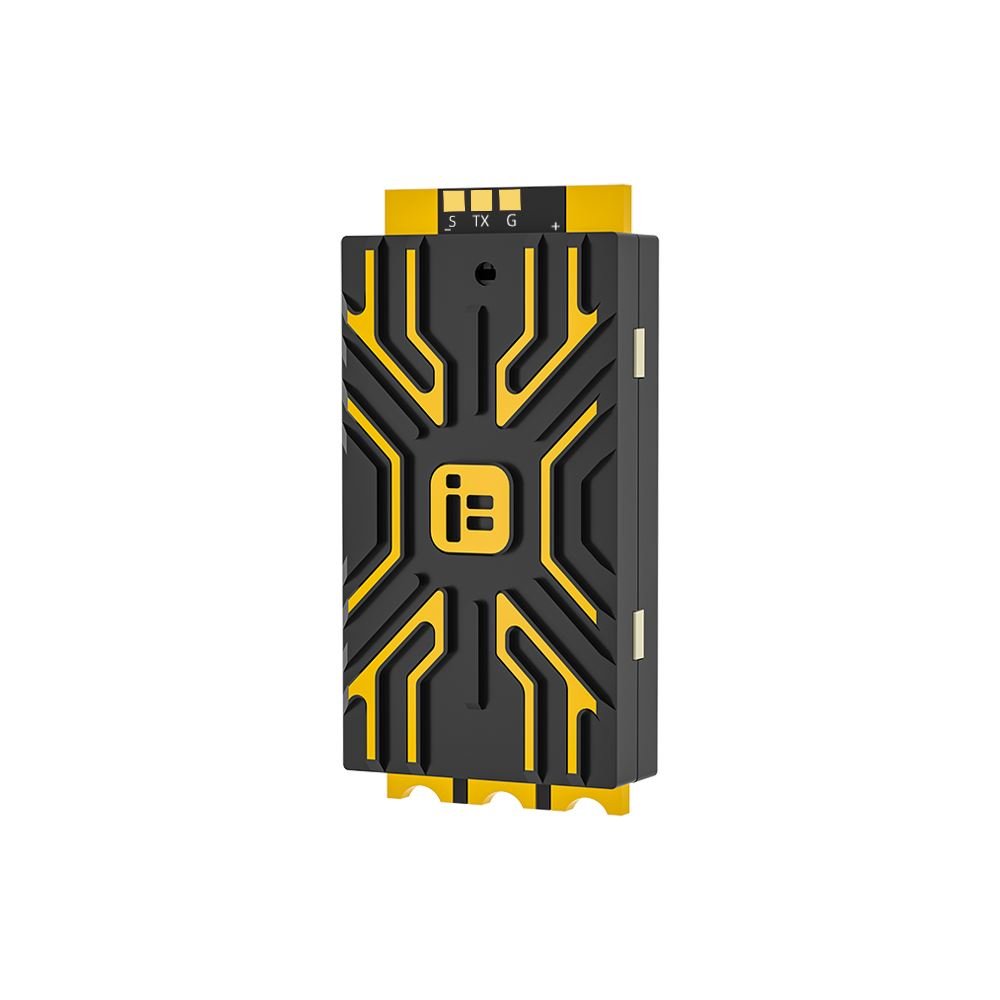

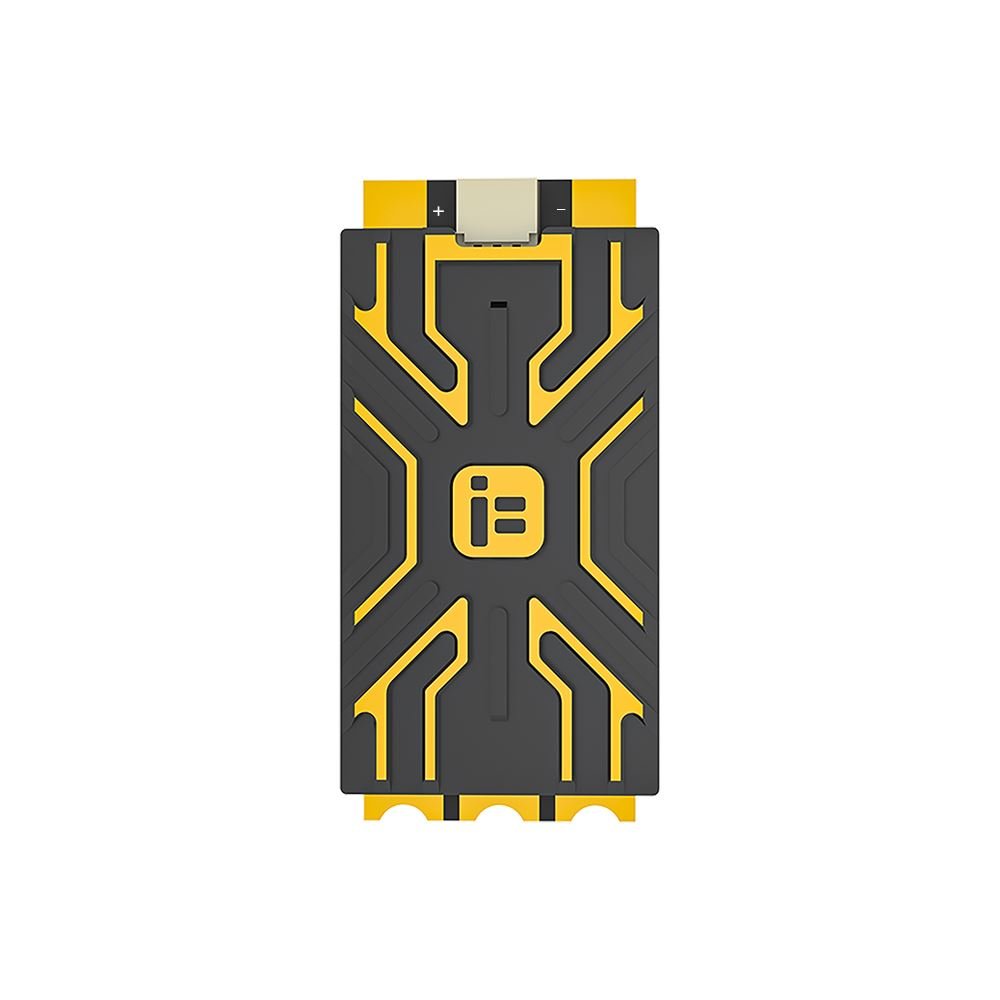

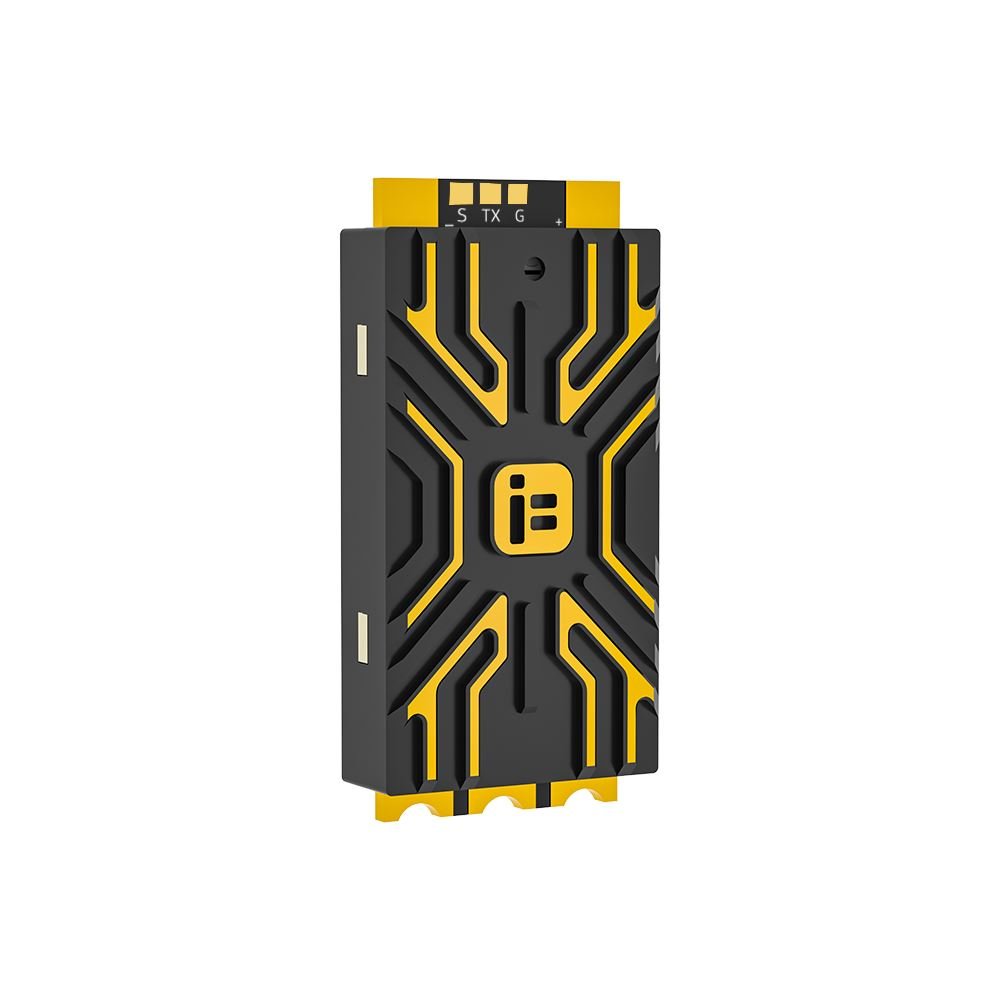

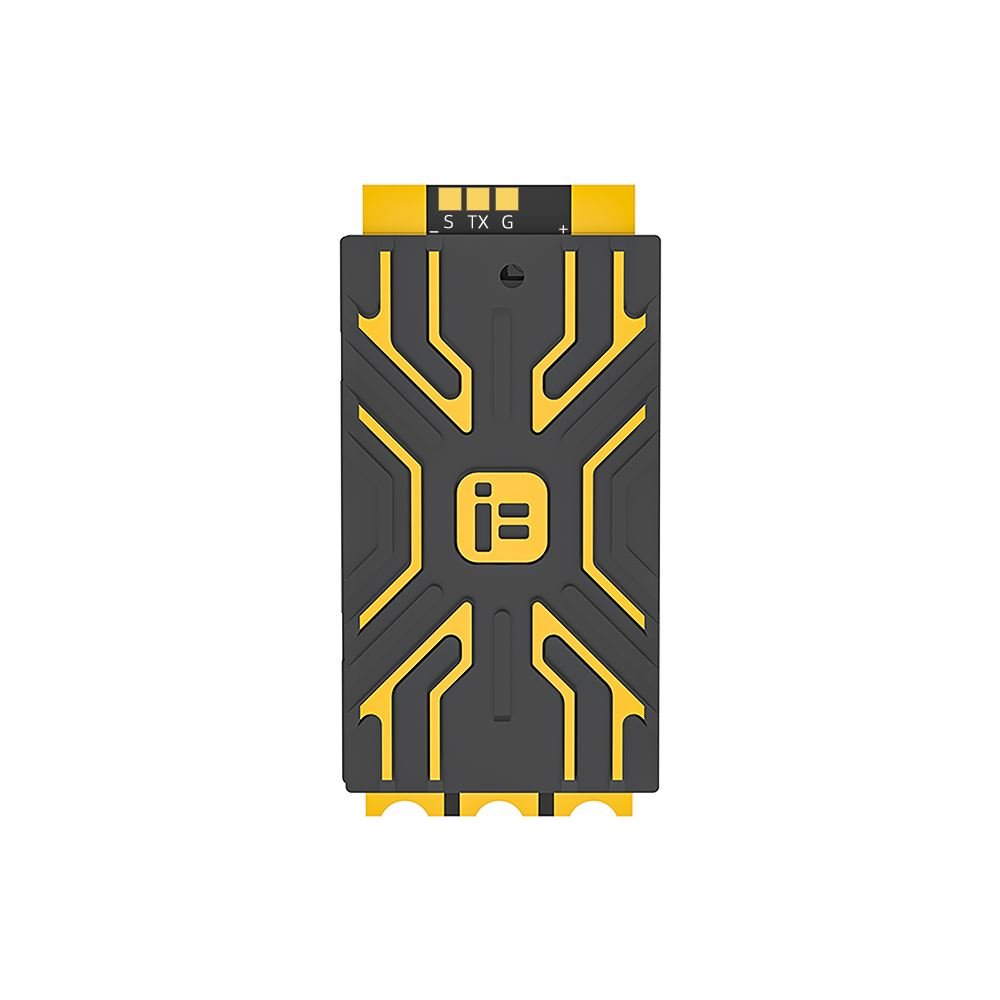

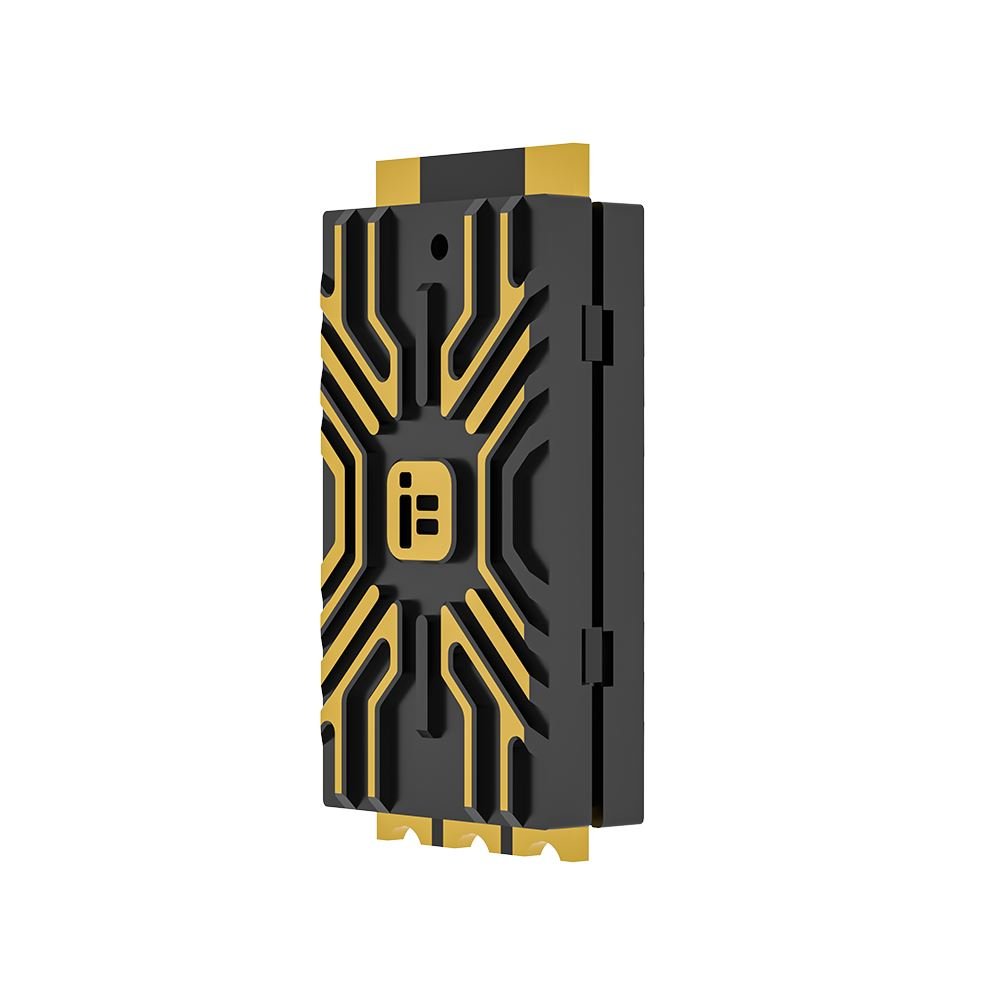

iFlight Blitz G3 E80 80A 2-8S BLHeli_32 Dshot600 Single ESC

BLITZ E80 BLHeli Dshot600 Single ESC was designed to give your motors smooth power with great stability and durability. The 32bit 48mHz G071 MCU and 11 pieces TDK MLCC total 240UF Low ESR capacitors bring faster responding speed and a smoother flying experience.

Check out all our Electronic Speed Controllers and the rest of our iFlight Products!

Changelog:

• August 6, 2024: Version updated. Since BLheli32 Configuration is closed due to regulatory issues, if you need to adjust the parameters of this ESC, please download “BLHeliSuite32Test“

Features:

• 2-8S input (max 8S)
• 80A 8 layers 4OZ copper PCB, better operating load capacity;
• 11 pieces TDK MLCC total 420UF Low ESR capacitors, lower ripple and more stable;
• Top grade NTMFS5C430NL MOSFET, stable and reliable;
• 1 * 3528 LED for power- on display;
• Rational layout, large soldering pad, countersinks and semicircle orifices enable each layer to be energized after power-on.

Specifications:

• Input Voltage: 2-8S
• Max. Continuous Current: 80A
• Max. Burst Current: 100A
• MCU: G071
• BEC: No
• Firmware: BLHeli32
• Current Sensor: Yes
• Telemetry: Supported
• Target: IFLIGHT_BLITZ_G3
• Dimensions: L40 x W17 x W10mm
• Weight: 14.5g(±2)
• Protocal: DShot DShot150/300/600/MultiShot/OneShot PWM Drive

Download the wiring Diagram here.

Package includes:

• 1 x BLITZ E80 Single ESC
• 1 x 50V 1000UF capacitor
• 1 x Power cables & ESC signal wires
