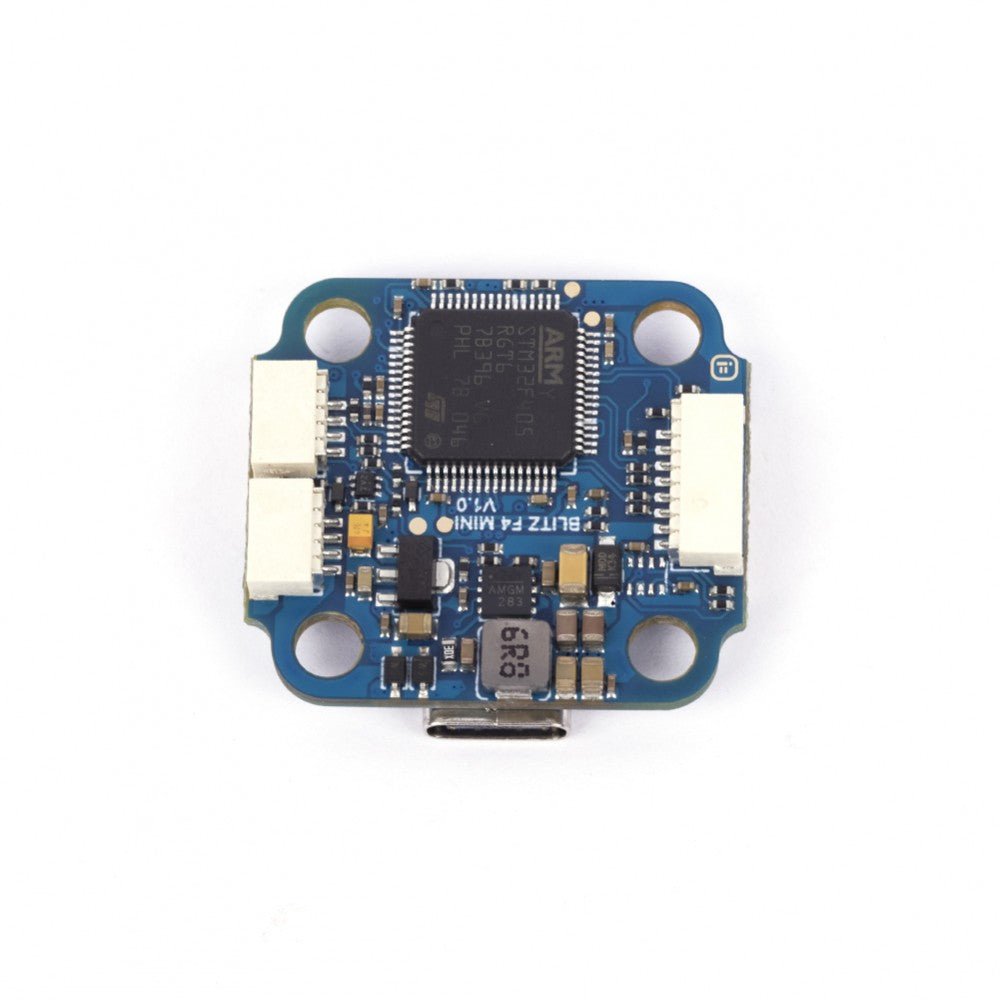

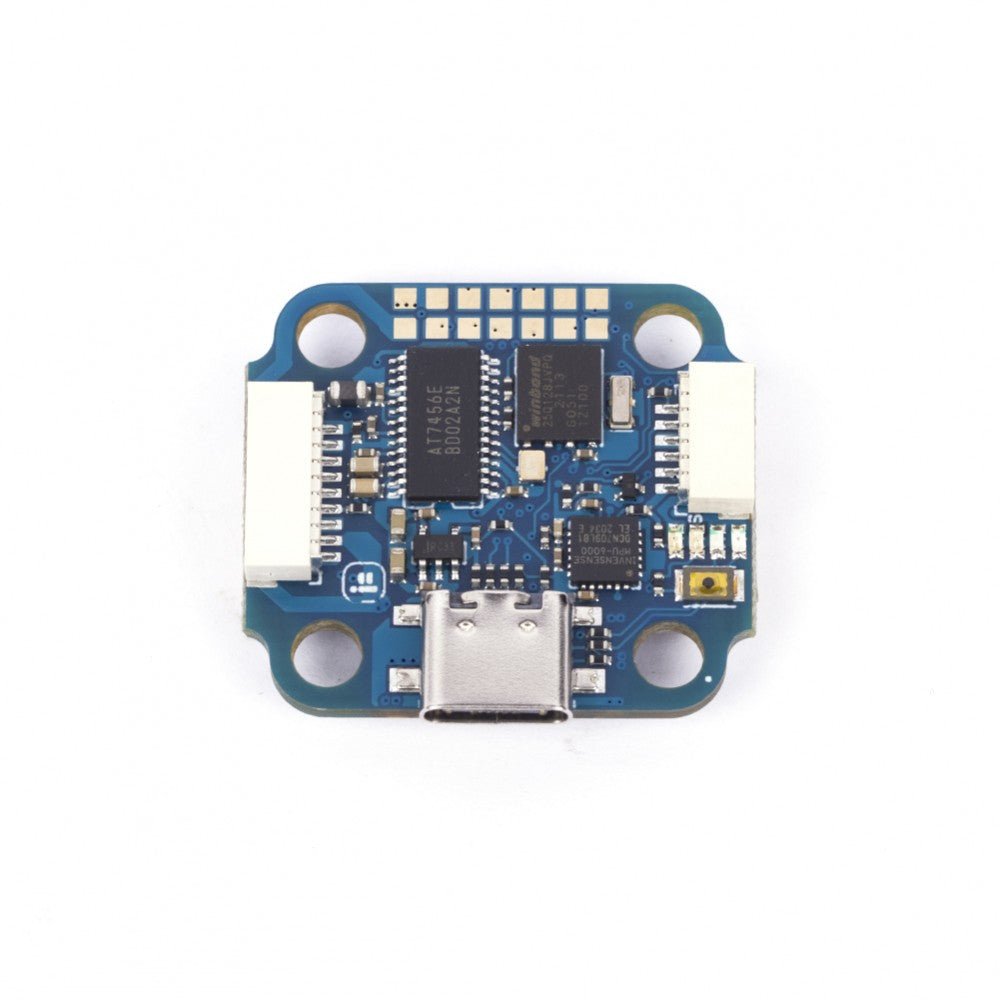

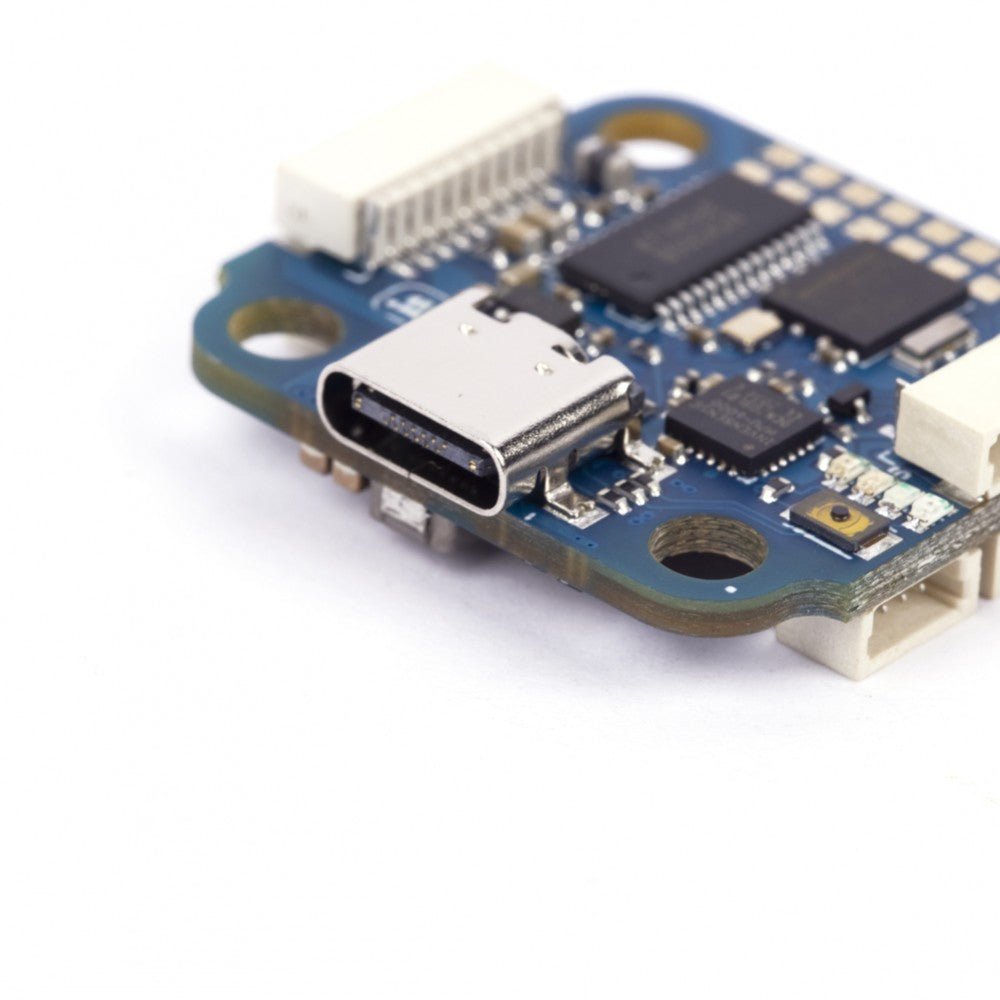

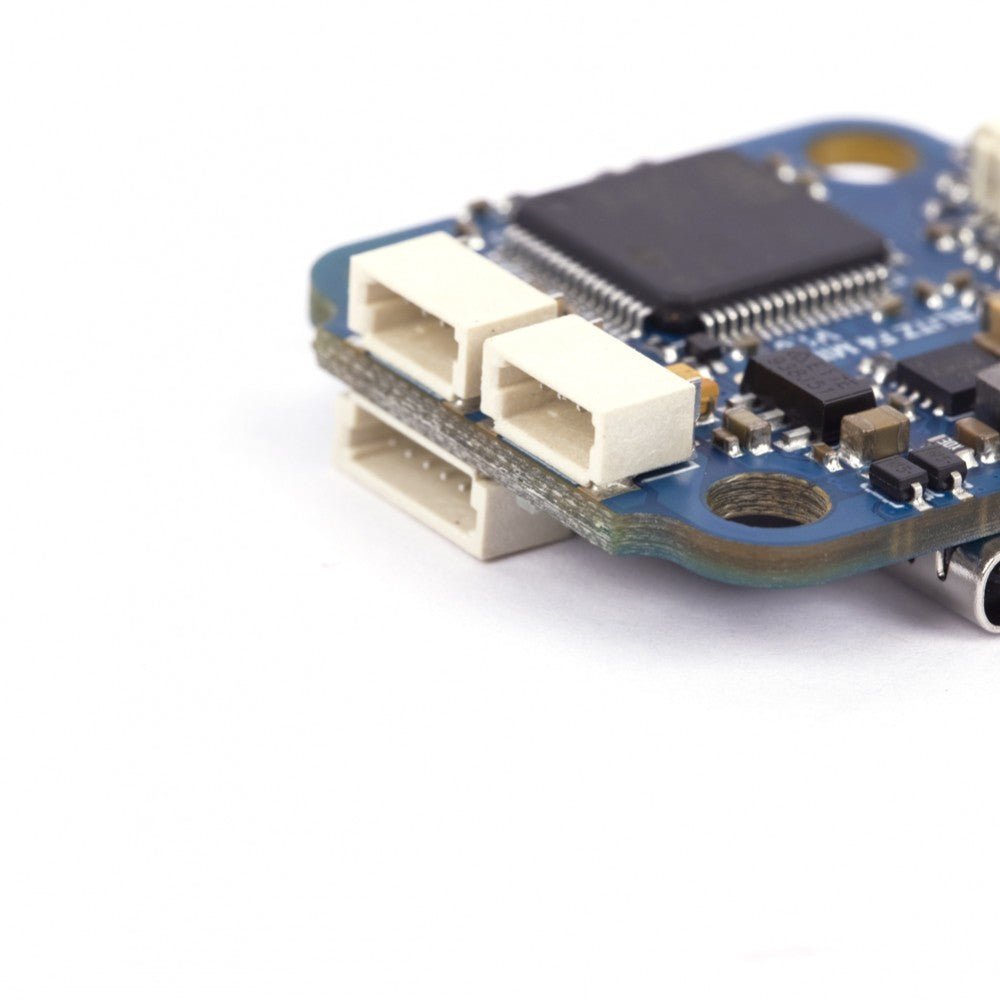

iFlight BLITZ Mini F4 Flight Controller (STM32F405, MPU6000) – 20x20mm

 The next generation of Flight controllers and ESC’s from iFlight have arrived. Currently being used in their BNF quads such as the Evoque BNF. These new flight controllers are equipped with a plug and play connectors making connecting your  video transmitter, radio receiver, and other periphery sensors a breeze. They also make diagnosing issues in the field much easier with status indicator LED’s that let you know in seconds if you are having a problem with the 3.3V, 5V, or VBat.

Check out all our 20x20mm Flight Controllers and the rest of our iFlight Products!

Top Features:

• Improved circuit design, better components and lower electrical noise!
• DJI HD VTX connector (plug-and-play / no soldering required)
• FC indicator LEDs for visual debugging

F7 FC Specifications:

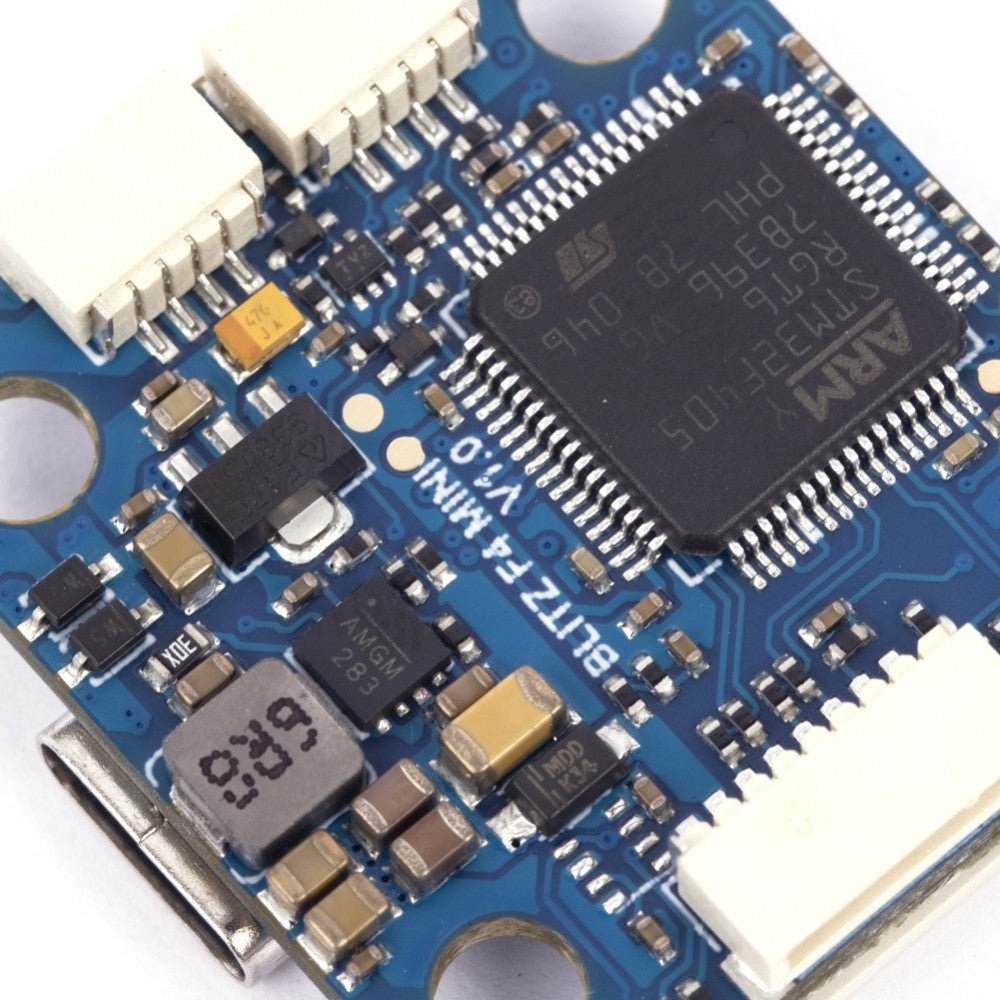

• MCU:   STM32 F405
• GYRO:   MPU6000
• BAROMETER:   NO

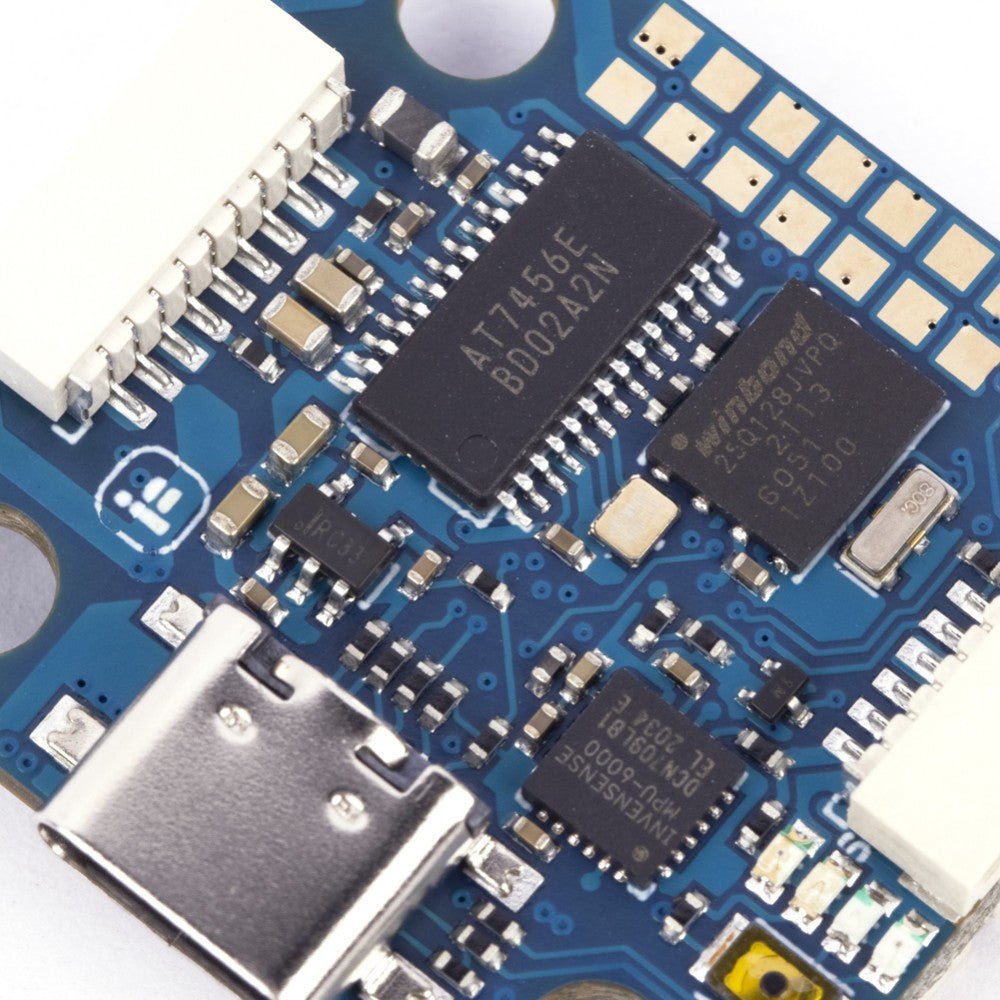

• OSD CHIP:   AT7456E
• FLASH:   16MB (BLACKBOX FLASH)
• UARTS:   6
• MOTOR OUTPUTS:   4X (SH1.0 CONNECTOR)
• I2C SERIAL:   SDA / SLA PADS
• SMARTAUDIO / IRC TRAMP VTX PROTOCOL SUPPORTED
• LED CONTROLLER:   YES
• BEEPER PAD:   YES
• FIRMWARE TARGET:   IFRC-IFLIGHT_BLITZ_F405

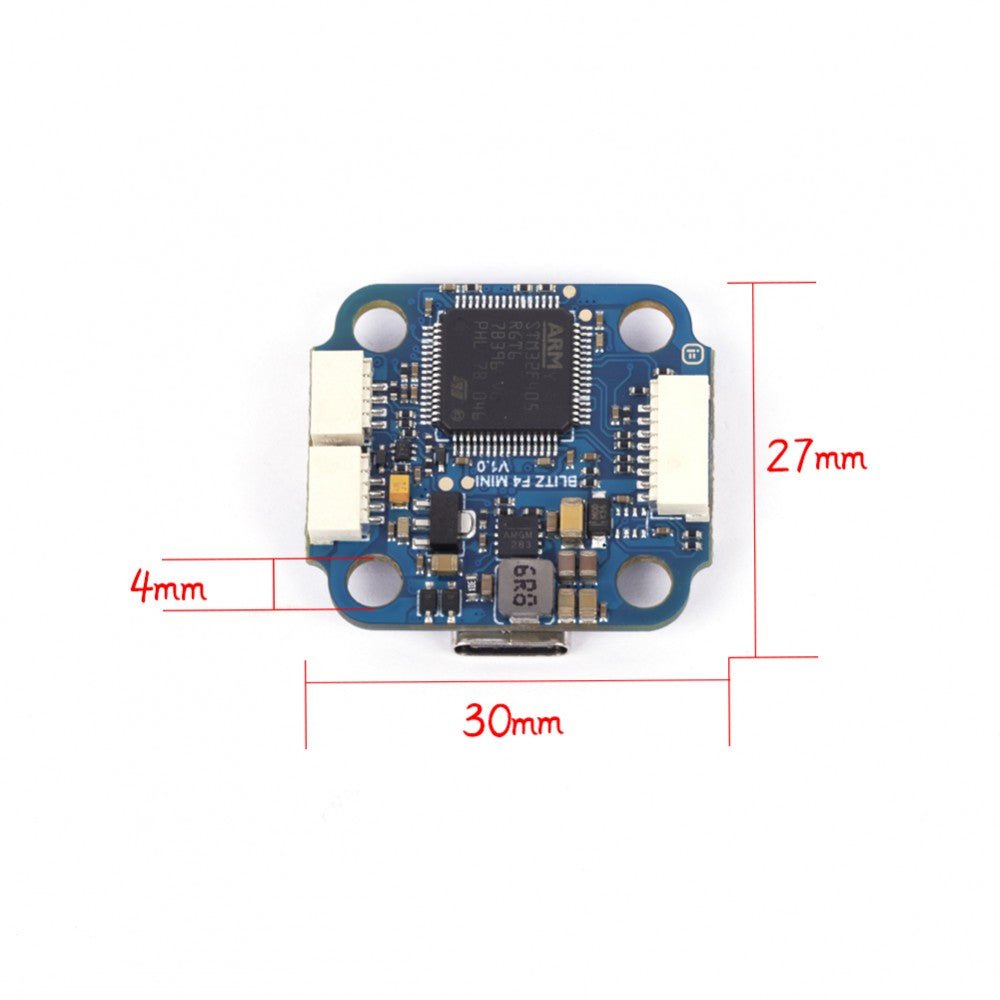

• MOUNT PATTERN:   20X20 MM / 4MM PCB HOLE DIAMETER, SILICON GROMMETS FOR M3 SCREWS
• DIMENSIONS:   30.5X27 MM

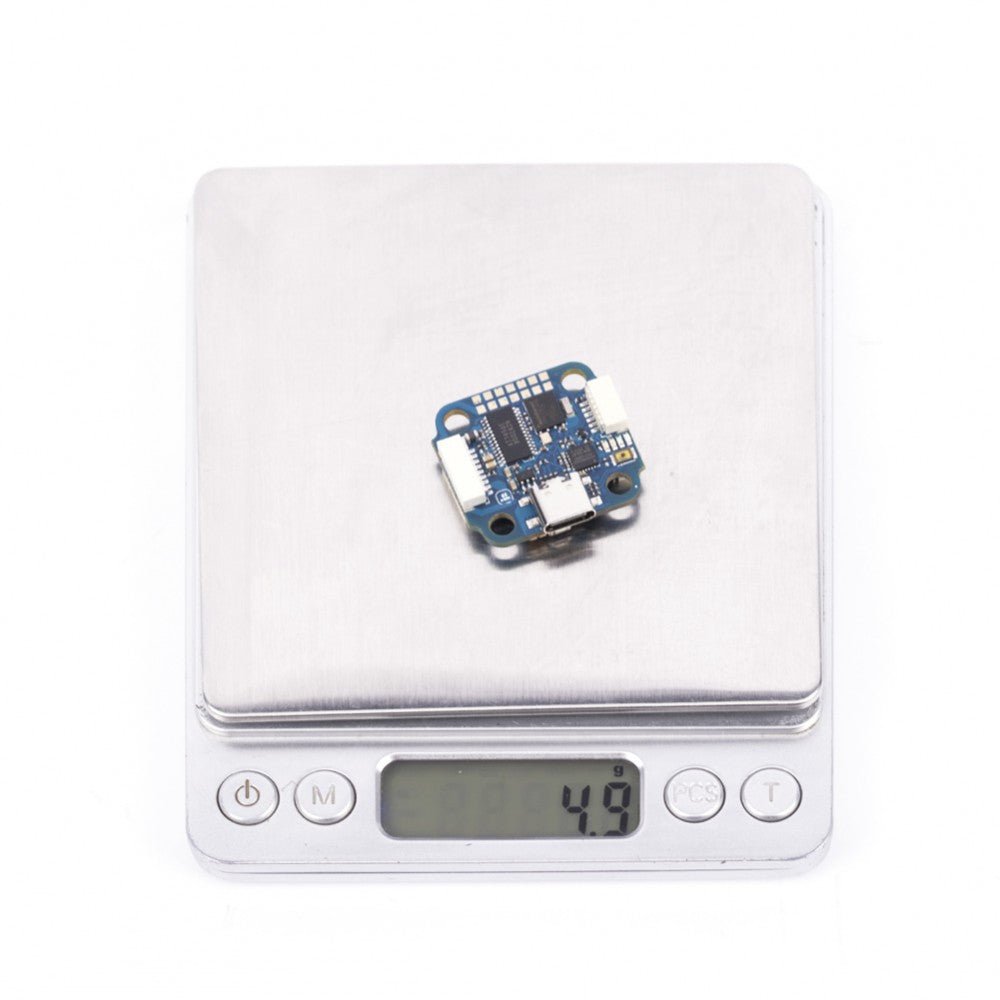

• WEIGHT:   5G

WIRING SUGGESTION:

• UART 1 FOR VTX HD / ANALOG
• UART 2 FOR A RECEIVER
• UART 3/4 FOR GPS OR OTHER SENSORS THAT REQUIRE A SERIAL PORT
• UART 6 FOR ESC TELEMETRY

 TIPS:

• F405 MCU DOES NOT HAVE AN INVERTER ON ALL UARTS, INVERTER ONLY ON UART 2.
• SBUS, CRSF, ELRS, IBUS, DSM ETC… CAN BE CONNECTED TO ANY UNUSED UART_RX, WE SUGGEST YOU CONNECT TO UART_RX2
• FRSKY SMARTPORT, TRAMP & SMARTAUDIO CAN BE CONNECTED TO ANY UNUSED UART_TX, WE SUGGEST YOU CONNECT TO UART_TX1
• F.PORT CAN BE CONNECTED TO ONLY UART_TX2 AND MUST TURN ON INVERSION IN FLIGHT CONTROL PROGRAM.

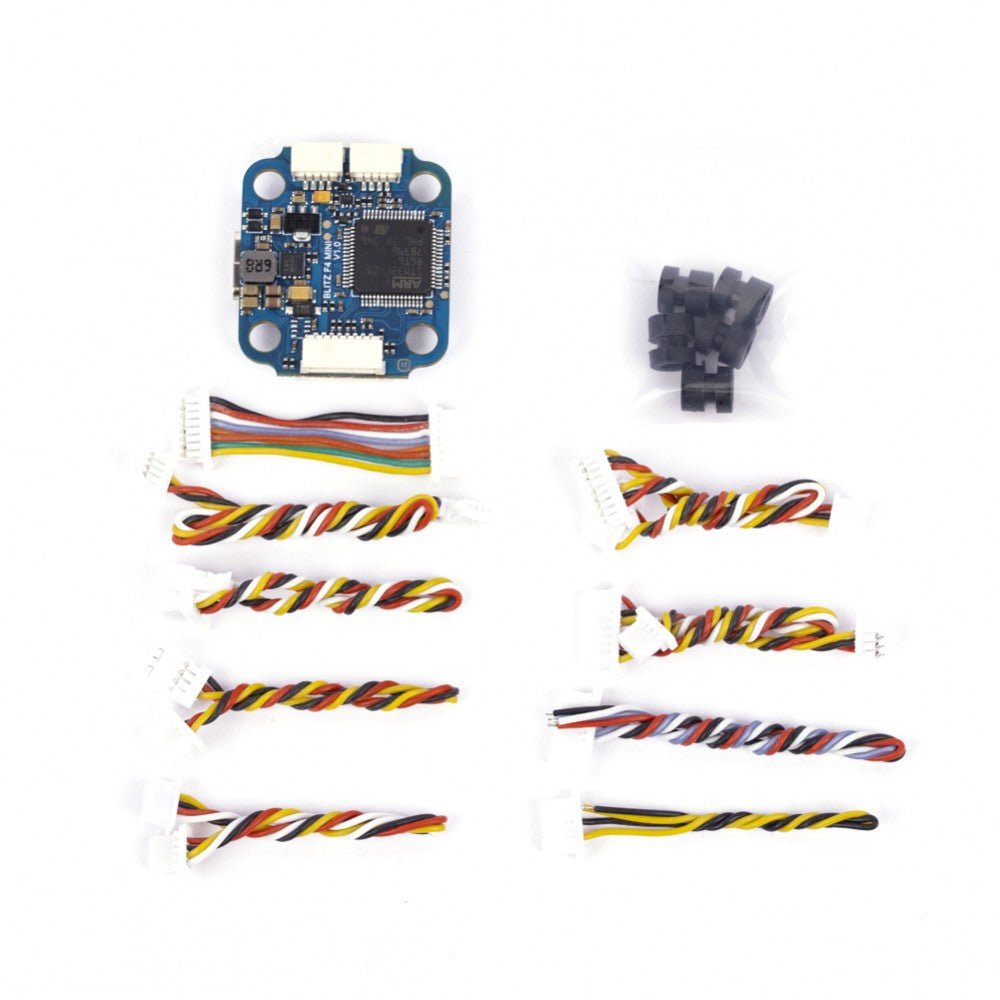

Package Includes:

• 1pc x BLITZ Mini F4 Flight Controller
• 1set x silicon grommets
• 1 x SH1.0 9pin connector for HD VTX/Analog VTX&CAM (5v/Bat/G/VO/T1/R1/5V/G/VI)
• 1 x SH1.0 8pin connector for ESC (R6/Cur/M4/M3/M2/M1/Bat/G)
• 1 x SH1.0 6pin connector for Radio Reciever (3.3V/R2inverted/ 5V/G/R2Non Inverted/T2)
• 1 x SH1.0 4pin connector LED or Buzzer (Buz/LED/5V/G)

Wiring Diagram ( Click the Image to open in Full Size )
