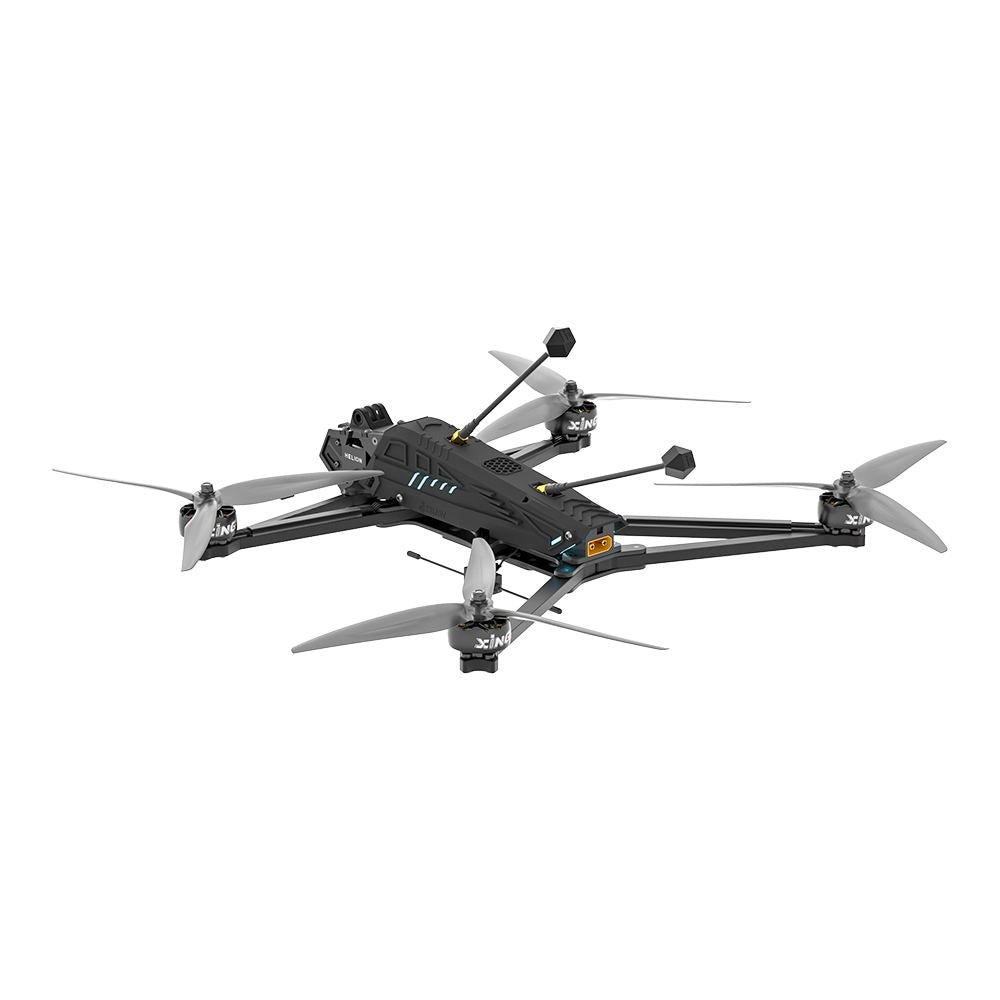

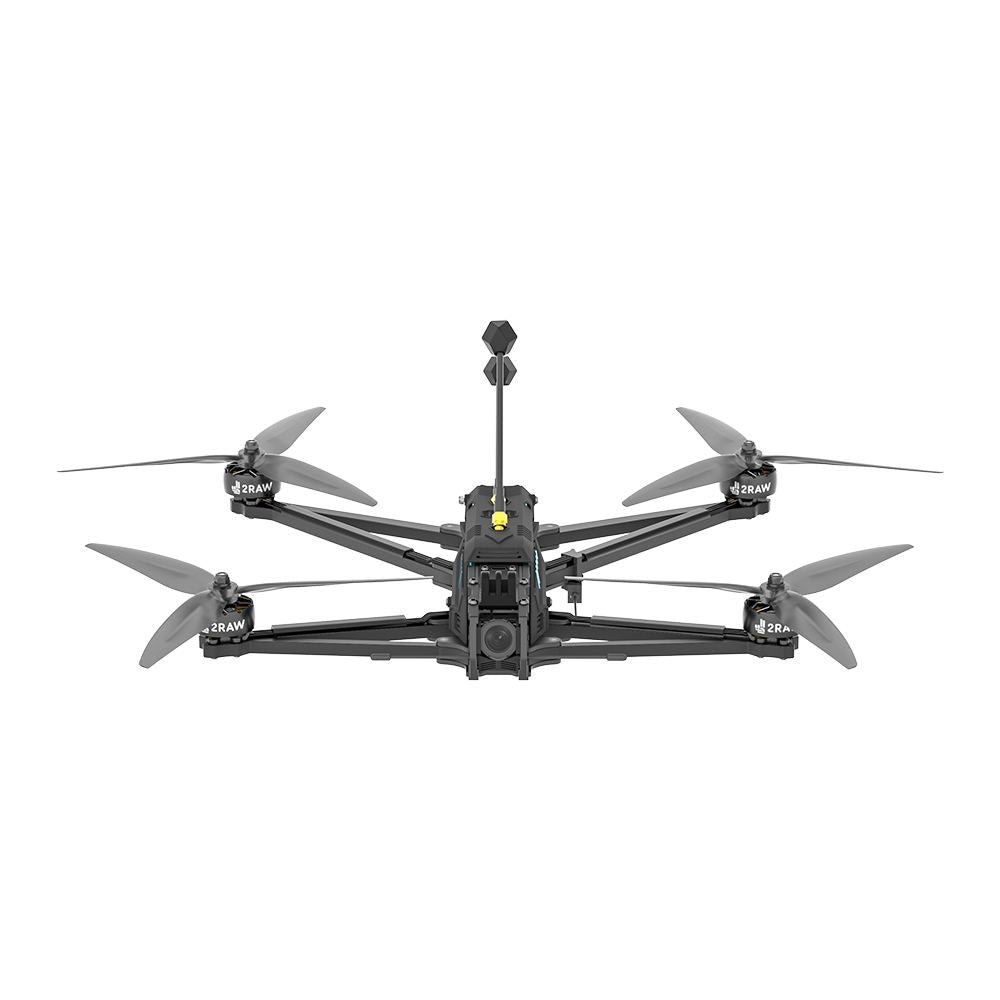

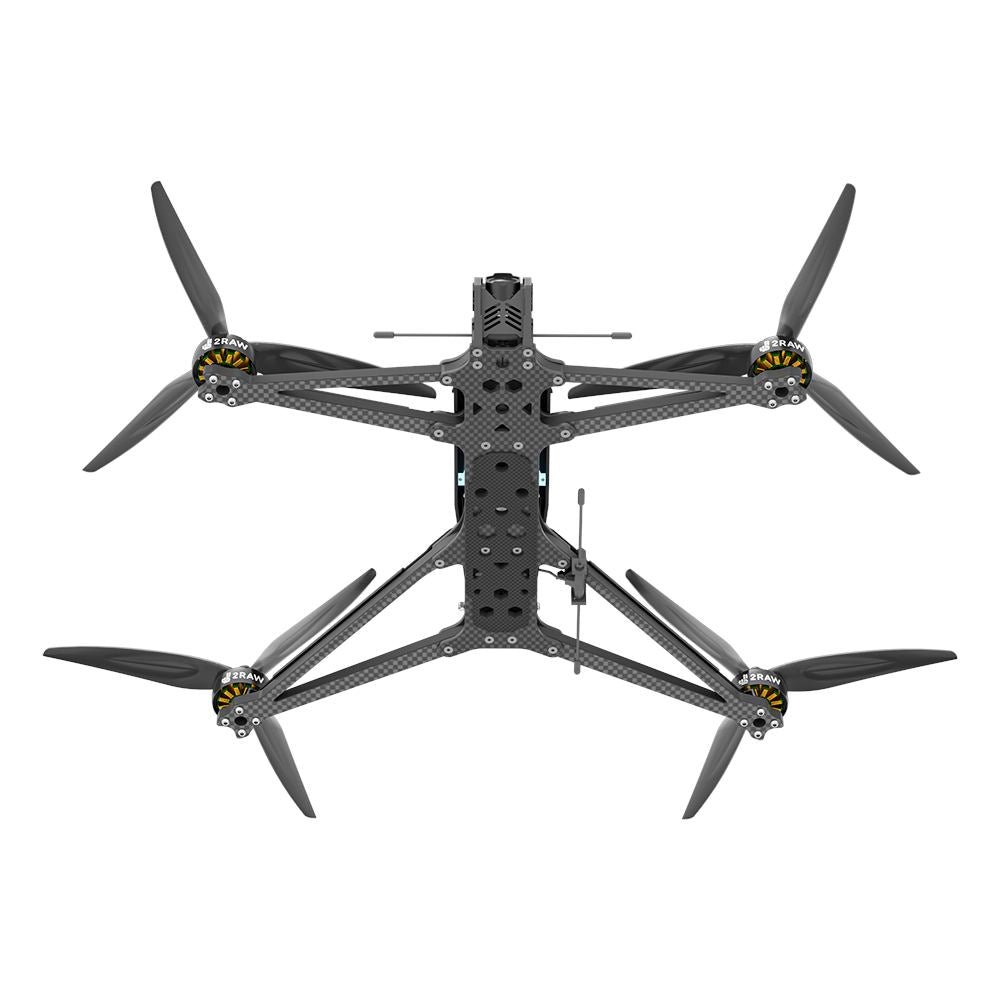

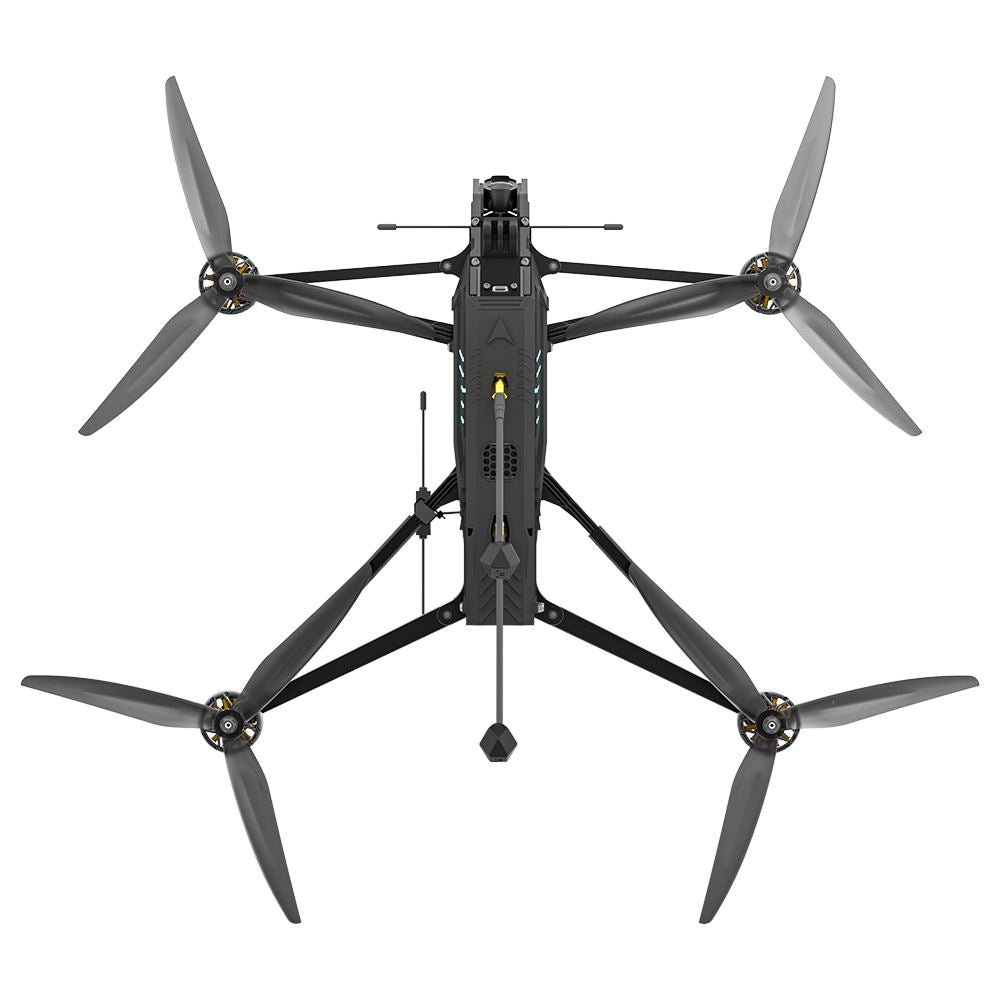

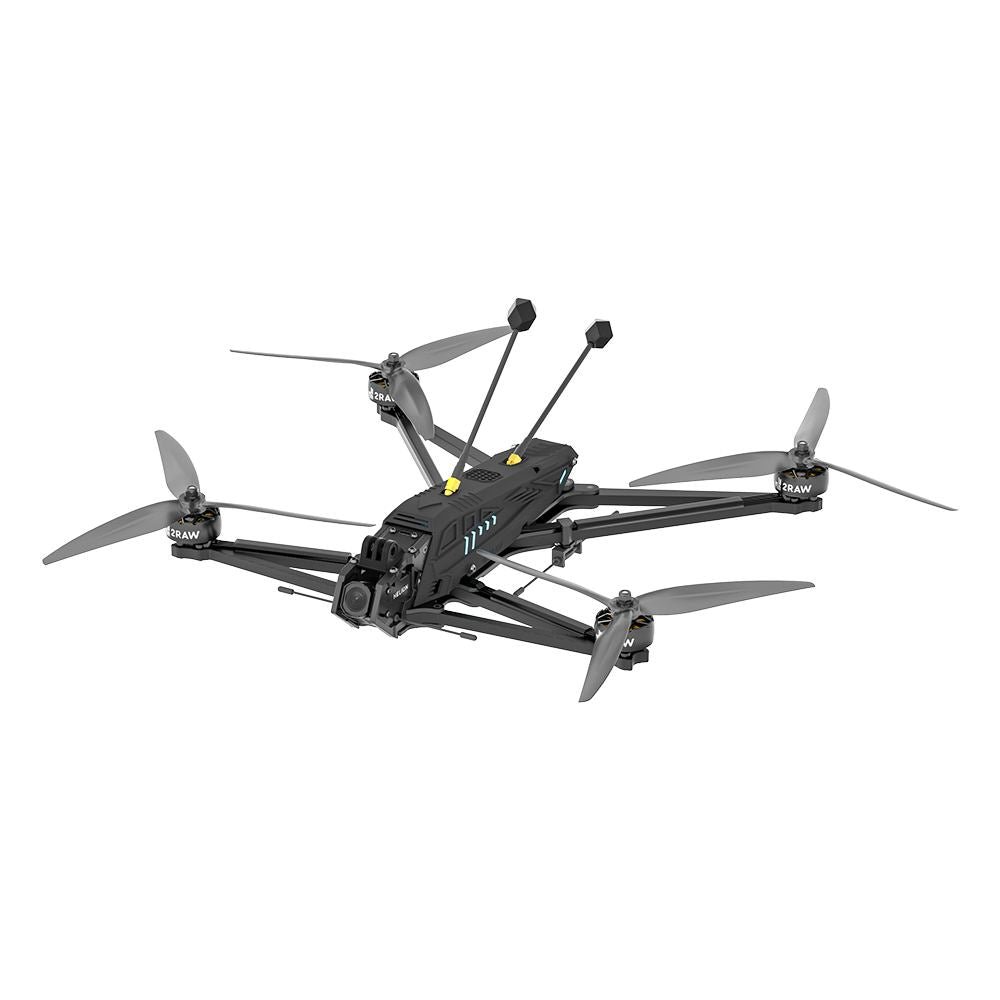

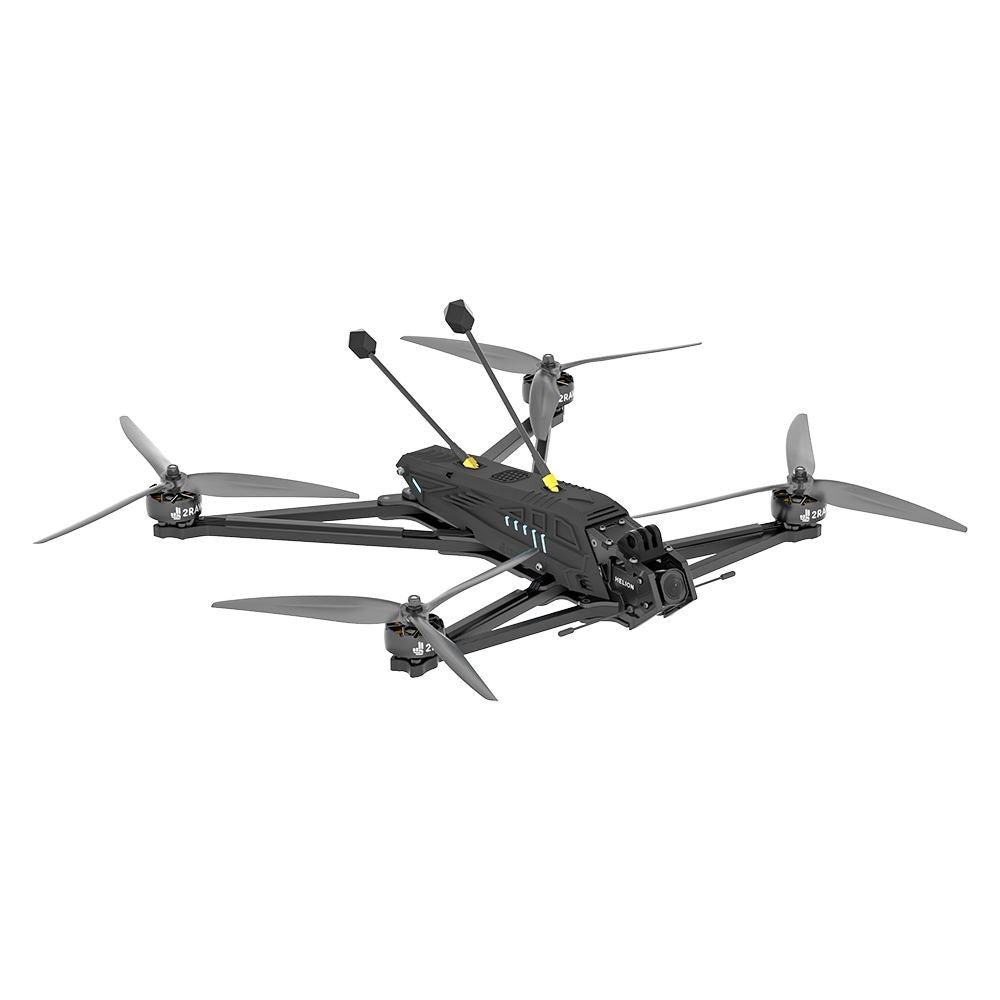

IFlight Helion 10 O4 6S HD 10 inch Long Range Drone W/ DJI O4 Pro FPV System – Choose Receiver

HELION –  The Long  Range flagship by 2RAW and iFlight

This drone was built to redefine Long Range. In order to meet the rising demands for more range, and more flight time while maintaining enough weight, to have excellent stability in even the windiest of conditions. With a prop size of 10 inches, Helion is not only capable of effectively carrying large (Recommended, 4500mAh Lipo and above)  batteries but also ensuring great efficiency with ample power. You will have better dive recovery and more overall control than traditional long-range drones. Its unique aerodynamic shell allows for easy maintenance while protecting the cores of the power train. Helion’s distinct frame design was scientifically optimized to balance stability, weight, and rigidity.

Battery Recommendation (NOT INCLUDED): 6S 5600mAh to 8000mAh Li-on Battery

You can find all the related parts in The IFlight Helion 10 6S HD 10 inch Long Range Drone Frame Collection

Check out all our Digital BNF/PNP/RTFs and the rest of our IFlight Products!

Highlights:

Optimised Motors & Propeller
This latest XING motor was optimised between thrust and efficiency. Perfectly tuned to the 10 inch Gemfan propellers.

Aero-Shell
The unique aerodynamic shell allows for easy maintenance while protecting the cores of the power train. Users can simply open and close the shell when working on the drone. The idea was to protect the inside but give people full access when maintenance work is being performed on the drone.

Innovative A-Frame for Maximum Performance
The frame was scientifically optimised and tested over months to find the balance between stability and weight. The A-Frame design minimises vibrations as well as torsion, one of the biggest problems with larger drones.

USB-C Power
A USB-C Plug was added so you can power your action cam when running out of power. This was also built in for potential upcoming new small cameras making Helion more future proof

4K Stabilized Video with 155° Ultra-Wide Angle
Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)

GPS Pre-Installed for More Safety at A Distance
GPS functionality to find your way back on those ultra long range missions. Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behaviour; Setup instructions included). Custom iFlight 100mm LR antenna for best signal coverage even at long distances.

Specifications:

• Product Name: Helion10 O4 6S HD
• FC: BLITZ F7 Flight Controller
• ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
• Video Transmission: DJI O4 Air Unit Pro
• Geometry: A-Frame
• Frame: 418mm wheelbase
• Motor: Helion 10 3110 900KV motors
• Prop: GEMFAN 1050 propellers
• Weight: 950±20g (Without Battery)
• Takeoff Weight: Approx.1846±5g (With 6S 8000mAh)
• Dimensions (L×W×H)：324x264x63mm
• Max Speed: 140km/h
• Maximum Takeoff Altitude: 7000 m
• Max Hover Time: Approx. 26mins with 6S Lipo 5600mAh battery / 30mins with 6S 8000mAh Liion battery
• Max Cruising Time: Approx. 23mins with 6S Lipo 5600mAh battery / 26mins with 6S 8000mAh Liion battery
• Operating Temperature Range: -20° to 40° C
• Antennas: Dual Antennas
• GNSS: GPS+SBAS+Galileo+QZSS+Glonass
• Battery Connector: XT90

• Product Name: DJI O4 Air Unit Pro
• Image Sensor: 1/1.3-inch
• Lens: FOV: 155°
• ISO: 100-25600
• Video Resolution: 1080p/100fps H.265
• Video Format: MP4, Max Video Bitrate: 130Mbps
• Color Mode: Normal Mode/D-Log M
• Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)
• Live View Quality: 1080P@100fps
• Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz
• Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
• Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
• Communication Bandwidth: Max 60 MHz
• Antenna: Dual antennas
• Built-in Storage: 4GB
• Supported SD cards: microSD (up to 512GB)
• Operating Temperature: -10° to 40° C
• Weight: Air Unit (camera module included): Approx. 32 g
• Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

Package Includes:

• 1 x Helion 10 O4 Pro 6S HD
• 2 x Battery pad
• 2 x GEMFAN 1050 propellers(Pairs)
• 2 x Battery strap
• 1 x Screw bag
• 1 x Amass XT90 to XT60 H Adapter Cable

Important
All iFlight BNFs are tested before shipment to guarantee the highest quality.
If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.

Note
1. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:
(1)Any military combat purpose or military combat related use;
(2)Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.

2. If party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.
