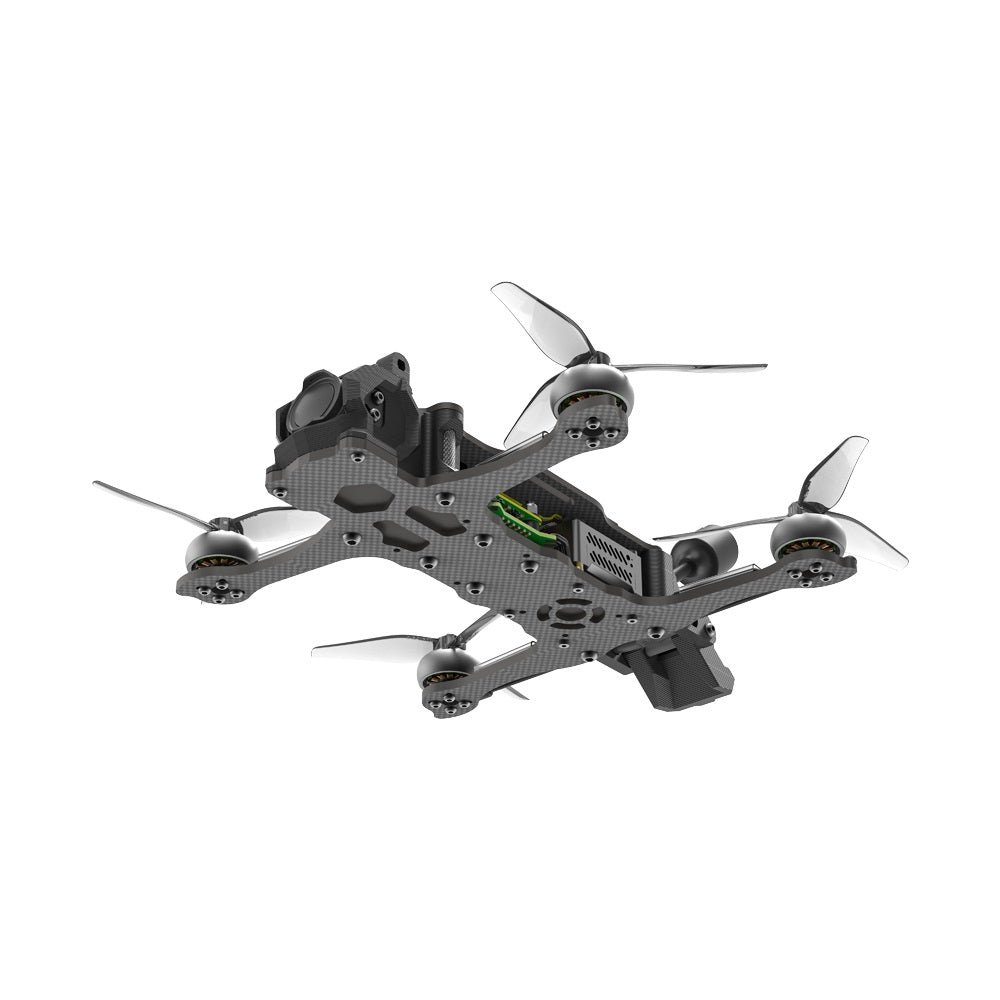

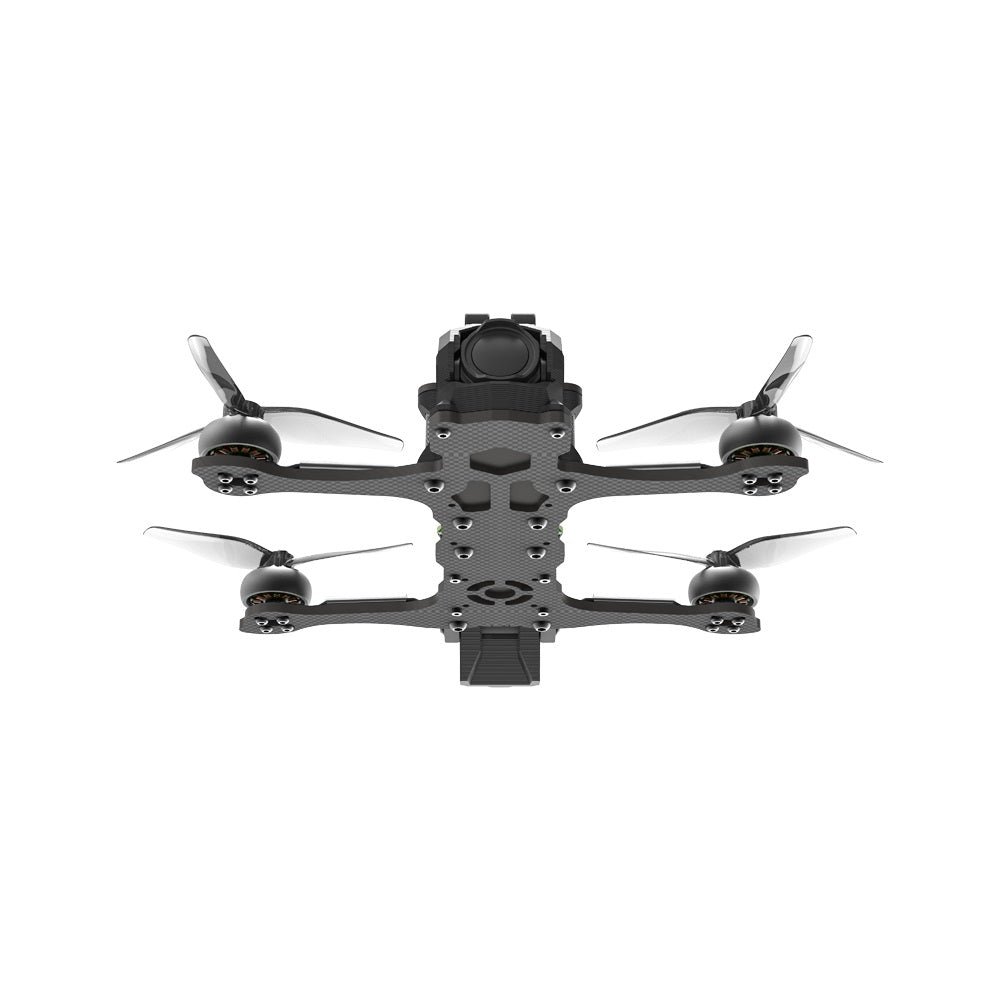

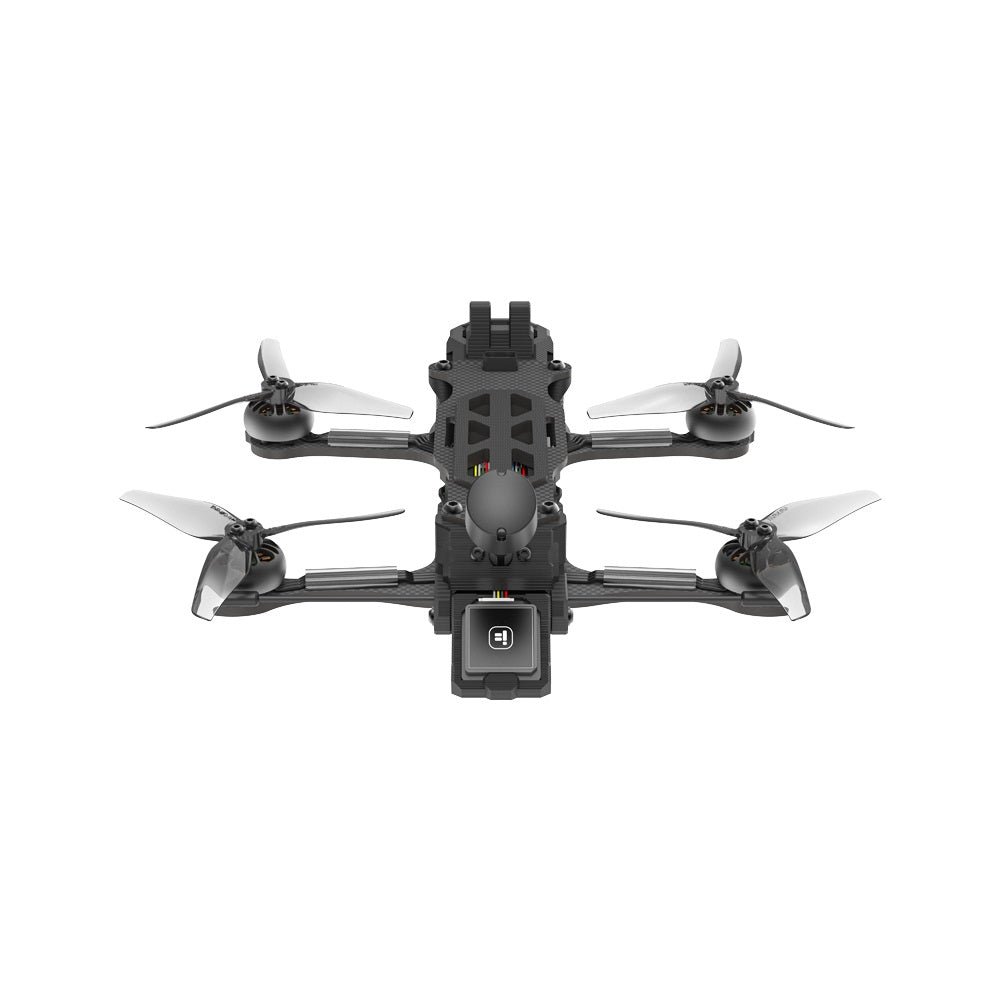

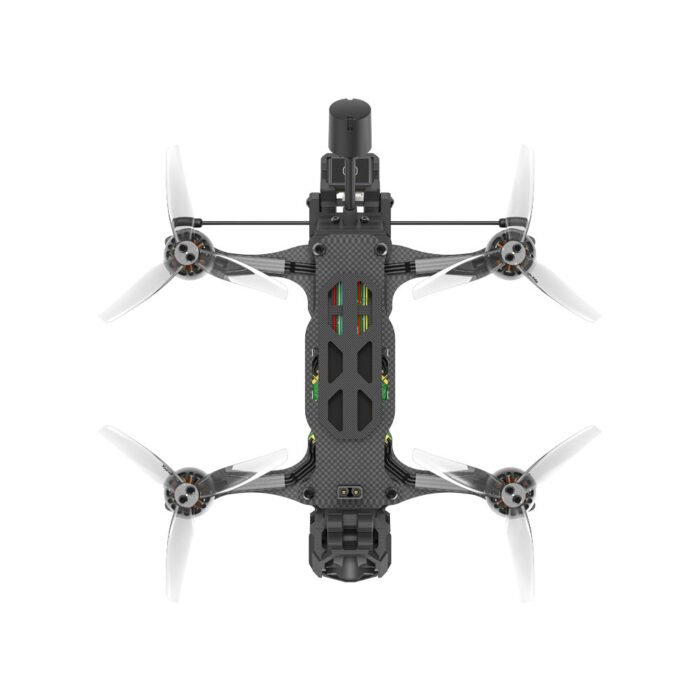

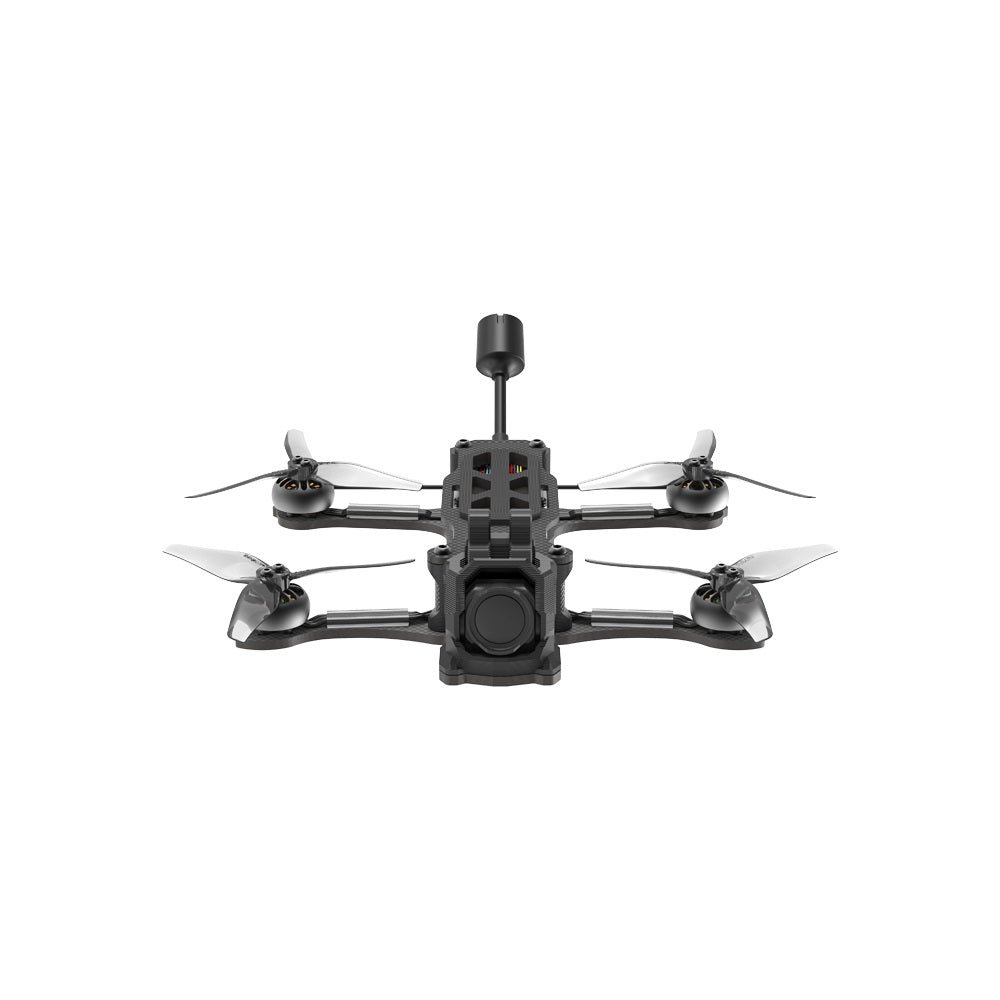

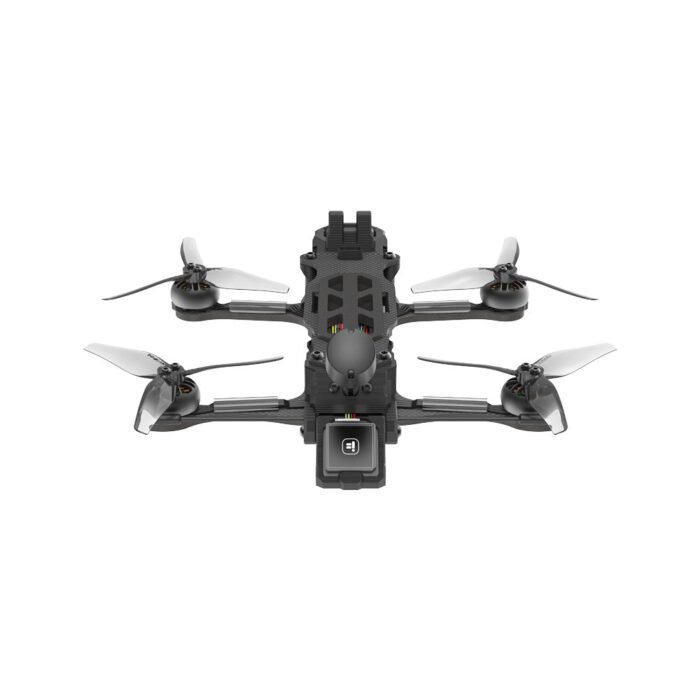

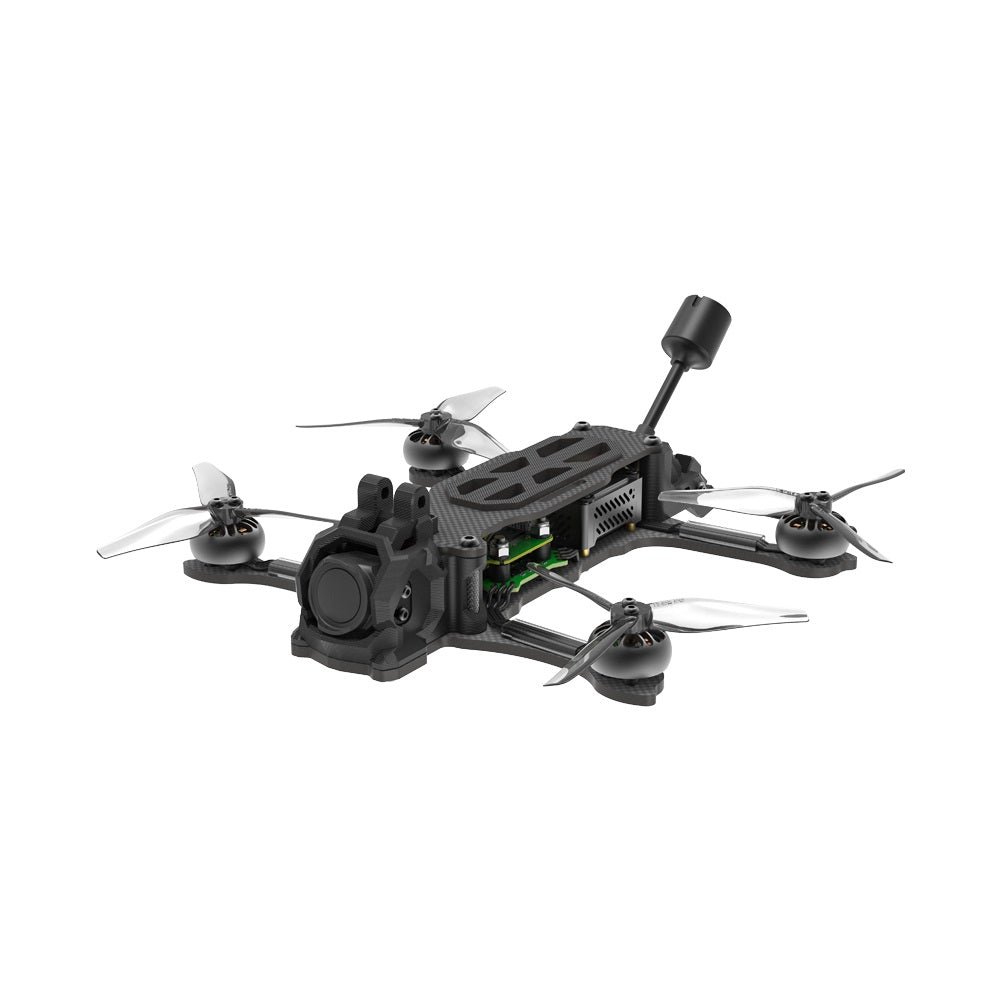

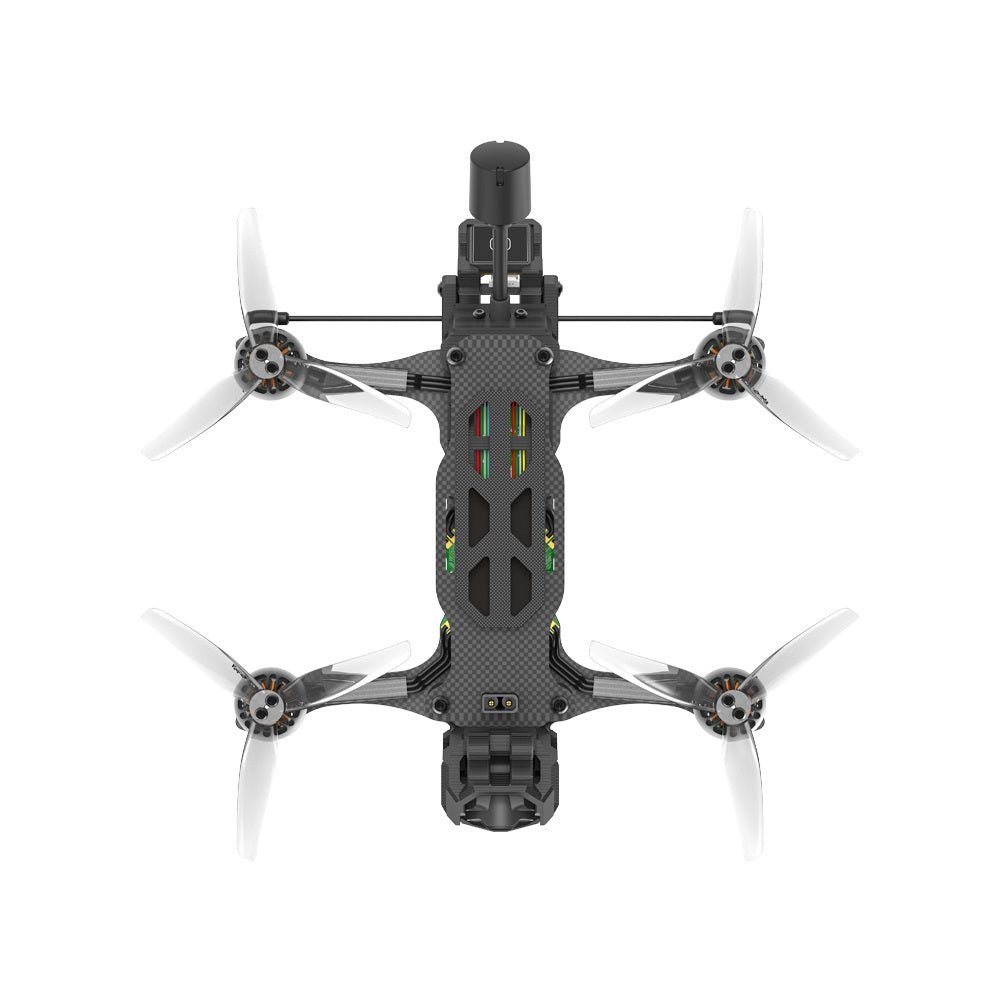

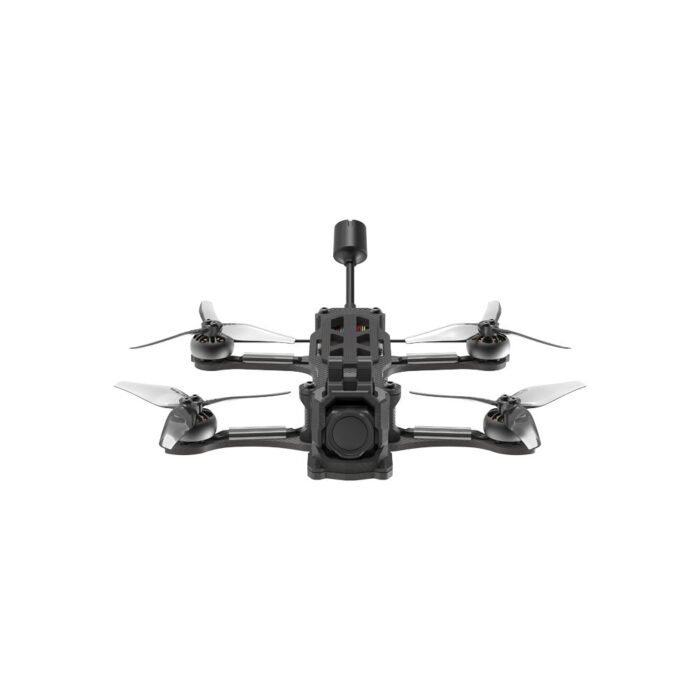

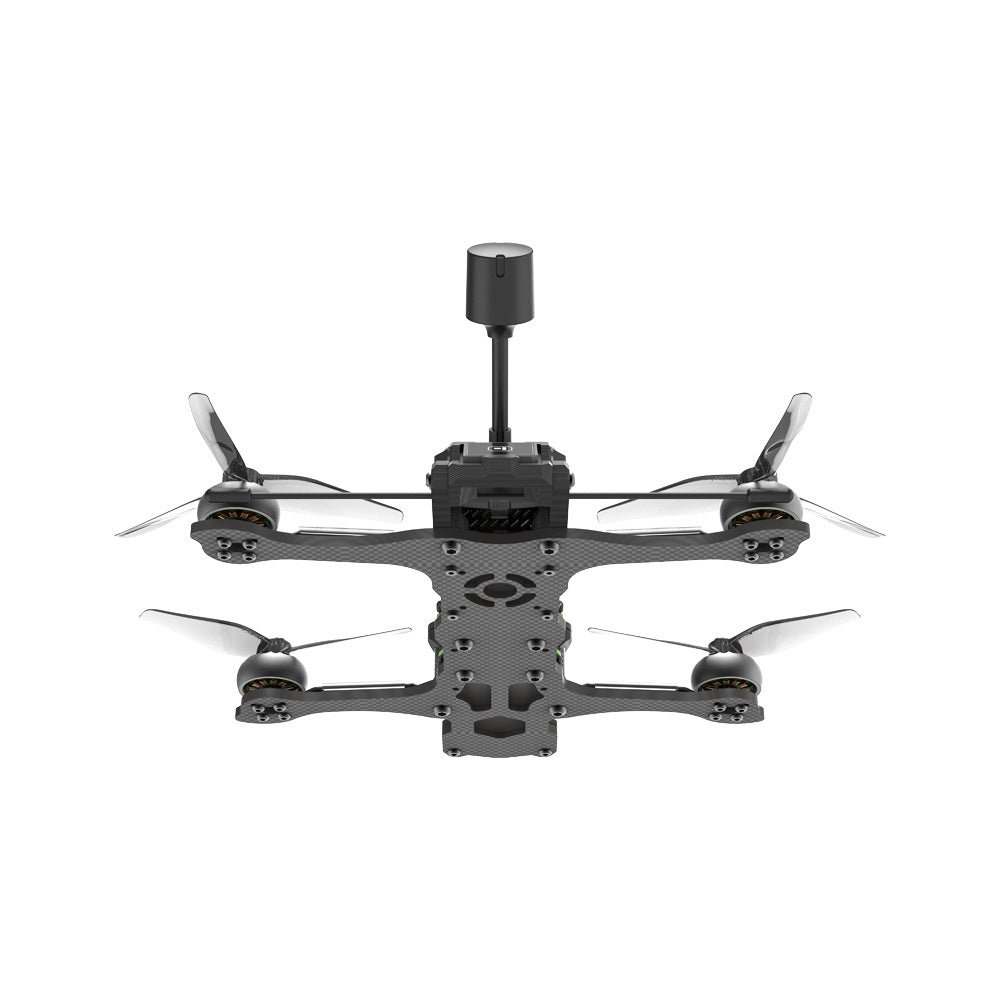

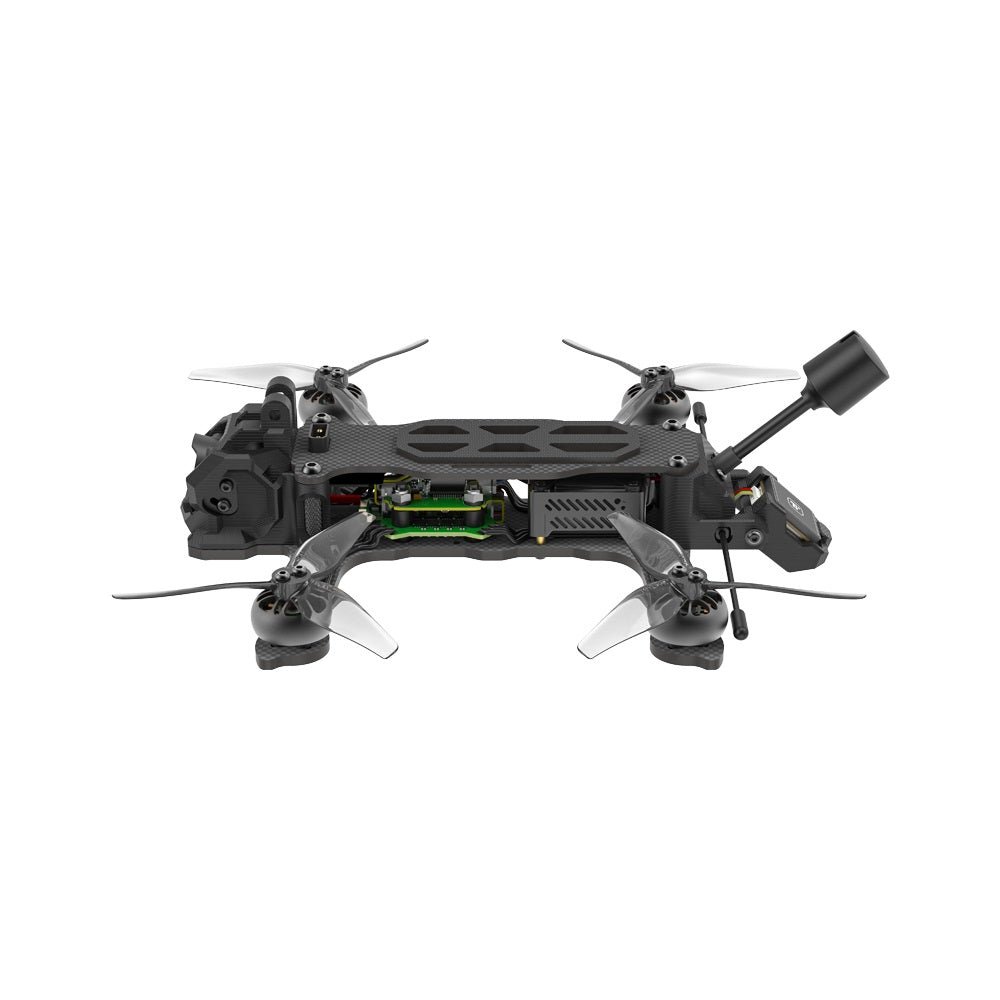

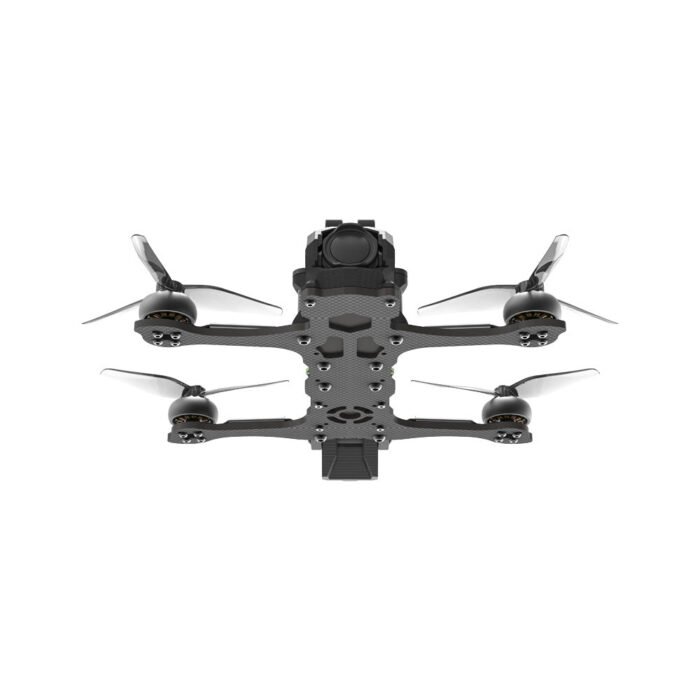

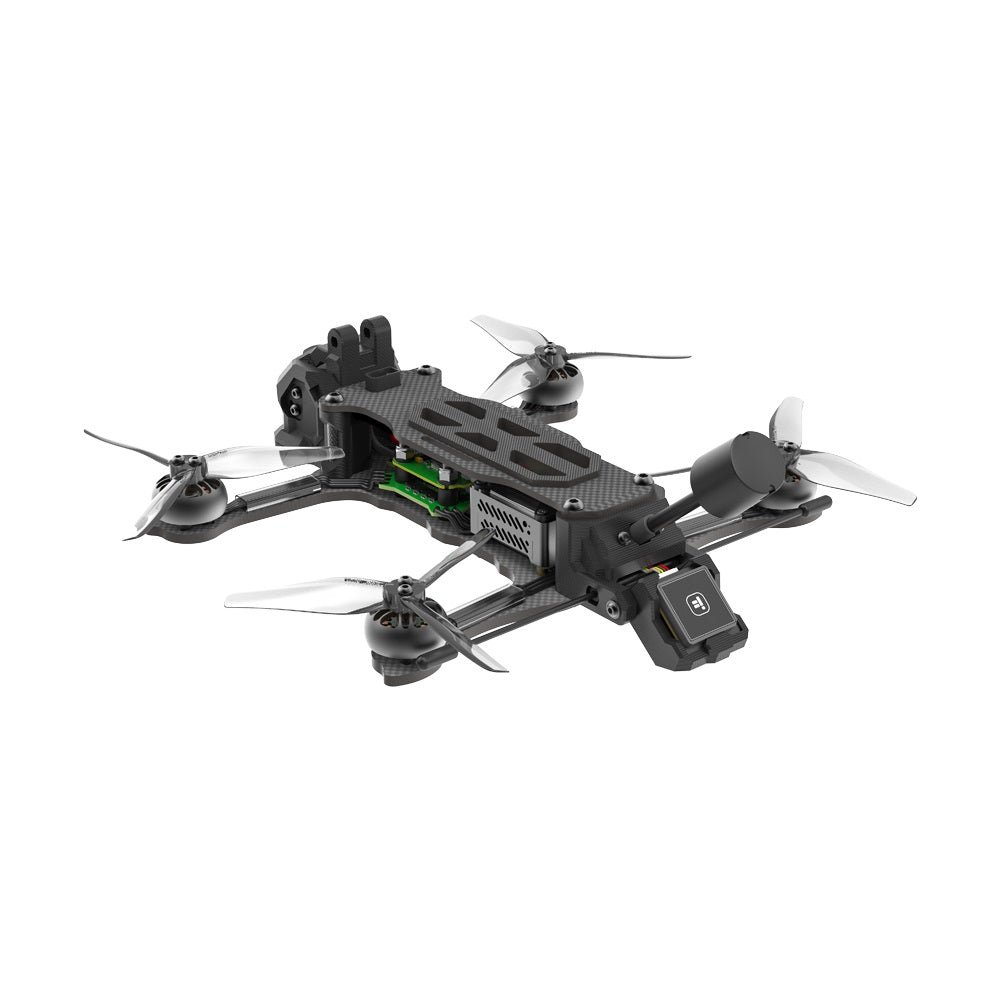

iFlight iH3 3.5″ 4S HD BNF/PNP w/ DJI O3 HD Camera System – Choose Version

Let’s meet the iH3 – a new high-quality cruise drone that offers an exceptional flying experience at an affordable price.

Equipped with DJI O3 digital system, the iH3 is a 3.5-inch drone that boasts stable flight, easy operation, and superior quality. Its H-shaped frame structure and Anti-Spark Filter ensure balance and stability even during intense operations. Moreover, it can carry a naked GoPro for more exciting flight footage.

Check out all our Digital BNF/PNP/RTFs and the rest of our iFlight Products!

Specifications:

• FC: BLITZ Mini F7 FC
• ESC: BLITZ Mini E55 4-IN-1 ESC
• Video Transmission: DJI O3 Air Unit
• Geometry: H-shaped
• Frame: 168 mm (wheelbase)
• Motor: XING 1504 3100KV motors
• Prop: HQ 3.5*2.5*3 propellers
• Weight of the Aircraft: Approx. 216 g (Without Battery)
• Dimensions (L×W×H): 135×100×40 mm (From Canopy)
• Max Speed: 110 Km/h (Manual Mode)
• Maximum Takeoff Altitude: 3200m
• Max Hover Time:
• Approx. 12 mins (No Load with 4S 850mAh Battery)
• Approx. 18 mins (No Load with 4S 1050mAh Battery)
• Max Wind Speed Resistance: Level 5
• Operating Temperature Range: -10° to 40° C (14° to 104° F)
• Antennas: DJI O3 Air Unit Dual-band Antenna
• GNSS: GPS+Galileo

VTX Specifications:

• Weight: Approx. 36.4 grams（headband included）
• Dimensions (L×W×H): L32.5 * W30.5 * H 14.5mm
• Communication Bandwidth： Max 40 MHz
• FOV (single screen): 155°
• Communication Frequency: 2.400-2.4835 GHz；5.725-5.850 GHz
• End-to-End Latency
• With DJI FPV Goggles V2:
• 810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
• 810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
• With DJI Goggles 2:
• 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
• 1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
• Max Video Transmission Bitrate: 50 Mbps
• Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)
• Operating Temperature Range: -10º to 40º C (14° to 104° F)
• Power Input: 7.4-26.4 V
• Audio Transmission: N/A

Includes:

• 1 x iFlight iH3 3.5″ 4S HD BNF/PNP w/ DJI O3 HD Camera System – Chosen Version
• 1 x Battery pads
• 1 x Prop(Pair)
• 1 x Screw Bag
• 1 x Naked Gopro Cable
