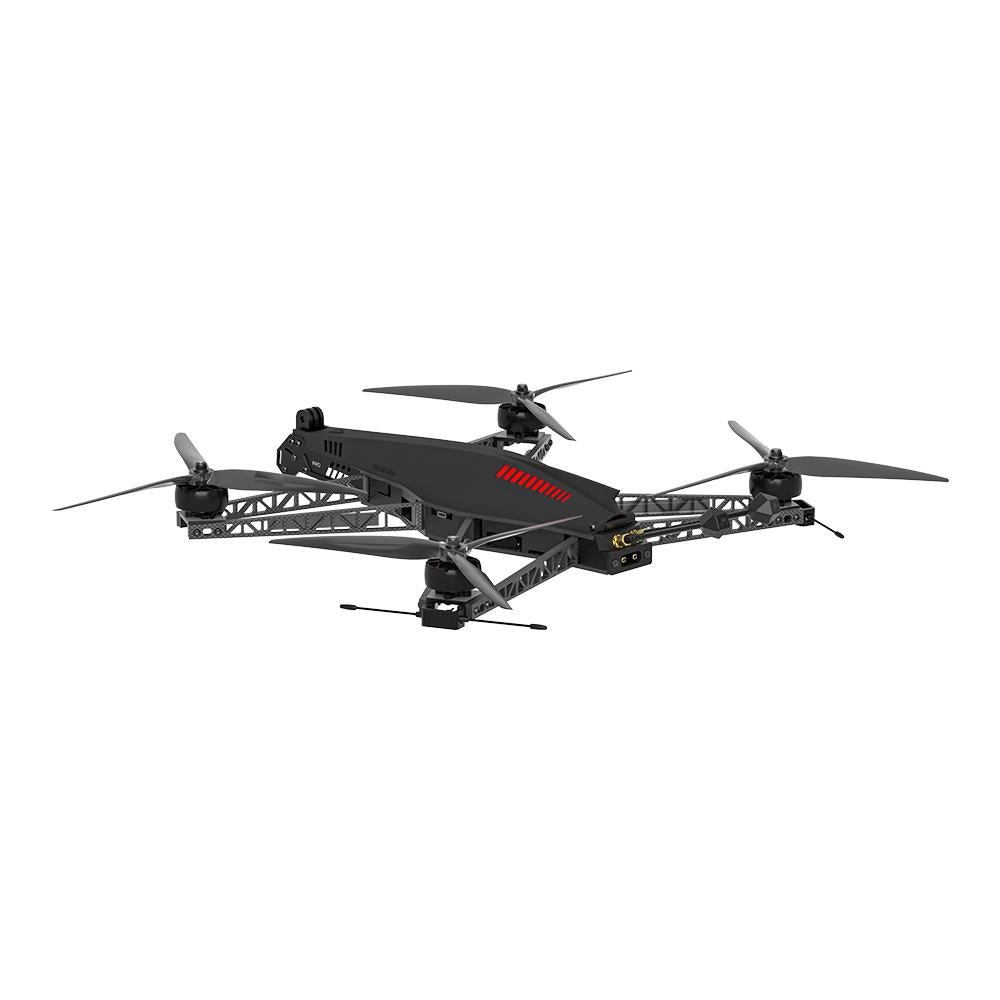

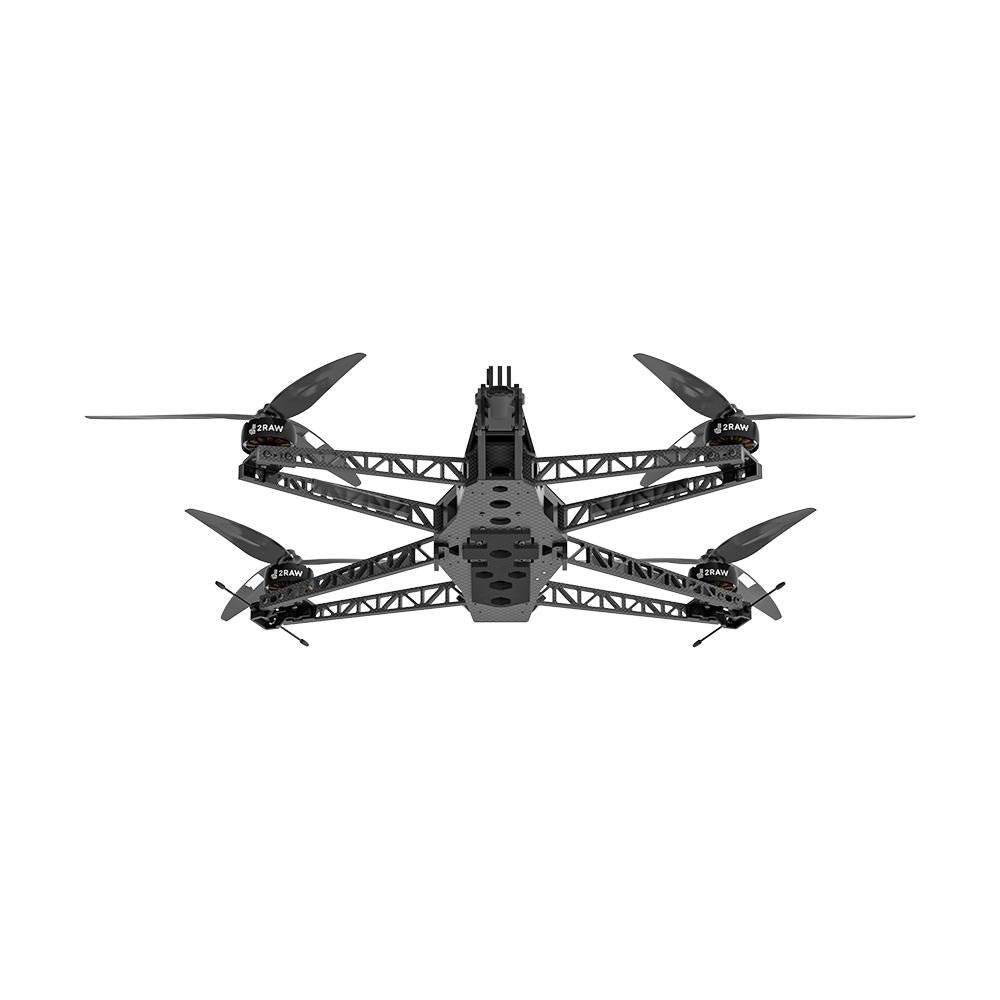

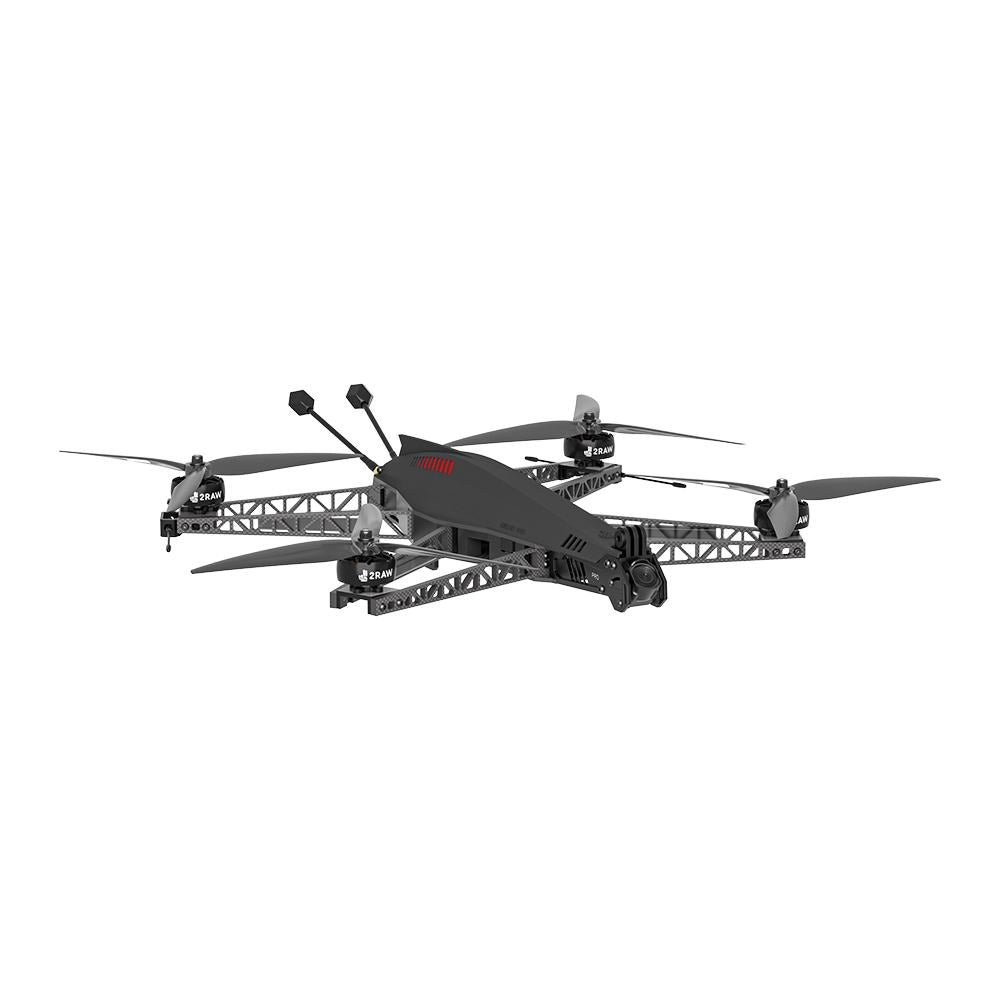

IFlight Helion Pro O4 6S HD 10 inch Long Range Drone W/ DJI O4 Pro FPV System – Choose Receiver

HELION –  The Long  Range flagship by 2RAW and iFlight

This drone was built to redefine Long Range. In order to meet the rising demands for more range, and more flight time while maintaining enough weight, to have excellent stability in even the windiest of conditions. With a prop size of 10 inches, Helion is not only capable of effectively carrying large (Recommended, 4500mAh Lipo and above)  batteries but also ensuring great efficiency with ample power. You will have better dive recovery and more overall control than traditional long-range drones. Its unique aerodynamic shell allows for easy maintenance while protecting the cores of the power train. Helion’s distinct frame design was scientifically optimized to balance stability, weight, and rigidity.

Battery Recommendation (NOT INCLUDED): 6S 5600mAh to 8000mAh Li-on Battery

You can find all the related parts in The IFlight Helion 10 6S HD 10 inch Long Range Drone Frame Collection

Check out all our Digital BNF/PNP/RTFs and the rest of our IFlight Products!

Highlights:

Optimised Motors & Propeller

This latest XING motor was optimised between thrust and efficiency. Perfectly tuned to the 10 inch Gemfan propellers.

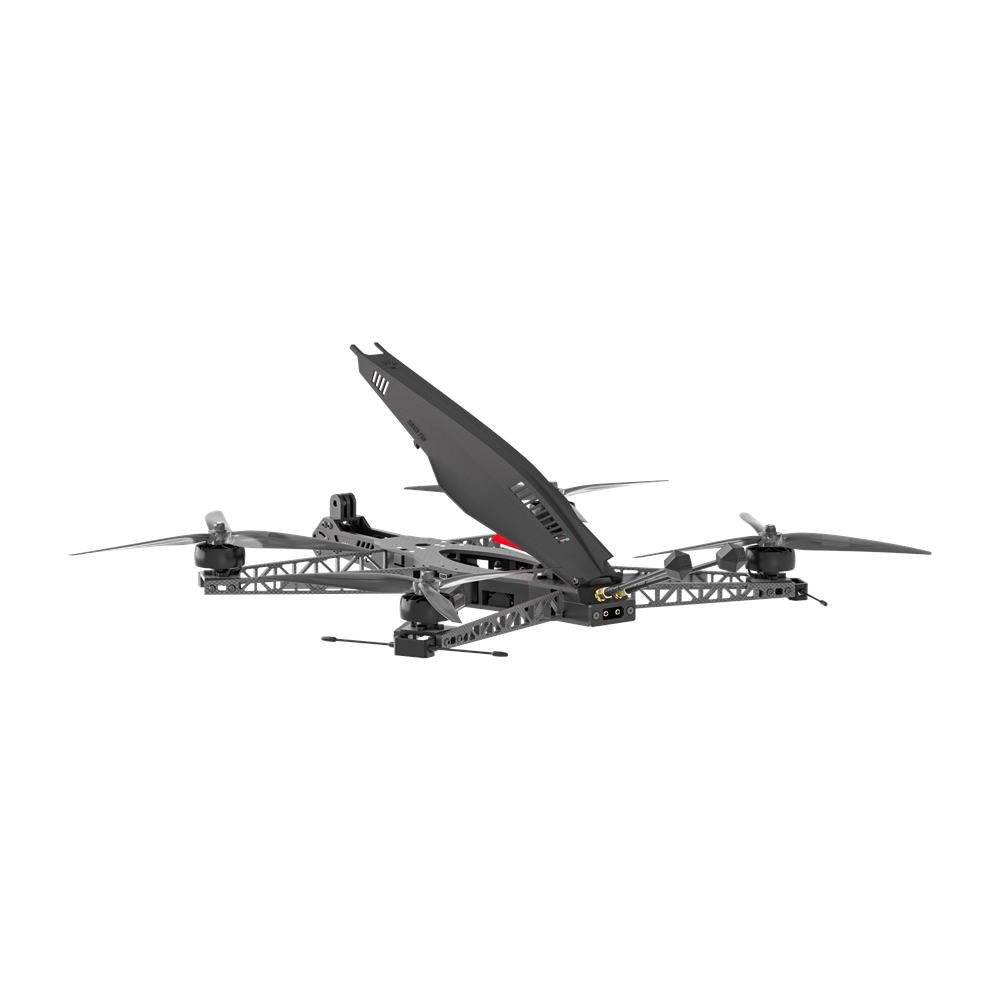

Aero-Shell

The unique aerodynamic shell allows for easy maintenance while protecting the cores of the power train. Users can simply open and close the shell when working on the drone. The idea was to protect the inside but give people full access when maintenance work is being performed on the drone.

Advanced Truss Arms

The Helion Pro features the tried-and-tested 2RAW truss design for its arms, delivering an unparalleled strength-to-weight ratio while maintaining exceptional torsional resistance.

Premium Electronics Package

The Helion Pro is equipped with advanced, high-end electronics, featuring the 2RAW H7 Thunder flight controller and BLITZ E55 ESC, which minimizes electrical noise to deliver exceptionally smooth flight performance.

USB-C Power

A USB-C Plug was added so you can power your action cam when running out of power. This was also built in for potential upcoming new small cameras making Helion more future proof.

DJI O4 Air Unit Pro Low-Latency Digital Transmission

Up to 15 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source DJI)

4K Stabilized Video with 155° Ultra-Wide Angle

Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)

GPS Pre-Installed for More Safety at A Distance

GPS functionality to find your way back on those ultra long range missions. Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behaviour; Setup instructions included). Custom iFlight 100mm LR antenna for best signal coverage even at long distances.

Specifications:

• Product Name: Helion Pro O4 6S HD
• FC: Thunder H7 Flight Controller
• ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
• Video Transmission: DJI O4 Air Unit Pro
• Frame: 414mm wheelbase
• Motor: Helion 10 3110 900KV motors
• Prop: GEMFAN 1050 propellers
• Weight: 1070g±20g
• Takeoff Weight: Approx.1903±20g (With 6S 5600mAh)
• Dimensions (L×W×H)：374*362*70mm
• Max Speed: 140km/h
• Maximum Takeoff Altitude: 7000 m
• Max Hover Time: Approx. 26-27mins with 6S Lipo 5600mAh battery
• Max Cruising Time: Approx. 8-9mins with 6S Lipo 5600mAh battery in 80km/h
• Operating Temperature Range: -20° to 40° C
• Antennas: Dual Antennas
• GNSS: GPS+SBAS+Galileo+QZSS+Glonass

• Product Name: DJI O4 Air Unit Pro
• Image Sensor: 1/1.3-inch
• Lens: FOV: 155°
• ISO: 100-25600
• Video Resolution: 1080p/100fps H.265
• Video Format: MP4, Max Video Bitrate: 130Mbps
• Color Mode: Normal Mode/D-Log M
• Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)
• Live View Quality: 1080P@100fps
• Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz
• Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
• Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
• Communication Bandwidth: Max 60 MHz
• Antenna: Dual antennas
• Built-in Storage: 4GB
• Supported SD cards: microSD (up to 512GB)
• Operating Temperature: -10° to 40° C
• Weight: Air Unit (camera module included): Approx. 32 g
• Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

Package Includes:

• 1 x Helion Pro O4 6S HD
• 2 x Battery pad
• 2 x GEMFAN 1050 propellers(Pairs)
• 2 x Battery strap
• 1 x Screw bag
• 1 x Amass XT90 to XT60 H Adapter Cable
