iFlight Proxima 6S HD O3 Cinelifter – Choose Receiver Type

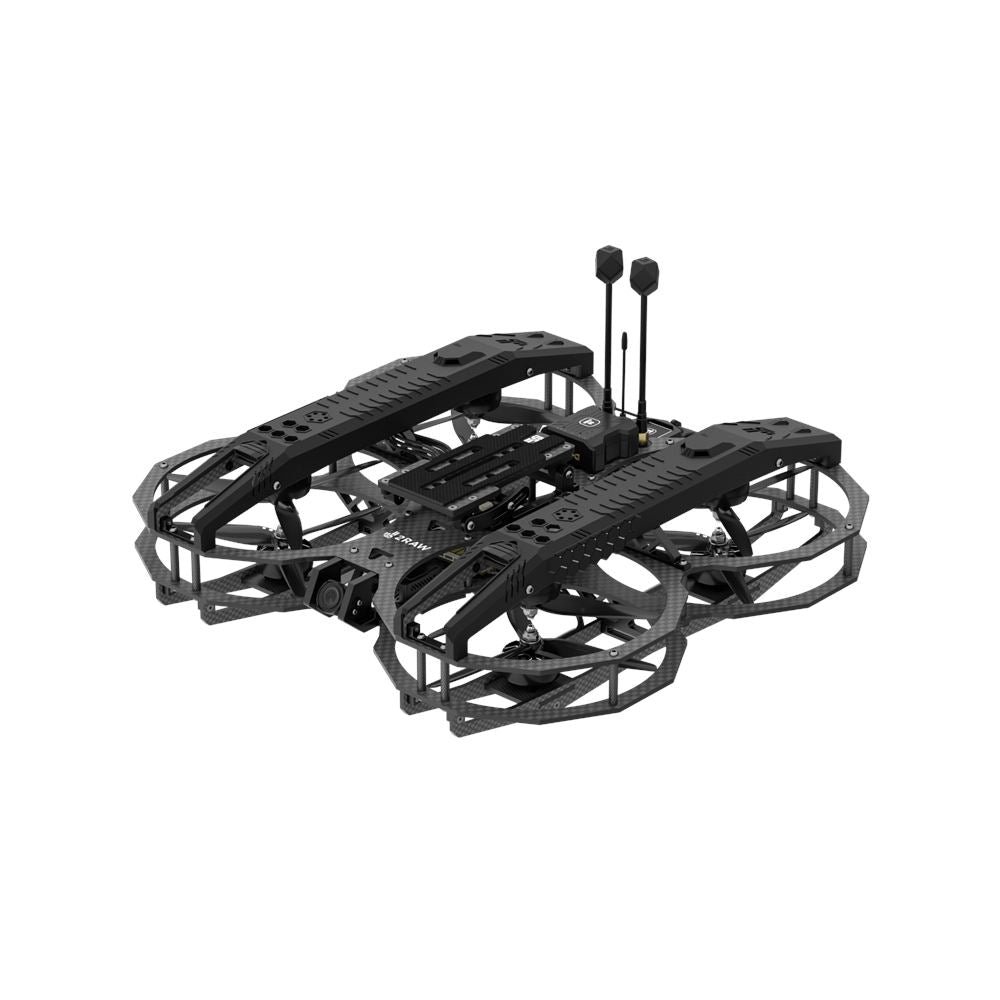

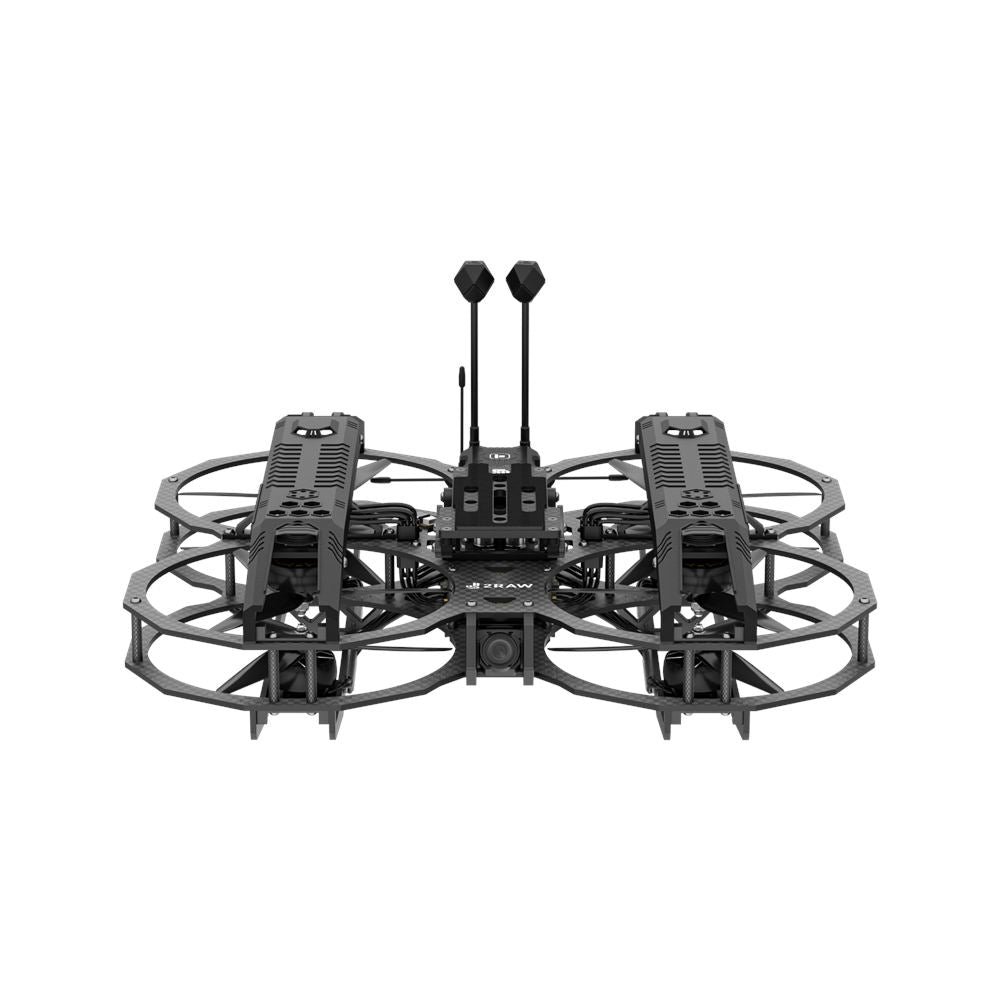

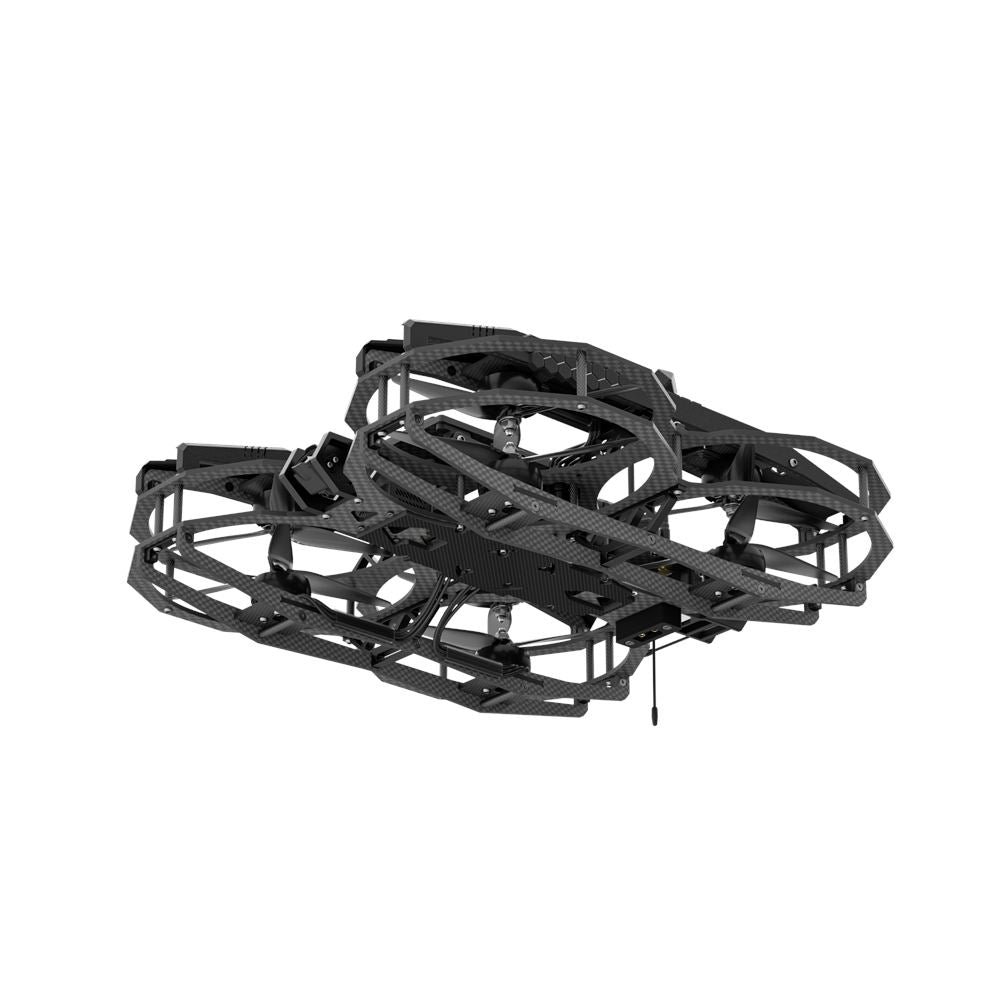

Proxima stands as the latest innovation from the collaborative efforts of 2RAW & IFLIGHT Cinema range, boasting a compact 6-inch x8 form factor. This cutting-edge product is tailored to accommodate box cinema cameras such as the RED Komodo. With its unique track design, meticulously engineered to minimize vertical height while ensuring the weight distribution remains centralized. This configuration not only enhances manoeuvrability but also facilitates navigation through confined spaces. Furthermore, Proxima’s fully shielded props mitigate the risk of inadvertent contact during close proximity filming, making it an ideal choice for capturing daring cinematic shots.

Check Out all our Cinelifters and related Accessories as well as the rest of our IFlight Products!

Recommended Props: GEMFAN 6*4.5*3 propellers / HQProp D6x4.5×3
Recommended Battery: Gens Ace 5500mAh 6s 22.2V 60C Long Range/Cinelifter Lipo

Features:

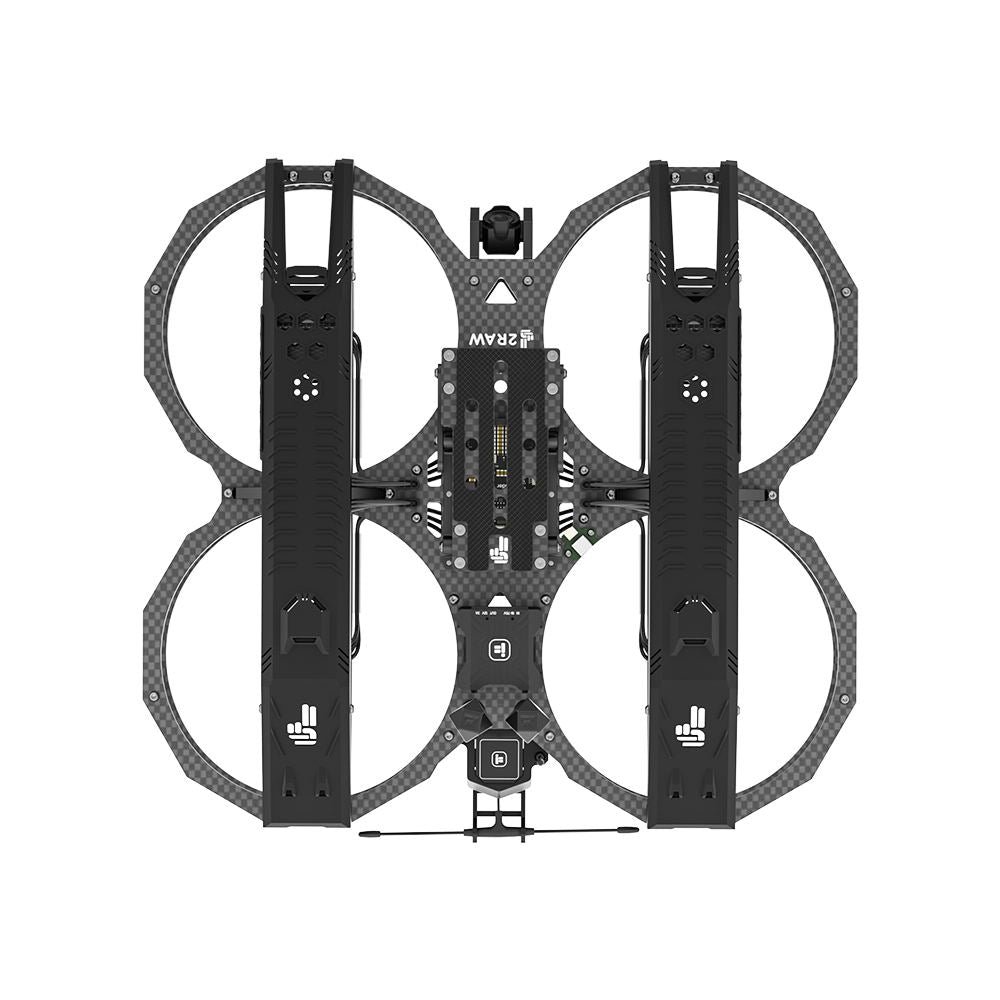

• Advanced Track Design

Proxima implements a distinctive track motor mount system, strategically designed to achieve a closer alignment between the center of gravity and the center of mass. This innovation not only enhances maneuverability but also contributes to the compactness of the drone. Employing precision-engineered Aluminum CNC Truss structures, the mount ensures robust support for the motors across all axes.

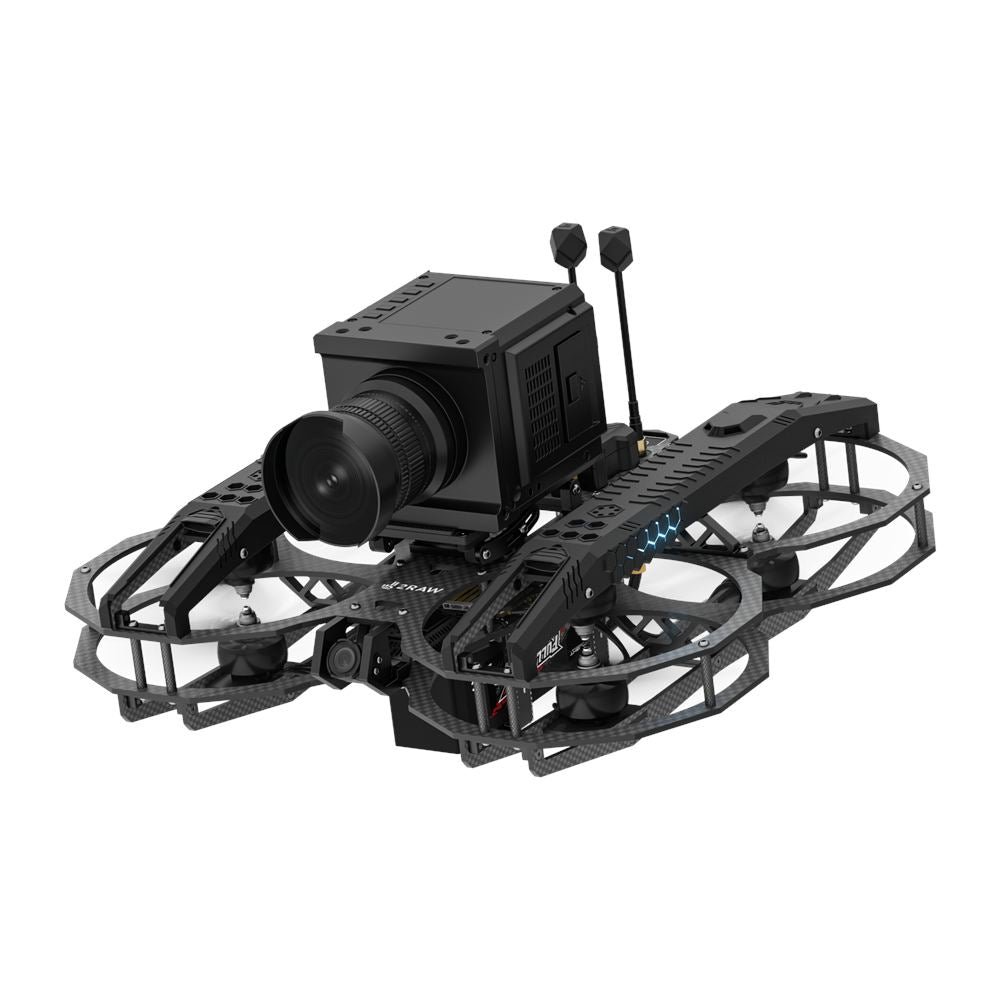

• Camera Mount

Crafted from CNC Aluminum and ultra-light carbon materials, the camera mount on Proxima facilitates seamless camera adjustments, catering to the dynamic requirements of film sets. Additionally, the mount features a vibration isolation rubber plate, effectively dampening high-frequency vibrations between the drone and the camera, thereby ensuring optimal filming conditions.

• MultiJet Fusion Shell

In line with the hallmark quality of 2RAW products, Proxima boasts a MultiJet fused shell that runs along its tracks. Not only does this shell house the LED system, but it also conceals cabling, imparting a polished and professional aesthetic essential for client-facing applications.

• Dependable Electronics

Reliability is paramount, especially in scenarios where failure is not an option. Proxima incorporates a bespoke electronics package, engineered for simplicity and reliability. Utilizing state-of-the-art chips and advanced electrical noise filtration, it delivers unparalleled performance. Moreover, a dedicated shielded UBEC with reverse voltage and spike protection powers the cinema camera and facilitates video feed transmission directly from the drone, minimizing risks.

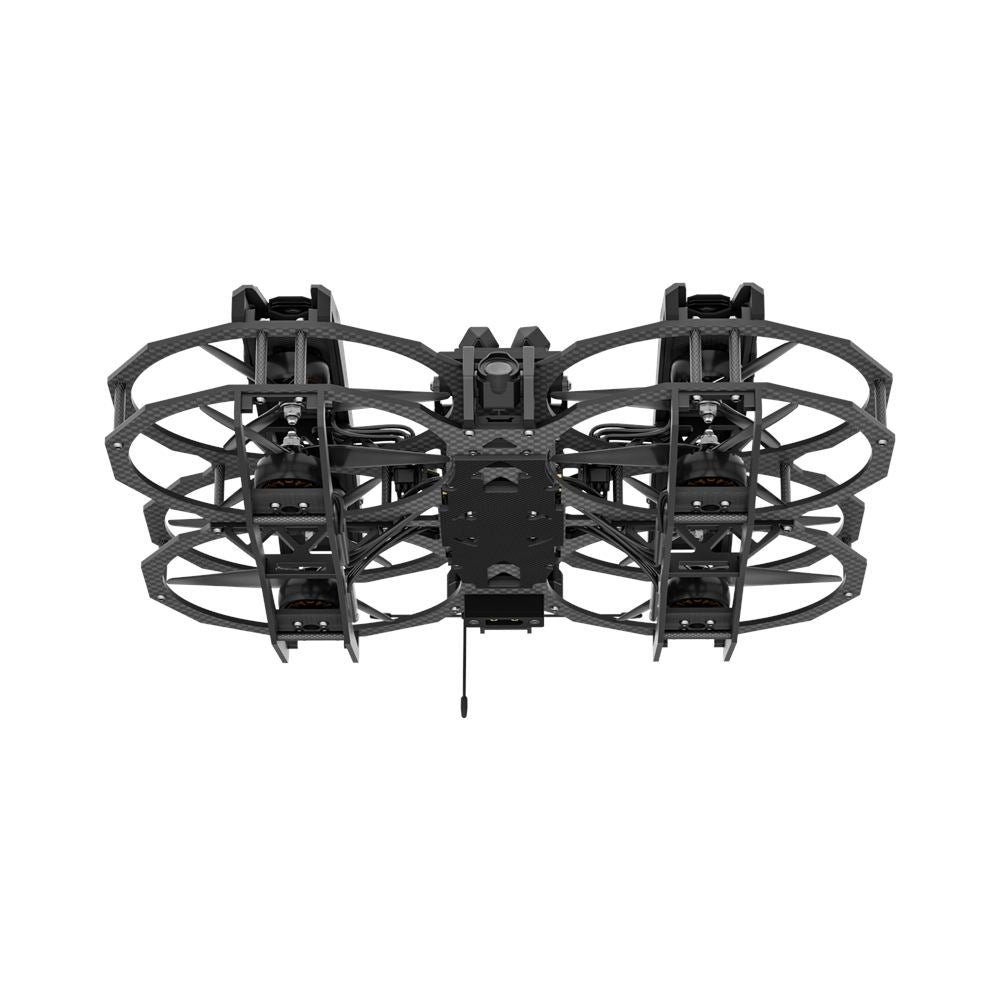

• Protected Propellers

Proxima’s fully shielded propellers provide comprehensive protection from all directions, ensuring safe operation around delicate subjects. Even in the event of a collision, the risk of causing serious injury is significantly mitigated compared to traditional open-prop drones.

Specifications:

• • Product Name: Proxima 6S HD
  • FC: Thunder H743 Flight Controller
  • ESC: Thunder 80A 8-IN-1 ESC
  • Video Transmission: DJI O3 Air Unit
  • Frame: 262mm wheelbase
  • Motor: XING2 2809 1600KV motors
  • Prop: GEMFAN 6*4.5*3 propellers
  • Weight: 1795g±20g (Without Battery)
  • Takeoff Weight: Approx. 2653±20g（incl. 6S 5600mAh）
  • Dimensions (L×W×H): 200×170×112mm
  • Max Speed: 120km/h
  • Maximum Takeoff Altitude: 3200m
  • Max Hover Time: Approx. 6.5mins with 6S Lipo 5600mAh battery
  • Max Cruising Time: Approx. 5mins with 6S Lipo 5600mAh battery
  • Max Wind Speed Resistance: Level 6
  • Operating Temperature Range: -10° to 40° C
  • Antennas: Dual Antennas
  • GNSS: GPS+SBAS+Galileo+QZSS+Glonass



  Video Transmission

  • Product Name: DJI O3 Air Unit
  • Communication Bandwidth: Max 40 MHz
  • Communication Frequency：2.400-2.4835 GHz (RX only)  /  5.725-5.850 GHz (RX and TX)
  • End-to-End Latency
  • With DJI FPV Goggles V2:
  • 810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
  • 810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
  • With DJI Goggles 2:
  • 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
  • 1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
  • Max Video Transmission Bitrate: 50 Mbps
  • Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)
  • Operating Temperature Range: -10º to 40º C (14° to 104° F)
  • Power Input: 7.4-26.4 V
  • Audio Transmission: N/A

Package Includes:

• 1 x Proxima 6S HD BNF
• 8 x GEMFAN 6*4.5*3 CW propeller
• 8 x GEMFAN 6*4.5*3 CCW propeller
• 2 x Albatross LHCP 5.8GHz SMA FPV Antenna
• 1 x XT60 Male to XT30 Female Adapter Wire
• 4 x Lipo Strap 20*300mm
• 2 x Lipo Strap 20*400mm
• 2 x Lipo Strap 20*500mm
• 1 x XT90 Smart Smoke Stopper
• 2 x Removable Hand Catch Handles

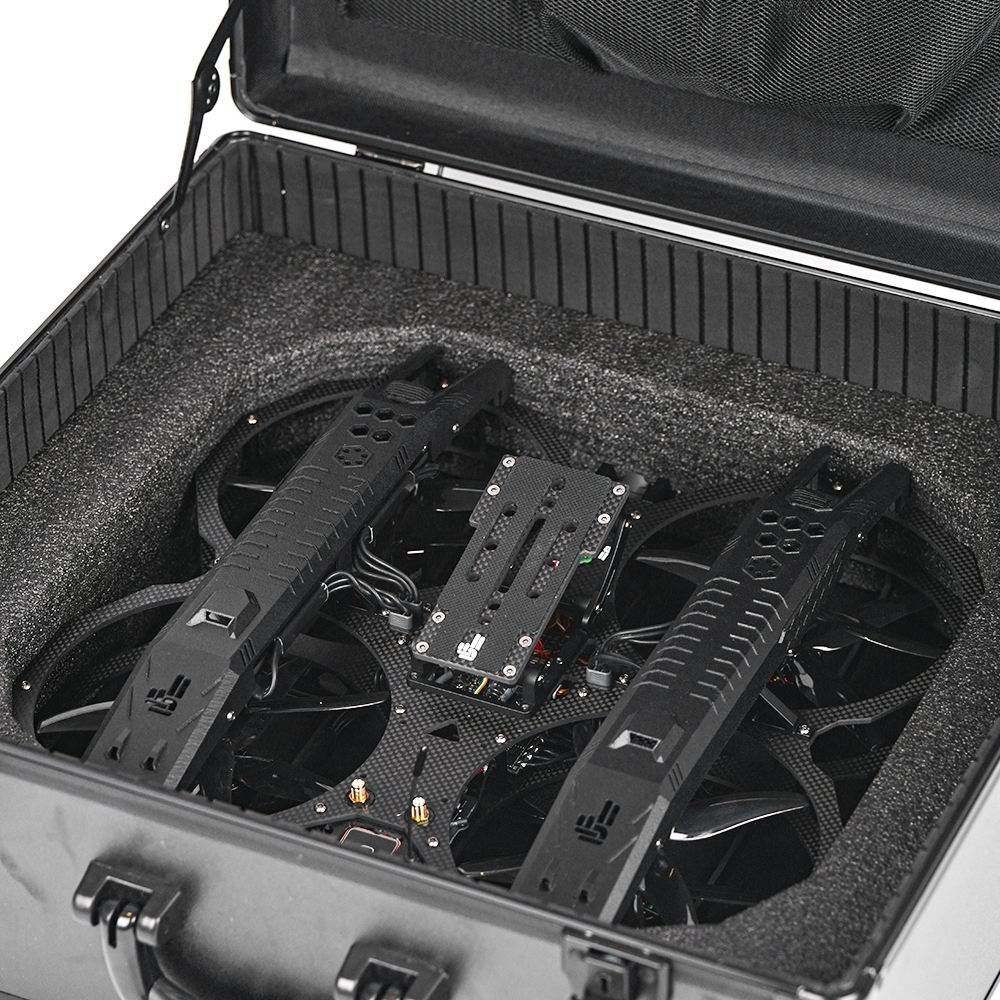

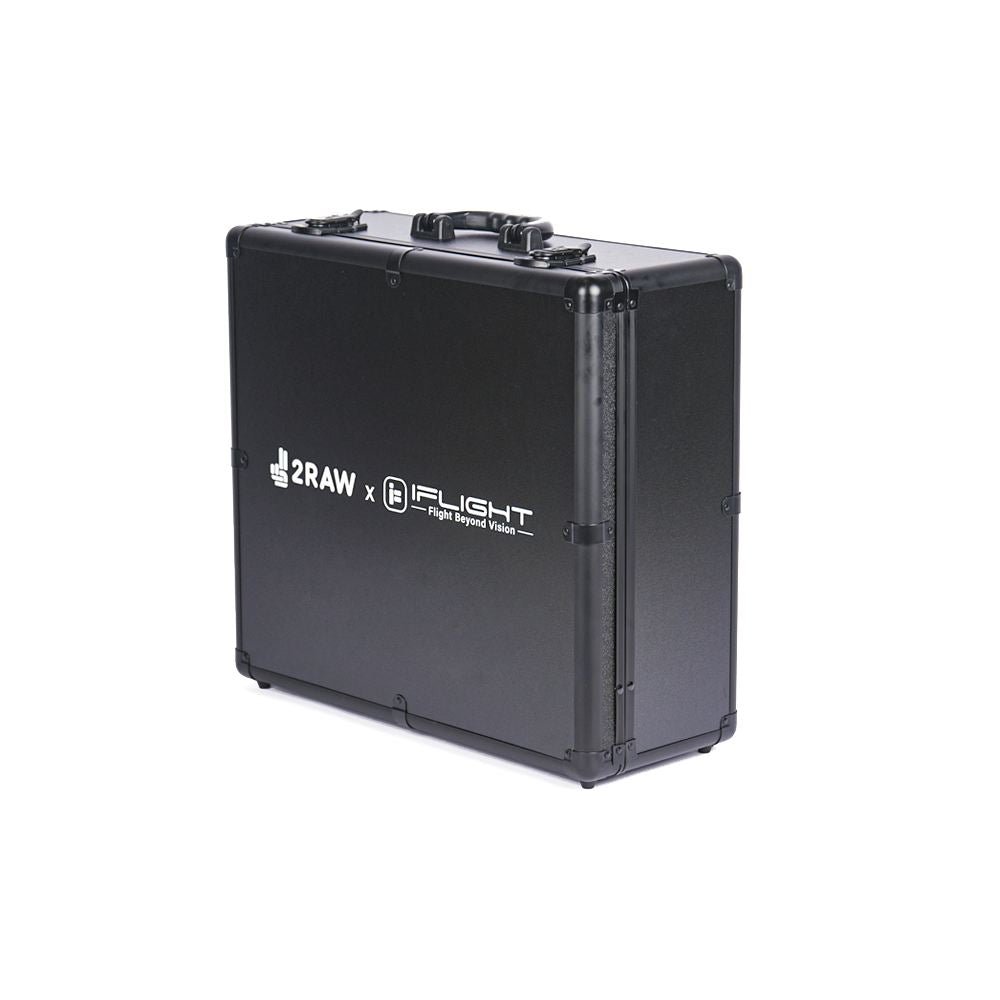

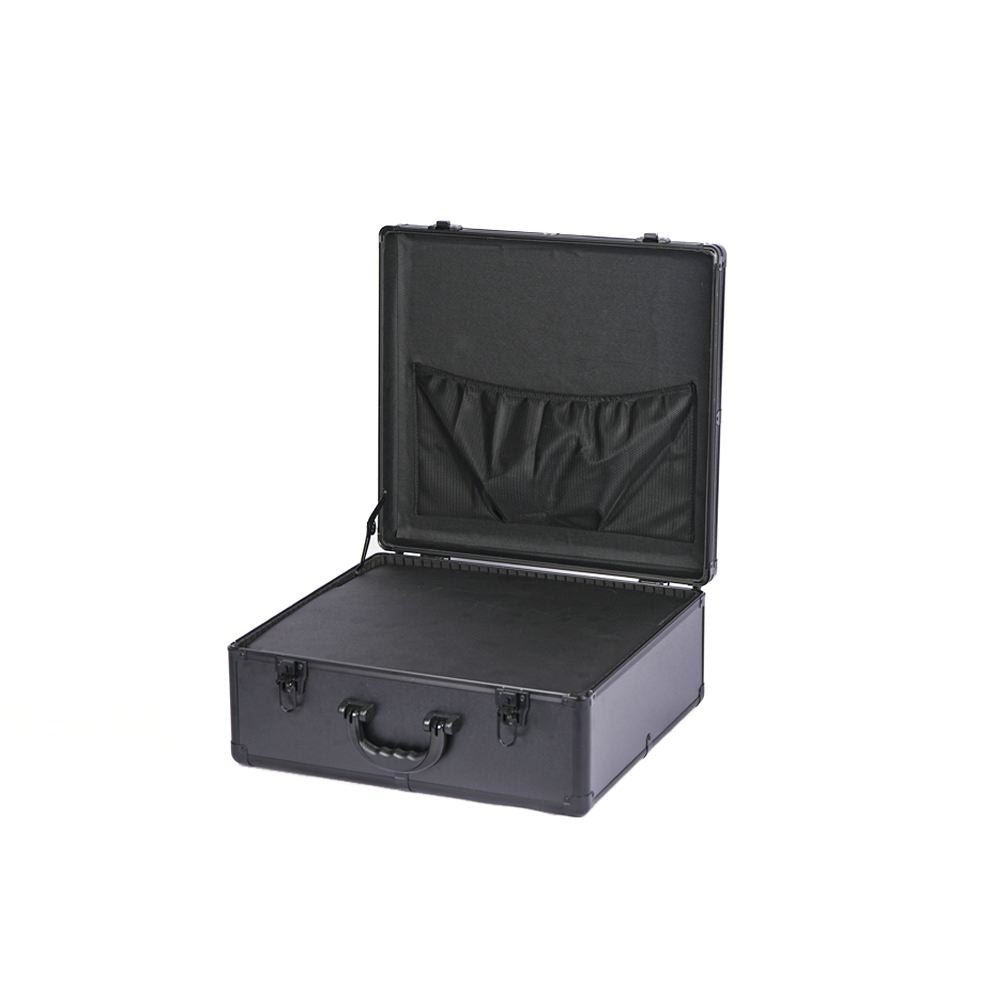

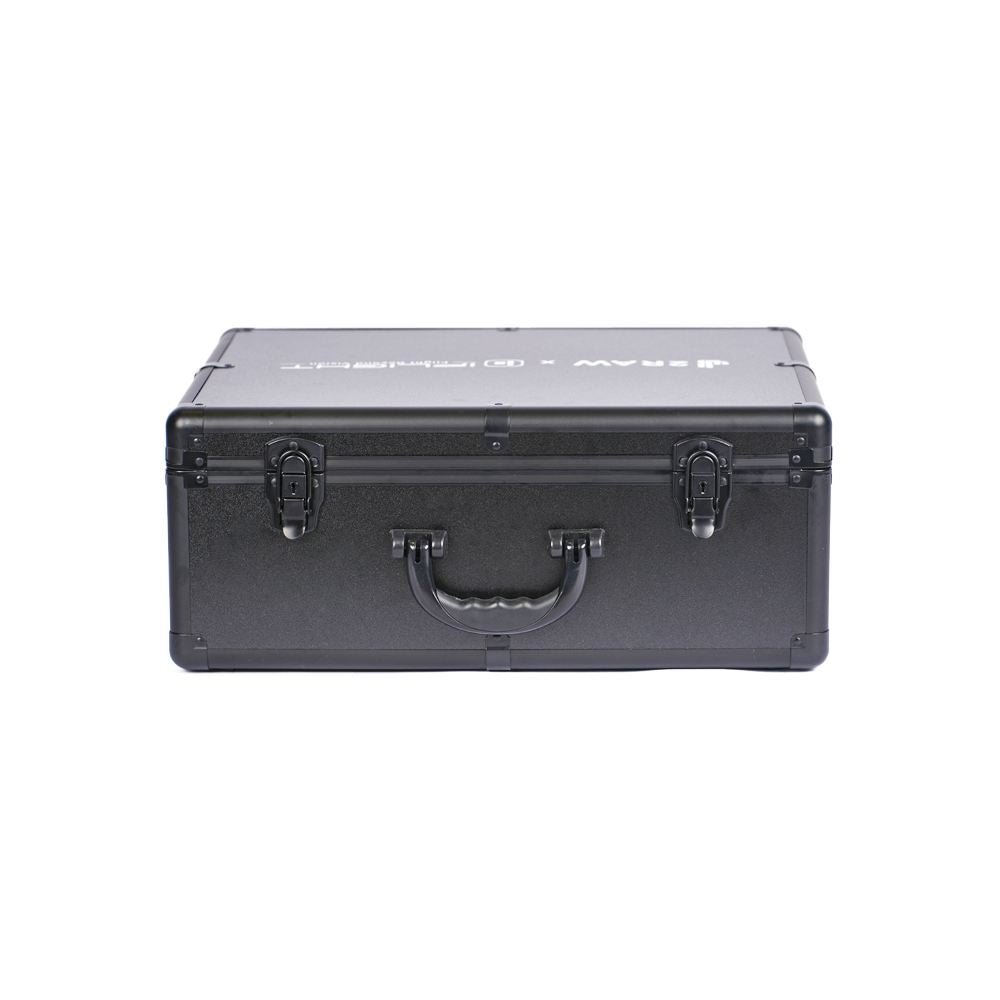

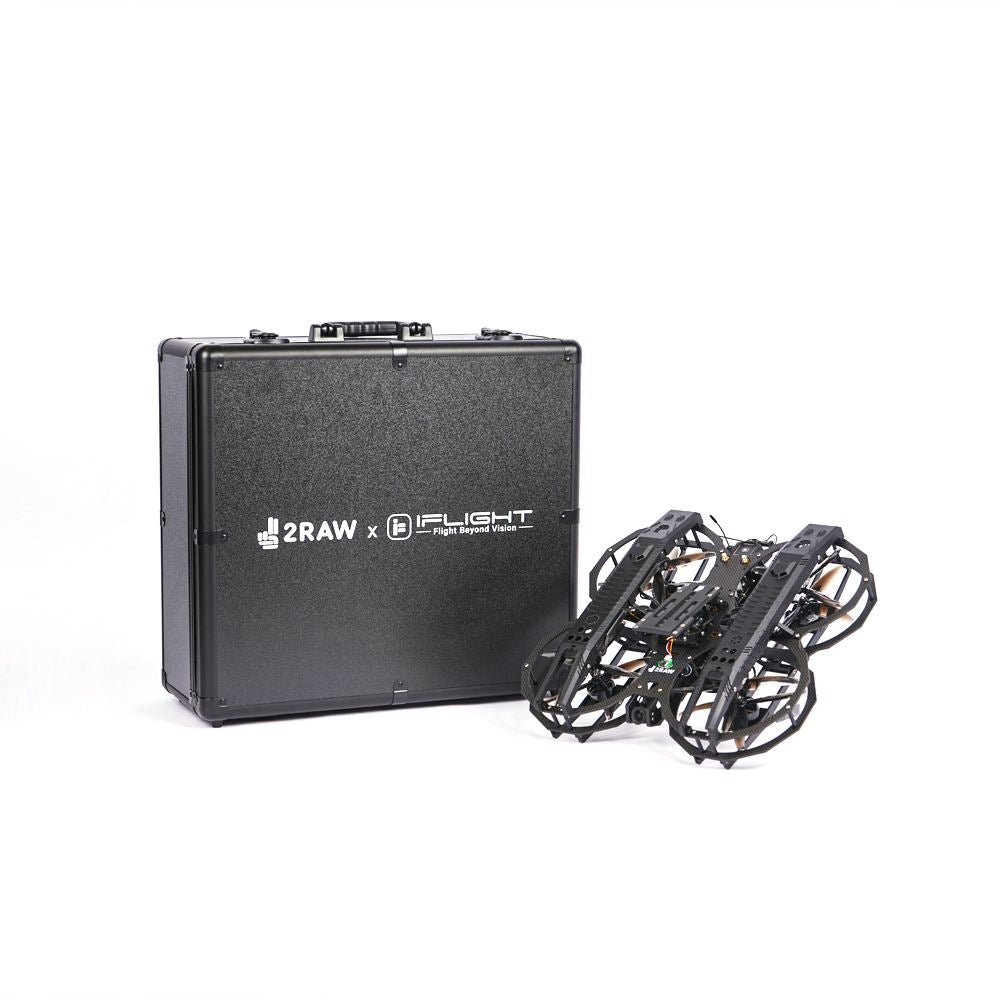

• 1 x Aluminum Case for Proxima
