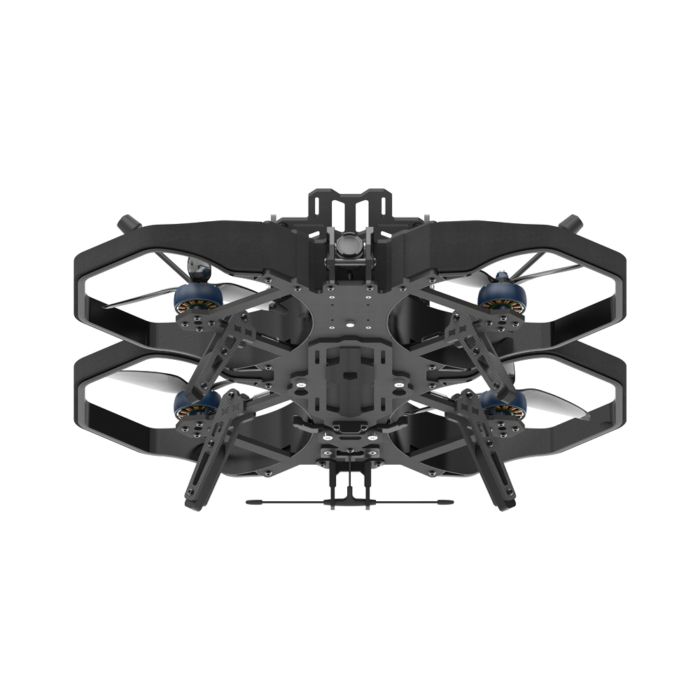

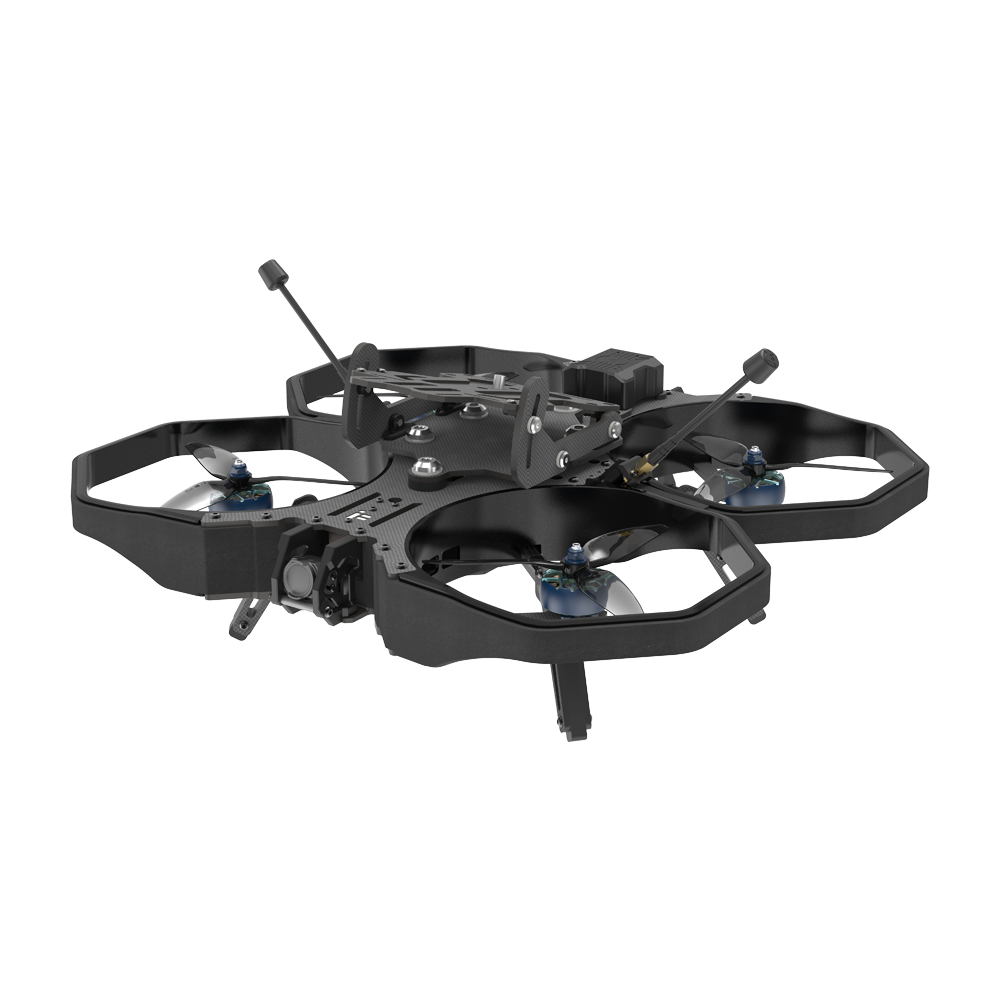

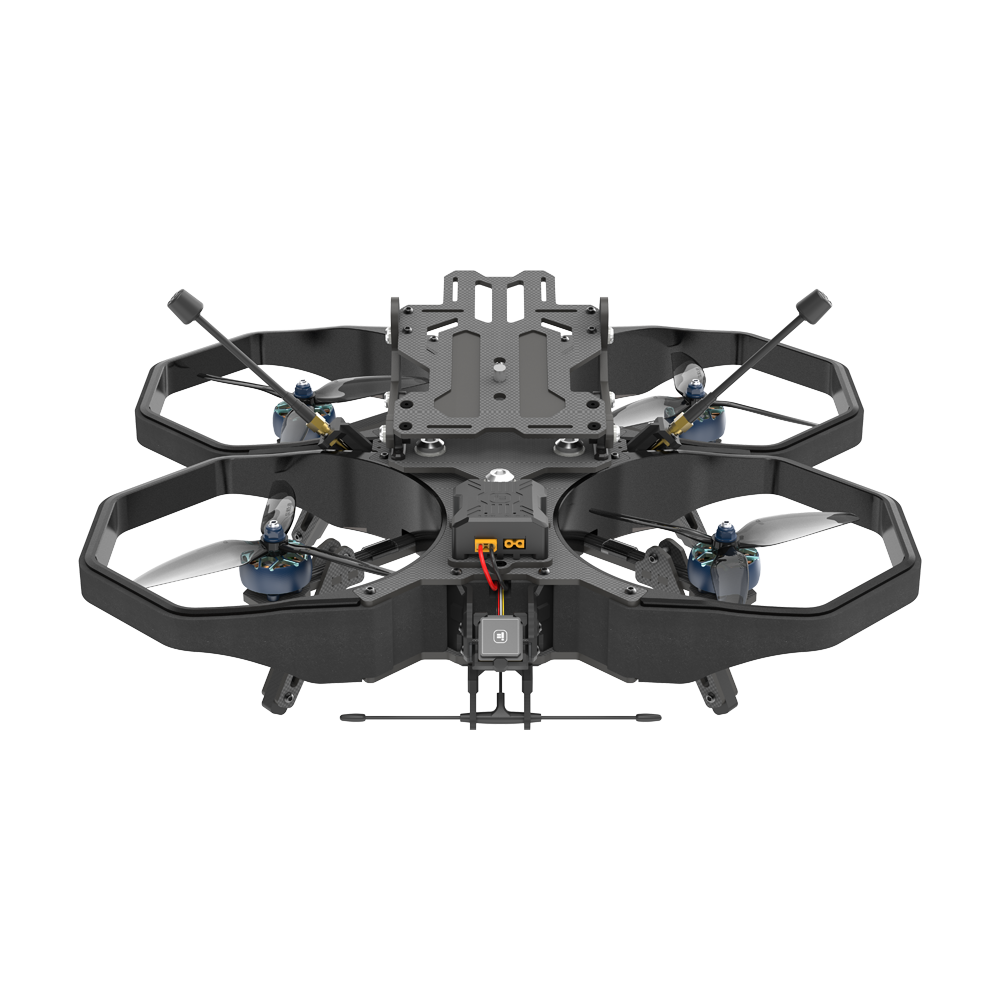

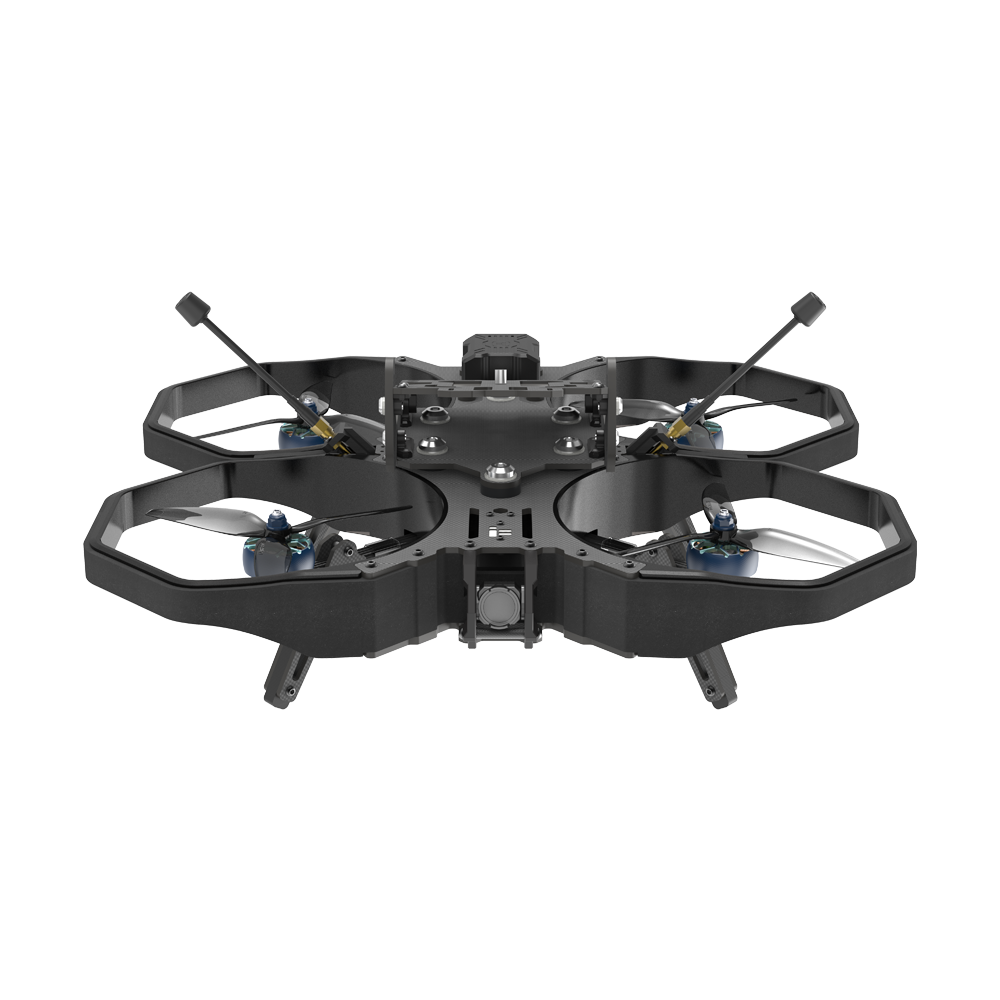

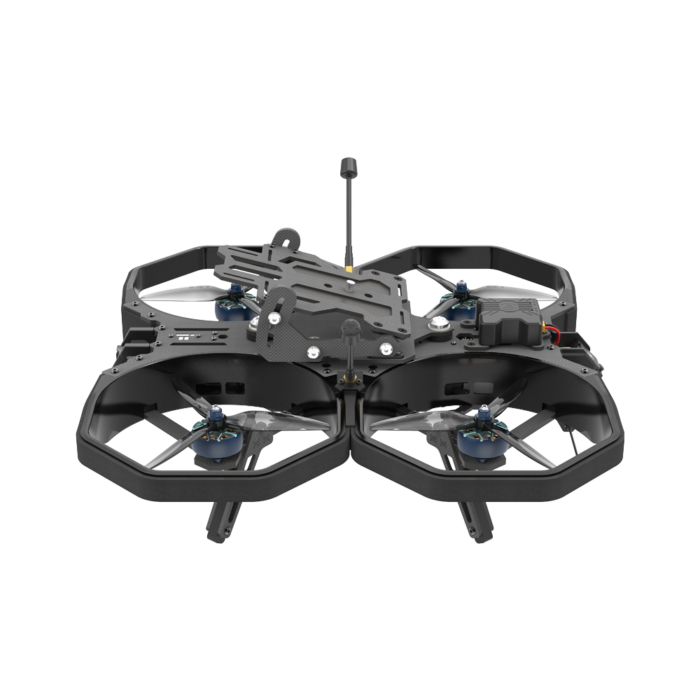

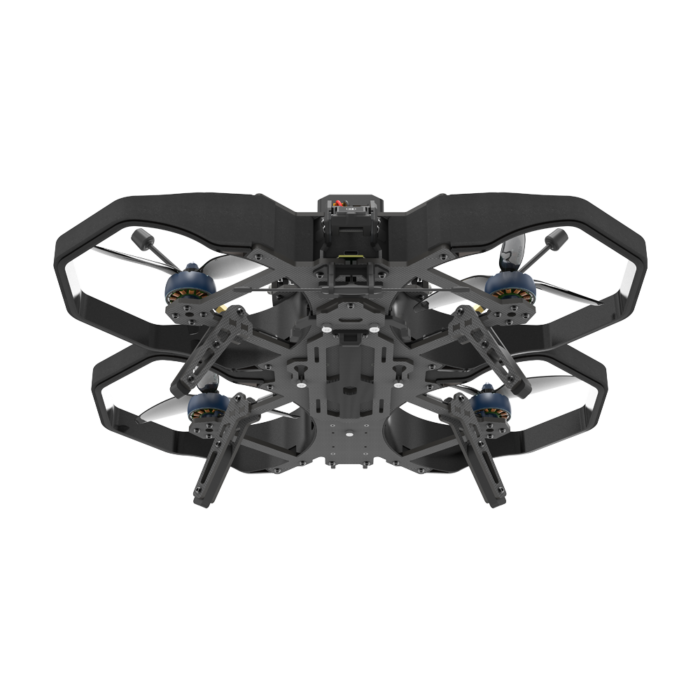

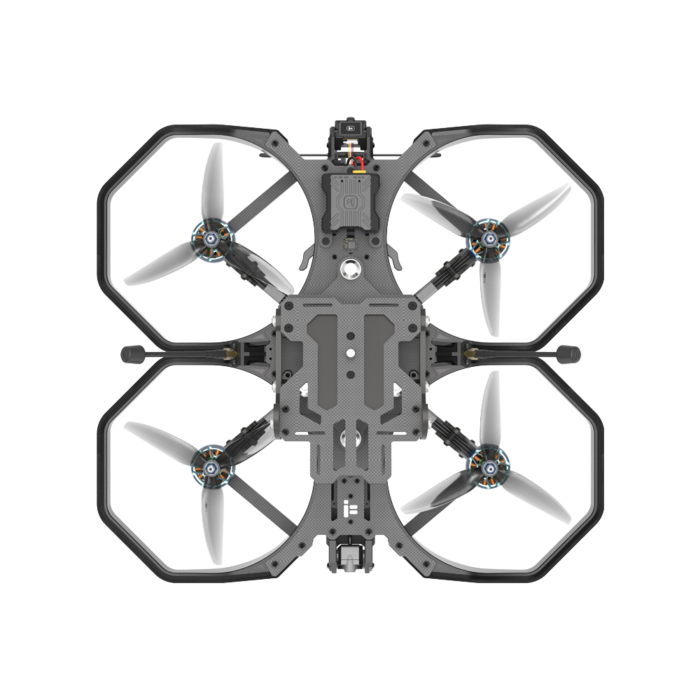

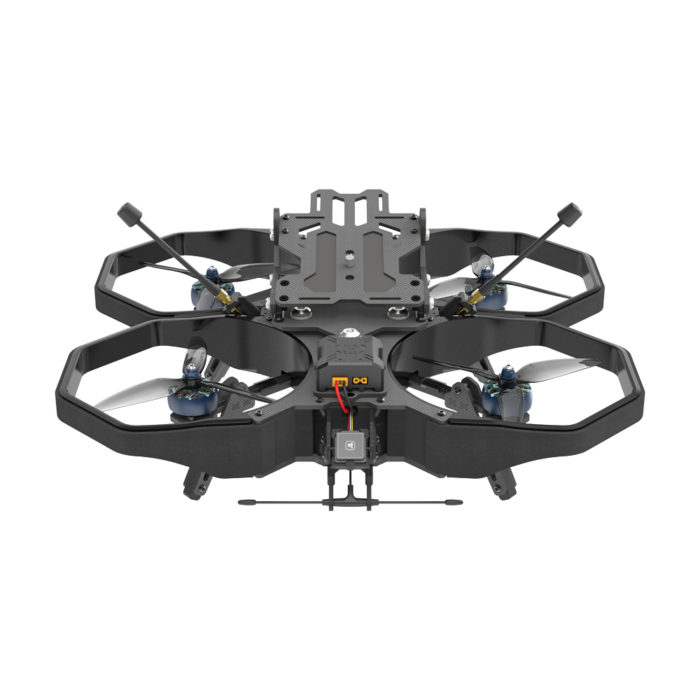

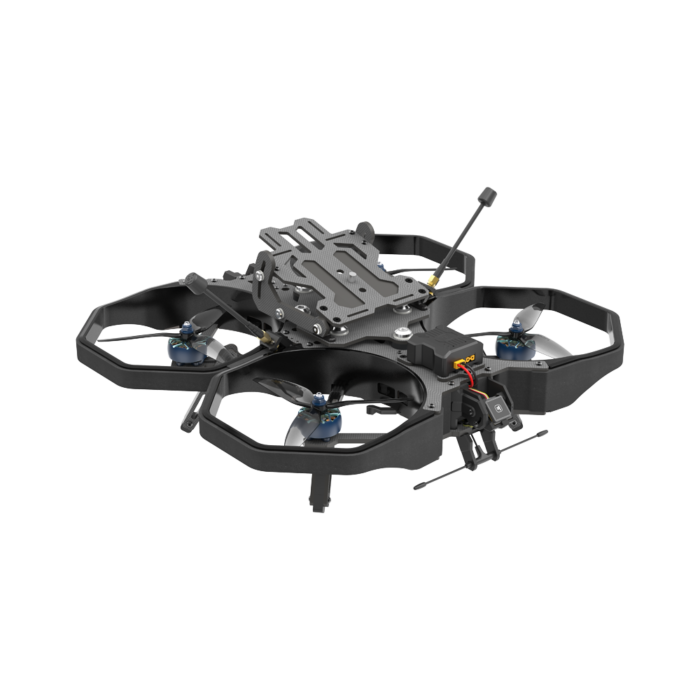

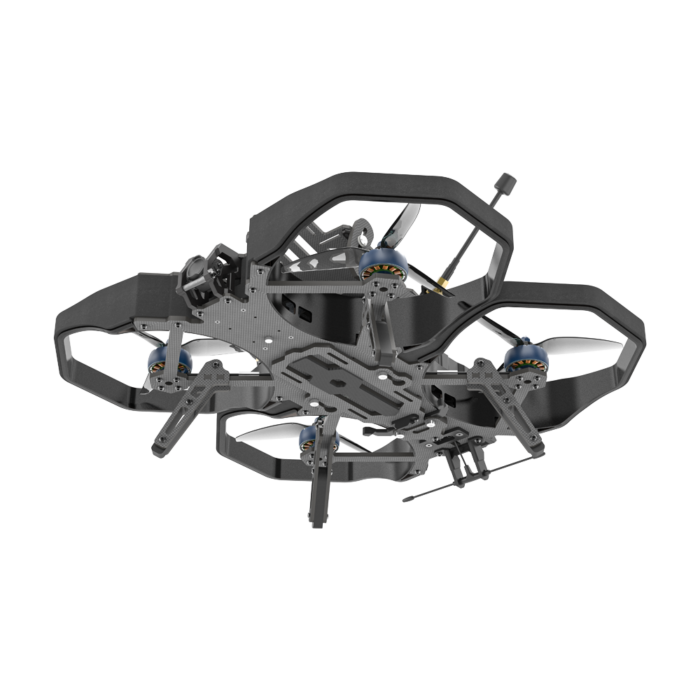

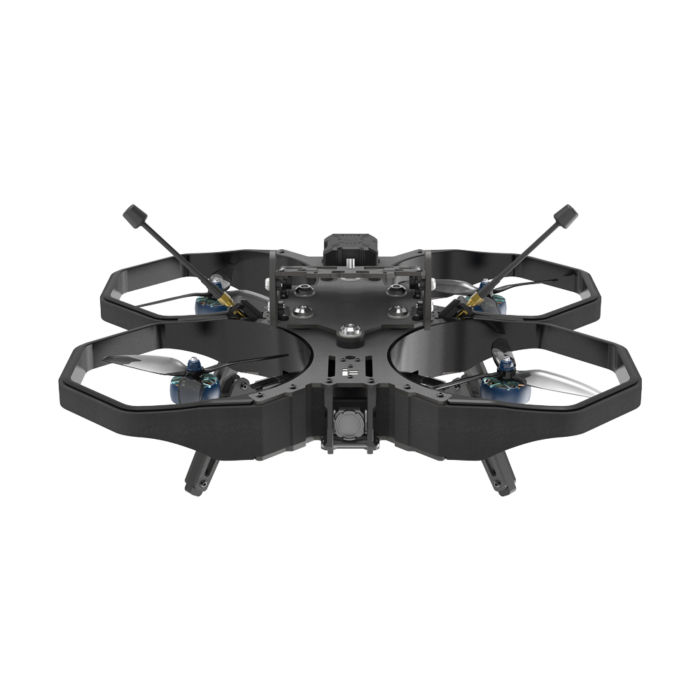

iFlight ProTek60 Pro O3 6S HD Cinelifter (TBS Crossfire Nano RX / ZCAM / RED Version)

We’ve come a long way with action cameras, offering outstanding quality with little weight and a small footprint. But do you want to get professional or shoot some commercials, maybe get into cinema videography? Well, then you need to step up your game. Those cameras offer higher quality but bigger lenses, higher weight in exchange for all the dynamic range, color profiles, and crisp footage you might possibly want.
The latest version of this drone is the ProTek60 Pro O3. It has been updated to support the DJI O3 Air Unit.

This rig was designed for a Komodo, Zcam, BMPCC or even a GH5. It fits right onto, safe and tight.

Check out our new Cinelifter Collection , Protek60 Collection and the rest of our iFlight Products!

Estimated flight time: 3-6 min (depending on battery and your take-off weight)

Recommended battery size: 6S 3700mAh – 6S 4400mAh

Recommended Battery: Pyrodrone 6S 4500mAh 120C Cinelifter Pack

Highlights and Features:

• Protected Propellers for indoor and outdoor use, protecting whatever you might bump into from nasty cuts
• DJI O3 HD Air Unit Low-Latency Digital Transmission with 4K Stabilized Video with 155° Ultra-Wide Angle
• Universal camera mount and accessories for a wide range of cameras to install
• Updated  BLITZ E80 4-IN-1 ESC for more power and reliability
• Big size XING2 3110 power motors with extreme lift and flight performance
• BLITZ M10 GPS module pre-installed (BF GPS rescue or INAV GPS RTH feature available)
• Camera Power Supply Module // IFlight Camera Power 12V 3A BEC Module Short-circuit Protection Function

Specifications:

• Product Name: ProTek60 Pro O3
• FC: BLITZ F7 Pro Flight Controller
• ESC: BLITZ E80 4-IN-1 Pro ESC
• Video Transmission: DJI O3 Air Unit
• Frame: 282mm wheelbase
• Motor: XING2 3110 motors
• Prop: Nazgul 6x4x3 propellers
• Weight：1466grams
• Max Speed: 110 Km/H (Manual Mode)
• Maximum Takeoff Altitude: 3200 m
• Max Hover Time: Approx. 5.5 mins with 1.3KG load and 6S 4500mAh battery
• Max Wind Speed Resistance: Level 6
• Operating Temperature Range: -10° to 40° C (14° to 104° F)
• Antennas: Dual Antennas
• GNSS: GPS + Galileo

Important

• Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
• To restore lost tunes or updates, please check our linked article on “Firmware/Factory Dumps”
• Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!
• Please check our linked article on “How to disable Angle-Mode, activate Acro-Mode”

 Included Components and Parts

• 1 x ProTek60 Pro O3 BNF
• 1 x Nazgul 6x4x3 Propellers(Pairs)
• 2 x Albatross LHCP 5.8GHz SMA FPV Antenna
• 1 x XT90 Male to XT60 Female Adapter Wire
• 2 x Battery Strap
• 1 x XT90 Smart Smoke Stopper
• 1 x Prop Wrench

Note:

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.

 iFlight takes no responsibility for issues with DJI or Caddx 3rd party gear (Video transmitters, Goggles, Radios, etc) and must be directly reported to www.caddxfpv.com/pages/contact-us or www.dji.com/support.
