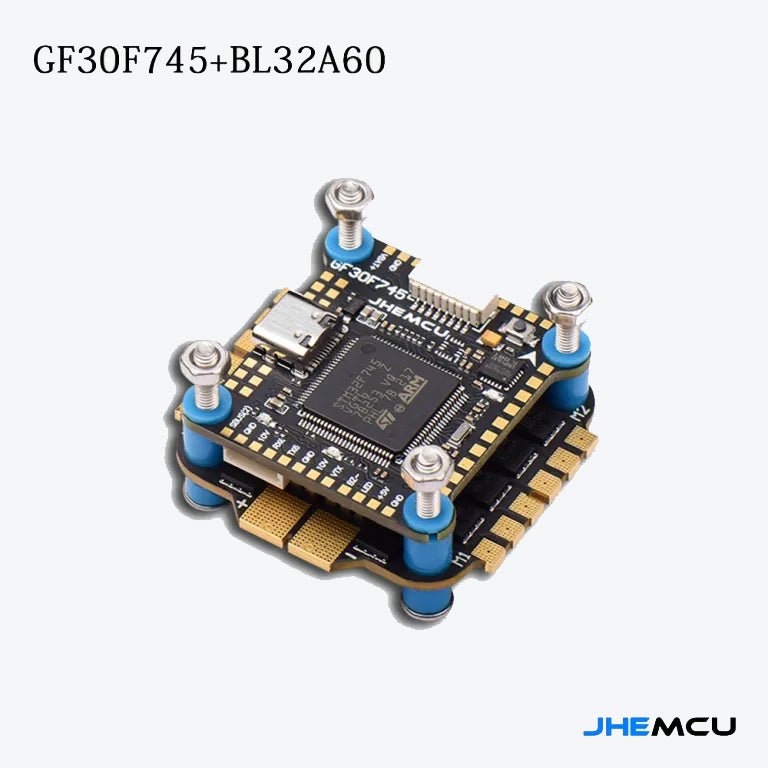

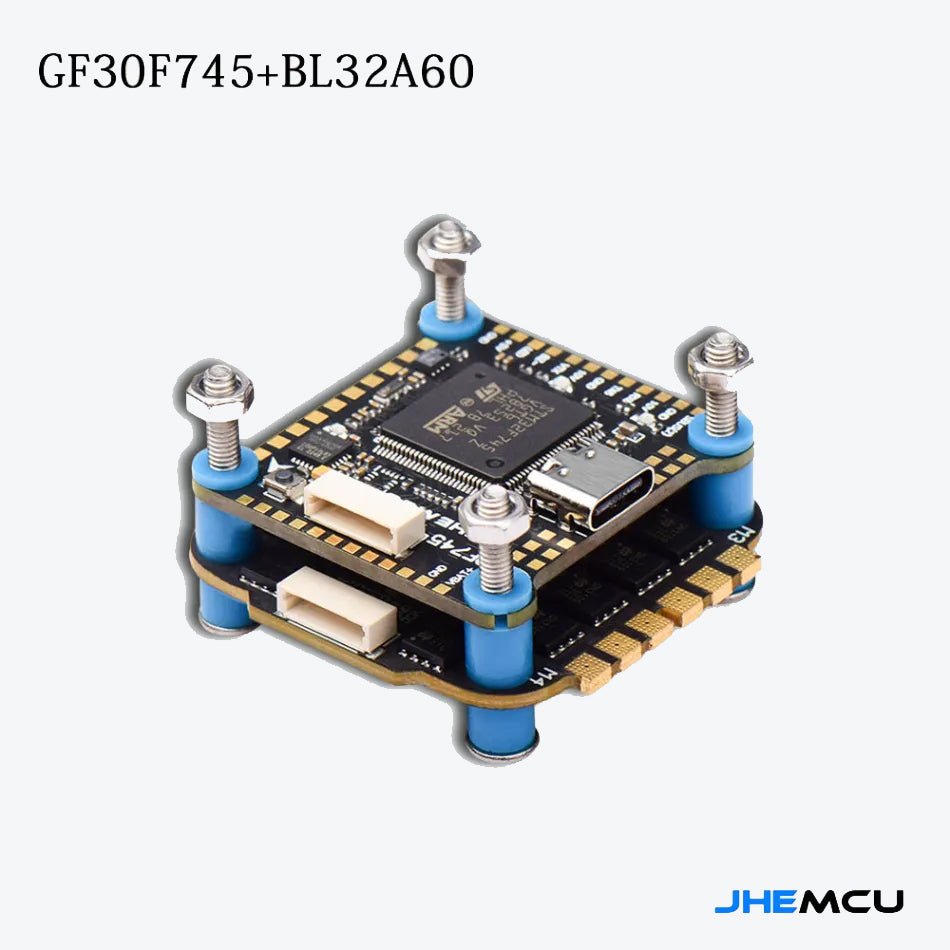

JHEMCU GF30F745-MPU Flight Controller with BL32 60A 3-6S 4in1 ESC Stack – 30x30mm
$103.99
| Weight | 0.064 kg |
|---|
Out of stock
Description
🚀 Looking for an alternative?
This Fpvelite item is currently out of stock or discontinued. We highly recommend checking out our premium in-stock alternatives from top brands like T-Motor, GEPRC, and iFlight in the Flight Control & Power section!
This Fpvelite item is currently out of stock or discontinued. We highly recommend checking out our premium in-stock alternatives from top brands like T-Motor, GEPRC, and iFlight in the Flight Control & Power section!
The JHEMCU GF30F745-MPU Flight Controller, combined with the BL32 60A 3-6S 4in1 ESC is a compact 30x30mm package providing reliable, high-performance Stack.
Check out all our FPV Stacks Collection and the rest of our JHEMCU Products!
Specifications:
FC
Chip:STM32F745VG(216MHZ)
Gyro:MPU6000
Barometer:DPS310
OSD Chip:AT7456E
Black box:16MM
LED Program:Support
BB buzzer:Support
Input voltage:3-6S
I2C Connector:Support
BEC:5V/2.5A
BEC:10V/2.0A
Cam Input:Support
USART:UART1,UART2.UART3.UART4.UART6.UART7
Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX
GPS:YES
COMPASS:YES
HD O3:YES
ESC Signal:Dshoot150.Dshot300,Dshot600
USB:TYPE-C
Current Port:Yes.
Voltage Sensor:Yes
DFU Button:YES
FC firmware:betaflight_4.4.2_JHEF745.HEX

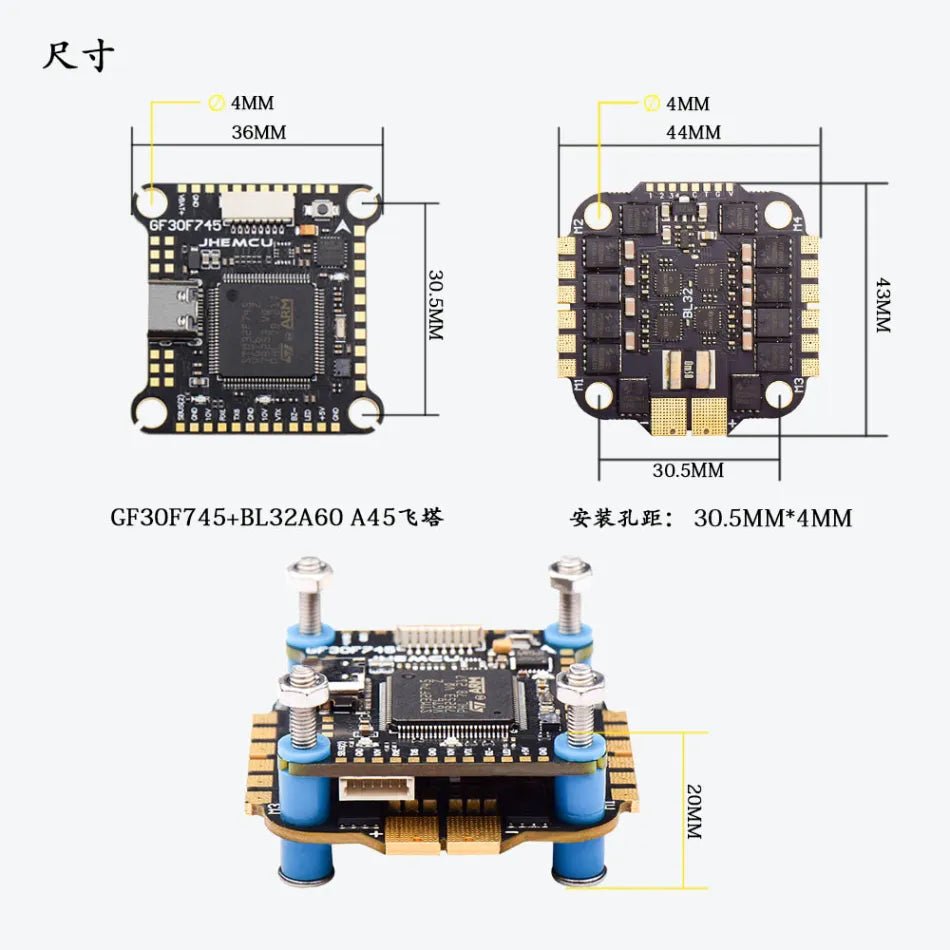

Instal hole:30.5*30.5*4MM
Board size:36*36MM
Weight:7.5g
ESC
- Input Power 3-6S(11-27V)
- Current: 60A
- BEC:NO
- Instal Hole:30.5*30.5*M4
- Size”44*43MM
- Firmware:BLHELI_32 JHEMCU_ESC32_MULTI_32_9.HEX
- Weight:15.4g
Package Includes:
- 1 x JHEMCU GF30F745-MPU Flight Controller with BL32 60A 3-6S 4in1 ESC Stack – 30x30mm
