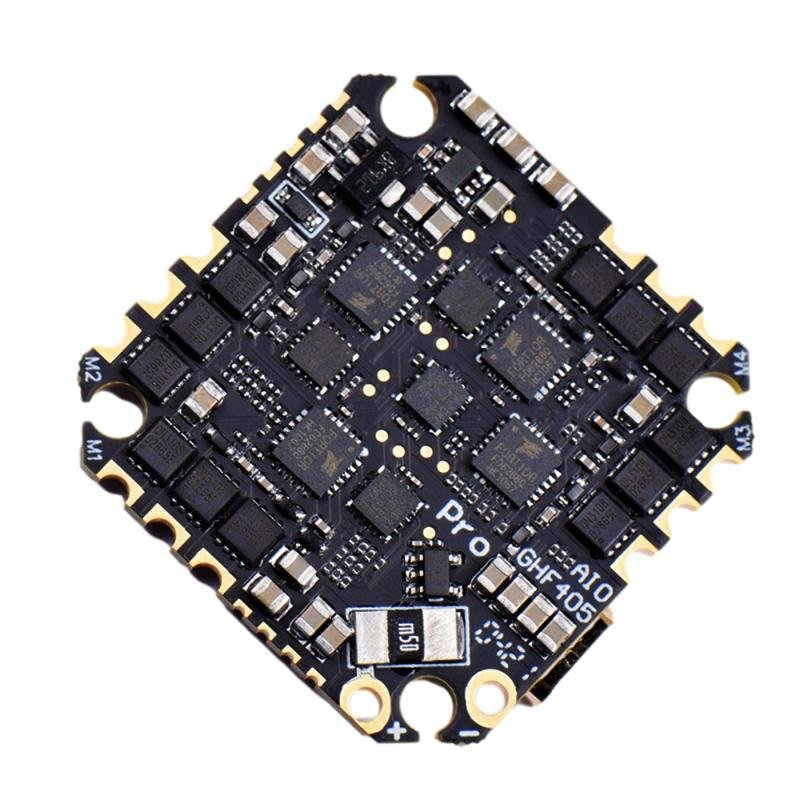

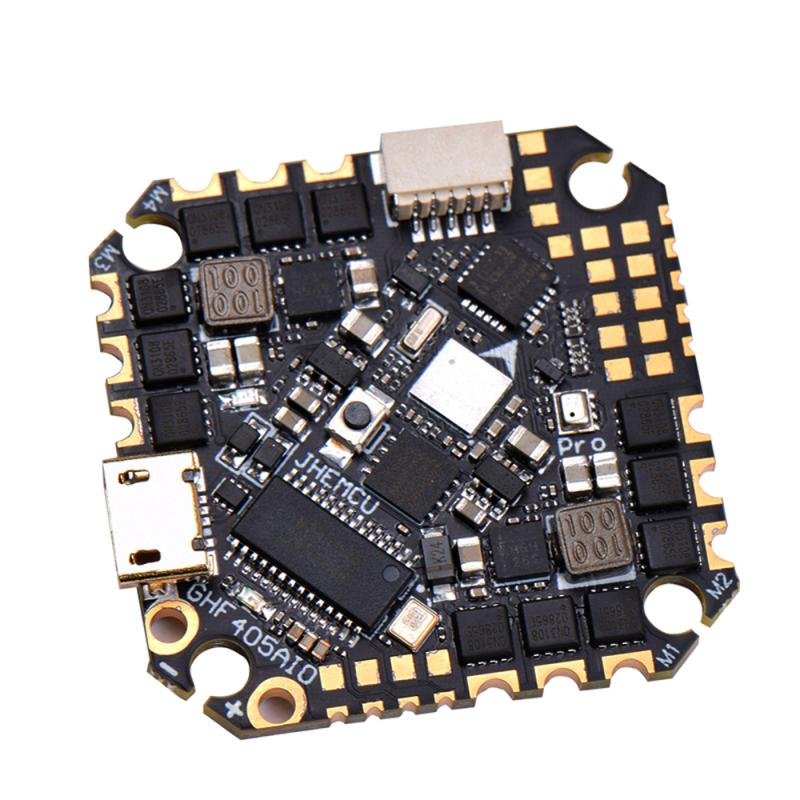

JHEMCU GHF405 PRO Bluejay 40A 3-6S AIO Whoop Flight Controller

In this design, AIO integrates the flight control and four-and-one ESC, and uses high-density BGA as the main control chip to increase the integration level and make it perfect.

ESC output current 40A continuous current, 4 independent current outputs

Check out all our Whoop Style AIO Flight Controllers and the rest of our JHEMCU Products!

Specifications:

• The USB port is installed on the side with a built-in USB ESD chip
• All signal ports add protection buffer components
• Imported originals, stable quality

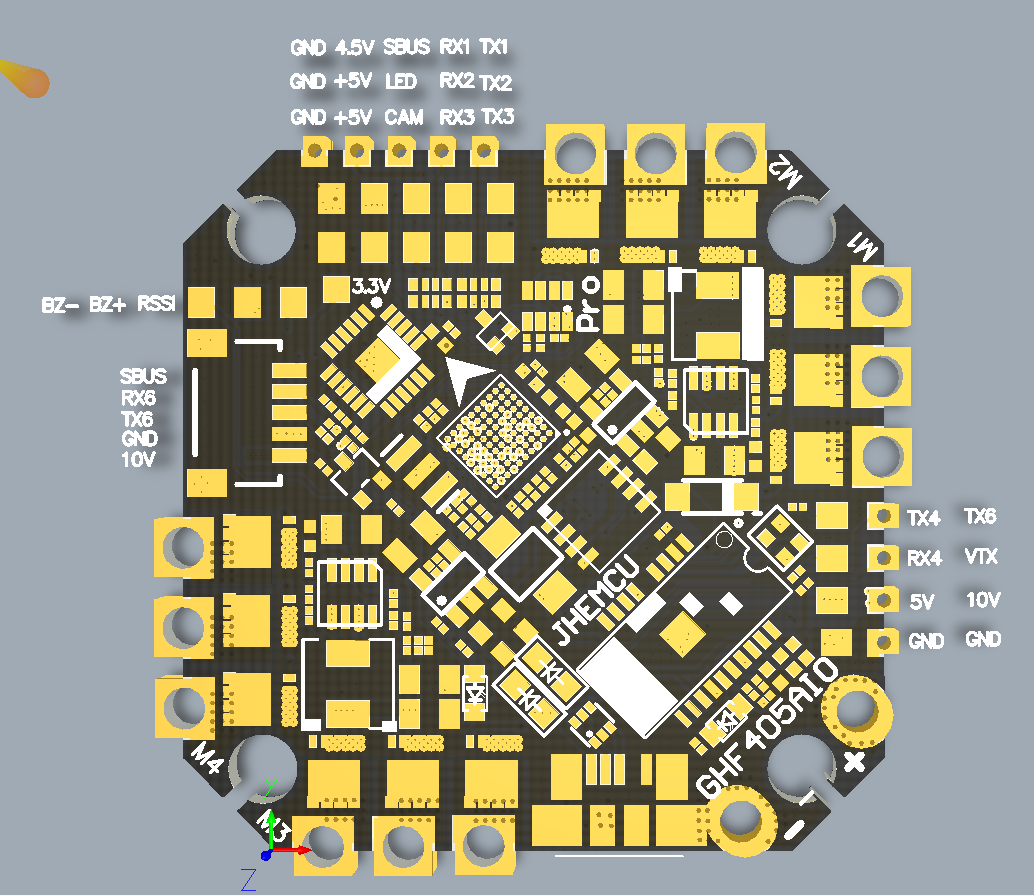

• Reserved common functional interface pads, 5 UART ports (UART1, UART2, UART3, UART4, ART6).
• Half-hole motor pad, support high current output
• Integrated Betaflight F405 processor flight controller, OSD BEC 5V/2.5A and 10V/2A, support 3-6S battery

FLIGHT CONTROL PARAMETERS

• CPU: STM32F405
• Gyro Sensor: ICM42688P
• Size: 33* 33mm (25.5mm mounting hole)
• Firmware version: Betaflight JHE405
• Black box: support
• Barometer: Support
• OSD: Support
• IIC: Support
• UART: support, UART1: receiver, UART6: DJIVTX/IRC/Smart Audio
• BEC: BEC 5V/2.5A and 10V/2A
• DJIVTX: Support, reserved special socket, equipped with plug wire.

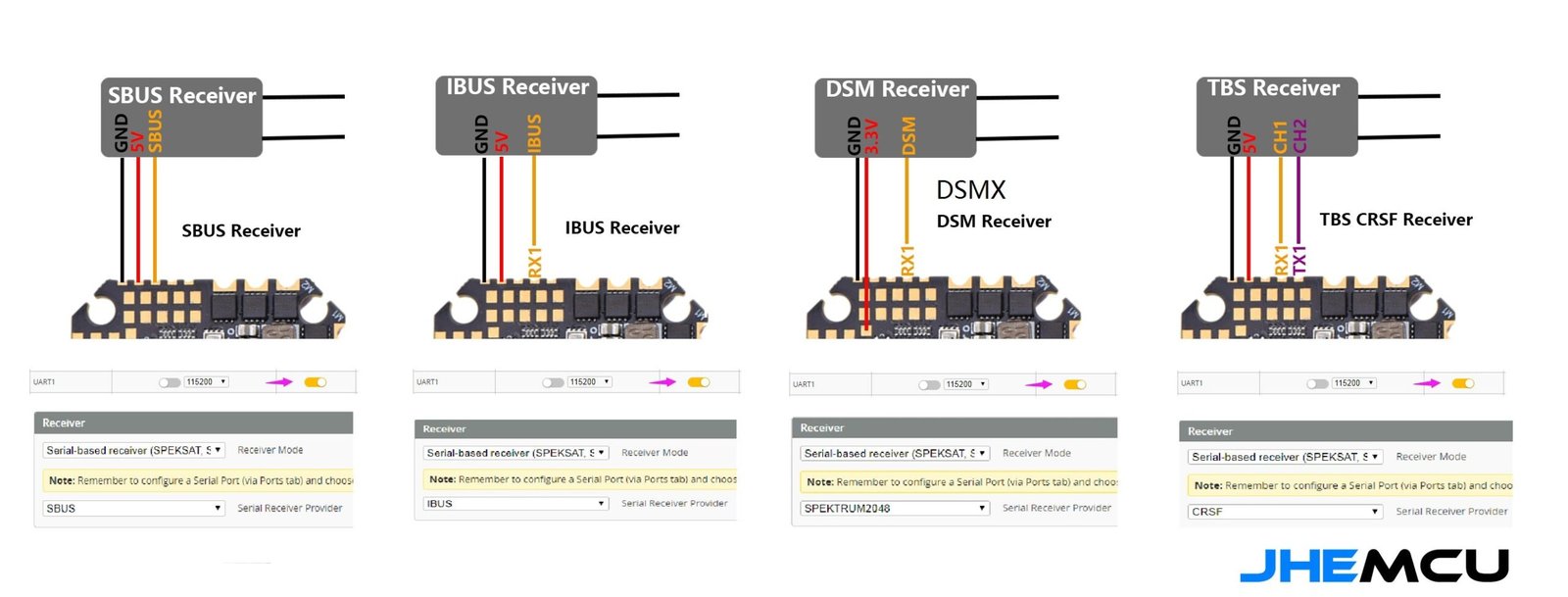

• Receiver: SBUS, IBUS, DSM2, DSMX, TBS, etc.
• Support WS2812 programmable LED
• Support buzzer
• Built-in voltage and current sensors
• Weight: 7.1 grams

ESC PARAMETERS

• Bluejay
• Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Input voltage: 3S-6S Lipo
• Continuous current: 40A (two models are optional)
• Firmware: Bluejay G_H_30_48k.HEX

Package Includes:

• 1 x JHEMCU GHF405 Bluejay 40A 3-6S AIO Whoop Flight Controller
