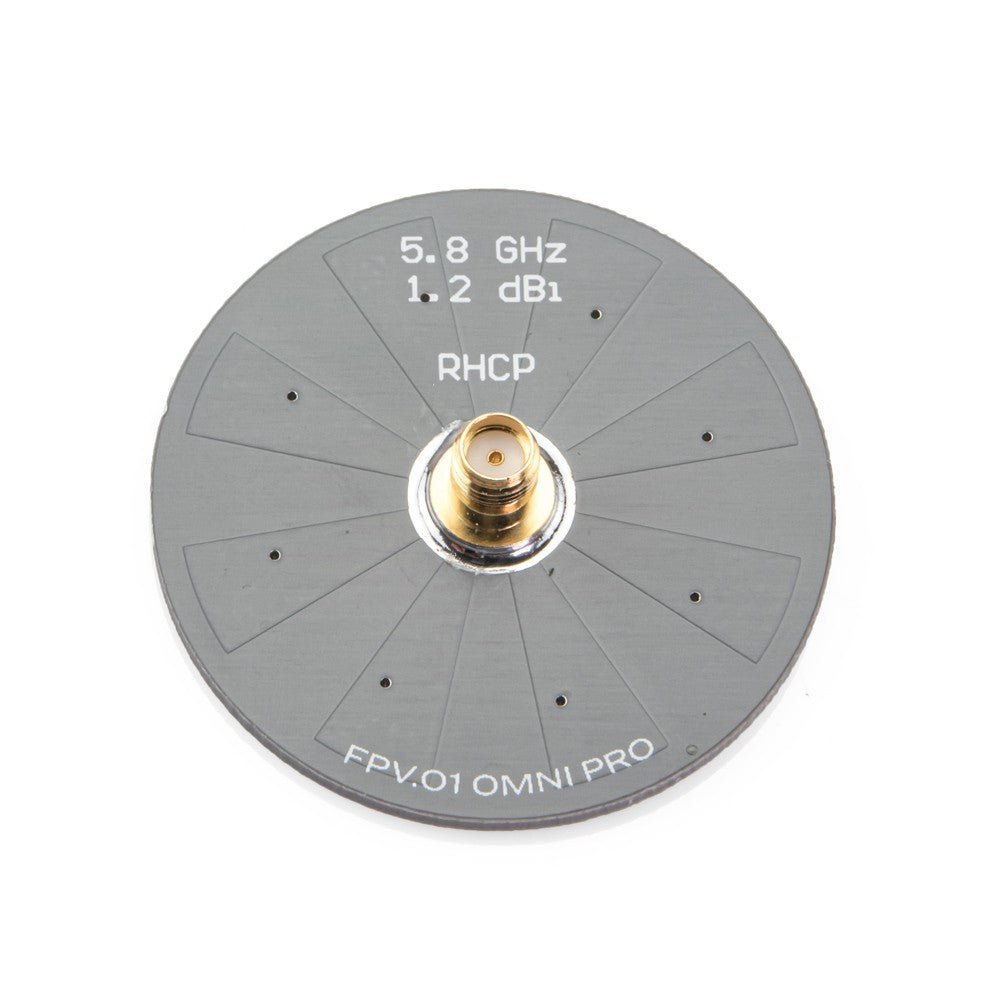

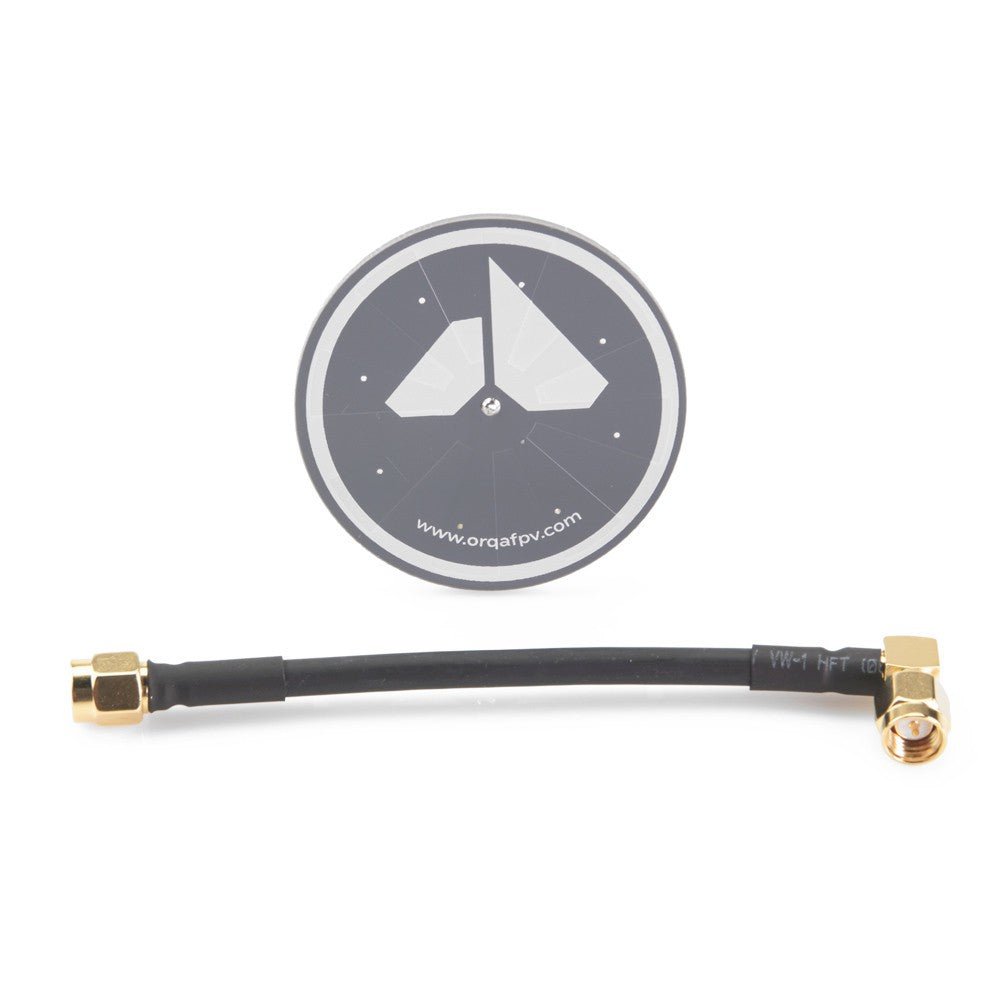

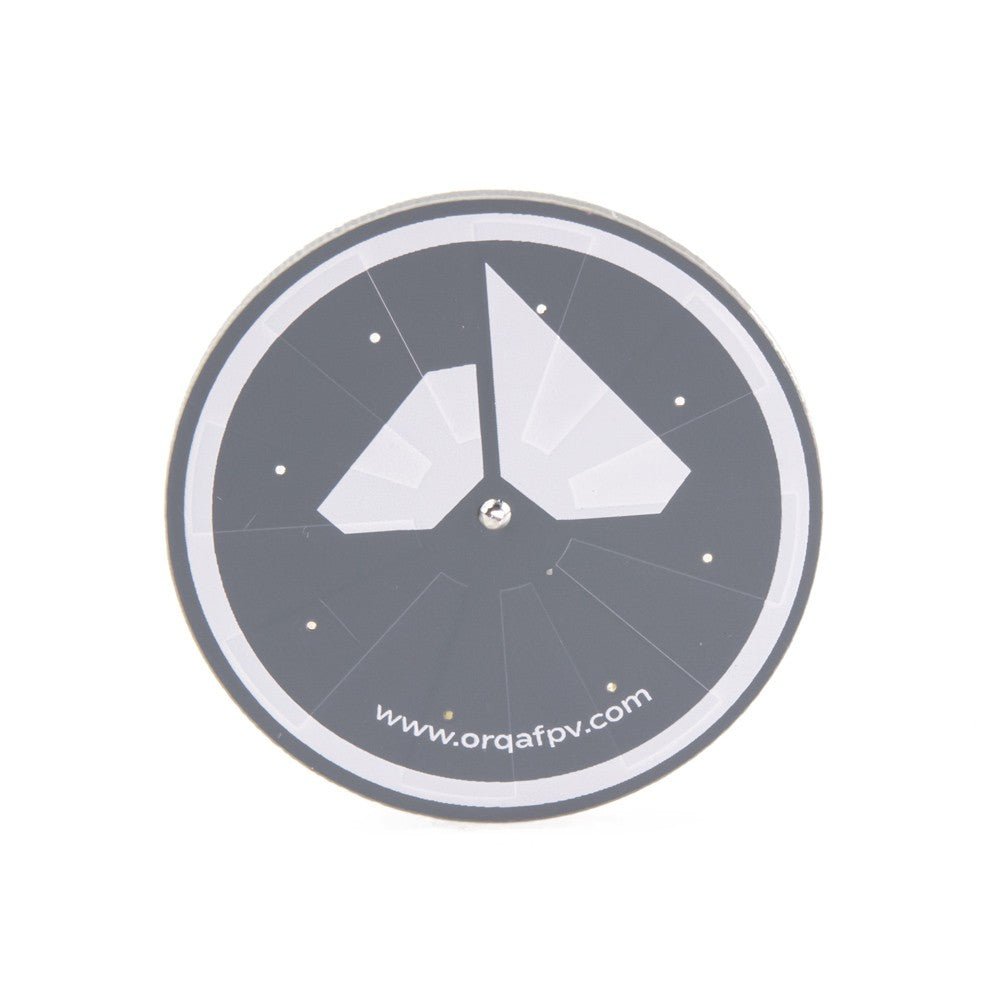

ORQA FPV.O1 Pro 5.8GHz SMA Omni Antenna RHCP

Orqa FPV.O1Pro is an omnidirectional antenna designed and manufactured a new material intended for the use in satellite, aerospace, wireless and military industry.

Check out all our FPV Antennas and the rest of our ORQA Products!

Its high-performance design reduces the blind spots (apple shape radiation) and offers a deficient gain.

The RF design of O1.Pro is finely tuned offering with the peak performance at 5.8GHz.

We have aimed to achieve exceptional VSWR with a solid cross-polarization attenuation.

• VSWR – a proxy to power transmission efficiency (how well the antenna delivers the RF energy to the receiver),
• Cross-polarization attenuation – tells us how resilient antenna is to radio pollution from the multipath wave propagation (reflections of the original signal)
• Cross-polarization transmitters – radio sources transmitting on the opposite polarisation

At 5.8GHz, the O1.Pro measures an exceptional VSWR of 1.15 with an outstanding level of worst-case cross-polarization attenuation of 17dB.

Between 5.75GHz and 5.83GHz, the VSWR is well below 1.2 with excellent cross-polarization attenuation.

Across the entire optimal frequency range, O1.Pro measures VSWR within the limits of the optimal range (below 1.4).

Specifications

• Frequency: 5.8GHz
• Gain: 1.2dBi

• Polarization: RHCP
• Connector Type: SMA
• Optimal Frequency Range: 5.65GHz-5.97GHz
• Weight: ~11g (w/o connector) weights ~22g w/ connector.

Package Includes:

• 1 x ORQA FPV.01 Pro 5.8GHz SMA Omni Antenna (RHCP)
