🚀 Looking for an alternative?
This Pirat Frames item is currently out of stock or discontinued. We highly recommend checking out our premium in-stock alternatives from top brands like T-Motor, GEPRC, and iFlight in the Frames section!

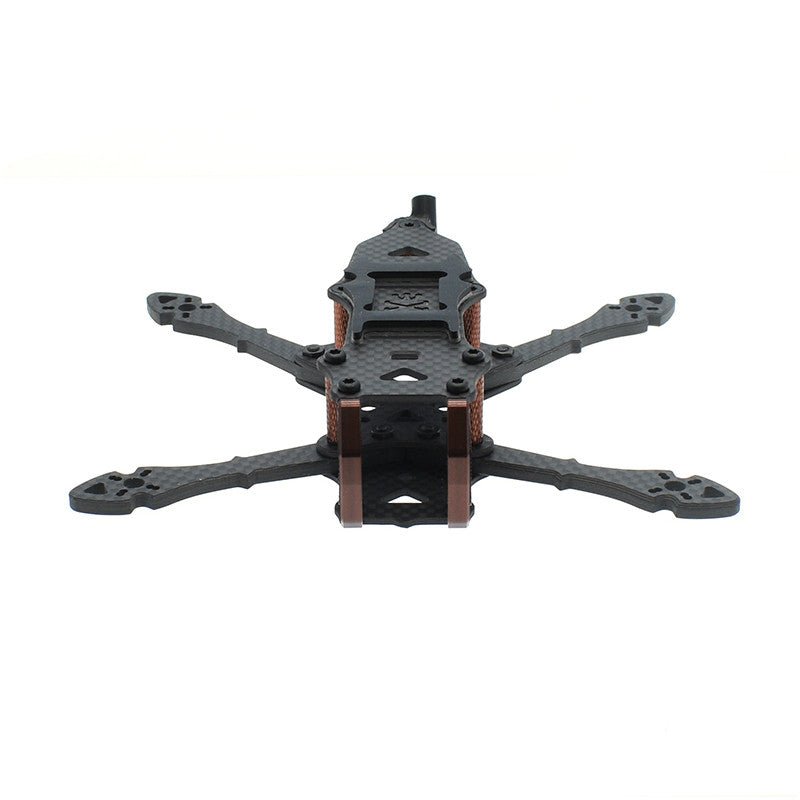

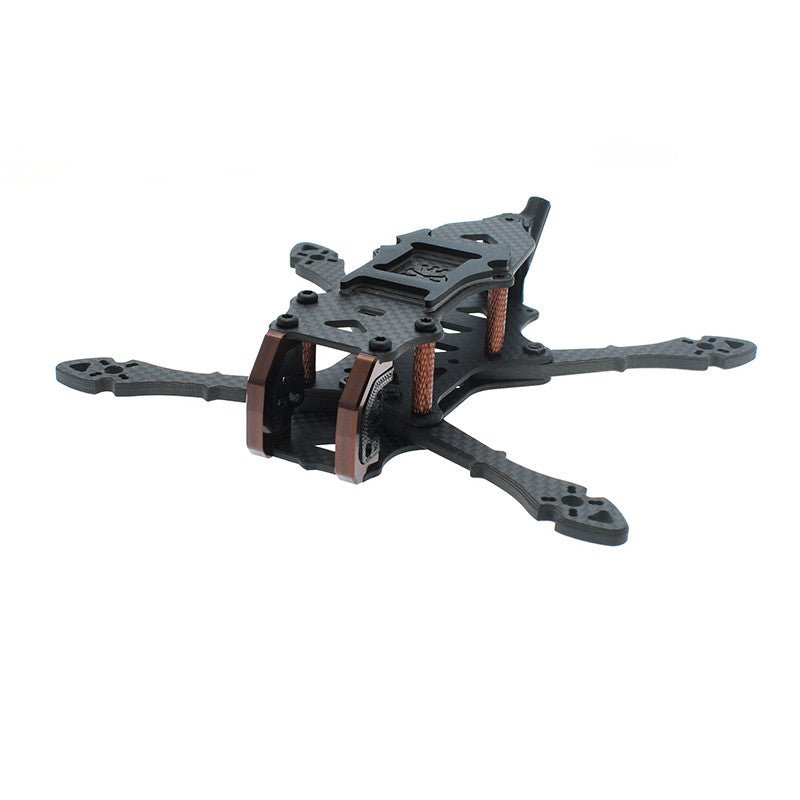

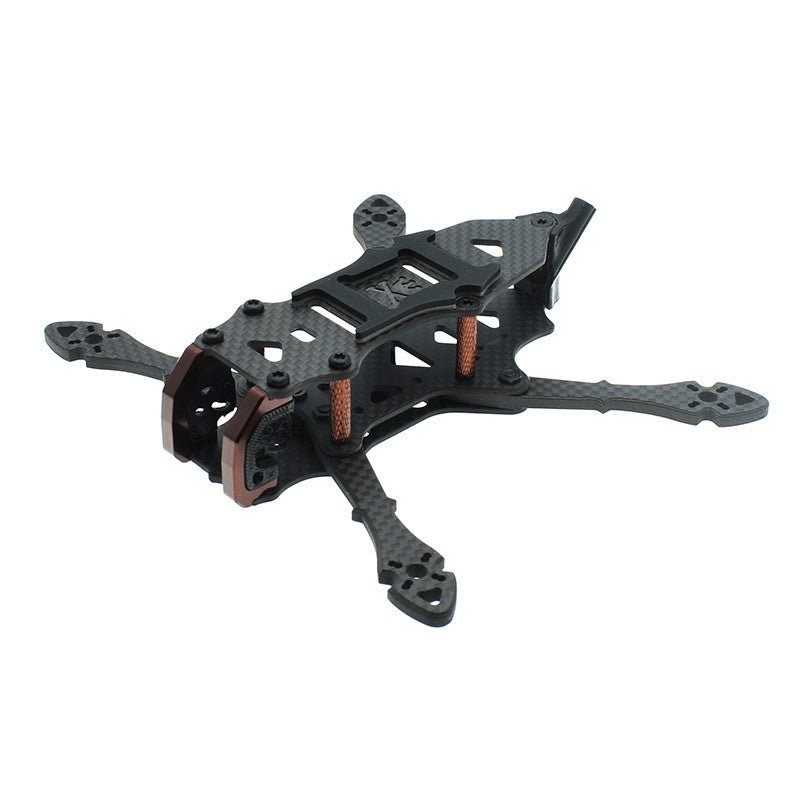

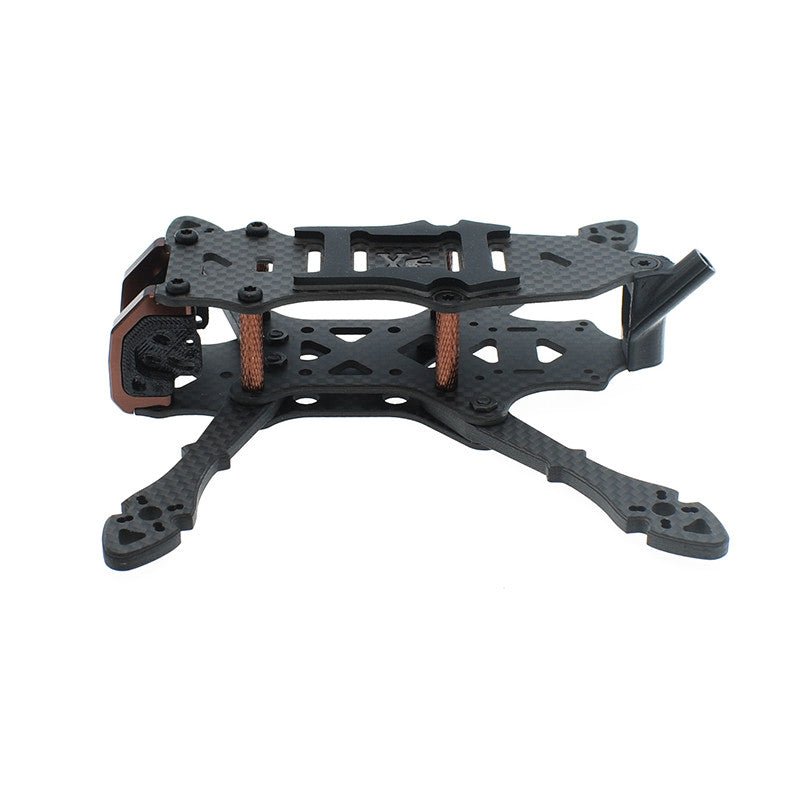

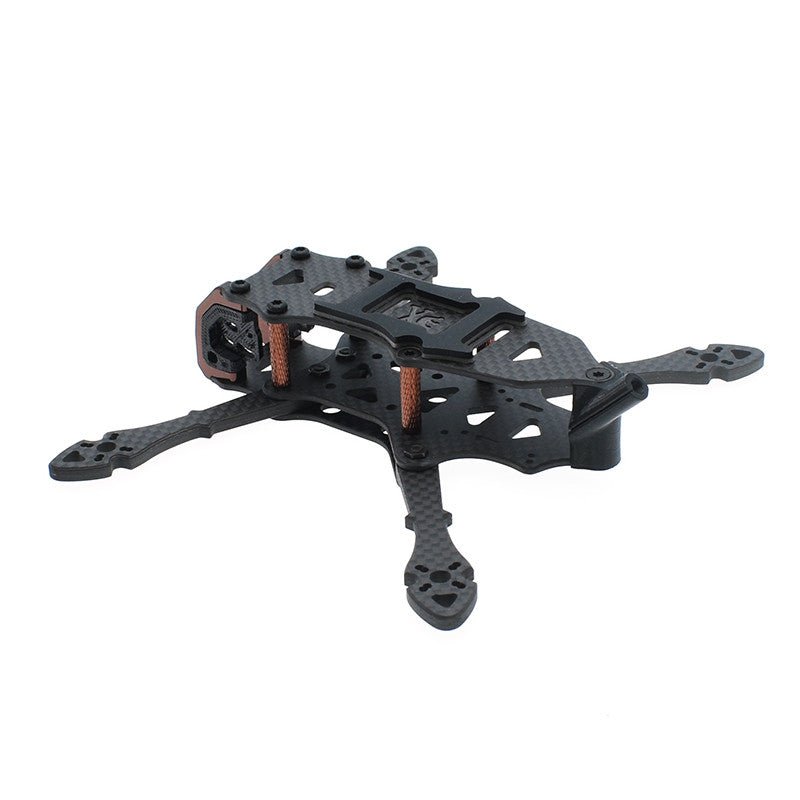

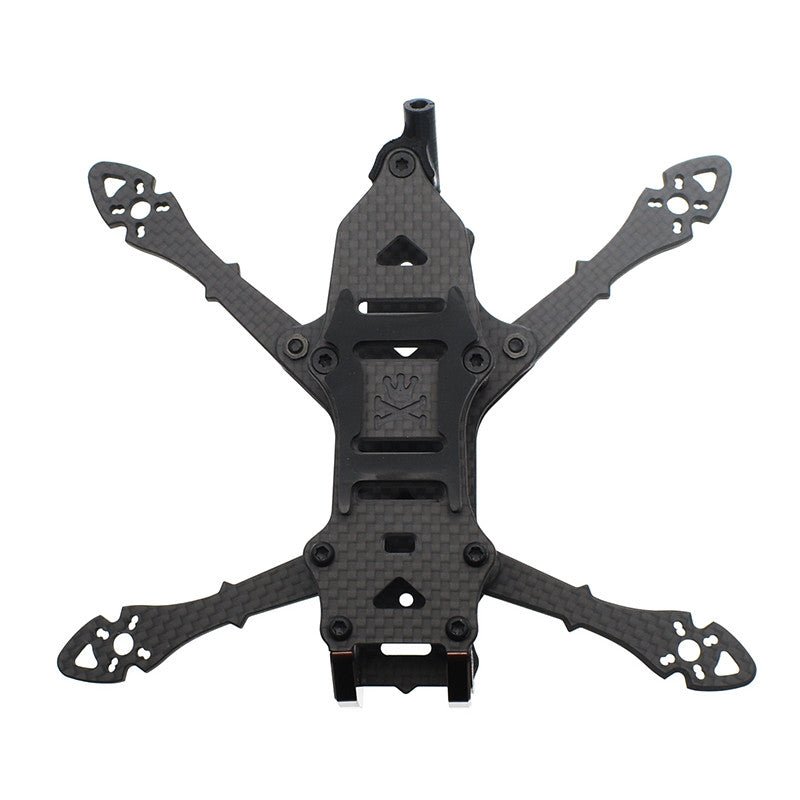

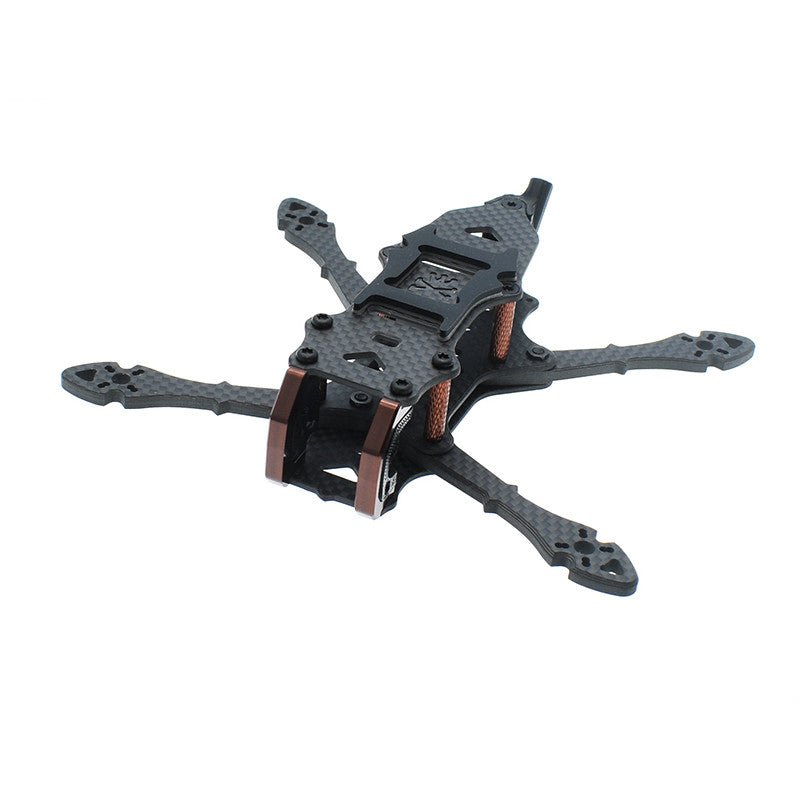

The Lil’Matey2 is the new 3.5 inches precious of PiratFrames.

Now compatible with digital VTX including DJI O4, it has reinforced arms, aluminum camera cage and more…

Ahoy there LiL’Matey! Sometimes space is too tight. Sometimes you don’t want to bring the big 5″ boys. Pack few teeny lipos in a tiny bag and go! Save weight, gain power or find a happy medium with mounting options for both 9x9mm and 12x12mm mounting pattern motors. We craft from strong as f#% materials! The frame of course is made from Chamfered Full 3K T300 carbon fiber, uses custom made 12.9 steel torx screws and, 7075 aluminum spacers. The Lil’ Matey focuses on excellent CG balance by letting you choose between “classic bus” or “toilet tank” battery mounting. It also features 20x20mm mounting holes in the rear for mounting of a Caddx Vista air unit or an analog video system. Pick up yours today!

Browse here the Pirat Lil Matey V2 Frame Parts Collection.

Check out our 3.5″ Frames and the rest of our Pirat Frames Collection!

Features:

A micro bando ripper!
Fits up to 3.5″ propellers
Frame Weight: 58g
4mm Arms and 2mm Bottom/top Plate thickness
Works with 19mm or 20mm FPV video camera
Allows 27mm Maximum Stack Height
7075 T6 Aluminum Custom Standoff
Full T10 Torx 12.9 Steel Screw Set
Chamfered Full 3K T300 Carbon
20×20 Mounting Pattern in the front and rear (a perfect fit for the Caddx Vista)
Compatible with Analog and Digital VTX including DJI O4

Lil Matey 2 site

Screenshot 1 eb236587 731e 4717 a0b9 79802b5f21f2

Screenshot 1 8141fdff ee86 4963 a674 2d35f52ad652

TORX SCREWS RULE
Get ready to say goodbye to stripped hex screws! Once you try torx, you’ll never go back. All Pirat frames are delivered with full T10 Torx screw sets and a Torx key.

STRONG HARDWARE
Crafted from strong materials with custom-made screws & aluminum parts. (12.9 steel, 7075 aluminum & T300 carbon)

CLASSIC BUS, PERFECTLY BALANCED
We worked hard to find the right balance.
TrueX or squished geometry, enjoy the even feel.

9/12MM MOTOR BOLT PATTERN
Choose your weapon from 1404 to 2004.
Save weight, gain power, or find a happy medium.

ANALOG AND DIGITAL CAPABLE

20x20mm mounting holes in the rear allow for mounting of both analog and digital FPV video systems.

SPECIFICATIONS

Weight : 65g

up to 3.5 inches

20×20 stack

DJI O3, Walksnail, Vista ready (20×20)

Independent arms (9/12mm motors – from 1407 to 1804)

3D PRINT DESIGNS AND BUILD INFO:

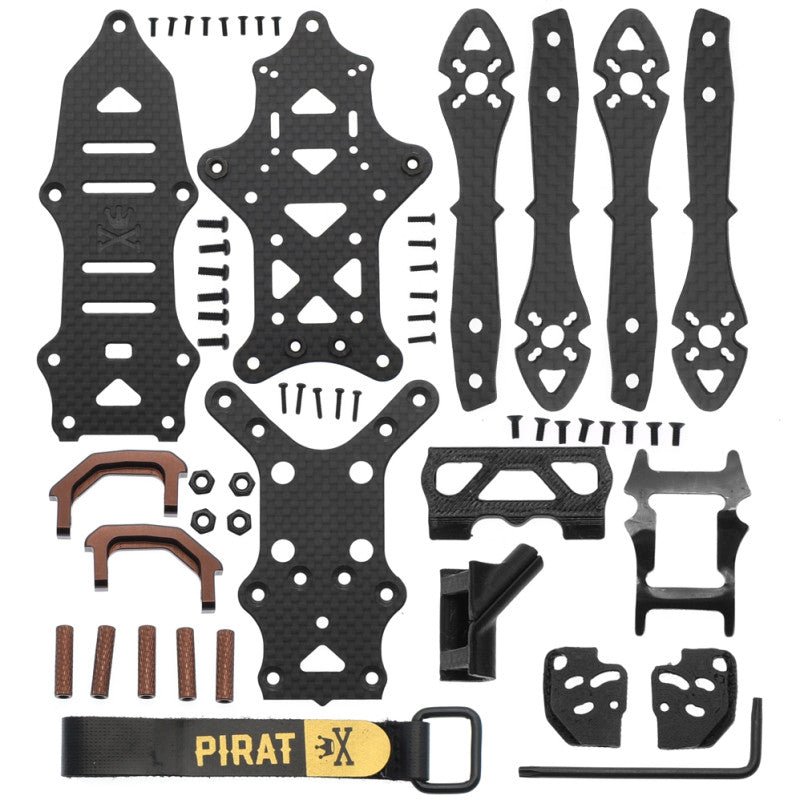

Includes

4 x Arm
1 x Bottom Plate
1 x Top Plate
1 x Middle Plate
1 x Set of screws
2 x Aluminum Cage
1 x Pigtail Antenna Angle TPU
1 x Cam Plates TPU (2pcs)
