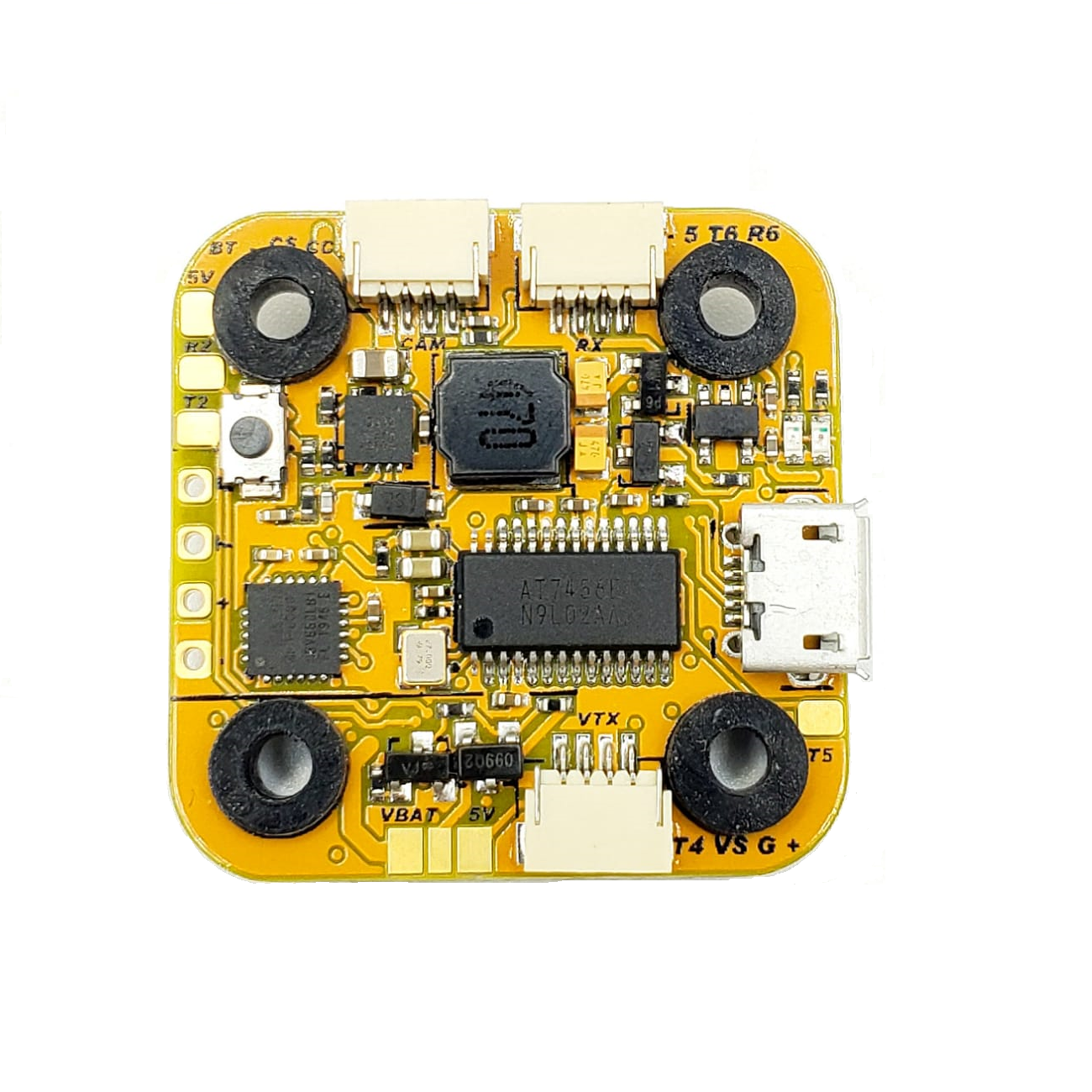

Pyrodrone F7 – MPU6000 Flight Controller W/Pit mode – 20*20mm

Pyrodrone F7 20*20 flight controller features all the bells and whistles and more. Using MPU6000 gyro which has been proven over and over to be the best choice when it comes to handling vibrations, connector plugs for VTX , RX and camera while still providing pads for those who like solder over connectors ,Pit mode with seamless and easy setup are just some of the many features this FC provides.

Features:

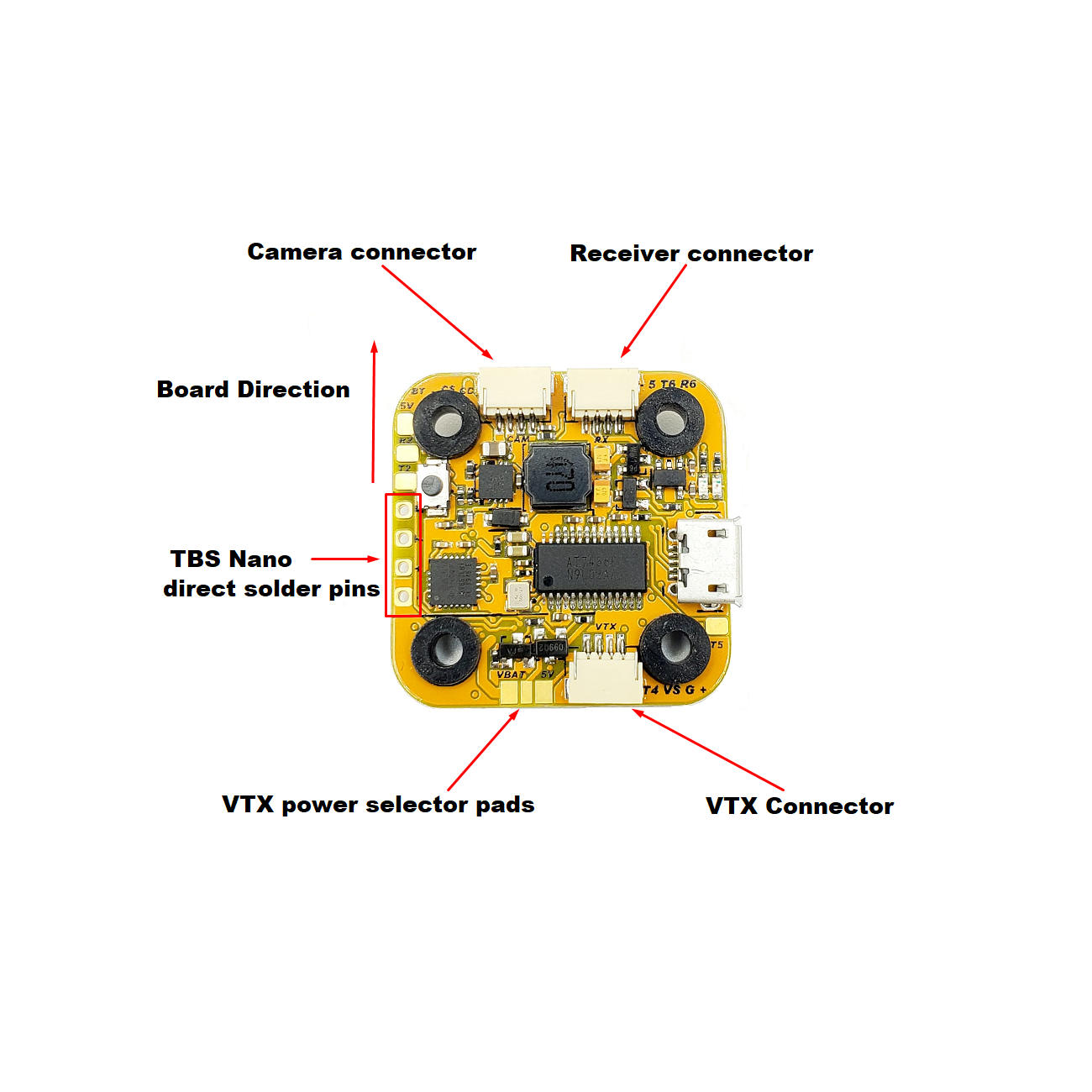

• Camera, VTX and RX connector for easy plug and play setup (solder pads also available)
• Built in VTX switch (Pit mode) through Betaflight USER 1 (No soldering or jumpers required)
• Offset 4in1 ESC harness socket to allow building lower stack (ESC Telemetry UART 3)

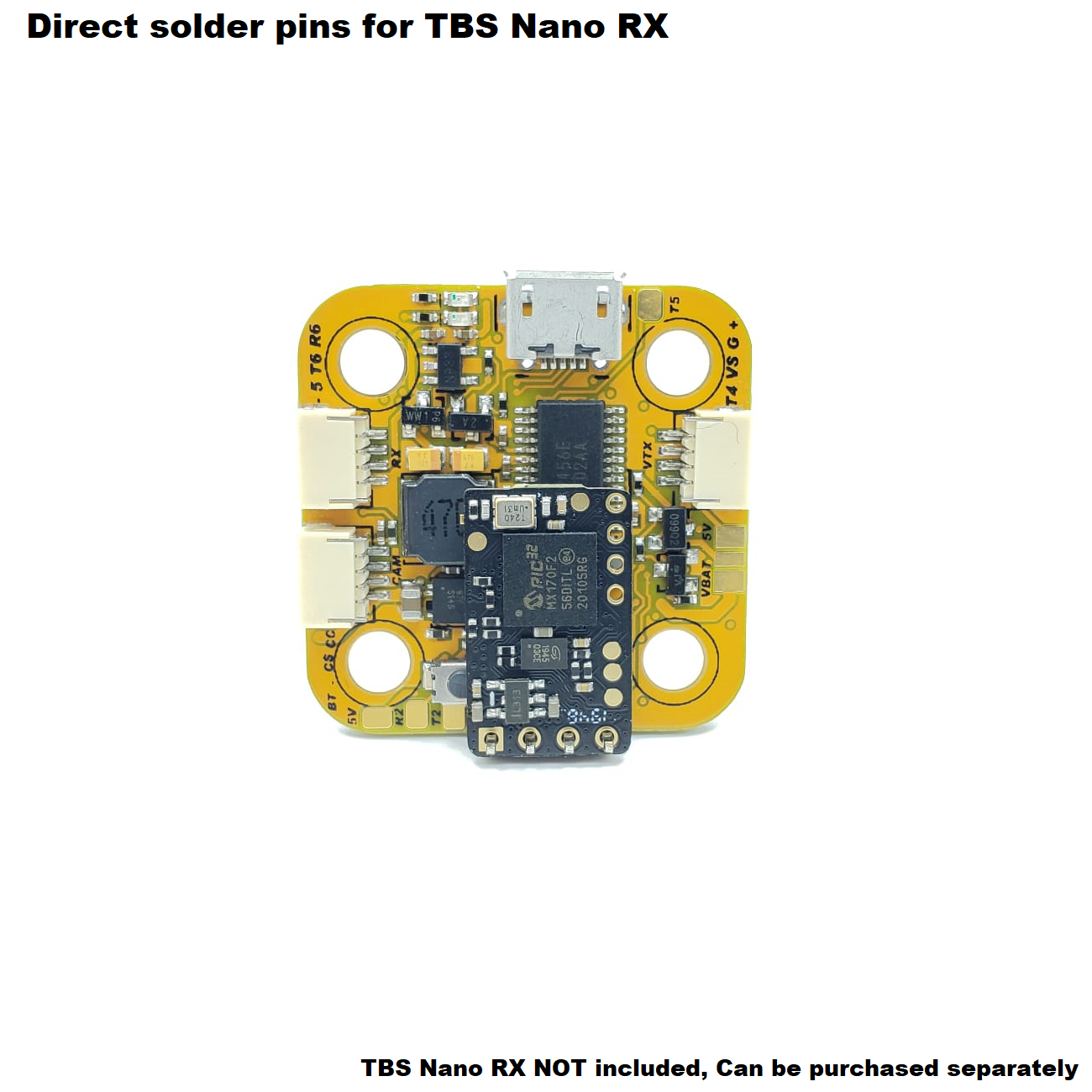

• Direct solder pins for TBS Nano RX
• M2 and M3 stack hardware compatible (M2 with the provided adapters)
• Selectable jumper 5V or Vbat to power VTX
• USB OTG capable to power external BT module
• VTX plug with smartaudio On UART 4
• RX plug for frsky, TBS Nano RX  Etc.. on UART 6
• Built in Camera Control pin with necessary resistor and capacitor near camera      connection

Specifications:

• MCU: STM32F722RET6 216MH Proven noise free MPU6000
• Built in Betaflight OSD
• Up to 8S (50V max) direct battery power
• Buzzer pads for external buzzer
• Built in voltage monitoring resistor
• 5V 1.5A BEC
• Led strip shares 5V with 5V/1.5A BEC
• 6 UARTS: UART1, UART2, UART3, UART4, UART5, UART6
• Built in camera control pin with resistor and capacitor
• 5 Full UARTS with RX AND TX pins
• Logical pin layout for cleanest build possible
• 8 pin 4 IN 1 ESC plug
• Remapable LED pad for additional motor output
• TX3,RX3 can be used for I2C for external compass
• 5V, VBAT selectable VTX power
• VTX pit mode switch (positive switch)
• 20 X 20 mounting hole

Includes:

• 1 x Pyrodrone F7 20*20mm FC
• 5 x M3 to M2 brass adapters
• 5 x Rubber grommets
• 3 x 4in1 Socket connectors (8 pin, 9 pin, 10 pin)
