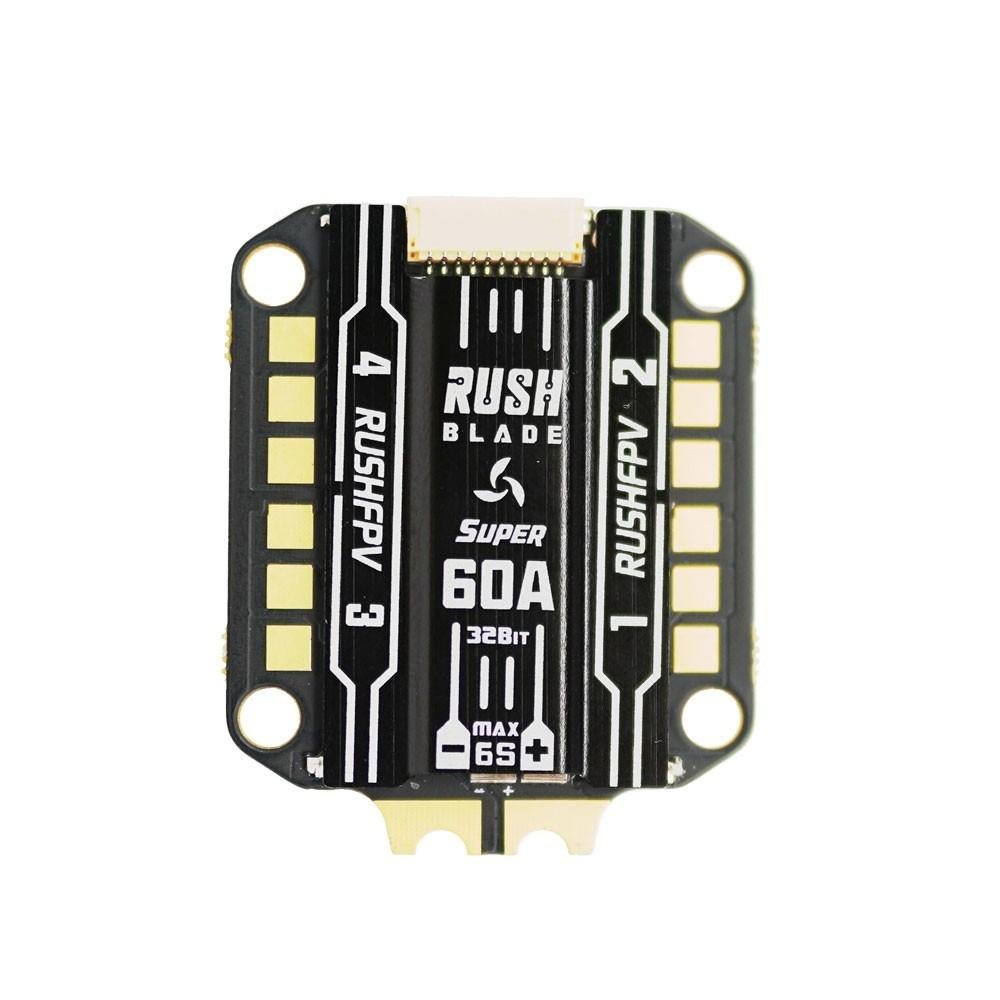

RUSHFPV Rush Blade 32Bit 60A 3-6S 30×30 4in1 ESC – Super Edition

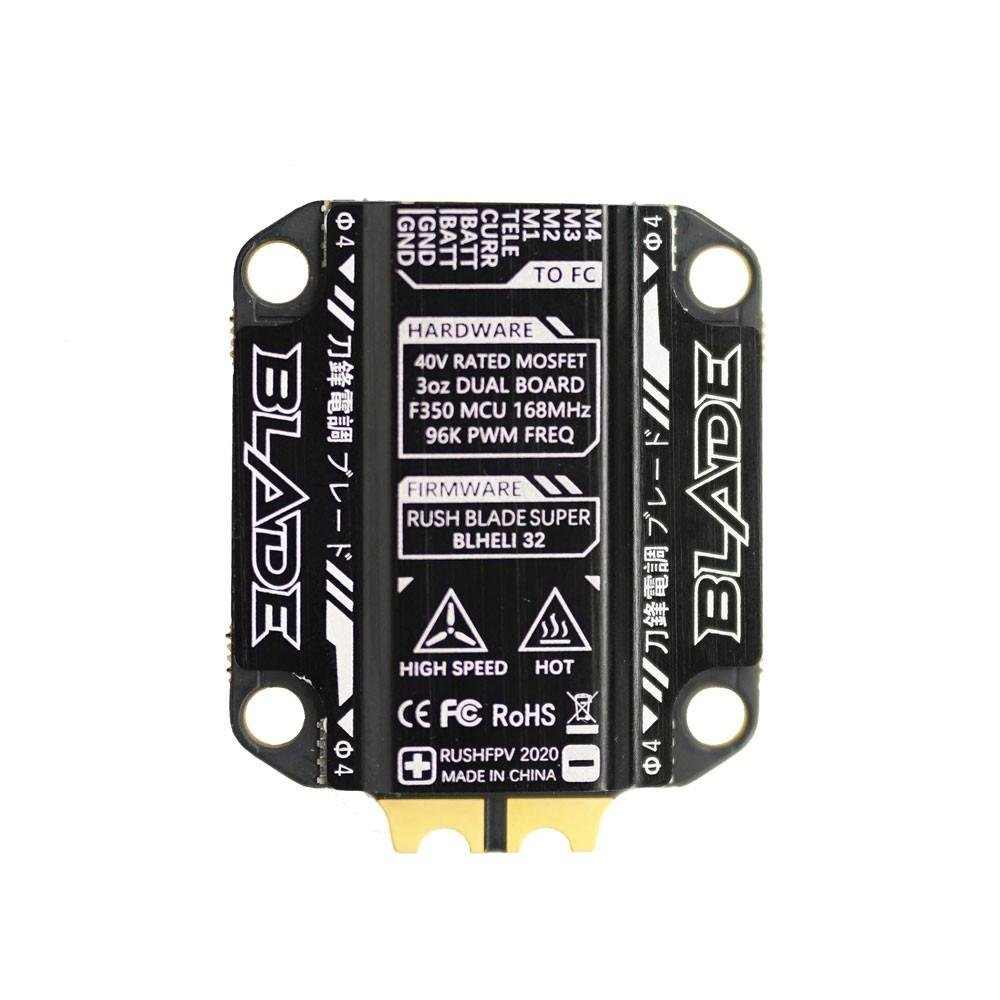

The Rush Blade 50A 3-6S BLHeli_32 4-in-1 ESC Super Edition by RUSHFPV features, front & back special process aluminum shell, F350 MCU 168MHz with BLHeli_32 Firmware, 96K PWM FREQ. 3oz dual board and 40V rated MOSFET.

Check out our other Rush FPV Products and the rest of our 4in1 ESCs.

Features

• BLHeli 32 firmware is the third generation of BLHeli firmware, following base BLHeli and BLHeli-S.
• 32-bit microprocessor running at a frequency of up to 48Mhz (F051)/168MHz(F350) for an excellent performance.
• Supports up to 96K PWM frequency (60A version), so the response speed is faster and smoother, reducing mid-throttle oscillations.
• Equipped with double-sided lightweight metal armor to avoid hardware damage caused by crashes, and the armor can effectively assist the MOSFET to dissipate heat.
• Double PCB board design, high current circuit, and signal circuit are independent of each other.
• All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also causing active freewheeling.
• Supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us).
• Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power-up, No need for throttle calibration.
• Supports beacon functionality, where the ESC will start beeping after a given time of zero throttles. This can be very useful for finding a lost drone.

Specifications

• Rated Current: 60A
• Peak Current:80A
• Input Voltage: 3-6SLipo
• MCU: F350 168MHz
• PWM FREQ: 96K
• LED Color: Pink
• Weight：16.5g
• Dimension: 45*36.5*7.5mm
• BL32 FW: RUSH_BLADE_SUPER

Includes

• 1x Rush FPV Rush Blade 60A 3-6S 32Bit 30×30 4in1 ESC – Super Edition
