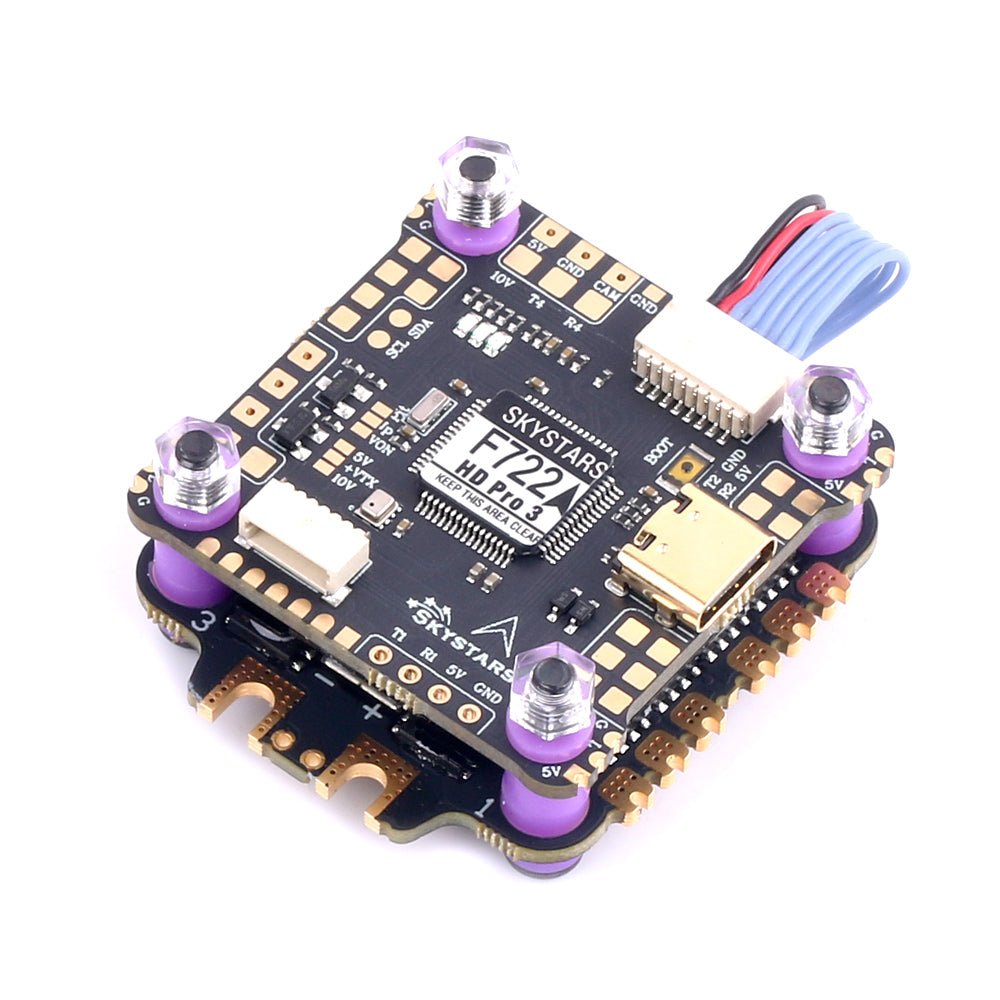

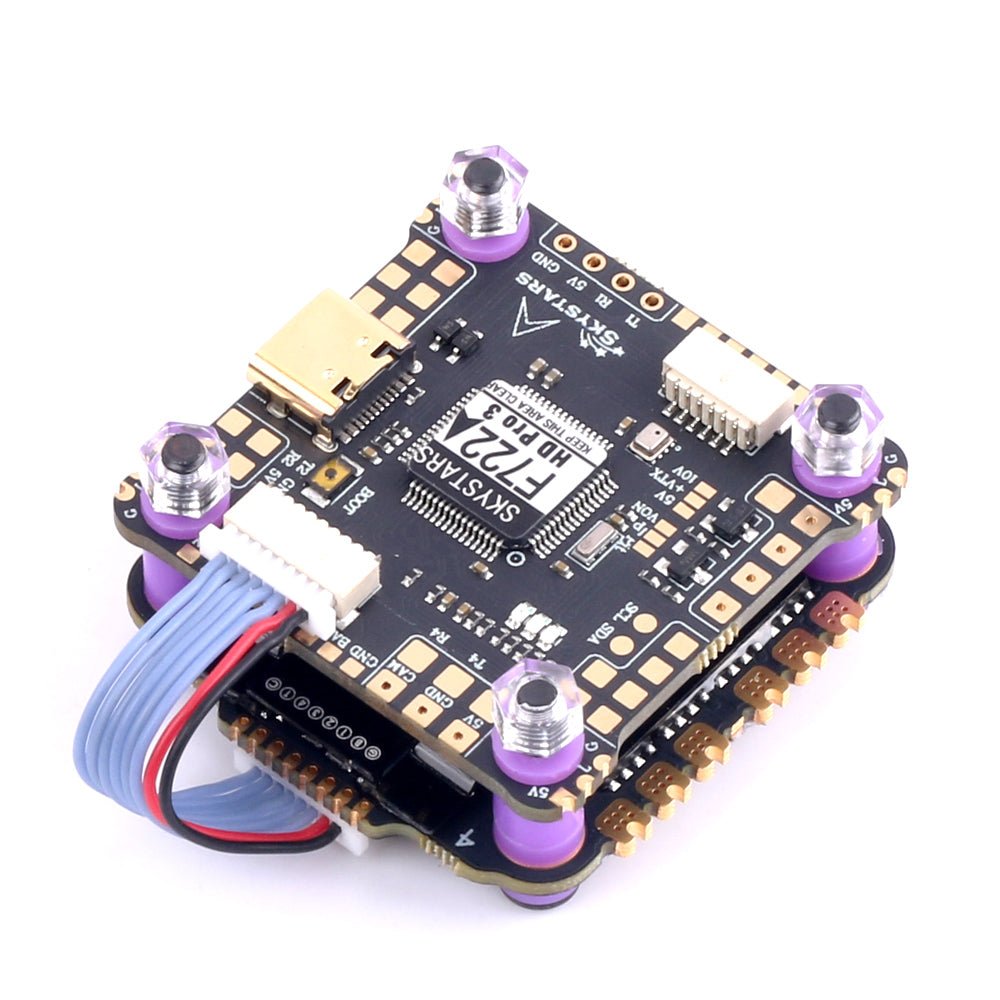

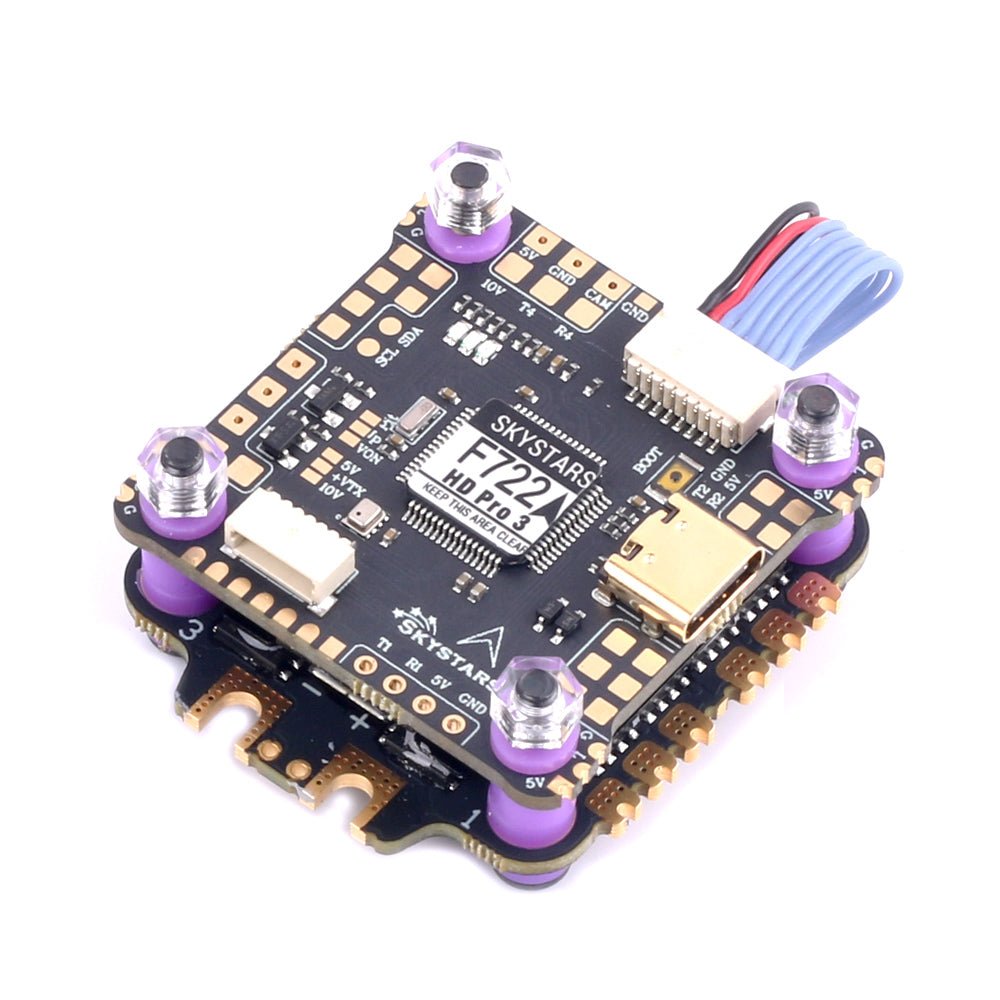

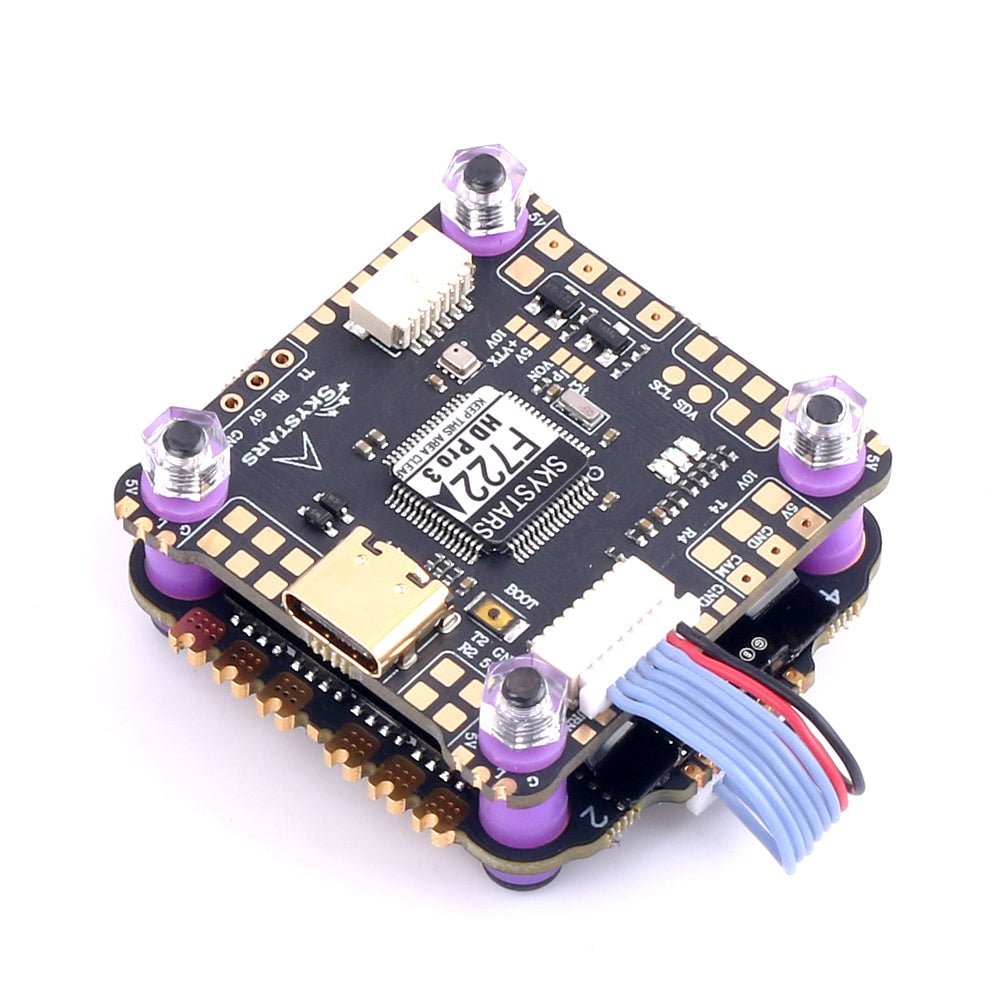

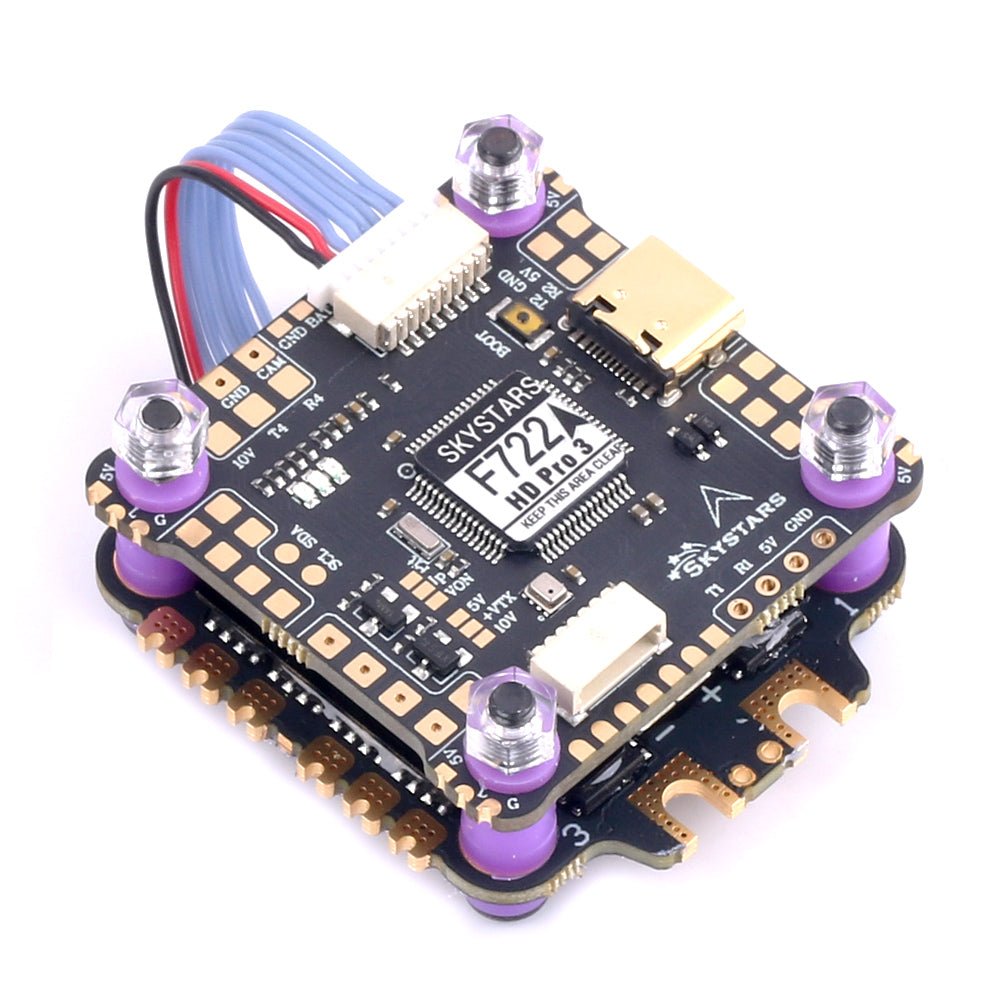

Skystars F7HD PRO3 Stack F722 Flight Controller and KO60 60A 128K Blheli-32 3-6S ESC – 30x30mm

SKYSTARS F7HD Pro3 Flight controller and KO60A Blheli-32 32bit 128K 4IN1 ESC fly tower stack

Check out all our Stacks and the rest of our Skystars Products!

Specifications:

• MCU: STM32F722RGT6 216MHz

• Gyroscope: BMI270

• Baro:Bmp280

• OSD: Betaflight SPI OSD DJI HD OSD(UART6)

• Black box: 16MB

• 6x Uarts: UART 1/2/3/4/5/6

• 4x PWM outputs

• 1x I2C

• 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)

• USB Type-C(USB2.0)

• 1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)

• 1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)

• VTX 10V/Vbat filtered power ON/OFF switch

• DJI FPV OSD is supported by any spare UART

• LED: 4 LED independent pads, support WS2812 programming lamp output.

• Receiver: Support Sbus, crsf, ibus, SBUS, XBUS, support 3.3v Spektrum satellite receiver, The default receiver input is UART1(You can solder ELRS RX on UART1), F7 has a built-in inverter, which can actually be installed in any spare UART.
• Input voltage: 3-6S

• BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI

• LDO 3.3V: Max.250mA
• BetaFlight firmware: SKYSTARSF722Pro

• INAV firmware:SKYSTARSF722HD
• Installation size: 30.5mm × 30.5mm The installation hole is M4 and supports shock column installation

• External size 39mm × 39mm

• Flight control weight: 6.9g

• Flight control onboard voltage sensor.

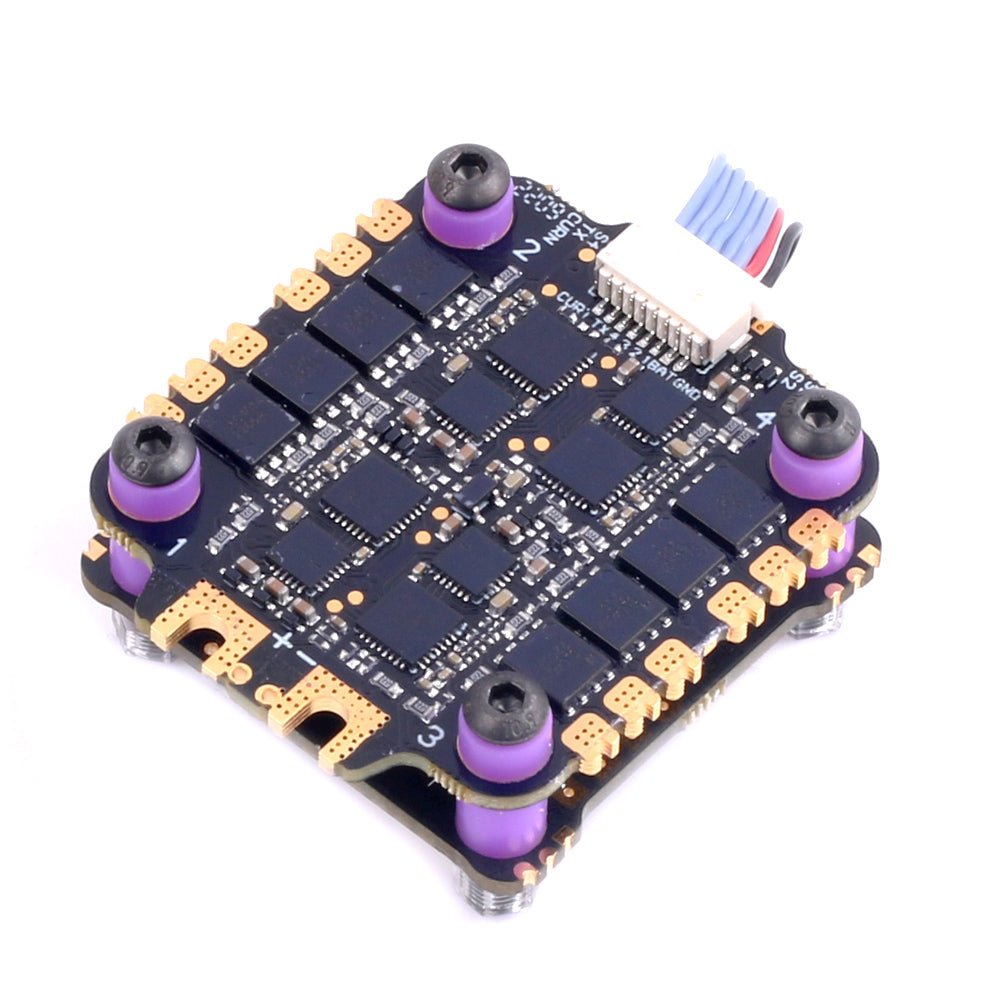

BL32- 60A 4IN1 3-6S ESC BLheli32 128K DShot1200 4-in-1 ESC:

• Support 128K Dshot1200, Dshot600, Dshot300, Dshot150, Oneshot125, Multishot,
• PWM control signal
• Power supply voltage: 3-6S (12-26V)
• Continuous working current:  60A
• No built-in 5V BEC output
• Firmware: BLHELI 32 ESC
• Screw hole spacing: 30.5*30.5MM
• Aperture: 4MM
• Weight: 14.6g

– The ESC has an on-board filter capacitor that suppresses the back electromotive force, stabilizes the battery voltage, and protects the flight control ESC precision components.
– EMI Shell provides stronger anti-interference capability.

Note: There is no difference in appearance between the 45A and 60A ESCs, which can be distinguished from the MOS tube.

Package Includes:

• 1x F7HD Pro3 FC
• 1x KO60 128K BL32 4IN1 ESC
• 8x Silicon grommets M4 to M3
• 2x JST-SH1.0_8pin cable, 4cm
• 1x JST-GH-6P cable for DJI port, 10cm
