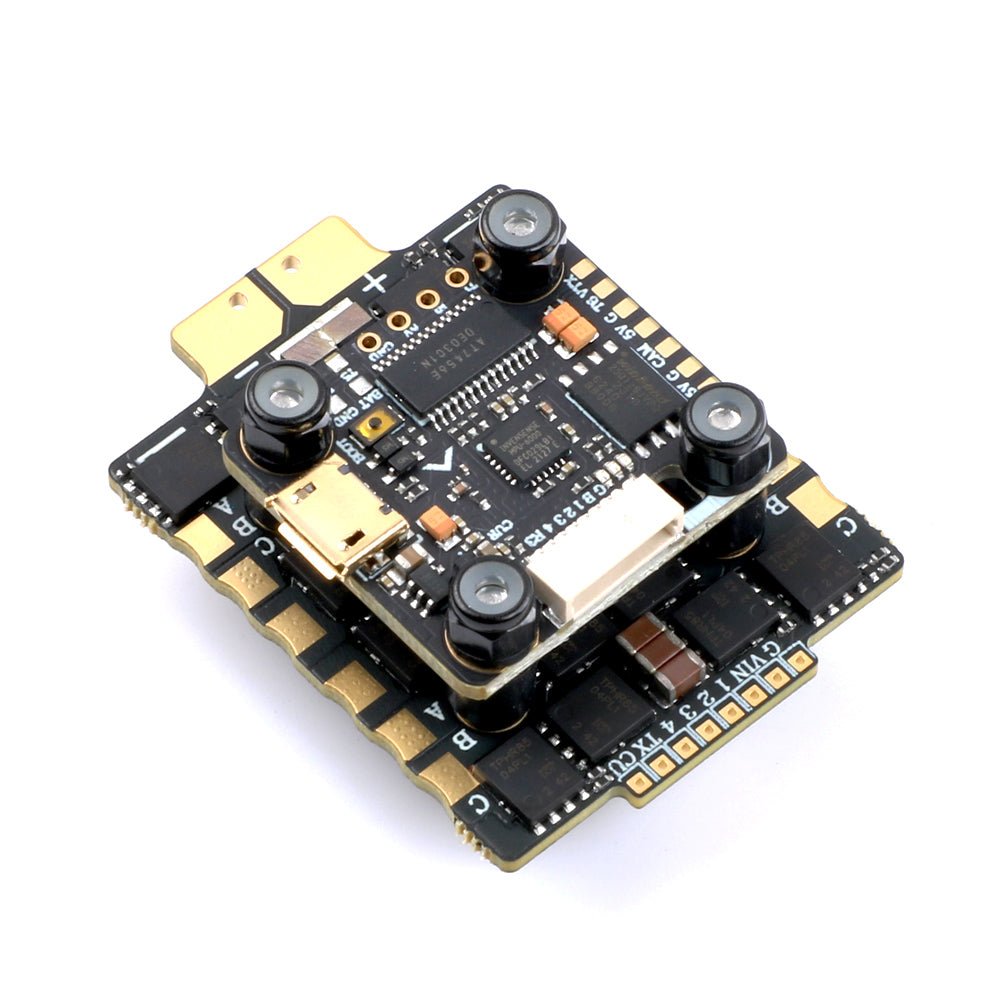

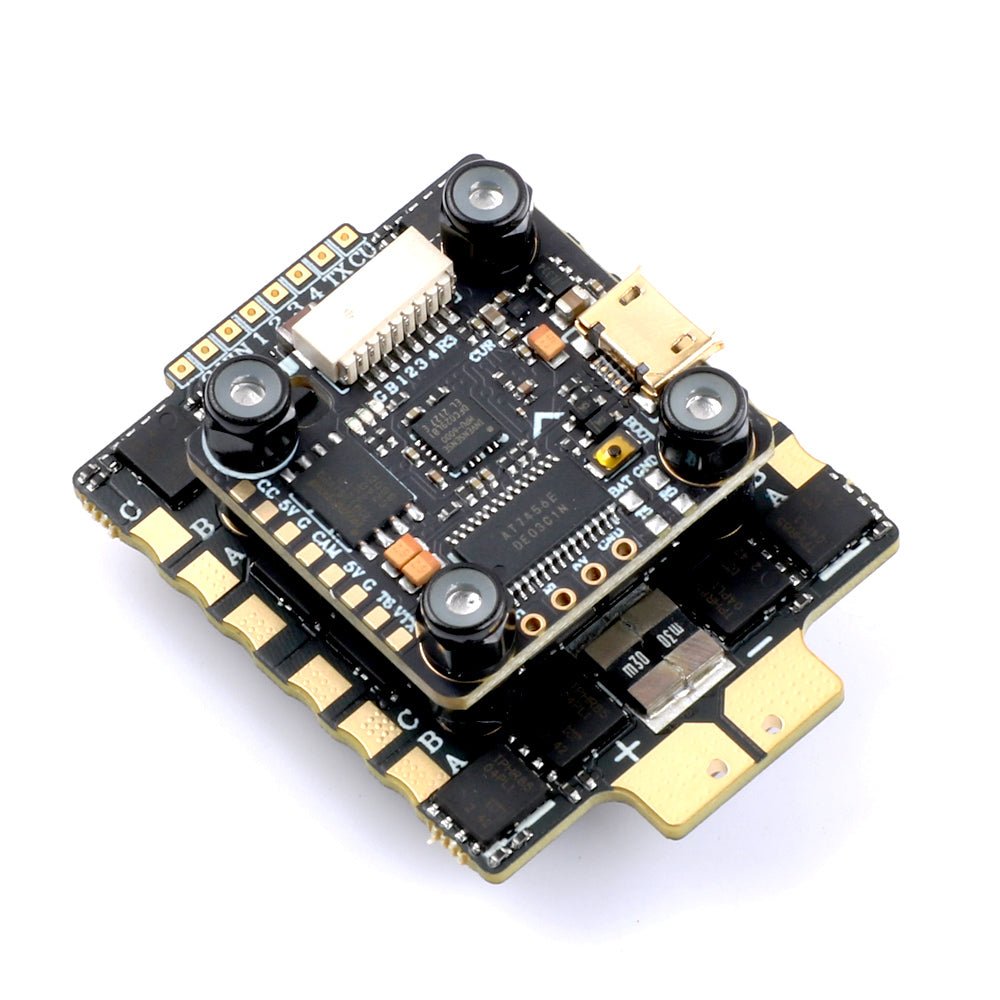

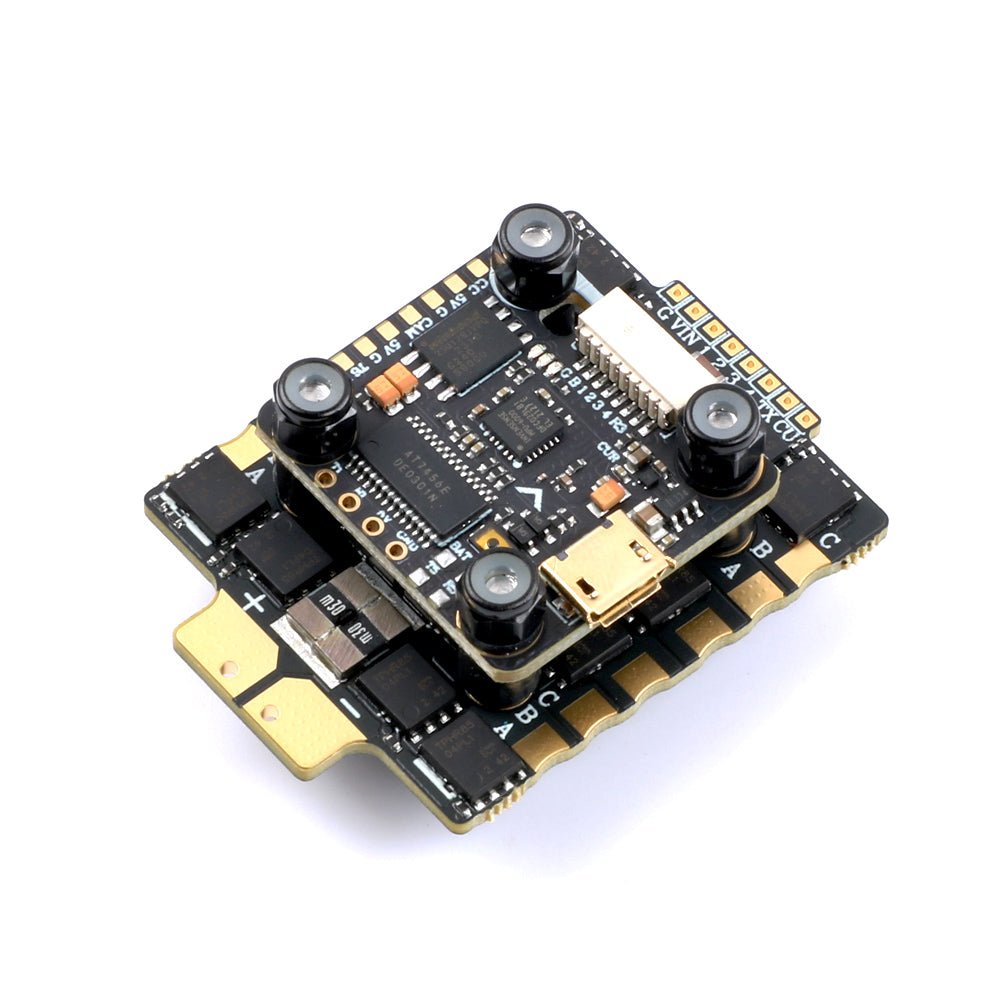

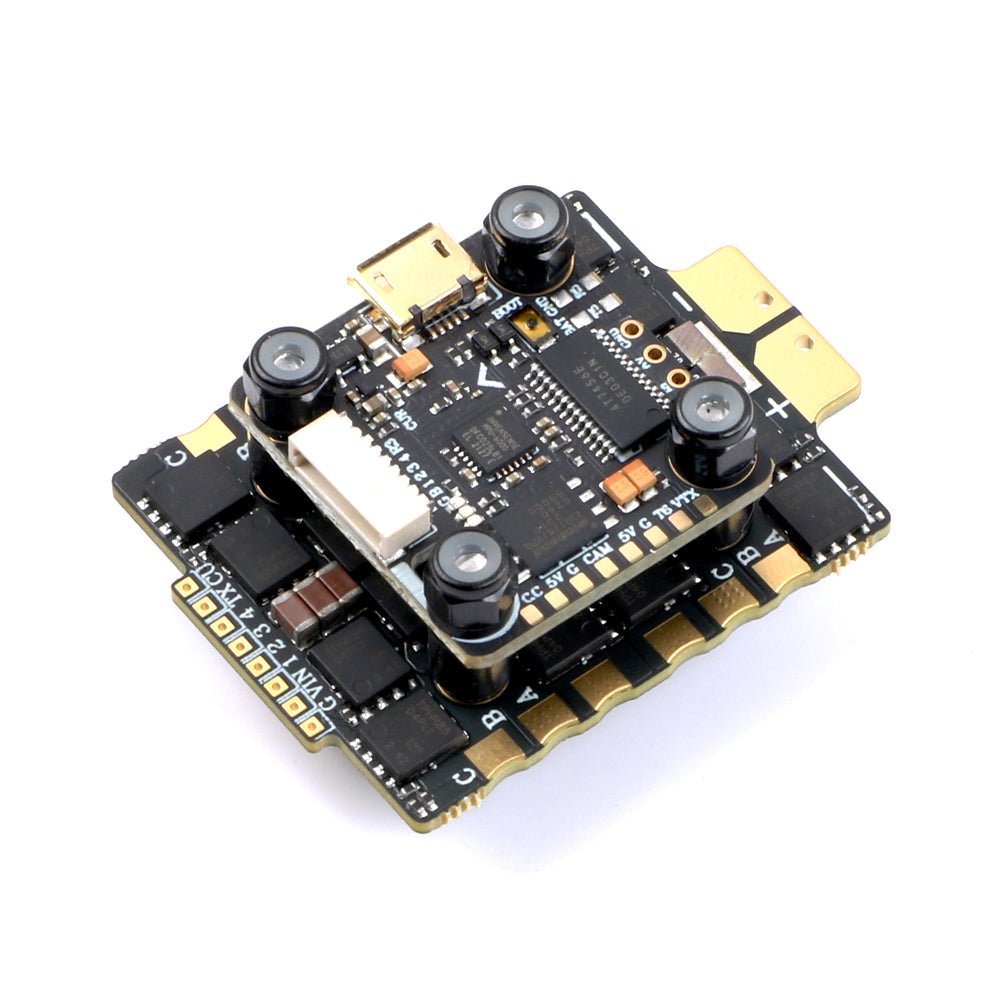

Skystars F7RS Stack F722RS Flight Controller & MVP60A F4 Blheli_32 60A 3-6S 4in1 ESC – 20 x 20mm
$140.99
| Weight | 0.069 kg |
|---|
Out of stock
Description
Skystars F7RS + MVP60 is a powerful stack designed for racing and freestyle 5″ drones. At the heart of the flight controller is the F722 processor with MPU6000 gyro. The flight controller also includes a 5V 3A BEC, OSD and 16MB of blackbox memory. The ESCs support power from 3-6S Lipo batteries and can handle current up to 60A (80A peak). Featuring a 32-bit processor, the ESCs use BlHeli_32 firmware that supports telemetry, bidirectional DShot and PWM frequency up to 128KHz. The stack has a 20x20mm mounting hole spacing with an M3 hole
Check out all our Stacks and the rest of our Skystars Products!
Specifications:
SKYSTARS F722RS 20X20 Flight Controller
- MCU: STM32F722RGT6 216MHz
- IMU: MPU6000 (SPI)
- OSD: Betaflight OSD & DJI HD OSD (UART6)
- 6 hardware UARTS (UART1,2,3,4,5,6)
- Barometer: NO
- Buzzer Pad: YES
- 5V 3A
- Input Voltage: 3-6S Lipo
- Blackbox: 16MB
- Firmware: SKYSTARS F7RS
- Dimensions: 26x28x7mm
- Mounting Holes: Standard 20mm/M3 square to center of holes
- Weight: 4.9g

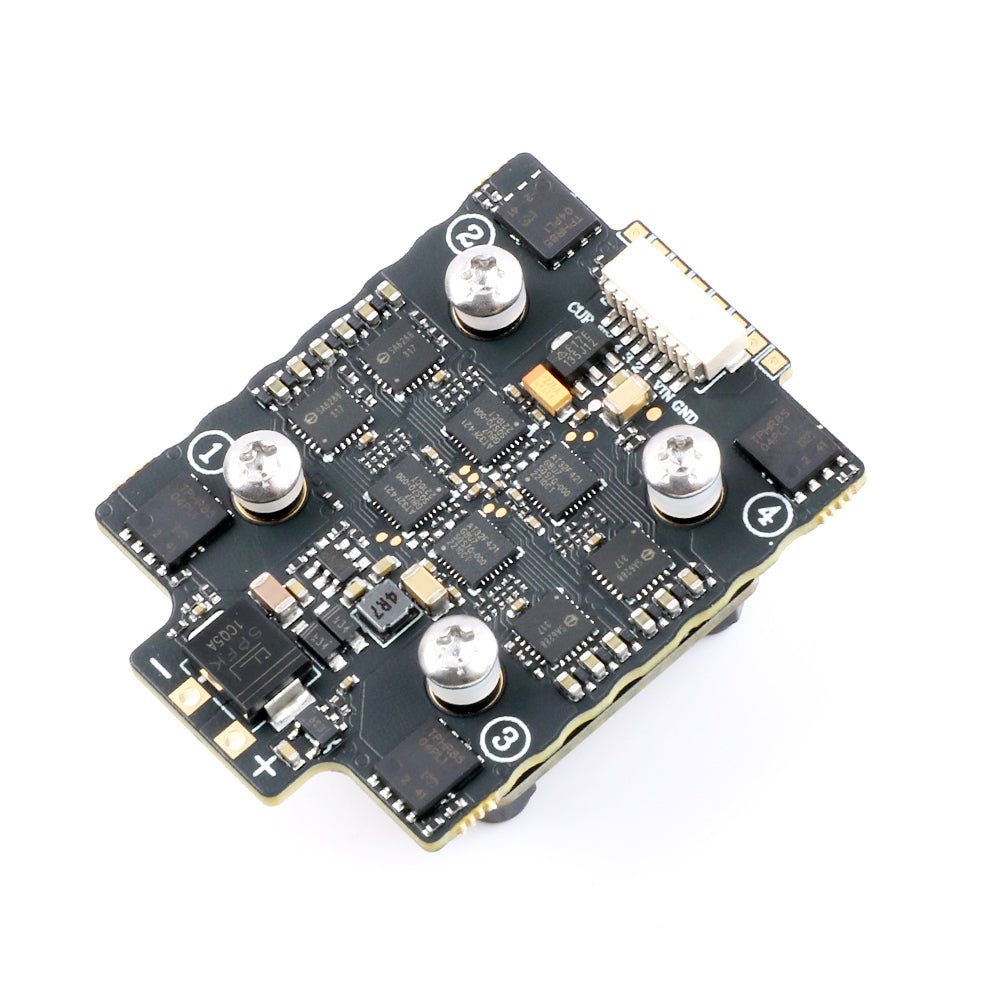

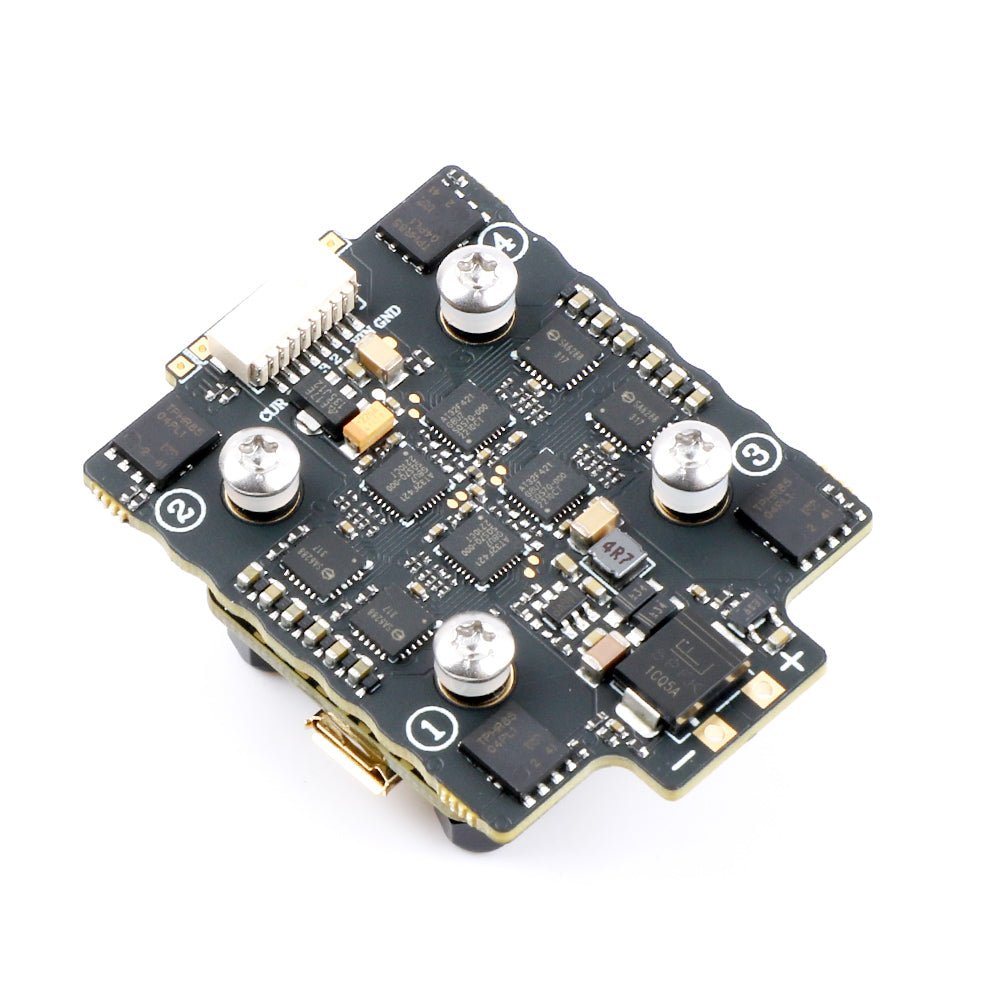

Skystars MVP60A F4 32Bit 3-6S 20×20 4in1 ESC
- Input voltage: 3-6S LiPo
- Con.Current: 60A
- Peak Current: 80A≥ 10S
- Firmware: BLHeli_32
- Support: Dshot 600/1200
- Mounting hole : 20X20 mm/M3
- BEC: No
- Product size: 35.8*47*6.5mm
- Weight: 17g
Package Includes:
- 1 x SKYSTARS F722RS 20×20 Flight Controller
- 1 x SKYSTARS MVP60A 32Bit F4 3-6S 20×20 4in1 ESC
