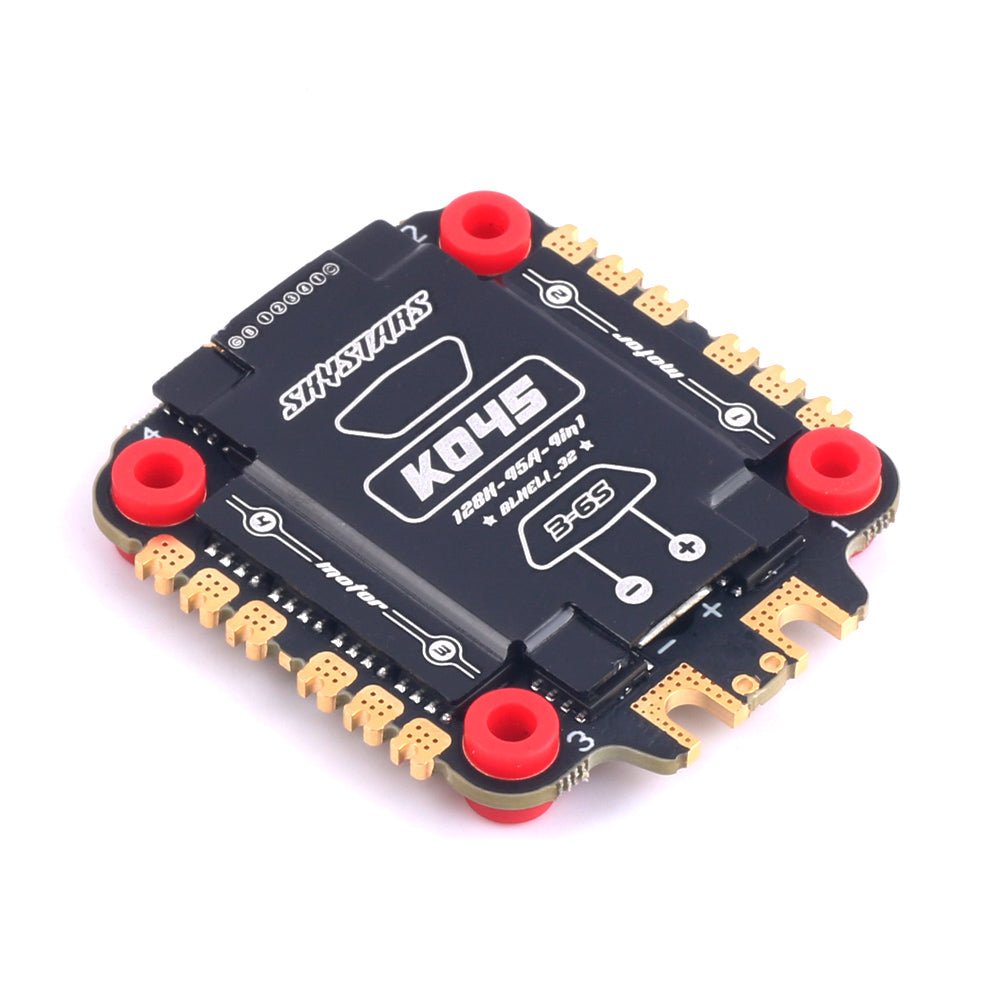

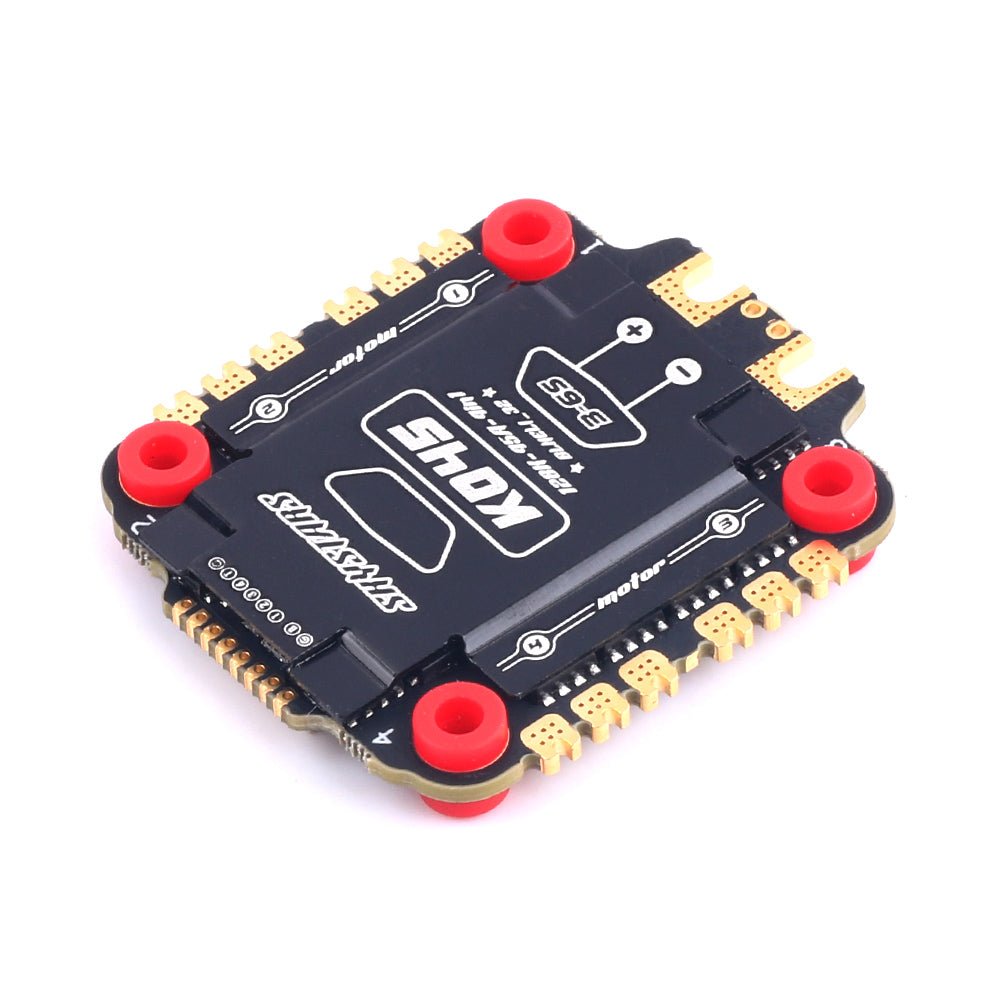

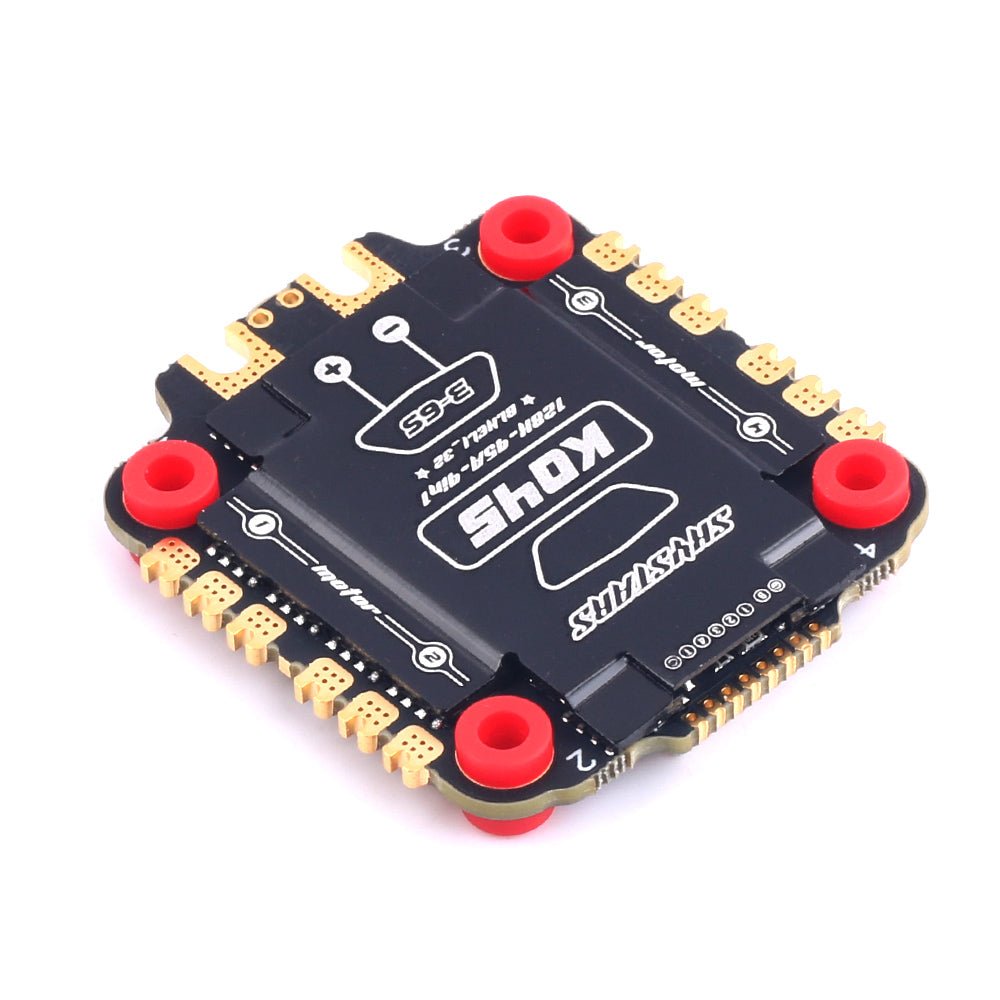

Skystars RC KO45 45A Blheli_32 4-in-1 30×30 ESC

The Skystars RC KO45 45A BLHeli_32 4-In-1 ESC features 45Amp continuous current, support for Dshot 300-1200 / Proshot1000, telemetry (Voltage, Current, etc.) and BLHeli_32 firmware at a fantastic price.

Check out all our Electronic Speed Controllers and the rest of our Skystars Products!

Excellent over-current capability

By adopting the best PCB material and PCB production process. Such as application of high TG materials, 3oz copper PCB & 2μm gold deposition process on PCB. Together with 6-layer layout design of board, compared with others that commonly use 4 layers, allowing it to withstand higher current.

Extreme stability and support of 6S LiPo battery

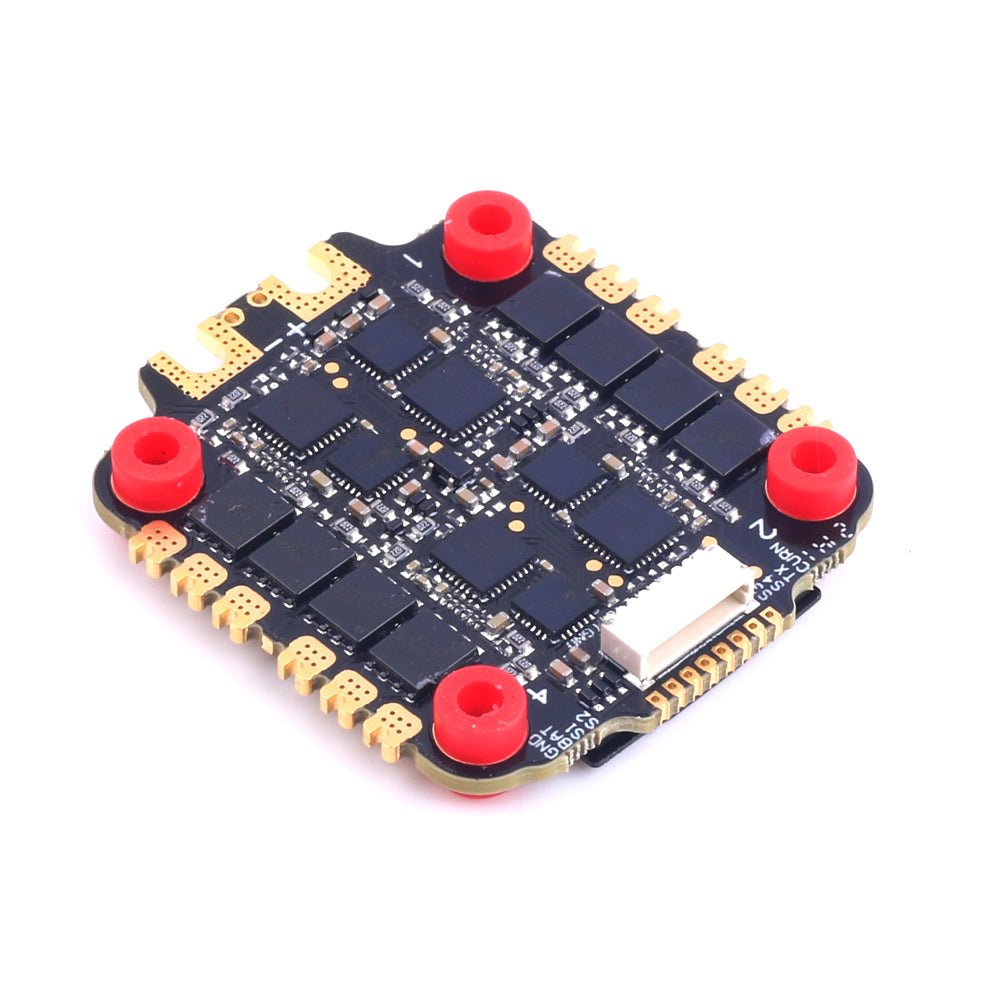

By use of 24 pcs of new Toshiba standard 40V 5×6 Mosfet & electronics imported from USA and Japan.  Plus advanced lead-free SMT Processing technology. It makes ESC fully support 6s battery and get better performance.

Better Control Performance

Flashed with the latest BLHeli_32 firmware in factory, support telemetry functions (including voltage ,RPMS, & current )

Specifications:

• Mount:  30.5mm x 30.5mm
• Supports 3-6S
• ESC weight: 12g
• ESC onboard current sensor.
• Continuous current: 45A
• Peak current [5 seconds]: 55A
• Drive signal: Dshot300-1200 / Proshot1000 / Oneshot / Multishot / PWM
• MCU: STM32F051 Operation frequency: 48MHz
• Firmware: BLHeli_32
• BEC: No

Package Includes:

• 1x Skystars RC KO45 45A BLHeli_32 4-In-1 30×30 ESC
• 4x Rubber Grommet
• 1x XT60 Cable
• 1x 35v 560uf Capacitor
• 1x Wire Harness
