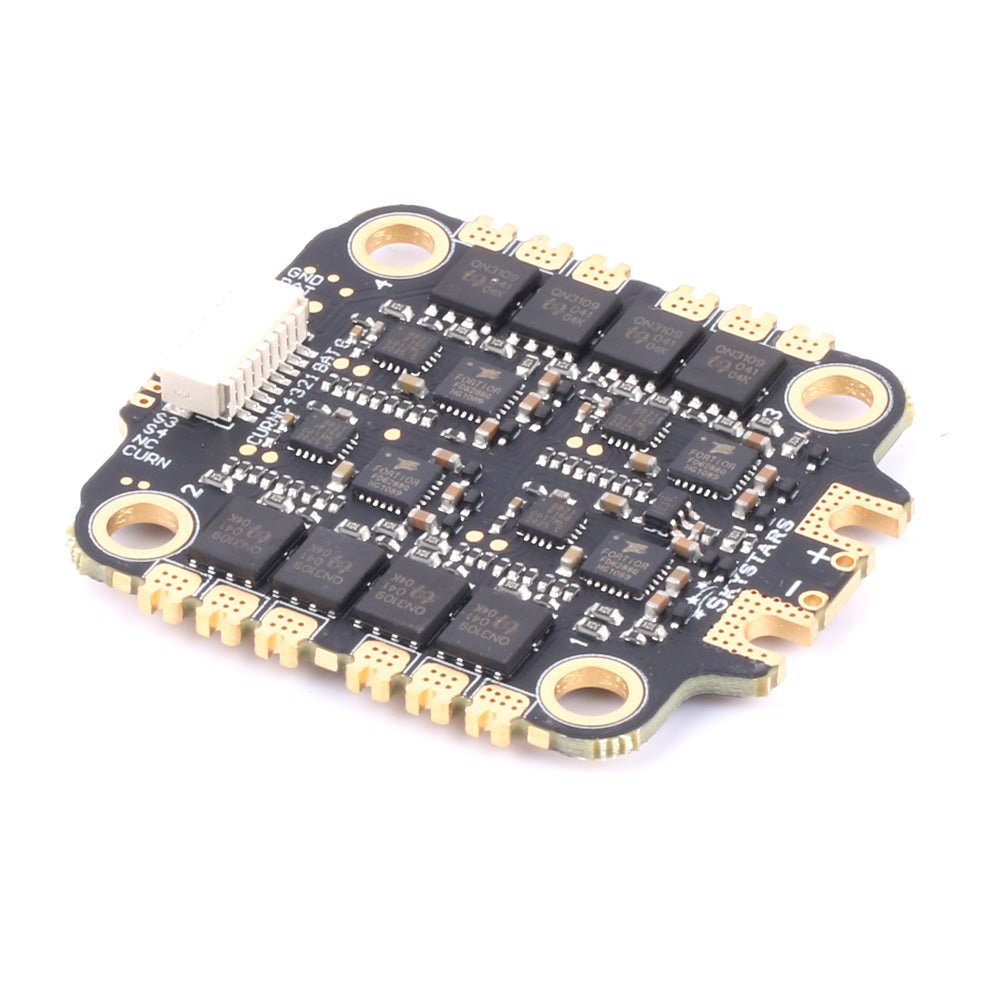

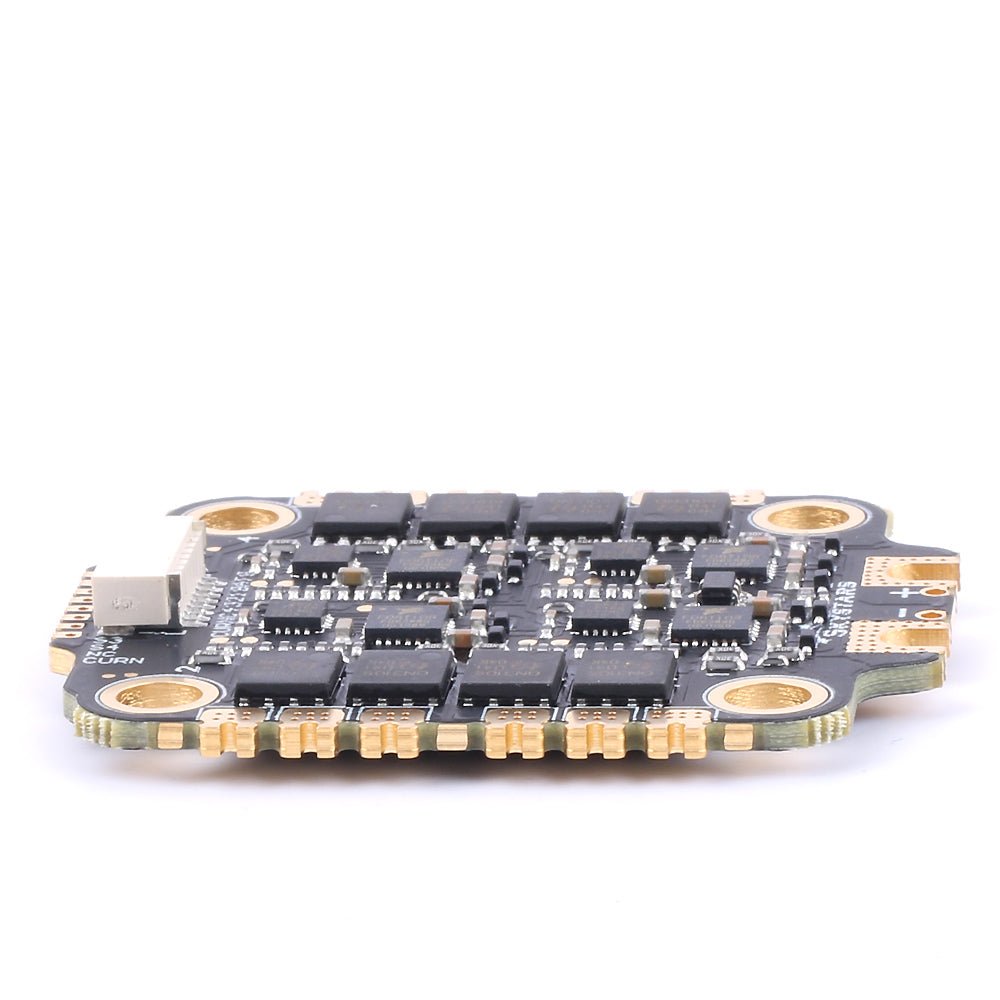

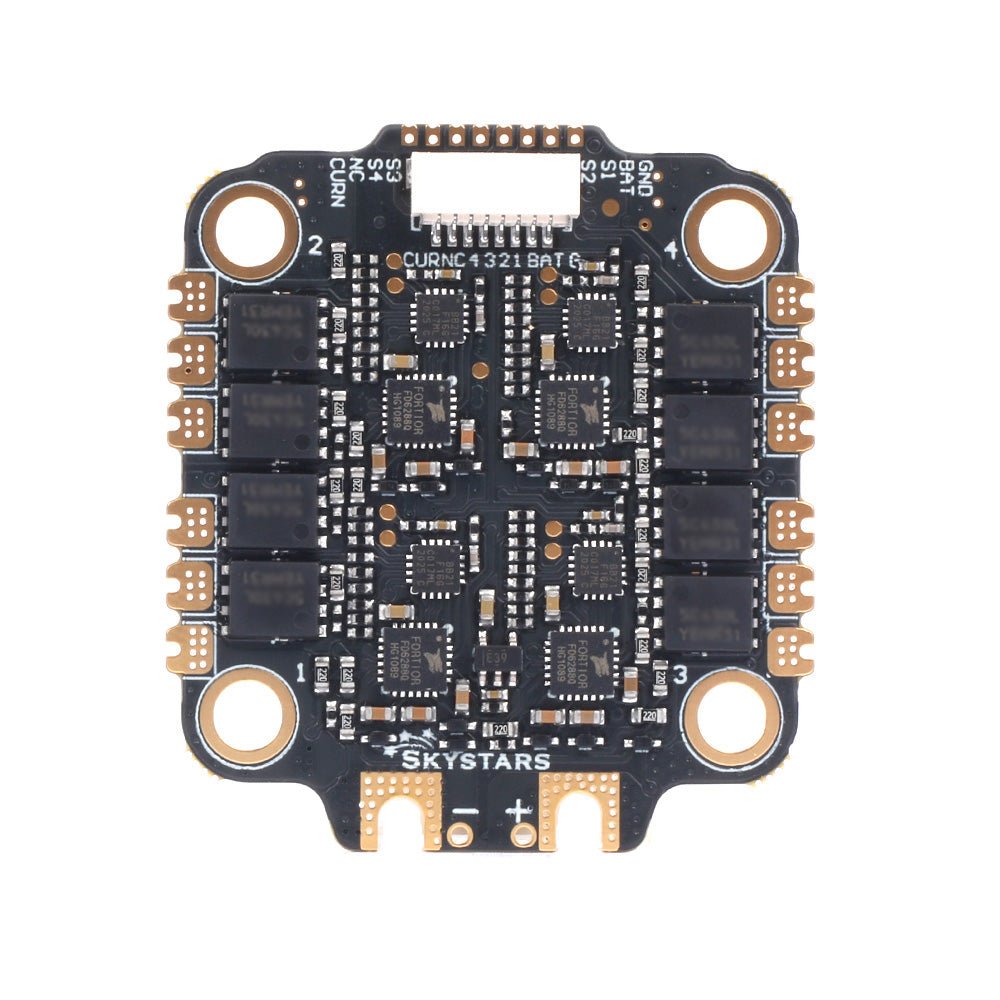

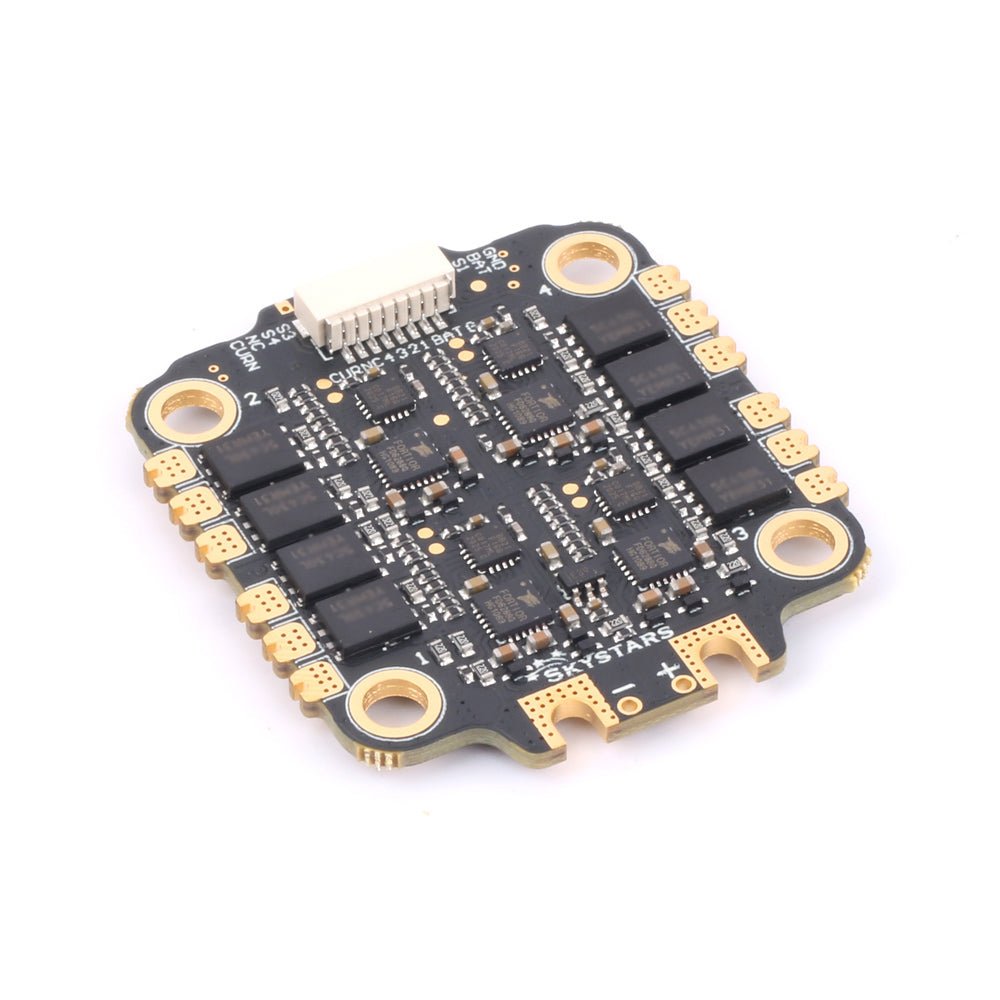

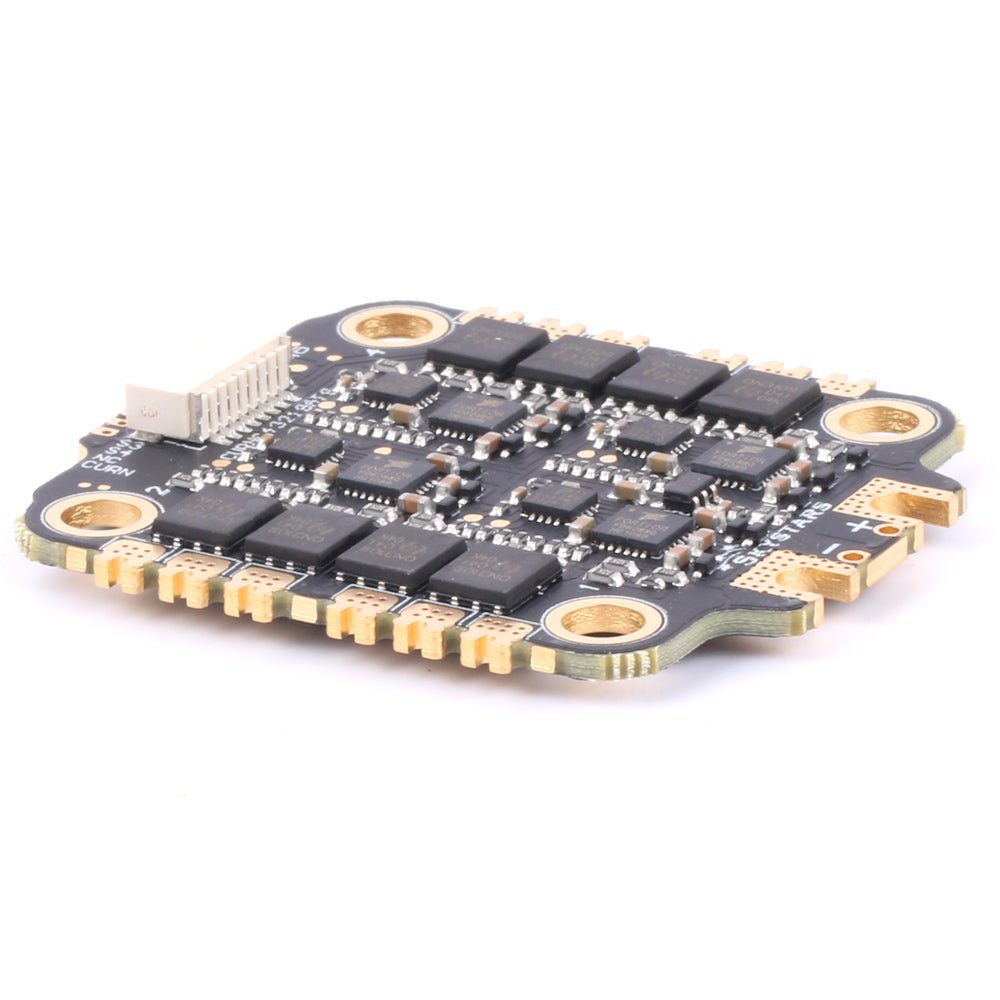

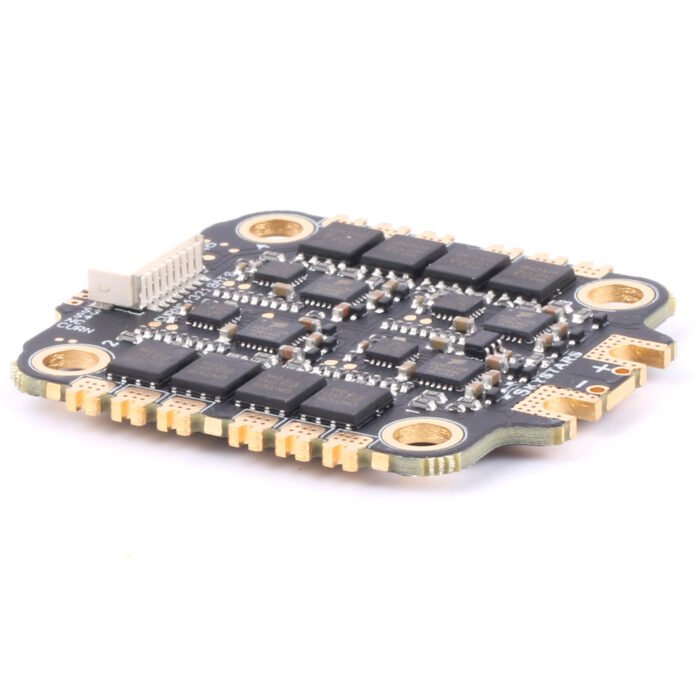

Skystars RC KO45 45A Blheli_S 4-in-1 30×30 ESC

The Skystars RC KO45 45A Blheli_S Dshot600 4-in-1 ESC features 45Amp continuous current, support for Dshot 300-1200 / Proshot1000, telemetry (Voltage, Current, etc.) and BLHeli_S firmware at a fantastic price.

Check out all our Electronic Speed Controllers and the rest of our Skystars Products!

Excellent over-current capability

By adopting the best PCB material and PCB production process. Such as application of high TG materials, 3oz copper PCB & 2μm gold deposition process on PCB. Together with 6-layer layout design of board, compared with others that commonly use 4 layers, allowing it to withstand higher current.

Extreme stability and support of 6S LiPo battery

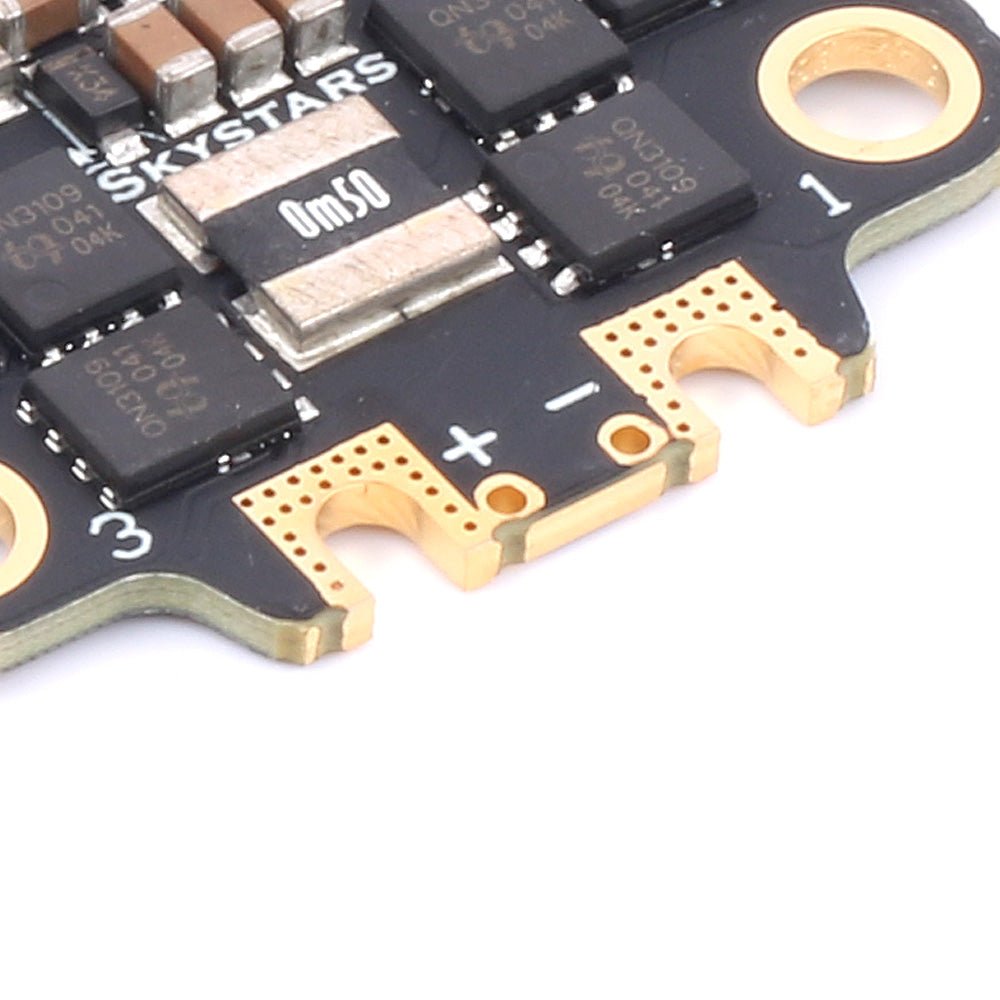

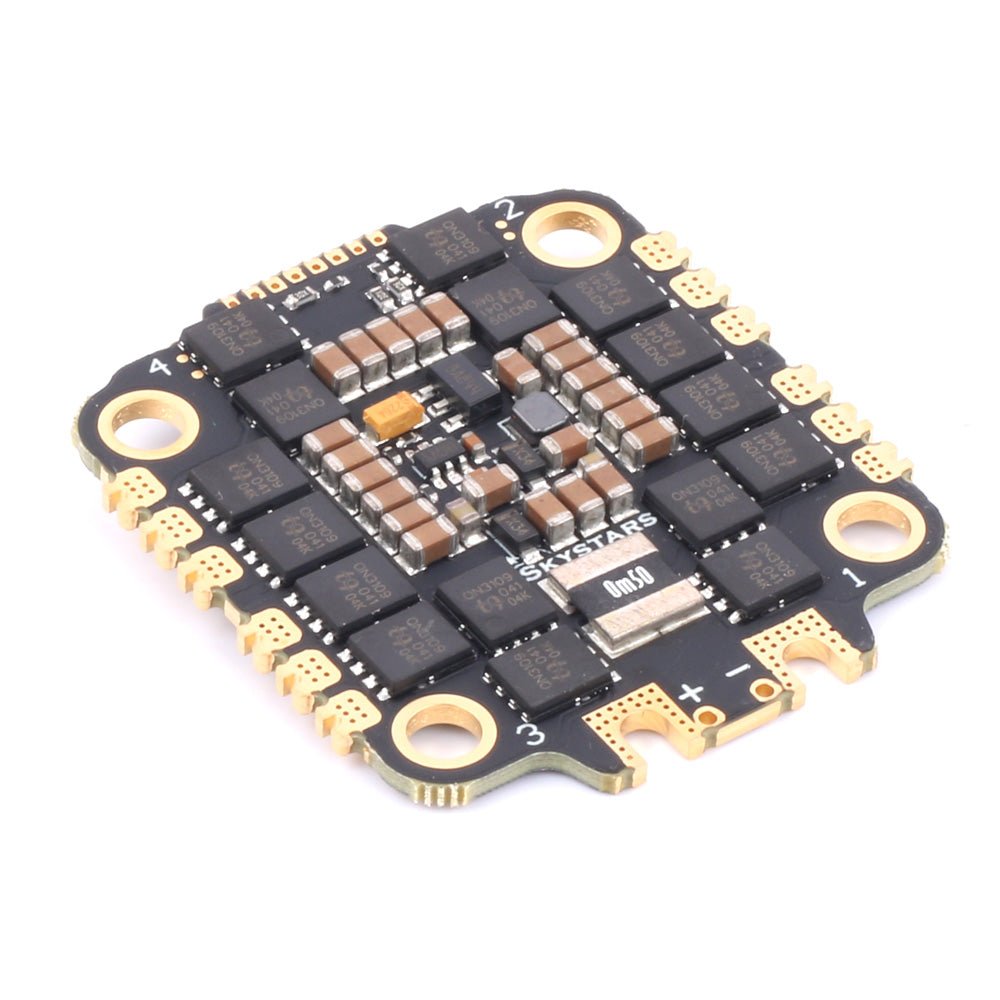

By use of 24 pcs of new Toshiba standard 40V 5×6 Mosfet & electronics imported from USA and Japan.  Plus advanced lead-free SMT Processing technology. It makes ESC fully support 6s battery and get better performance.

Better Control Performance

Flashed with the latest BLHeli_32 firmware in factory, support telemetry functions (including voltage ,RPMS, & current )

Specifications:

• Dimension: 41*46mm
• Mounting Holes: 30.5*30.5mm/¦µ3mm
• Weight:13.3g
• Supports 3-6S Lipo input
• BB21 MCU, 48Mhz Runs BLHELI 16.X Firmware
• Current sensor: YES
• BEC: NO
• Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
• Target: Q-H-30 BLS 16.7

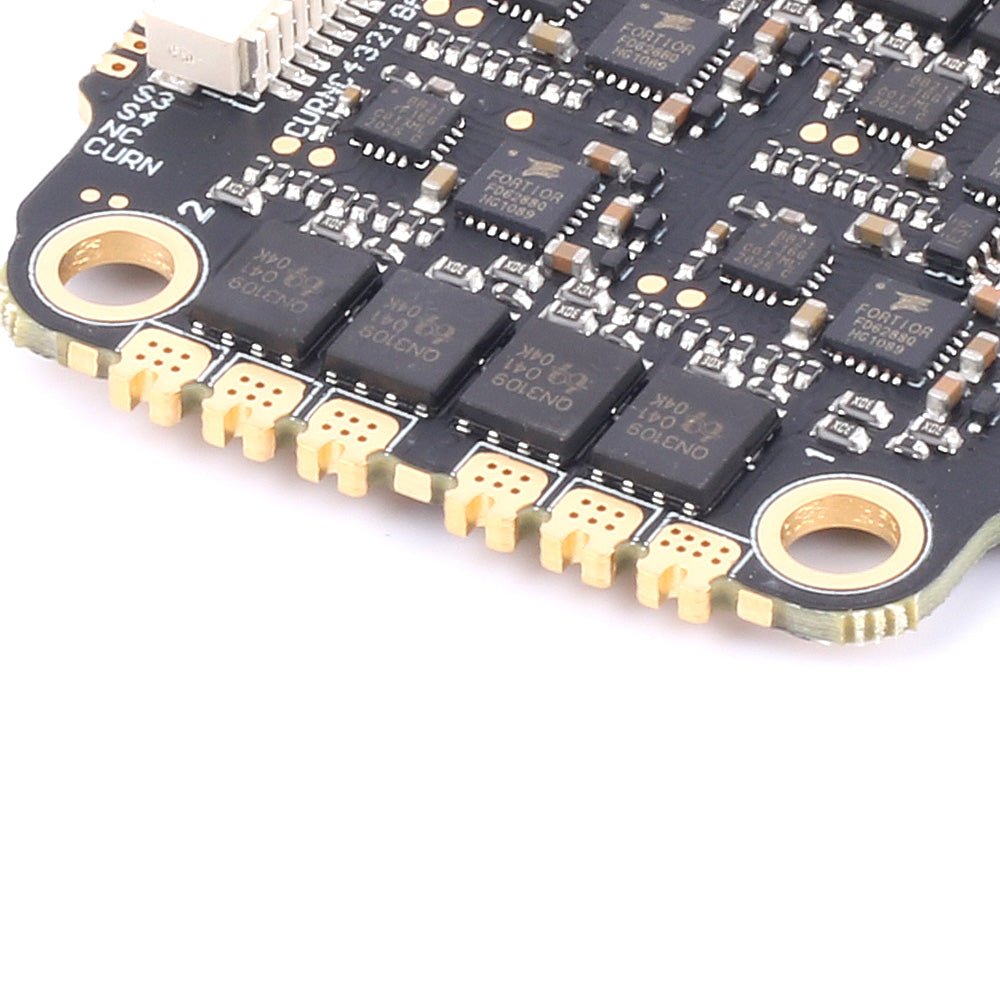

• MOS tube model is QN3019M6
• BLHeliSuite download

Package Includes:

• 1pc x Skystars RC KO45 45A Blheli_S 4-in-1 30×30 ESC
