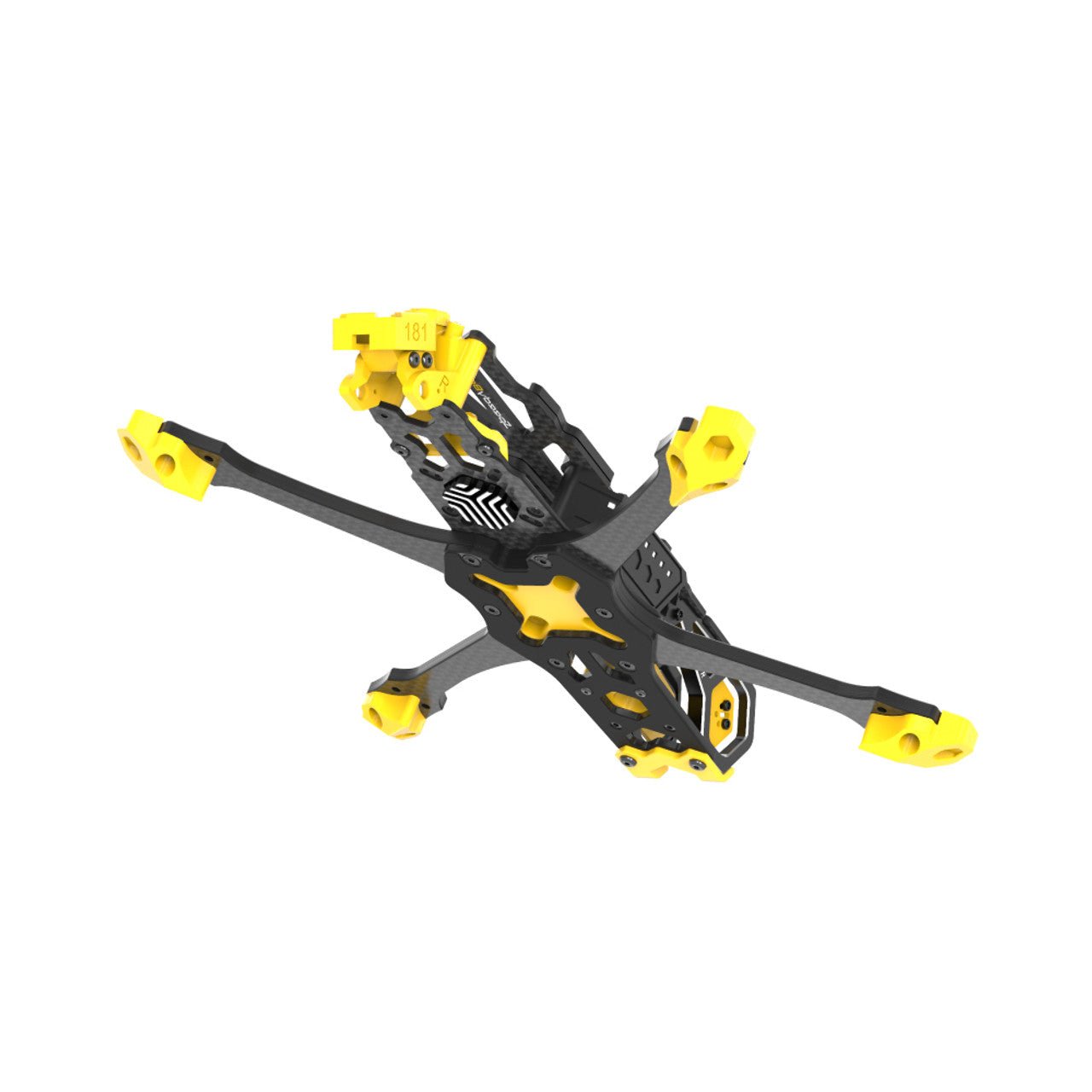

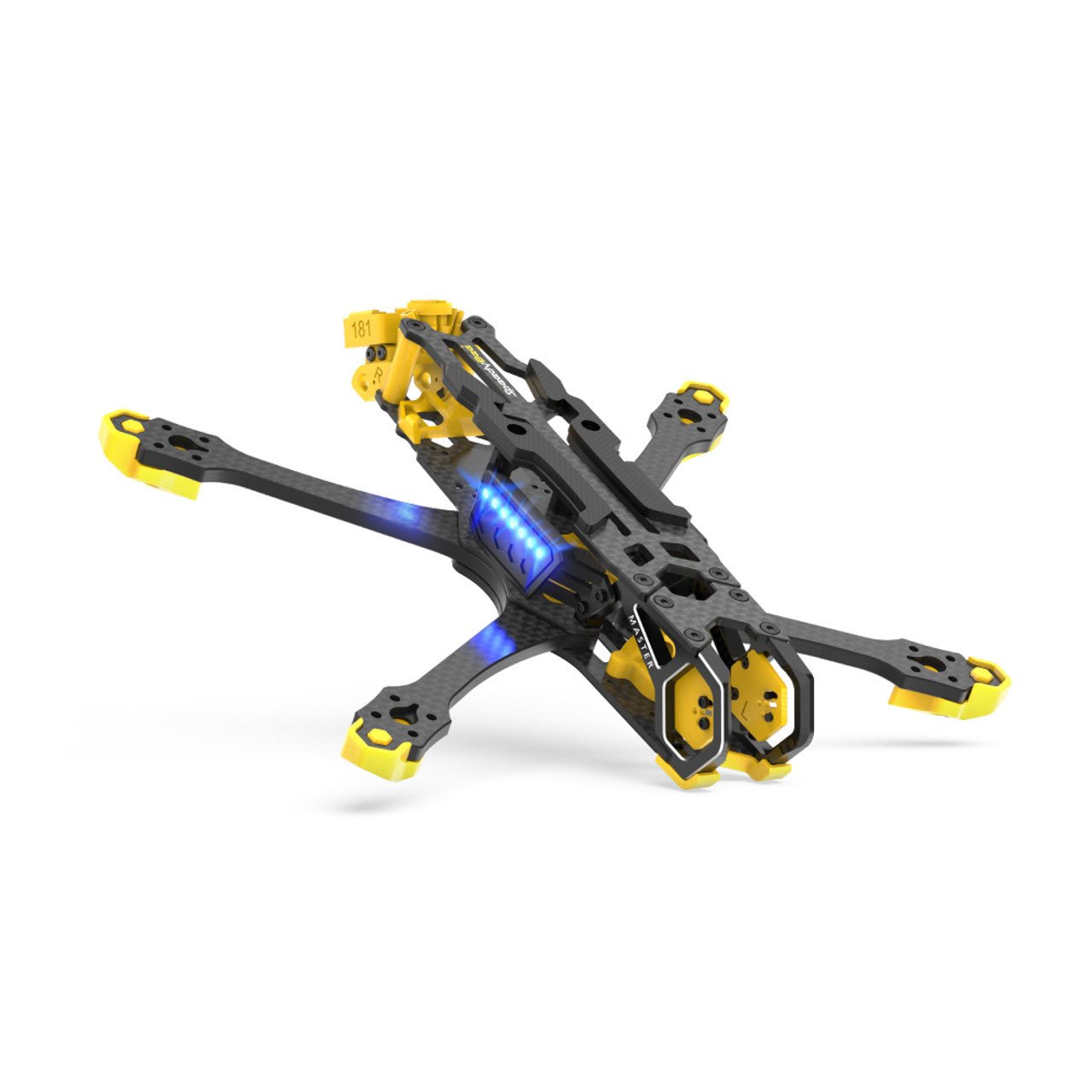

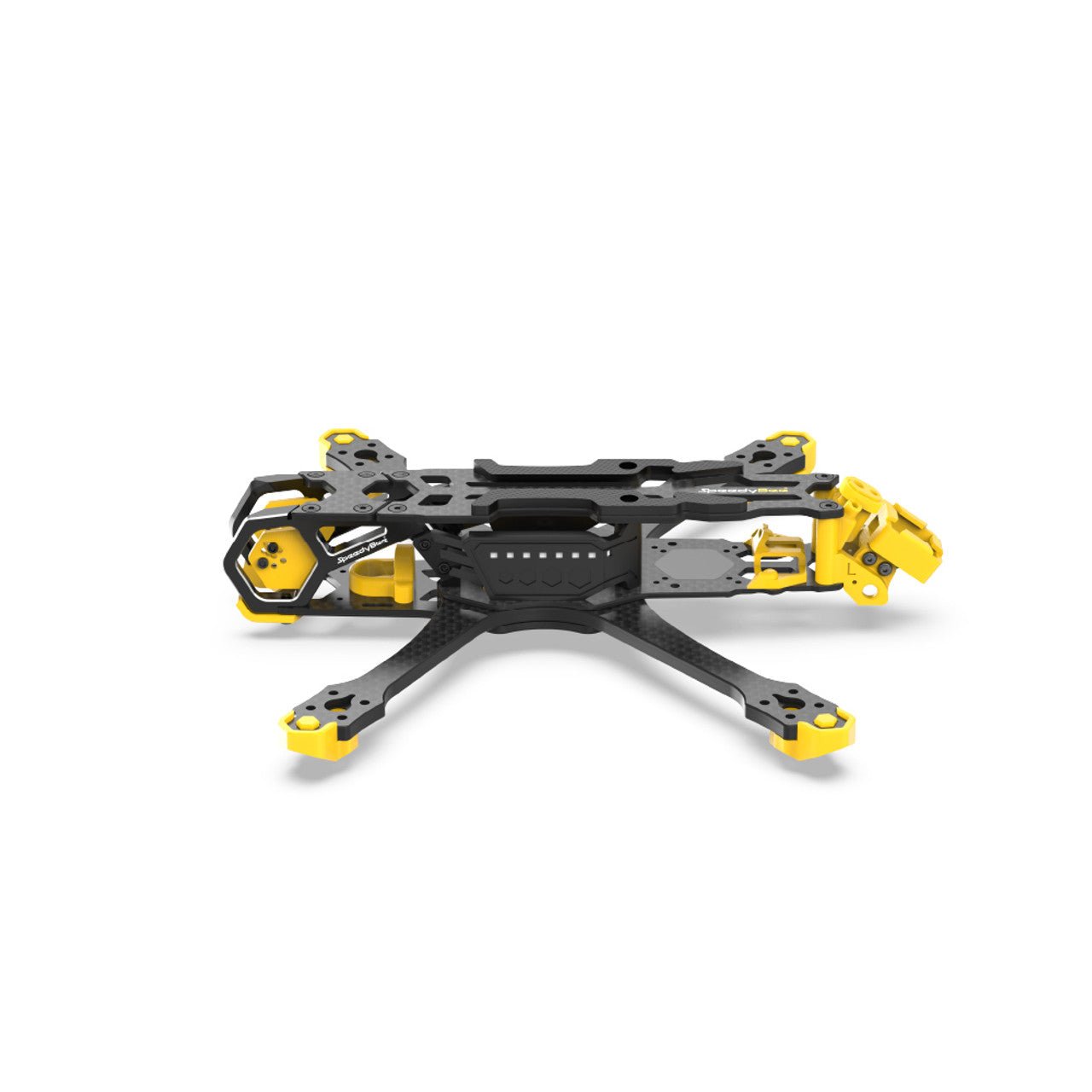

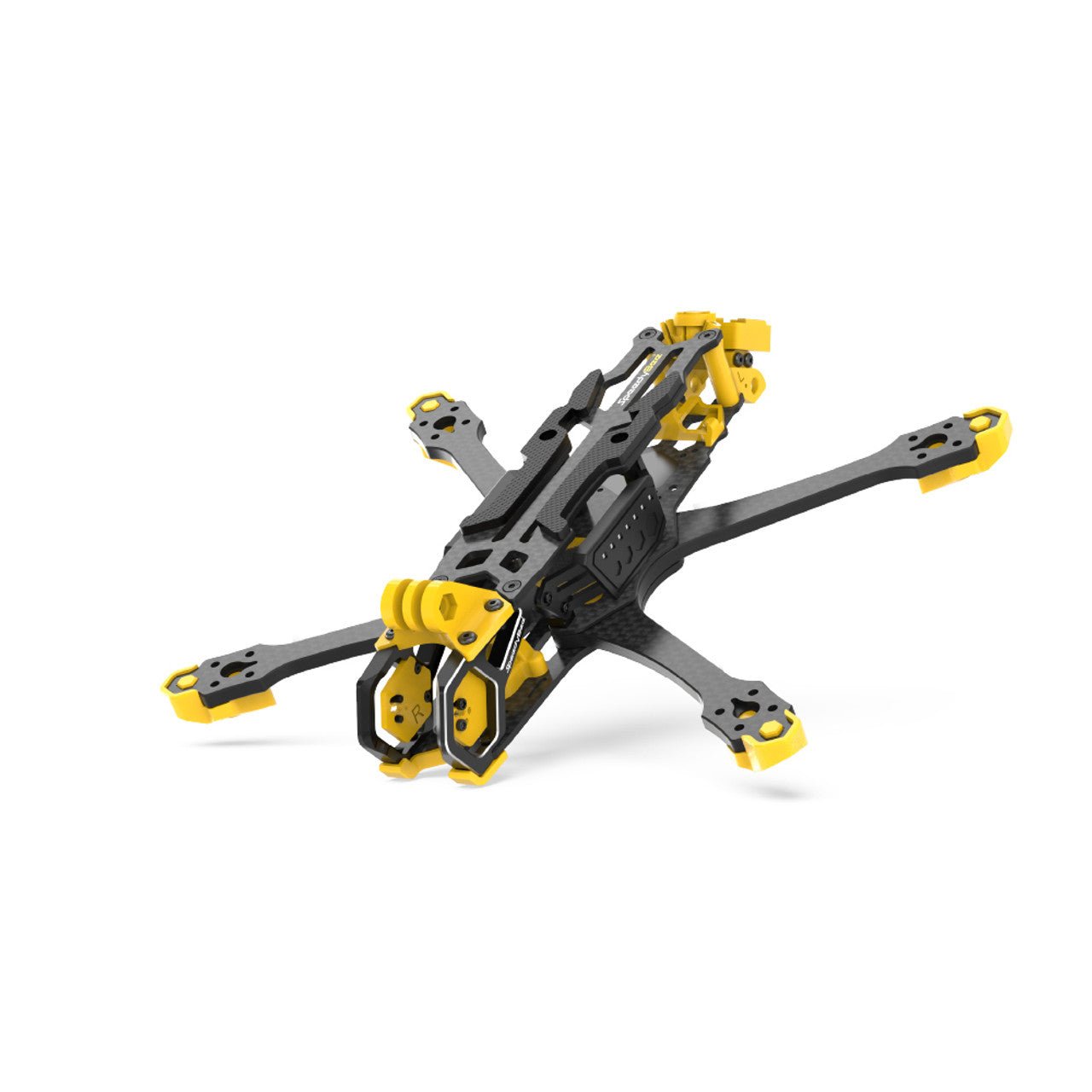

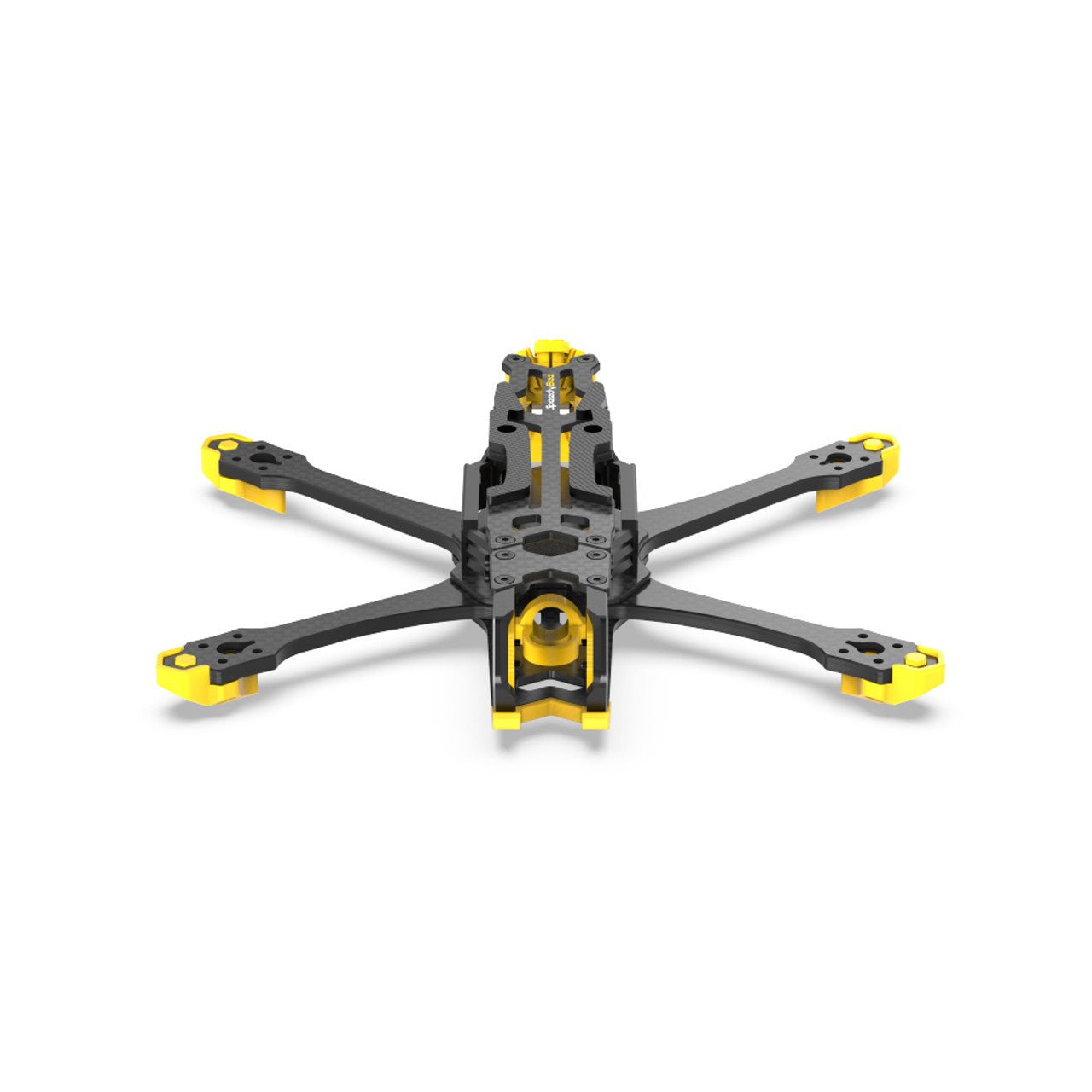

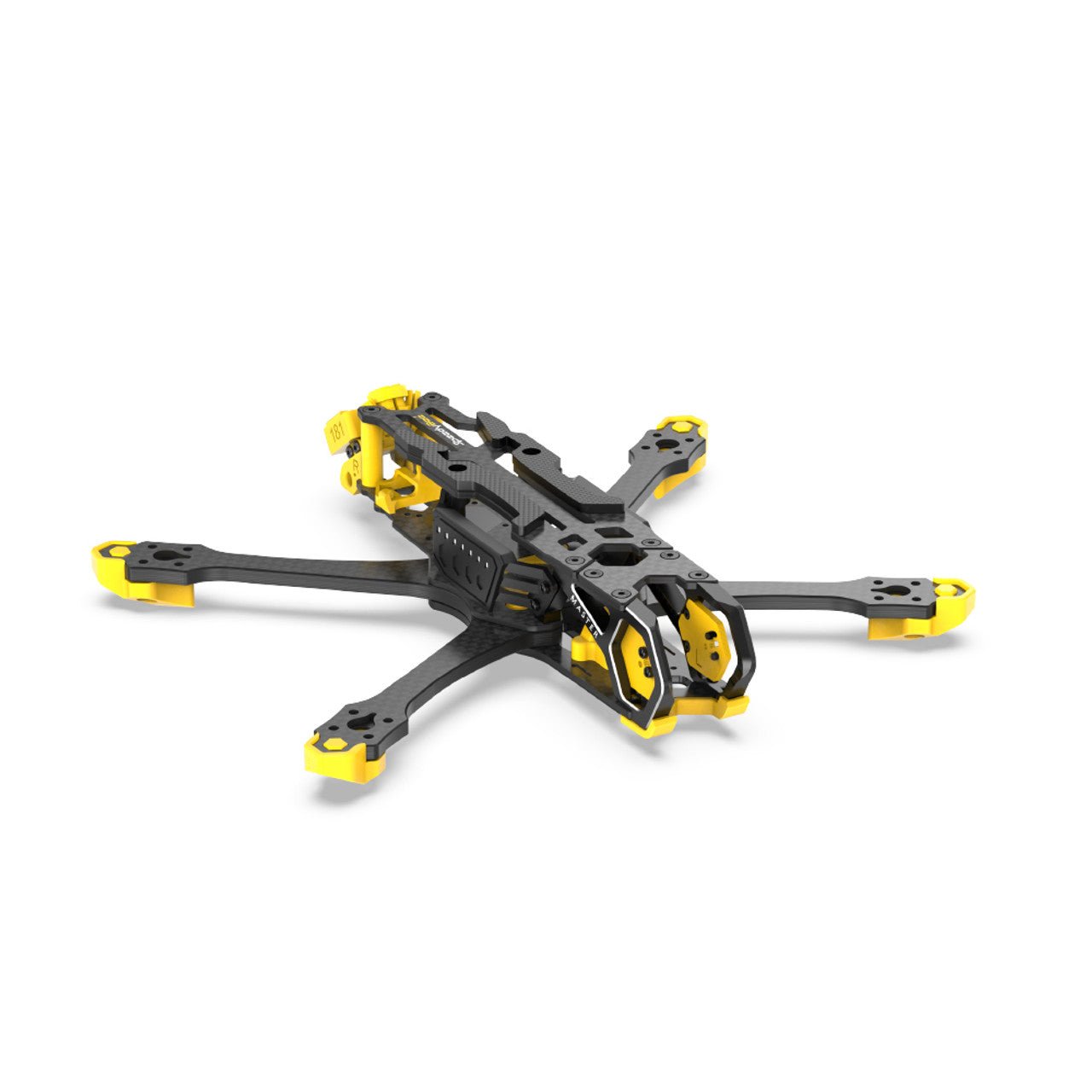

SpeedyBee Master 5 V2 5″ FPV Freestyle Frame

Master in the Air, Exploring the world, all well in Master 5 V2! Compatible with the Brand new DJI O3 video transmission system gives your flying infinite reverie.

You can find all the related parts in The SpeedyBee Master 5 V2 Freestyle Drone Collection

Check out the rest of our 5″ Frames and the rest of our SpeedyBee Products!

Features:

• Designed to handle both cinematic and freestyle flying, Master 5 V2 with great Deadcat geometry, places the flight controller closer to the center of gravity than other DC frames
• The innovative anti-vibration stack structure dampens the effect from motor noise on the gyro, offering a stabilized running environment.Averaging 1.5 screws per arm, the quick release structure makes assembly and disassembly easily
• Honeycomb-shaped aluminum alloy CNC drone head ensures better strength and look, with H-FOV 130° section, drone head gets larger field of view.Furthermore, the incorporated DJI O3 Air Unit also supports ND filters and changeable side plate mounting
• TPU side plate inside CNC part helps dampen the vibration on camera, and it can be modified by pilots on their own to get it compatible with more mounting holes, and get rid of vignetting for clear images
• Under the VTX, there is a honeycomb-shaped aluminum alloy heat sink improving the operation stability of FPV and high-power analog VTX

Specifications:

• Frame Master 5 V2
• Wheelbase 226mm
• Weight About 140g (non-3D printed parts included)
• Top plate thickness 2.5mm(T300 3K)
• Middle plate thickness 2mm(T300 3K)
• Bottom plate thickness 2.5mm(T300 3K)
• Arm thickness 5mm(T300 3K)
• Camera side plate thickness 2mm TUPC
• Anti-vibration stack structure hardness Yellow HB80、Translucent HB50
• 3D printed par Yellow TPU
• Motor circlip spacing φ8mm
• Compatible propellers 5-5.1 inch
• Mounting holes for motors 16*16mm
• FC mounting hole 30.5×30.5(M3) & 20×20mm (M3)
• Drone head 7075 CNC aluminum alloy
• Aluminum standoff 7075 M3*23mm*(6mm/4.7mm)、M3*23mm*(4.6mm)
• Internal installation height 23-30mm
• Standard antenna installation suppor SMA (single), O3 4mm, SpeedyBee Link
• Standard GPS base size 18*18*8mm (other size requiresan additional purchase)
• Rear Support Mounting Holes 20*20mm – 25.5*25.5mm – 30.5*30.5mm
• Detachable stack protective plate RGB LED included
• Motor wire protection included
• Included 3D printed parts GOPRO base, capacitor/buzzerbase, arm protection, 181GPS base, T-antenna base, CNC drone head TPU protection, camera anti-vibration module
• Buzzer TMB12A05

Download the Manual Here and the 3D Printed Files Here

Package Includes:
