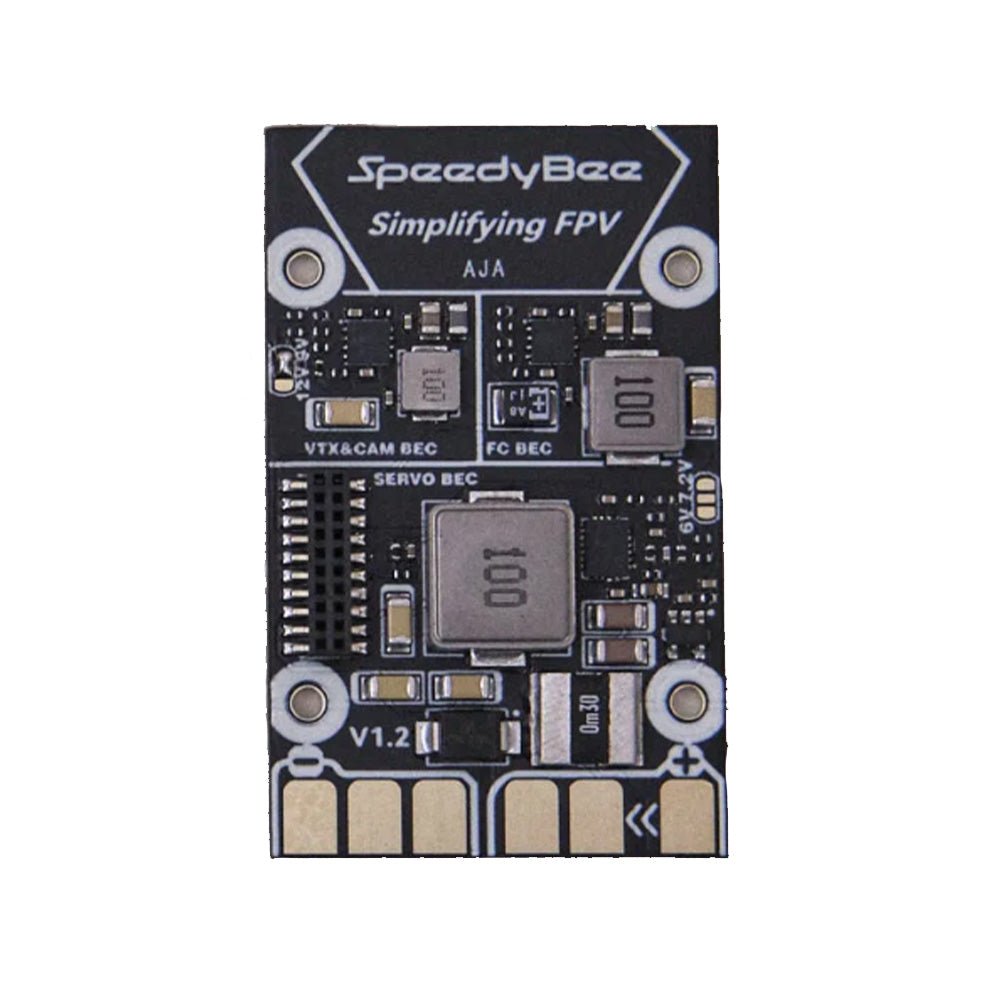

SpeedyBee PDB Board for F405 Wing APP Fixed Wing Flight Controller

This is the PDB Board ONLY for the SpeedyBee F405 Wing APP Fixed Wing Flight Controller

Check out all our Fixed Wing Flight Controllers and the rest of our SpeedyBee Products!

Specifications:

• Product Name    SpeedyBee F405 WING PDB board
• Input voltage range    7~36V (2~6S LiPo)
• Battery Voltage Sensor    Connect to FC board VBAT, 1K:10K (Scale 1100 in iNav, BATT_VOLT_MULT 11.0 in ArduPilot)
• Battery Current Sensor    90A continuous, 215A peak Connect to FC board Current (Scale 195 in iNav, 50 A/V in ArduPilot)
• TVS Protective diode    Yes
• FC BEC output    Output 5.2V +/- 0.1V DC Continuous current 2.4 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed module, Telemetry module, WS2812 LED_Strip

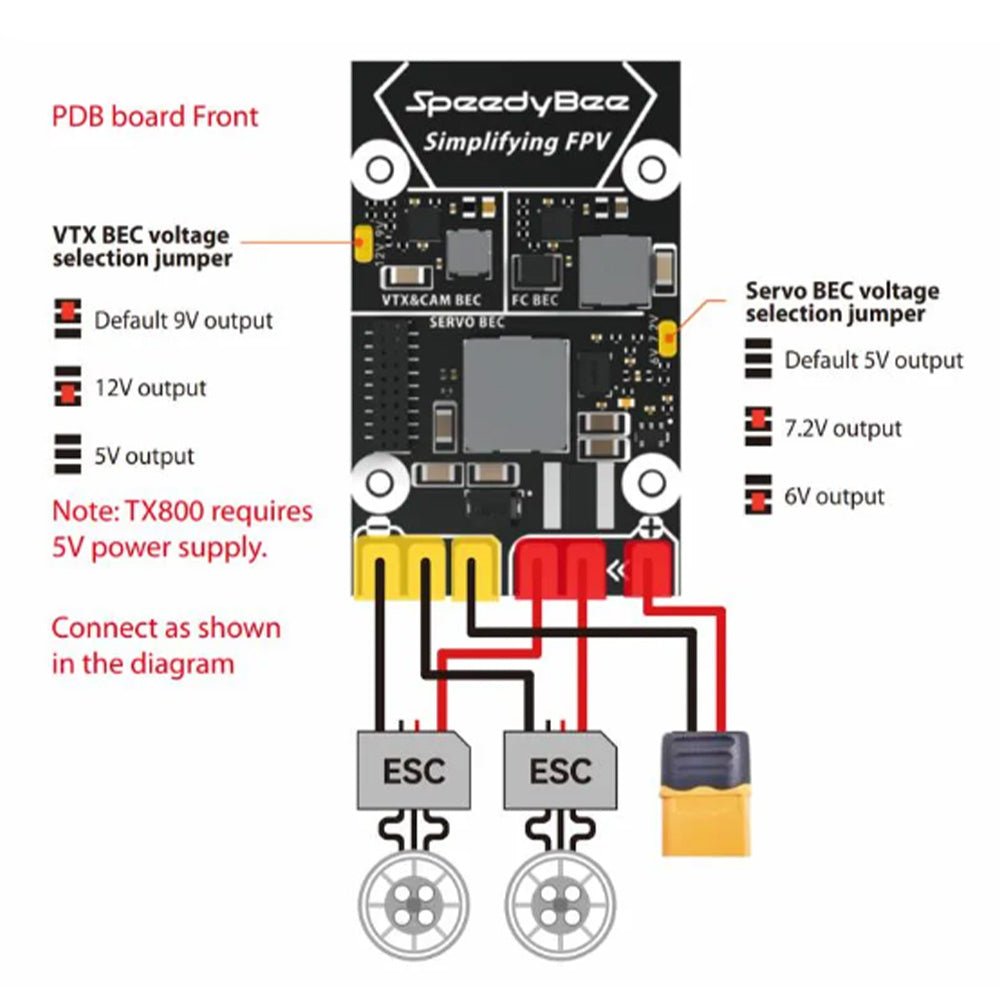

• VTX BEC output    Output 9V +/- 0.1V DC Continuous current 1.8 Amps, 2.3A Peak Voltage adjustable, 9V Default, 12V or 5V via jumper Designed for Analog Video Transmitter,Digital Video Transmitter, Camera.
• Servo BEC output    Output 4.9V +/- 0.1V DC Continuous current 4.5 Amps, 5.5A Peak Voltage adjustable, 4.9V Default, 6V or 7.2V via jumper Designed for Servos.
• Weight    11.4g

Package Includes:

• 1 x SpeedyBee PDB Board for F405 Wing APP Fixed Wing Flight Controller
