Sub250 ELRS Nano Pro Receiver – 2.4GHz

Maximize your refresh rate up to 1000Hz with the Sub250 ELRS Nano Pro Receiver – 2.4GHz. This small and lightweight receiver supports WIFI and is compatible with the ELRS open source project for easy firmware upgrades.

Check out all our Receivers and the rest of our Sub250 Products

Features:

• 17x11x3.1mm Small size

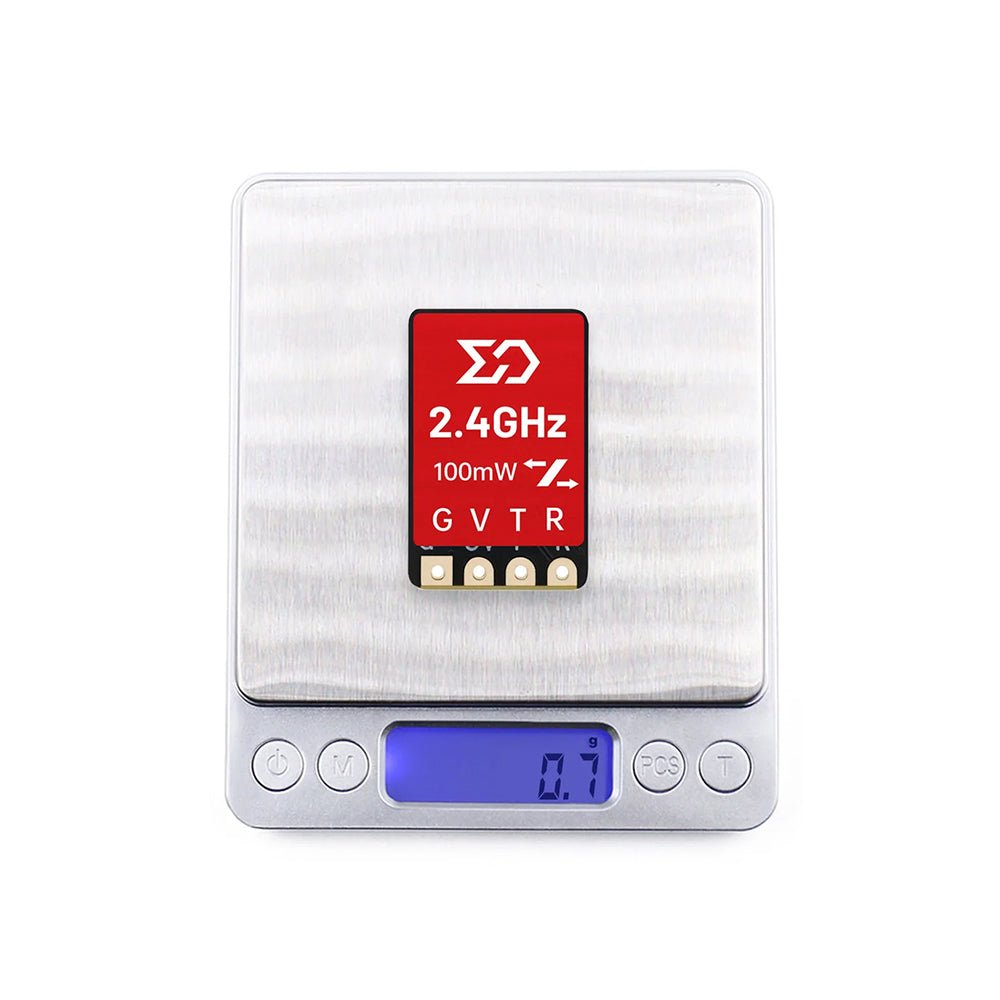

• 0.7g weight
• WIFI Upgrade firmware
• ELRS open source project, remote control
• Maximum refresh rate of 1000Hz
• The use of temperature-compensated crystal oscillator (TCXO), no fear of high or low temperature impact, more stable performance, even if long hours of work is not easy to cause loss of control
• Built-in PA + LNA, up to 100mW telemetry power

Specifications:

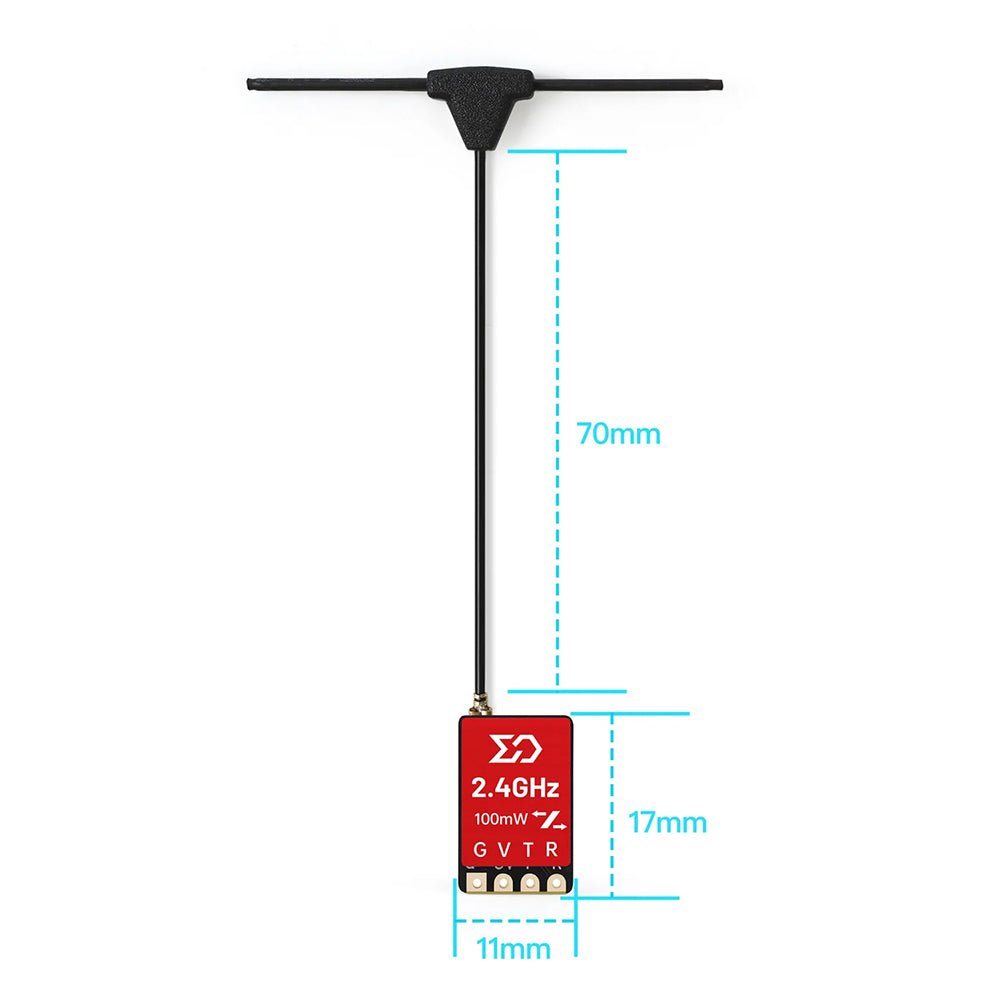

• Size: 17x11x3.1mm
• Weight: 0.7g (RX only)

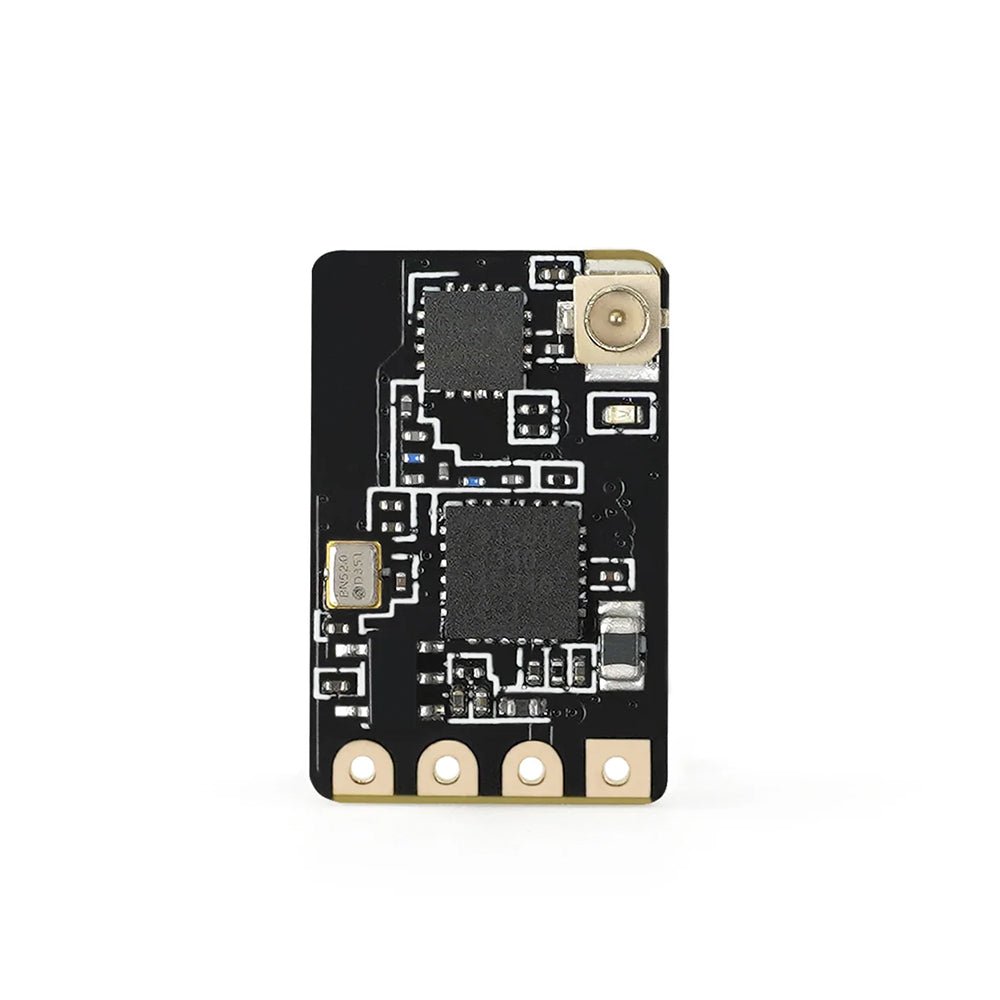

• Chips: ESP8285, SX1281
• Crystal Oscillator: TCXO
• Frequency Band: 2.4GHz ISM
• Refresh Rate: 25Hz-1000Hz
• Input Voltage: 5V
• Connector: ipex1
• TLM Power: 100mW
• Firmware:Sub250 Nano PRO 2.4G RX
•

• Model:Sub250 2.4G mini T Antenna
• Length:70mm
• Weight: 1.1g
• Connector: ipex1
• Bandwidth:2400-2485MHz
• VSWR:<1.5

Package Includes:

• 1 x ELRS Receiver
• 1 x Antenna
• 1 x Heat shrink tube
• 4 x SH1.0 cable
• 1 x pin (4pin)
• 1 x Instruction manual
