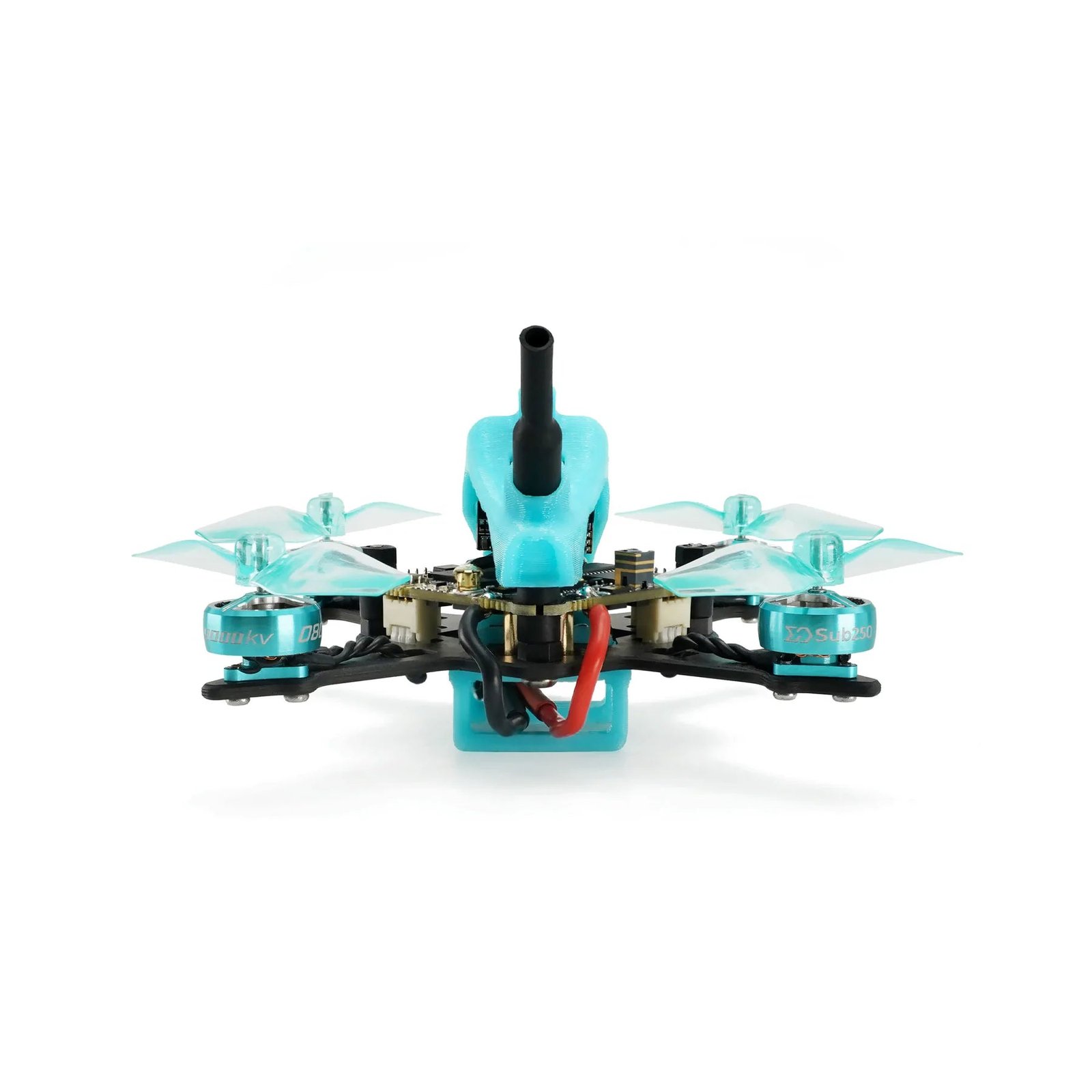

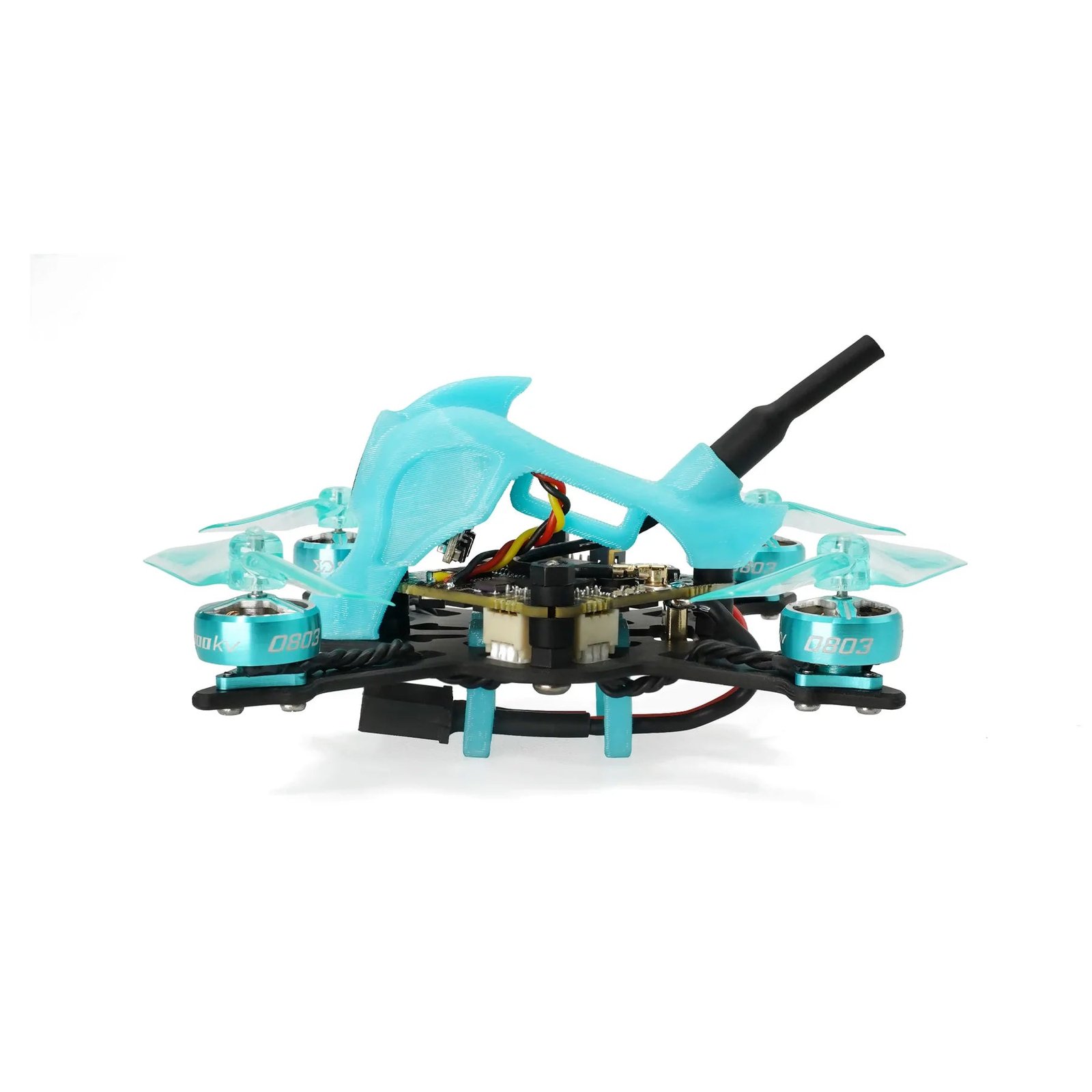

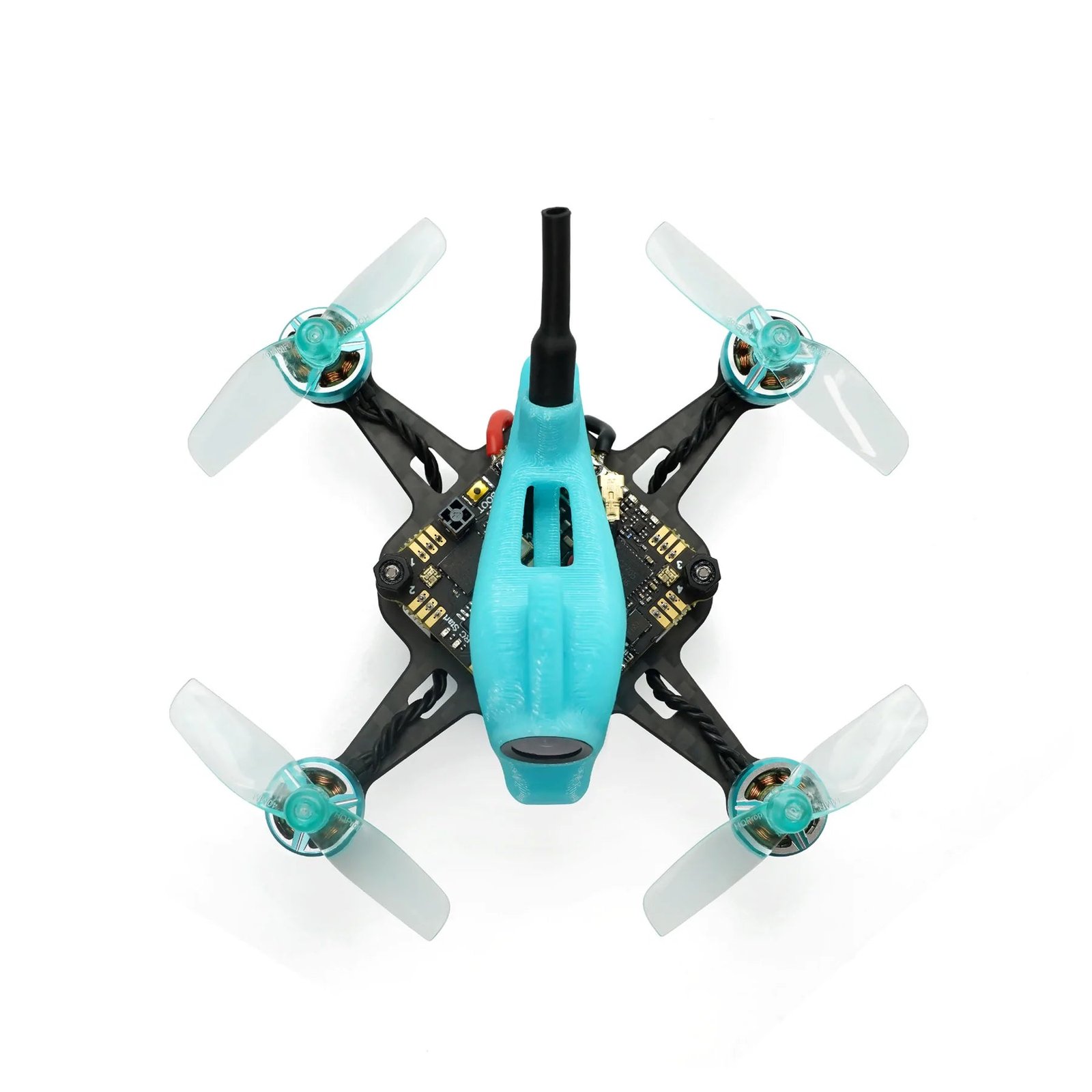

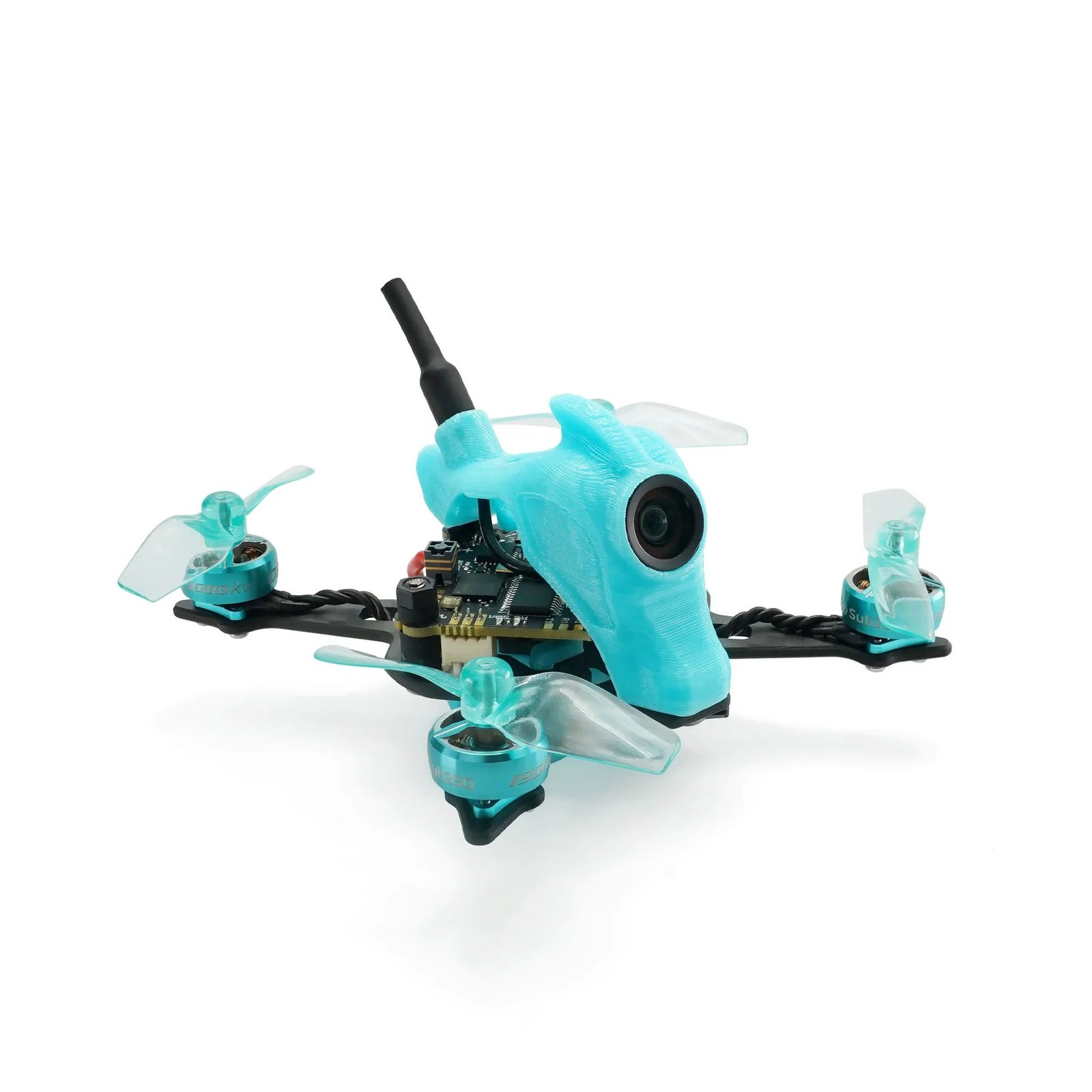

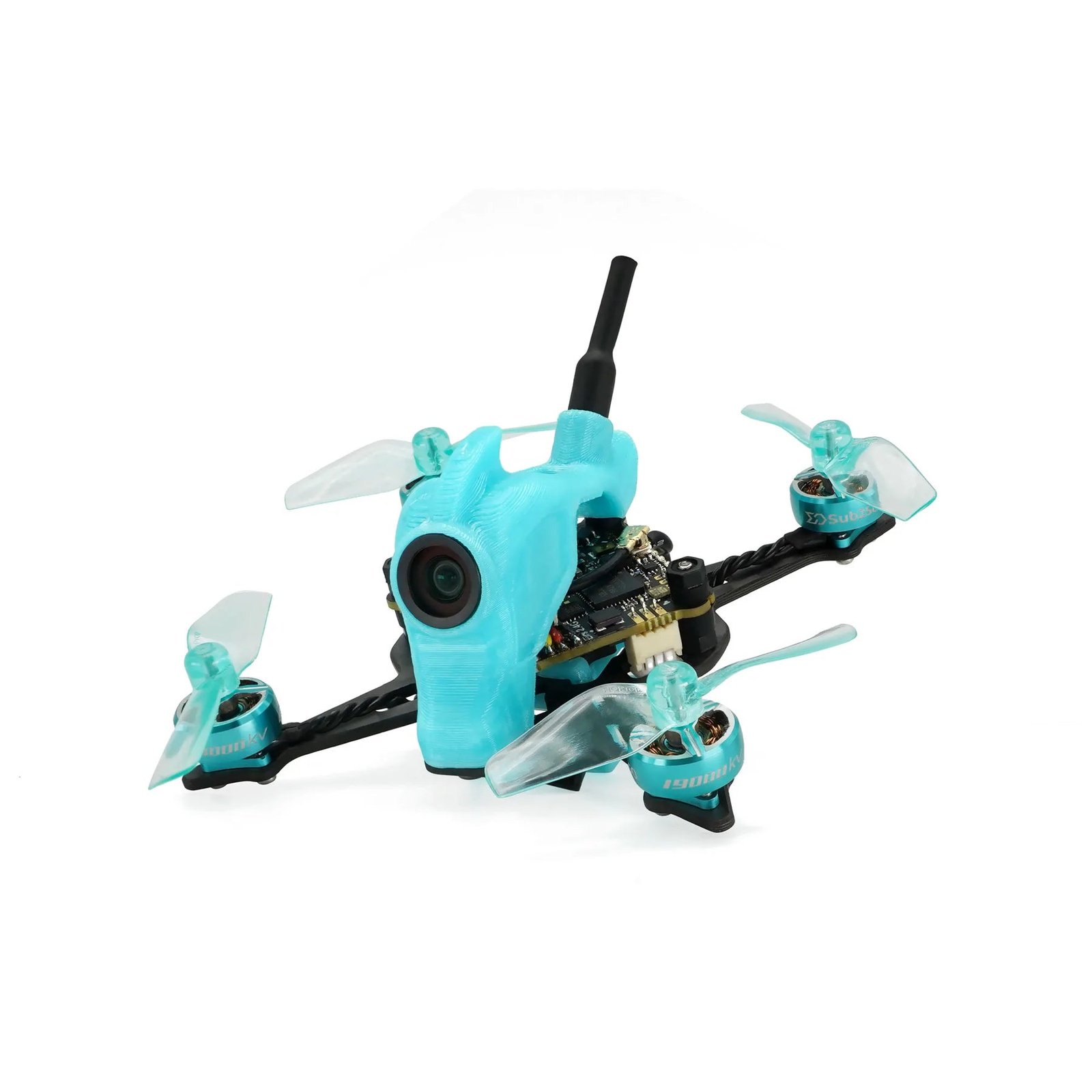

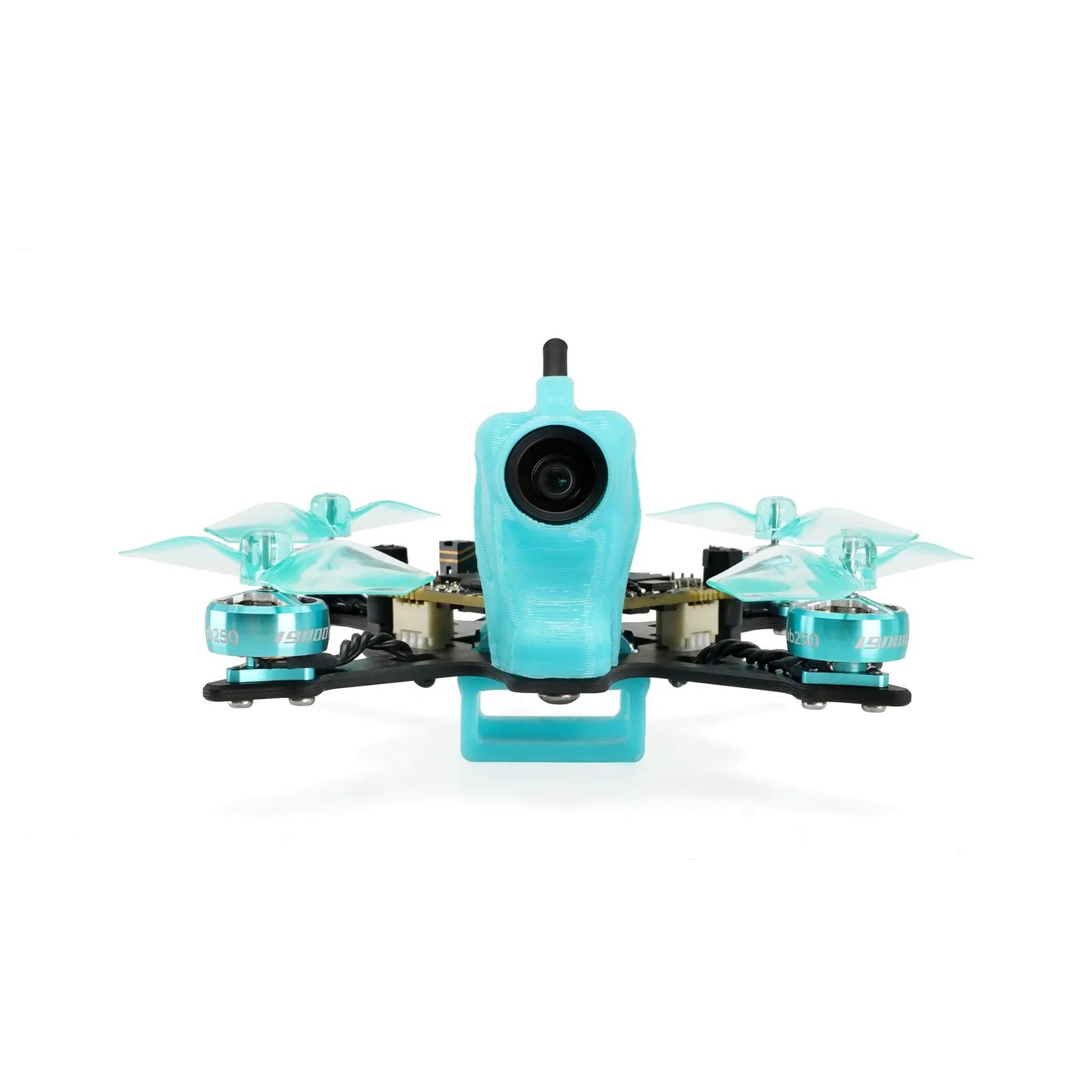

Sub250 Nanofly16 1S 1.6” Analog Micro BNF Freestyle Quadcopter – Choose Receiver

The design concept of Nanofly16 quad is lightweight, small in size, has good hand feels, and is suitable for a variety of flight scenarios FPV traversing aircraft. Obviously, it exceeded the design specifications. We designed a 1.5mm carbon fiber body with a 3D-printed upper shell for the Nanofly16. The fuselage has high strength and is very crash-resistant. We did a lot of tests and selected the Ant lens with better effect, which has a better imaging effect and less wide-angle distortion. We developed a 0803-19000KV strong magnetic motor with 40mm propellers, it has strong power and smooth throttle, which is very suitable for flying freestyle.

Nanofly16 has an ultra-light body weight with the latest 1S 380mAh high-voltage battery. The take-off weight of a drone is only 38.0g, and the flight time is 4.5 minutes. Equipped with a 3D printed battery holder, it is convenient and quick to replace the battery.

The most important thing is that Nanofly16 is very quiet to fly, like a dragonfly, you can both fly it at home and freestyle in the yard and even set up a few gantries for racing practice. Trust me, you’ll love this small, portable, and quiet mini FPV drone after you fly it.

Check out all our Micro BNF Drones and the rest of our Sub250 Product Selection!

Features

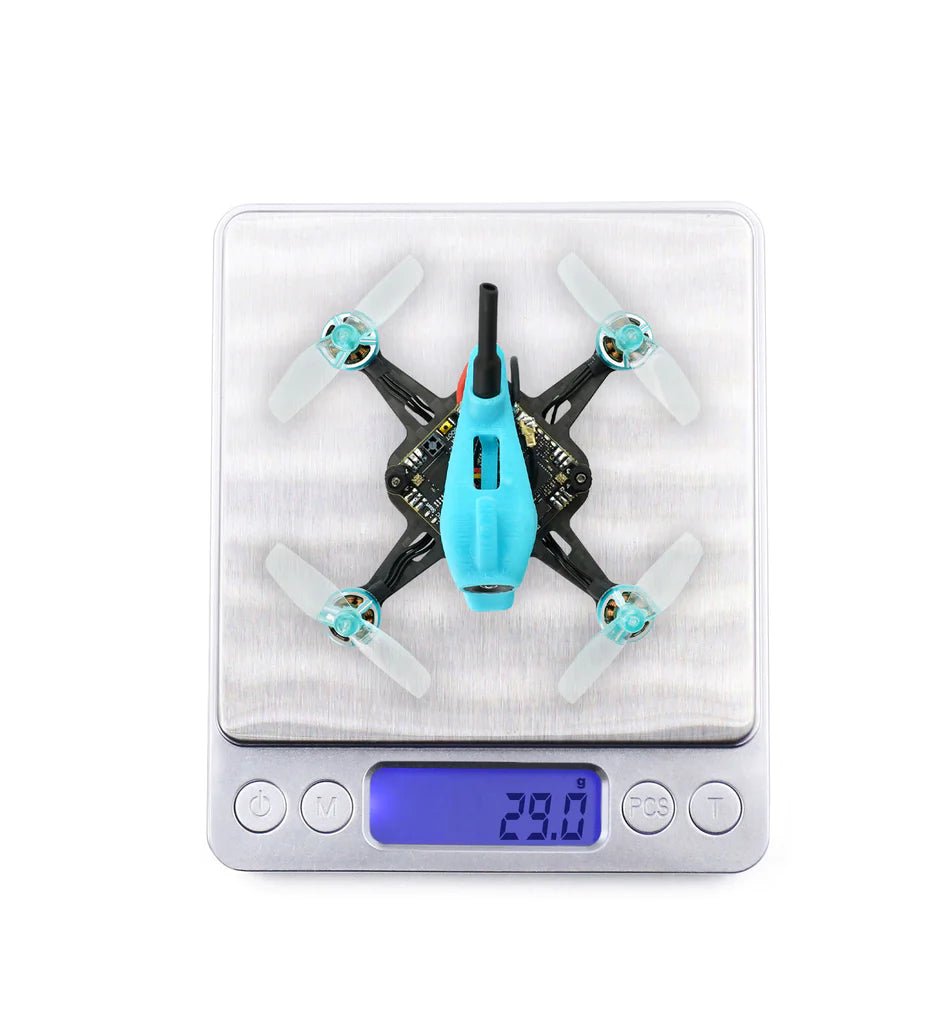

• 1.6-inch tiny size & lightweight, just 28.0g
• Includes a full set of high-quality 3D printed parts for a superior flying experience
• It is equipped with a new F411-1S AIO/250mW/ELR Flight controller. Reliable & stable and easy to use.
• Ant camera with a high-quality image. Clear and clean.
• With a new 1S 380mAh battery with plenty of power output
• The latest light 0803 – 19000KV motor is matched with 40 mm-2 propellers proving maximum power and efficiency
• It is quiet, like a dragonfly， suitable for both indoors and outdoors.
• Suitable for both freestyle and racing.

Specifications

• Brand Name: Sub250
•  Model: Nanofly16
• Frame: NF16
• Wheelbase size: 77mm
• Arm thickness: 1.5mm
• Motor: M1 0803-19000KV
• Weight：28.0g (ELRS)
• Camera: Ant
• MCU：STM32F411
• IMU： ICM20689(SPI)
• ESC: BLheli_S 4IN1 5A ESC
• VTX: VTX 5.8G 250mW
• Propeller: HQ 40mm-2
• OSD：BetaFlight OSD w/AT7456E chip
• Antenna: UFL 5.8G stick VTX antenna
• Flight Controller: F411-1S AIO/250mW/ELRS
• Receiver Version: ELRS 2.4G TBS 915 Mhz
• Battery: Recommend 380mAh 1S 90C LiHV battery(Not include)
• Flight Time：4 minutes and 45 seconds flight time with Sub250 latest 1S 380 mAh

Package Includes

• 1 x Sub250 Nanofly16 1S 1.6” Analog Micro BNF Freestyle Quadcopter – Chosen Receiver
• 4 x HQ 40mm-2 propellers
• 1 x 3D printed battery holder
• 1 x Phillips-head screwdriver
• 1 x 1.5 mm screwdriver
• 4 x M1.4*3 Phillips screws
• 3 x M2*2 nylon nuts
