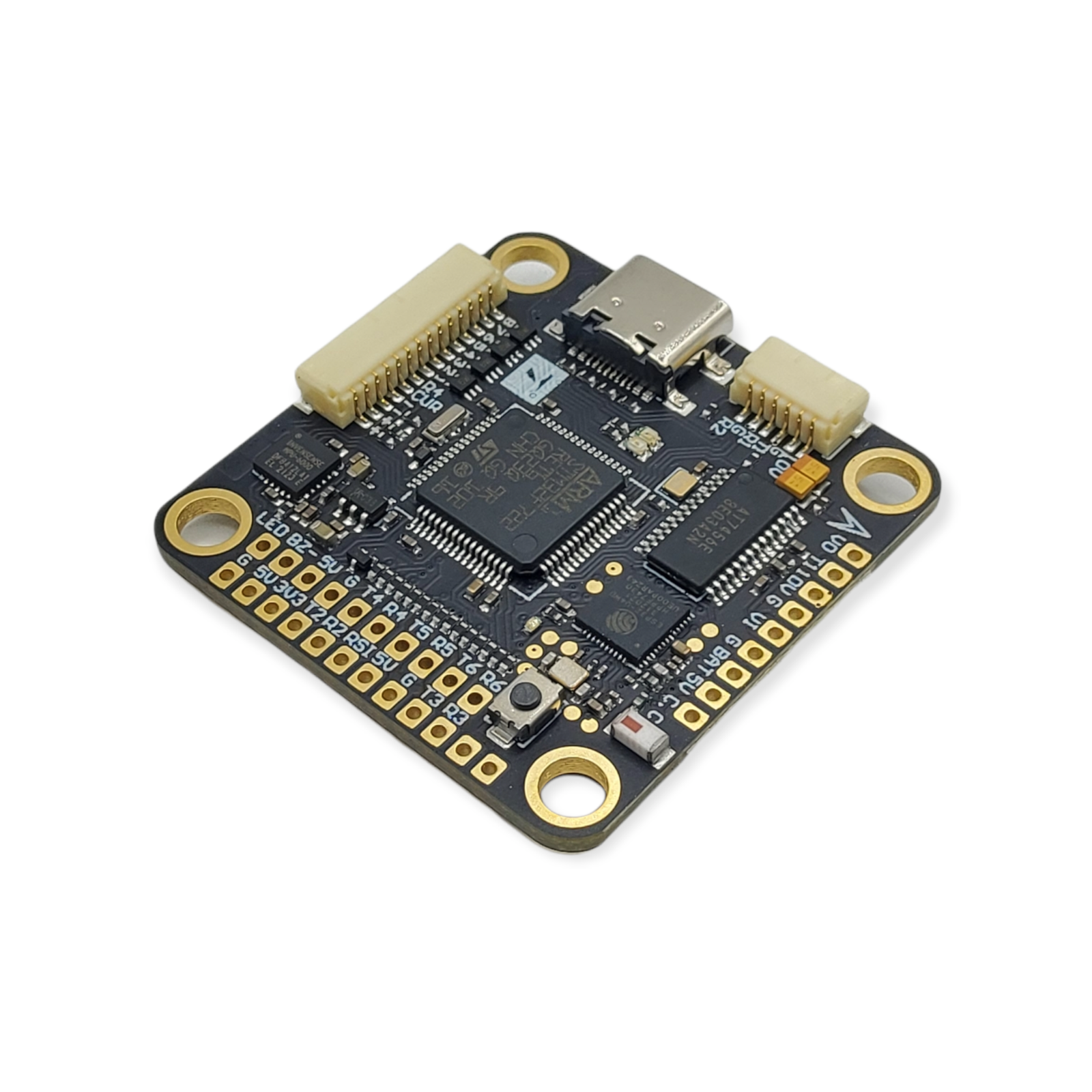

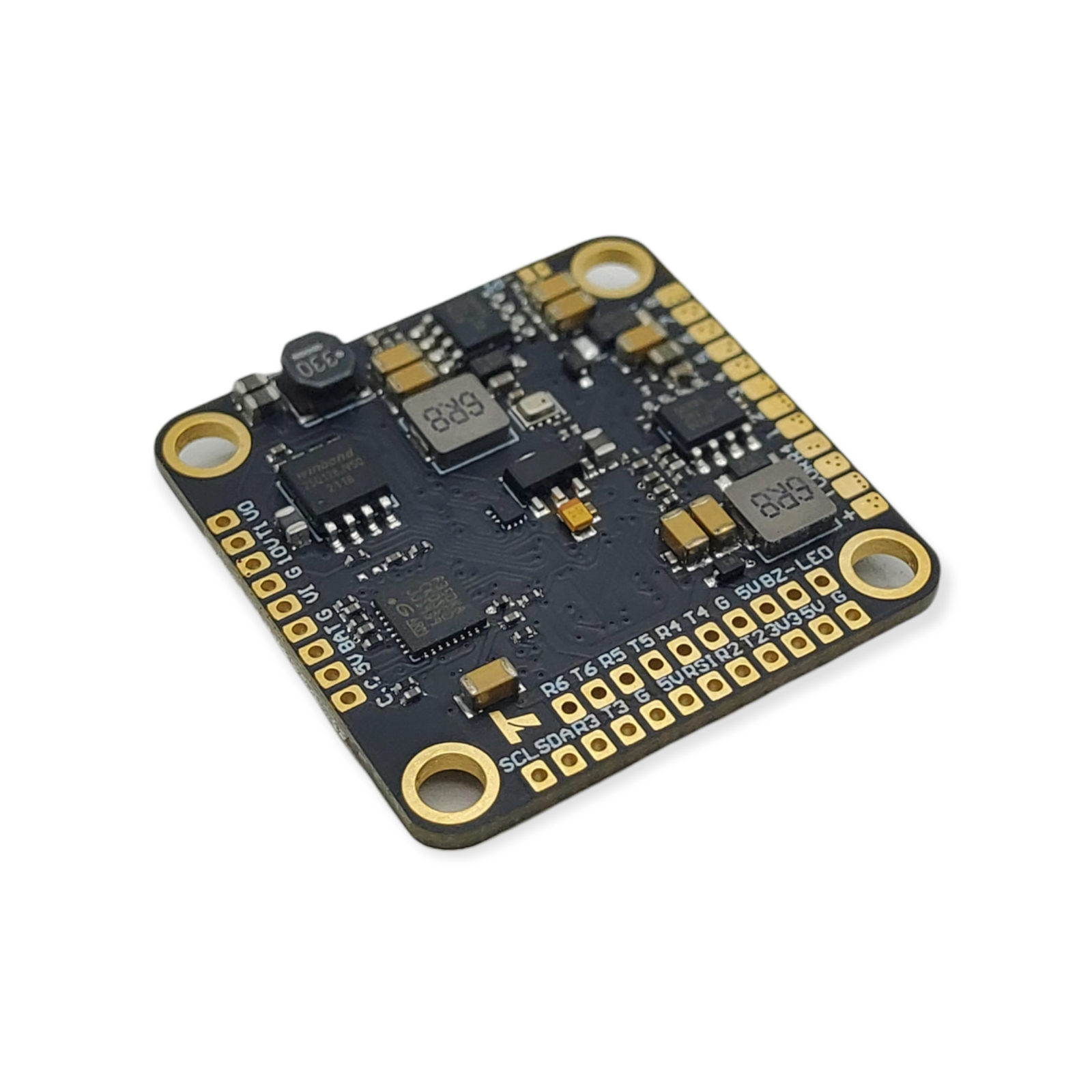

T-Motor F7 Pro Flight Controller – 30x30mm

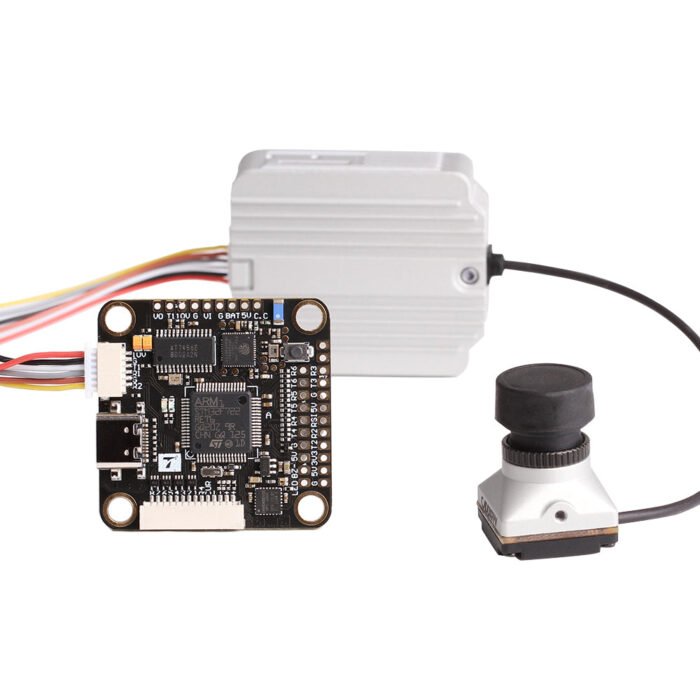

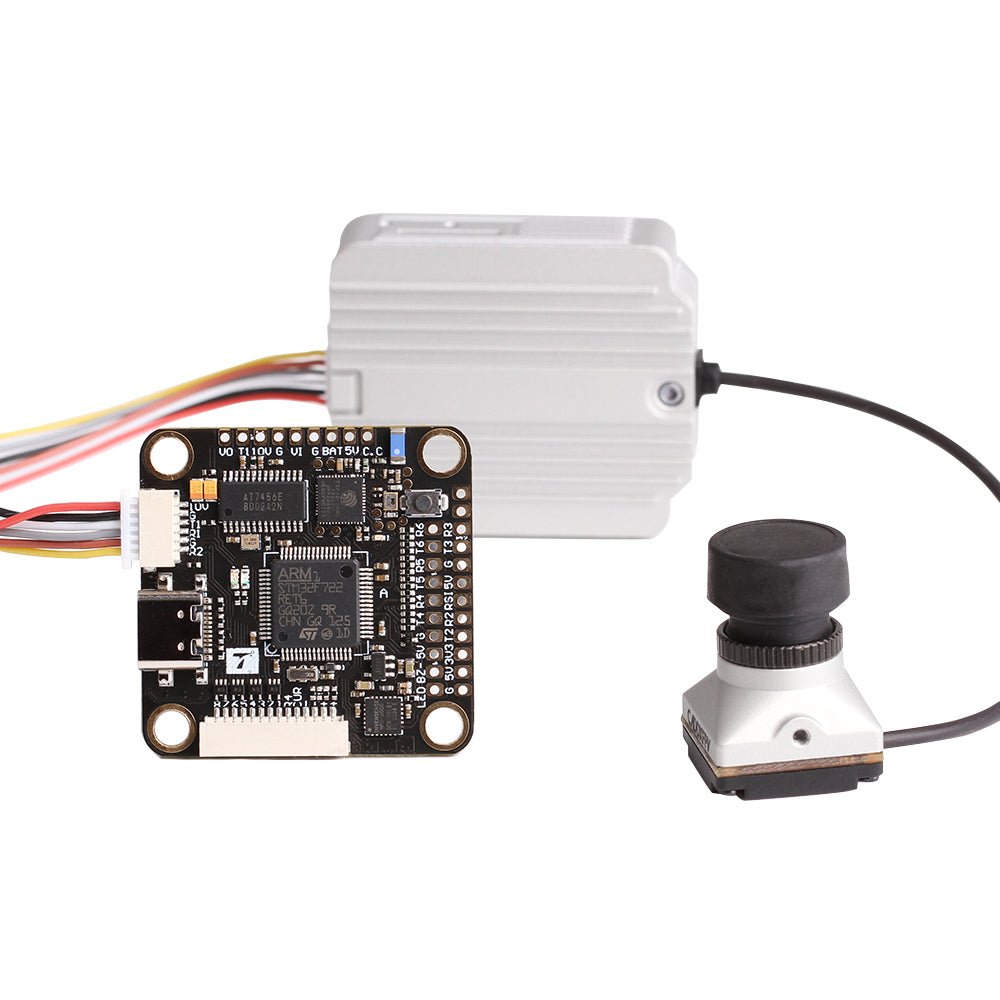

T-Motor’s F7 Pro flight controller has arrived! This flight controller is full featured and designed with Cinelifter quads in mind. It has eight PWM outputs all on one convenient connector and is plug and play with the DJI Air Unit using the included cable. The flight controller has built in Wi-Fi and Bluetooth so you can connect to your flight control software of choice wirelessly. For those looking try out more advanced features like autonomous flight paths and true return to home T-Motor has a firmware target for INAV as well.

Check out the rest of our 30x30MM Flight Controllers, Cinelifter Electronics, and the rest of our T-Motor Collection!

Specifications

• MCU: STMF722RET6
• Gyro: ICM42688
• Barometer: BMP280
• Blackbox Memory: 16Mb
• Input Voltage: 3-8S Lipo
• BEC Output: 10V/2A, 5V/3A
• OSD: AT7456
• UARTS: 6 (1,2,3,4,5,6)
• Dimensions: 37mm x 37mm x 7.5mm
• Mounting Holes: 30.5mm x 30.5mm
• Weight: 8.1g
• Firmware Target: TMOTOR F7 V2

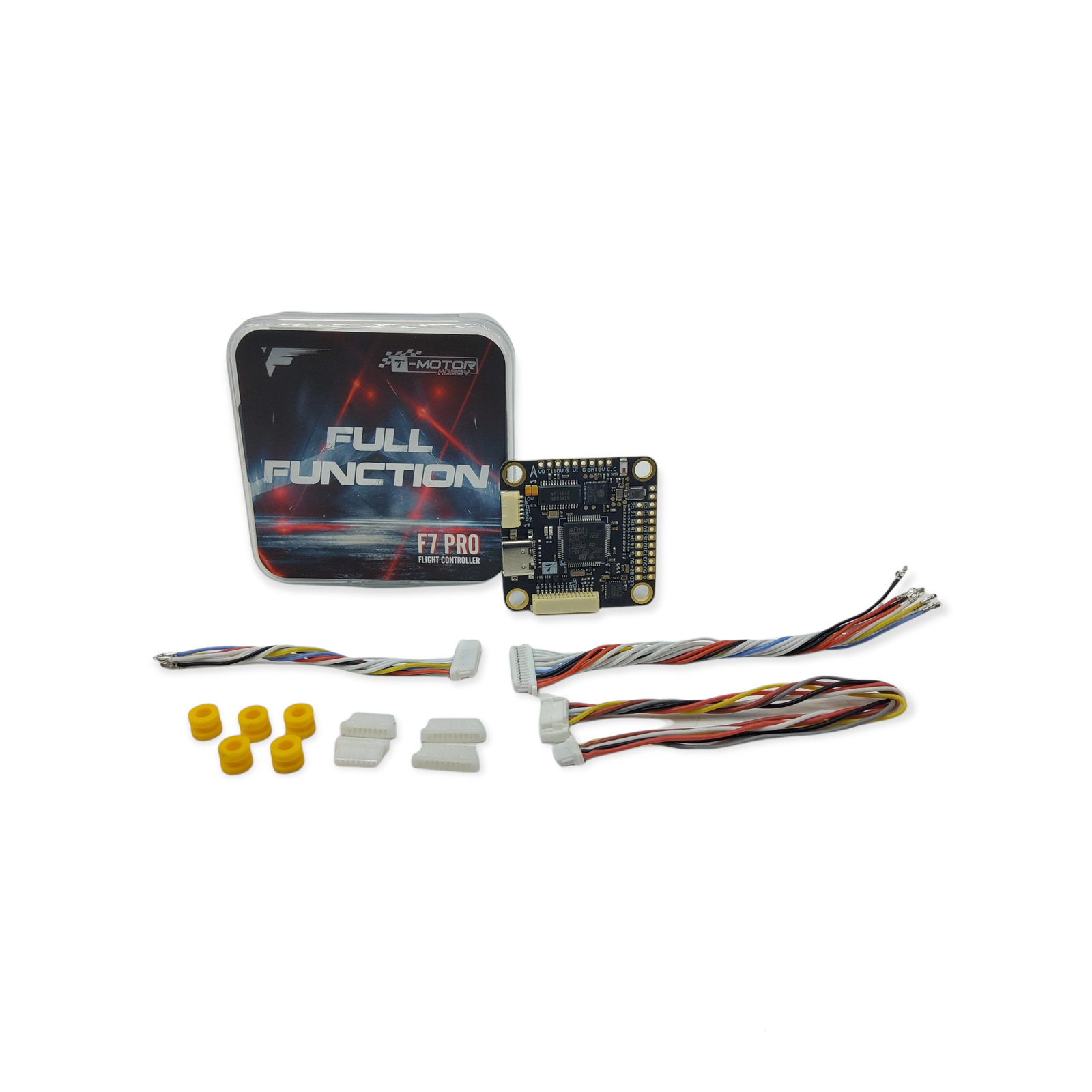

Includes

• 1 x T-Motor F7 Pro Flight Controller
• 1 x FC to ESC Cable (Wired for 4 Motor Output)
• 1 x FC to ESC Cable (Wired for 8 Motor Output)
• 1 x FC to DJI Air Unit Cable
• 5 x Vibration Dampeners
