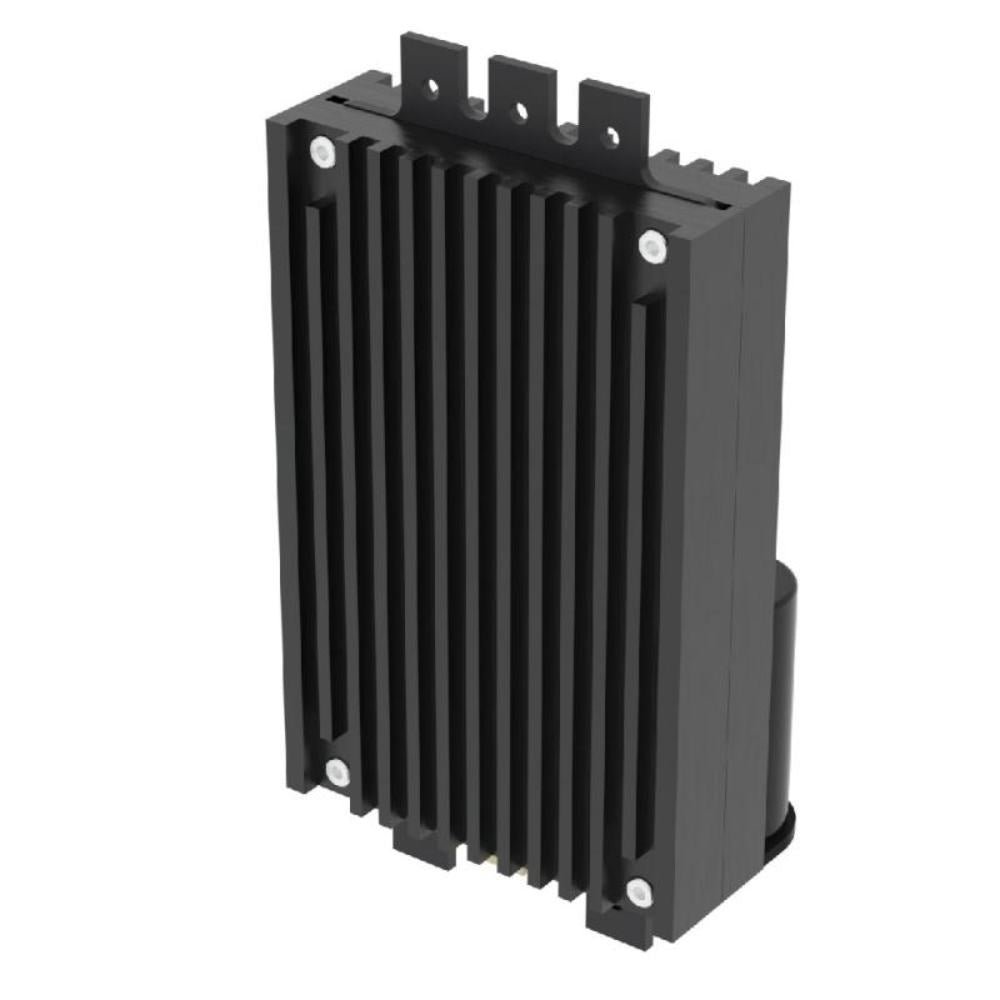

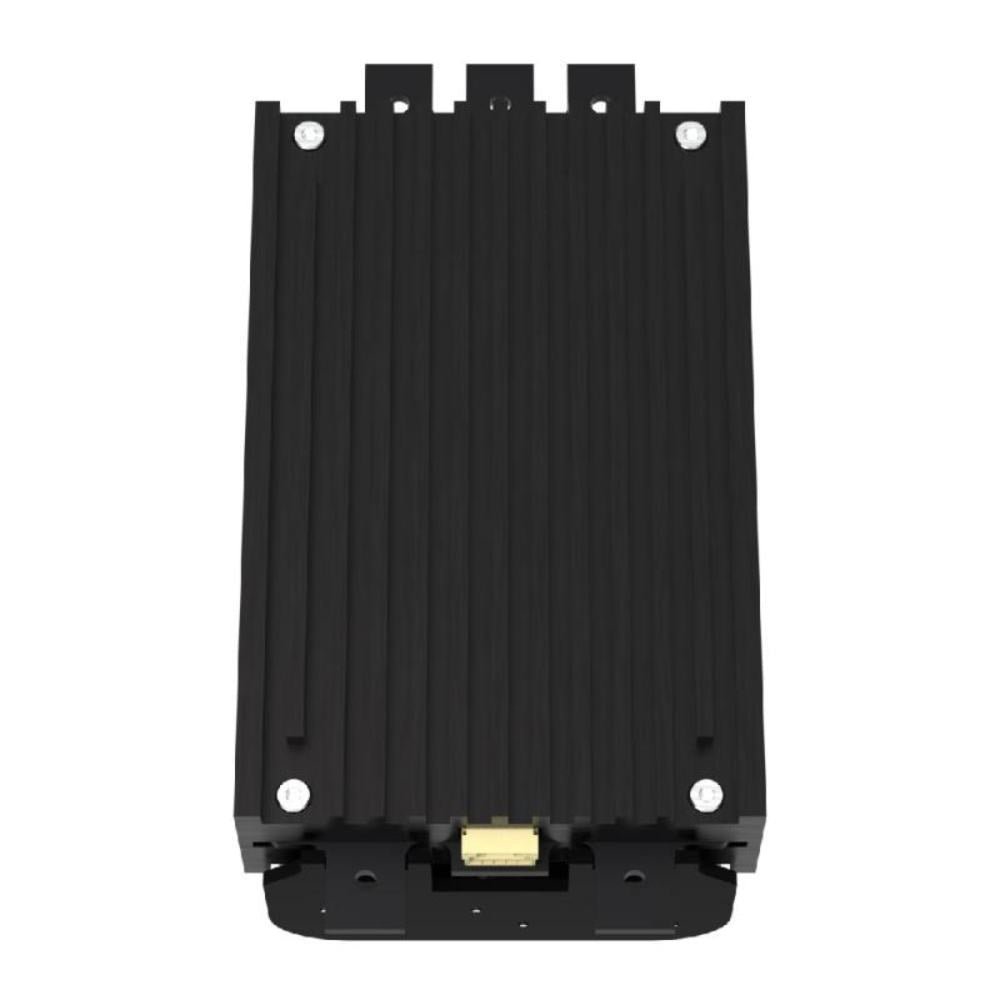

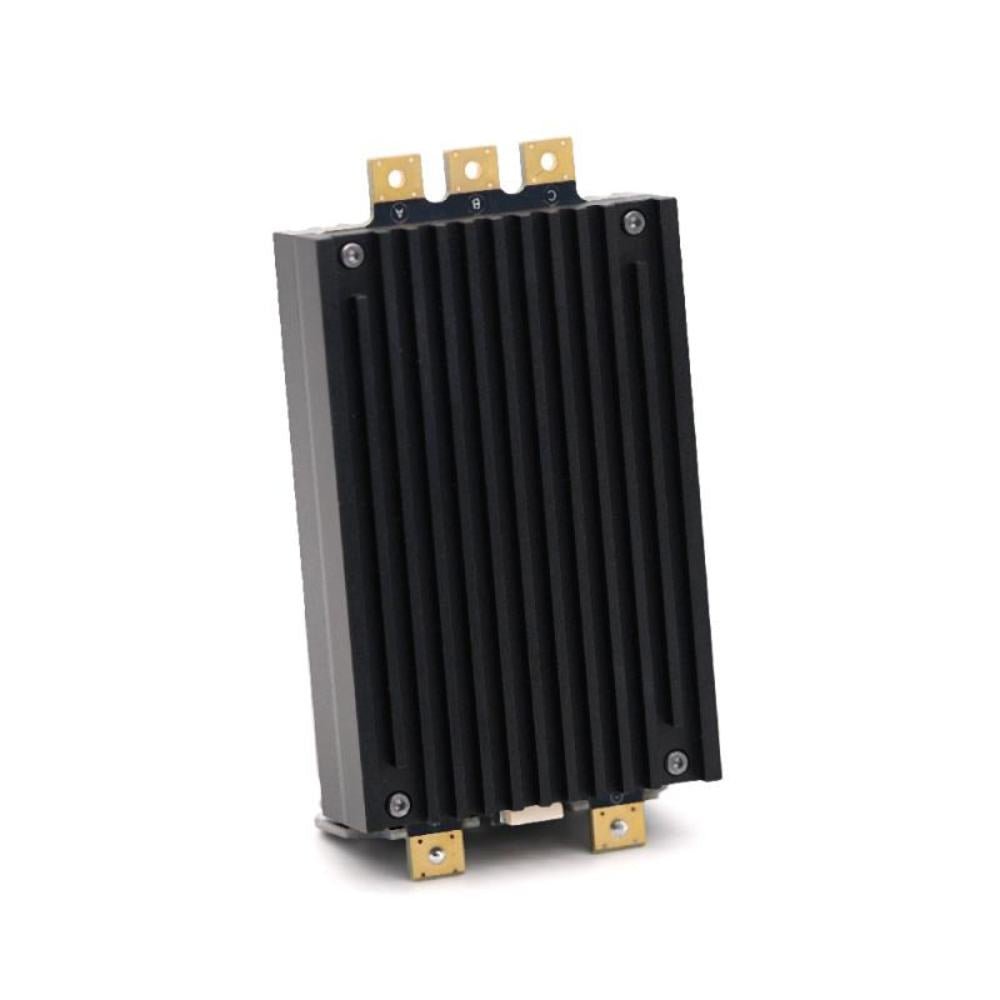

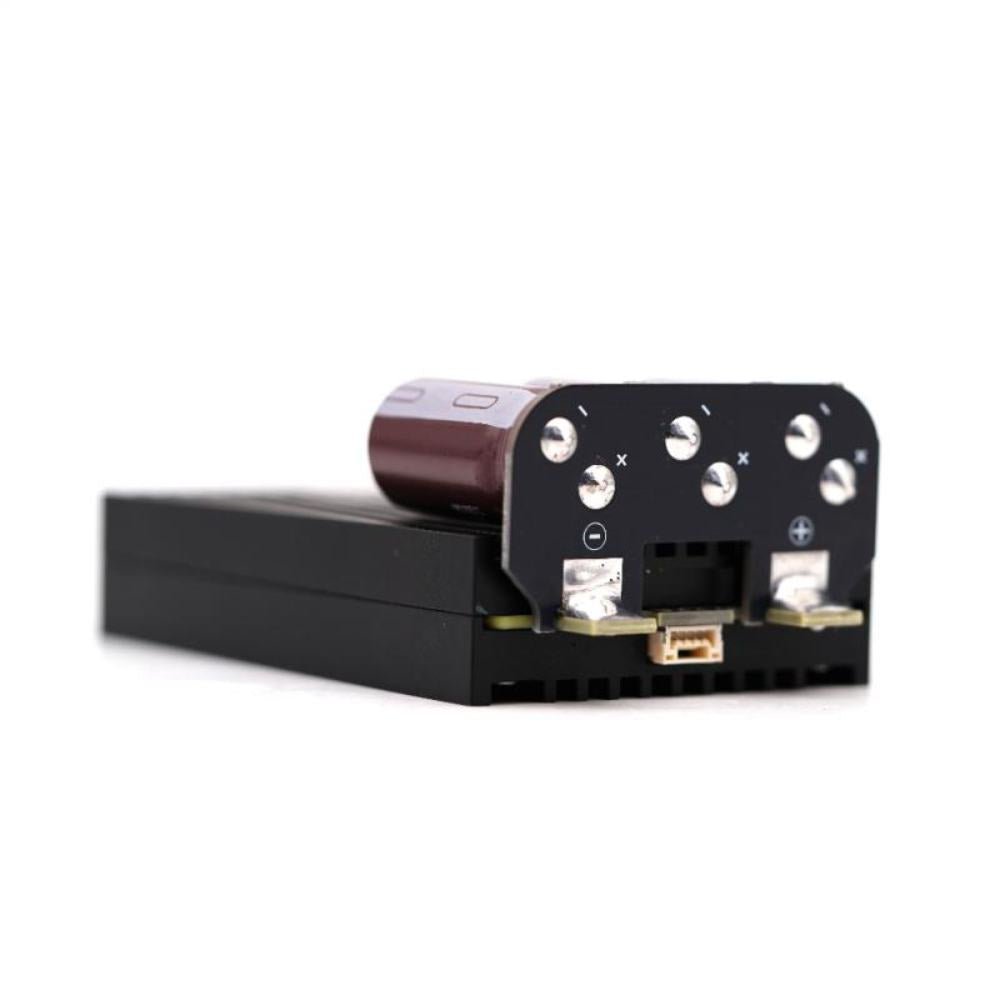

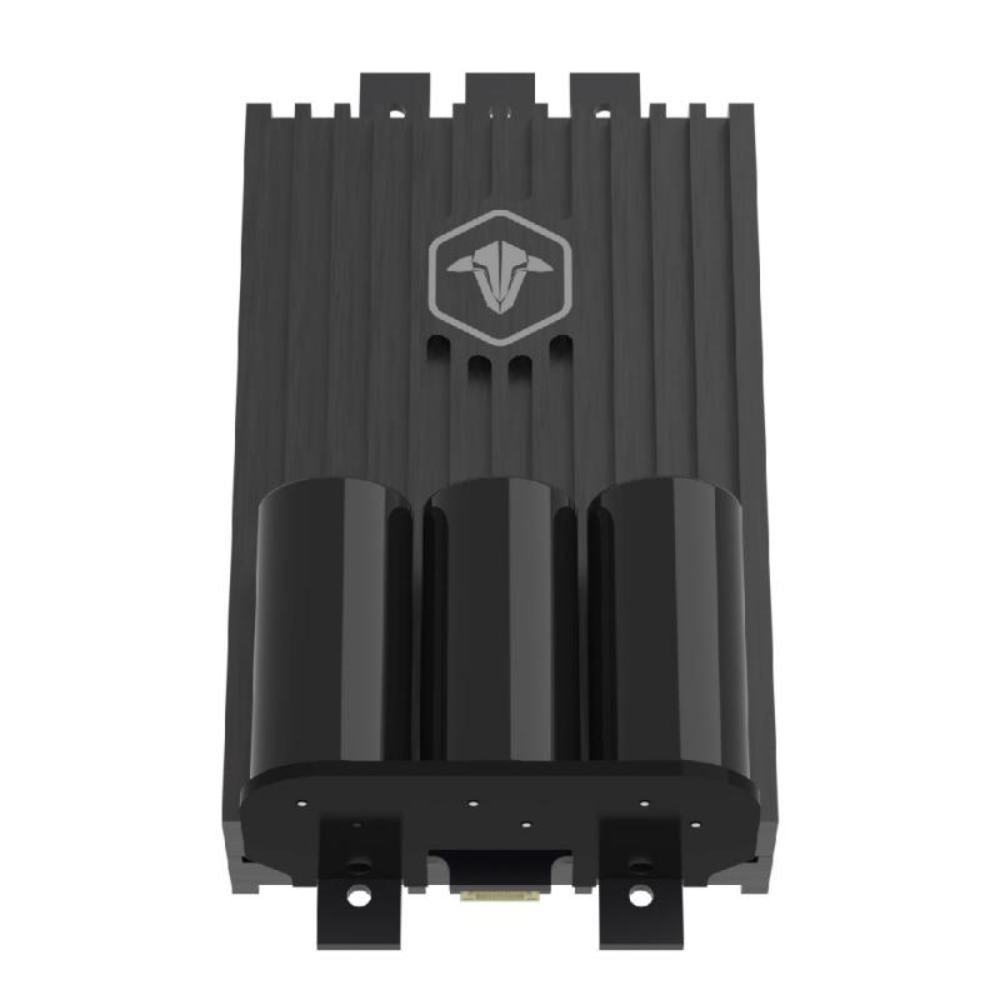

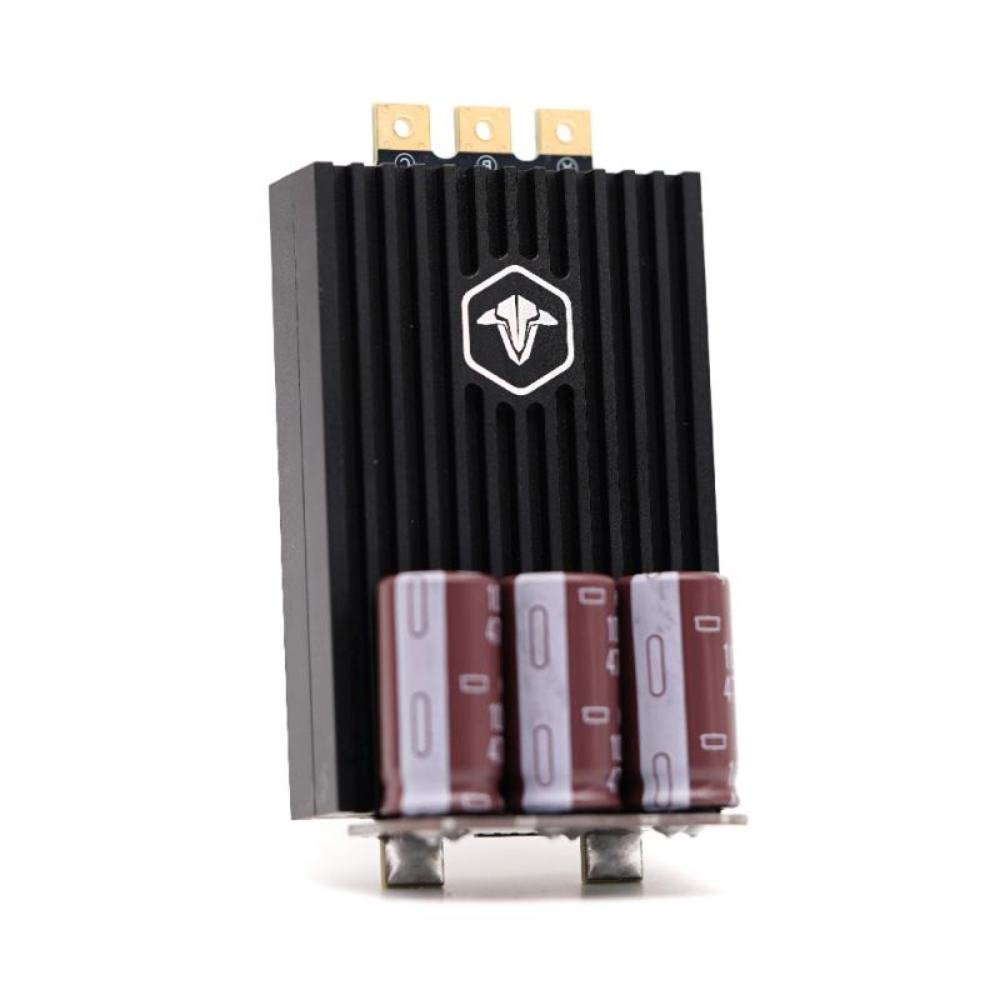

TBS Lucid 16S 200A AM32 ESC for X-Class/Cinelifter Drone Airplane Wing
$194.99
| Weight | 0.288 kg |
|---|
Out of stock
Description
🚀 Looking for an alternative?
This Tbs item is currently out of stock or discontinued. We highly recommend checking out our premium in-stock alternatives from top brands like T-Motor, GEPRC, and iFlight in the Flight Control & Power section!
This Tbs item is currently out of stock or discontinued. We highly recommend checking out our premium in-stock alternatives from top brands like T-Motor, GEPRC, and iFlight in the Flight Control & Power section!
The TBS Lucid 16S is a force to be reckoned with. Built for high voltage and high power applications that demand high reliability and power at your fingertips.
Featuring a 10 layer high current density board with excellent heat resistance the ESC is built to withstand the harshest punishment of everyday flying while delivering excellent payload capabilities. With built in TVS, voltage spikes are no longer a concern. By focusing on thermal dissipation from the ground up, the ESC achieves excellent power to weight density without the need of heavy heat sinks.
A close collaboration with AM32 allowed us to squeeze the last bit of performance without breaking the bank.
Check out all our X-Class Electronic Speed Controllers and the rest of our TBS products!
Important note:
- Remember to wire up the GND connection of your signal wire back to the FC. At high voltages, this is required.
Download
- STEP file for design / prototyping – [DOWNLOAD]
Specifications:
| ESC software: | AlkaMotors32 (AM32) |
| ESC target: | AM32_TBS_16S_L431 or AM32_TBS_16S_L431_CAN |
| IP Rating: | N/A (contact us for IP-rated versions) |
| Rated current: | 200A, 600 seconds, 580A 10 seconds (With airflow:33m/s) |
| Propellers: | Up to 32″ (over 11″ requires good airflow) |
| Input: | 3 -16S Lipo |
| Protocol: | Bi-directional Dshot 300/600, KISS ESC Telemetry |
| ESC Current sense: | Yes / Built-in |
| ESC Voltage sense: | Yes / Built-in |
| BEC: | No |
| Size: | 107mm x 57mm x 38mm |
| Weight: | 222g excl. cables |
Package includes:
- 1 x TBS Lucid 16S 200A ESC
- 1 x TBS Lucid 16S Capacitor PDB (3x 470uF)
- 1 x TBS Lucid 16S aluminum heatsink
