TBS Lucid 3-6S AM32 60A 4in1 ESC
$67.99
| Weight | 0.038 kg |
|---|
Out of stock
SKU:
J3-13490
Category: Flight Control & Power
Tags: Availability_In Stock, Electronic Speed Controllers, esc, In Stock, Type_4 in 1
Description
🚀 Looking for an alternative?
This Tbs item is currently out of stock or discontinued. We highly recommend checking out our premium in-stock alternatives from top brands like T-Motor, GEPRC, and iFlight in the Flight Control & Power section!
This Tbs item is currently out of stock or discontinued. We highly recommend checking out our premium in-stock alternatives from top brands like T-Motor, GEPRC, and iFlight in the Flight Control & Power section!
The TBS Lucid flight stack is the latest in product engineering at TBS. Built for racing and freestyle applications and developed to cater to the needs of both seasoned pilots and enthusiastic newcomers.

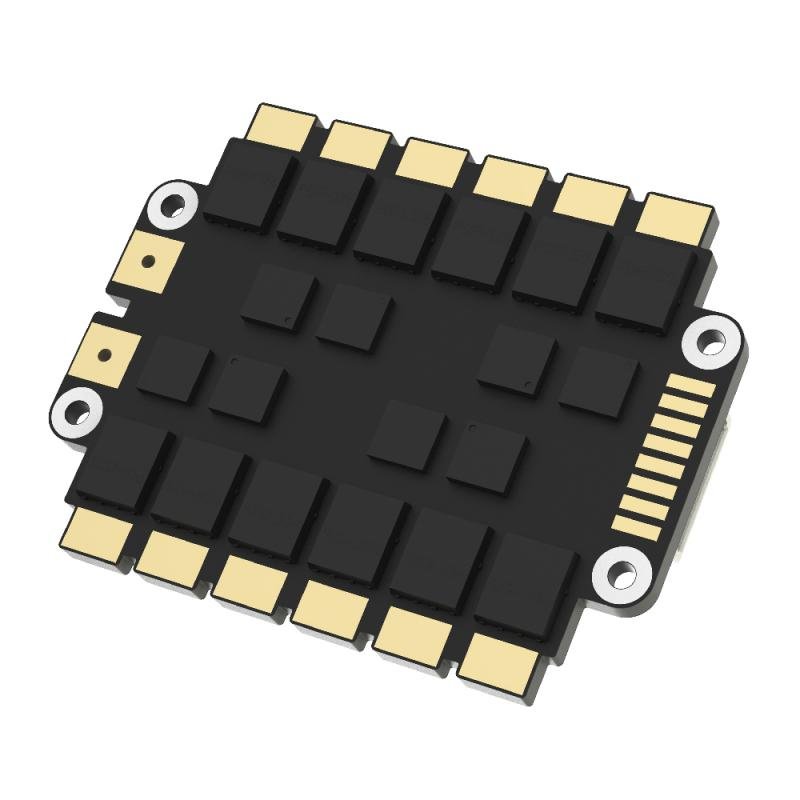

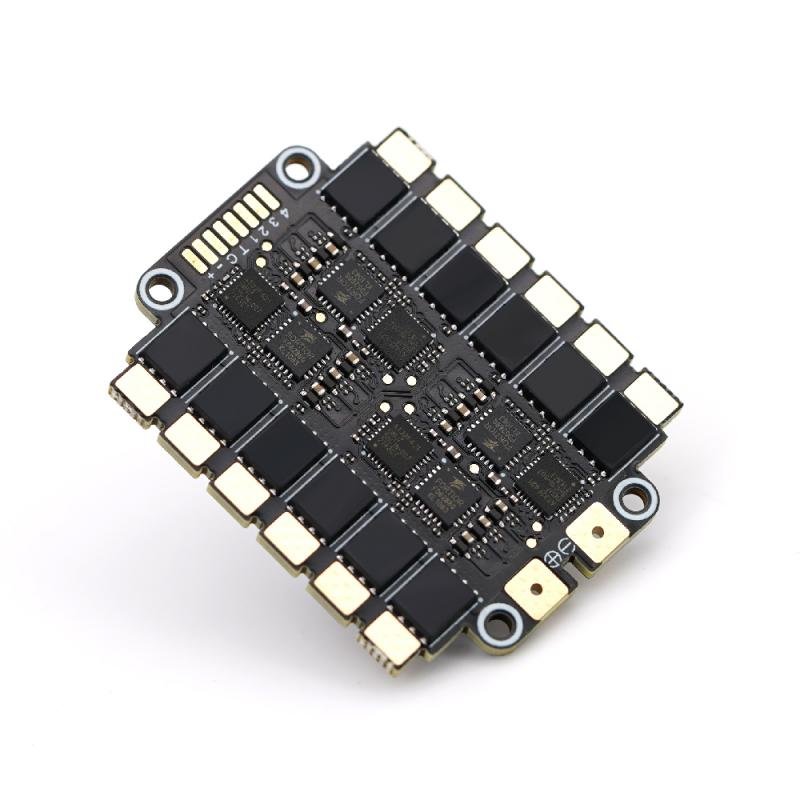

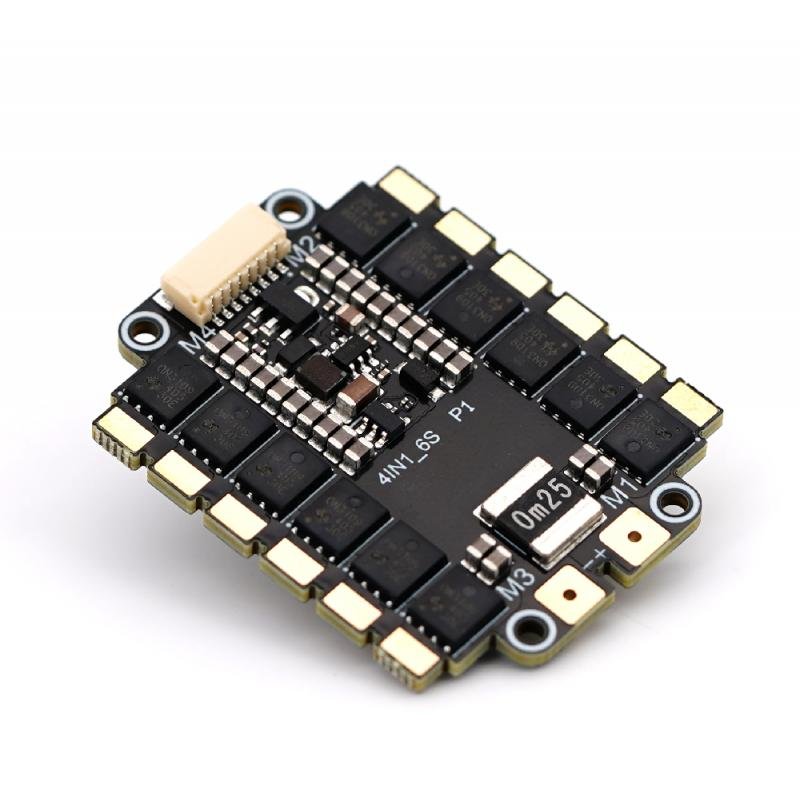

Featuring an 8 layer high current density board with twice the market average on-board capacitance, the ESC is built to withstand the harshest punishment of everyday FPV flying while delivering buttery-smooth flight characteristics paired with face-melting acceleration. By focusing on thermal dissipation from the ground up, the flight stack achieves excellent power to weight density without the need of heavy heat sinks.
A close collaboration with AM32 allowed us to squeeze the last bit of performance without breaking the bank.
Check out all our Electronic Speed Controllers and the rest of our TBS products!
GORILLA MOUNT:

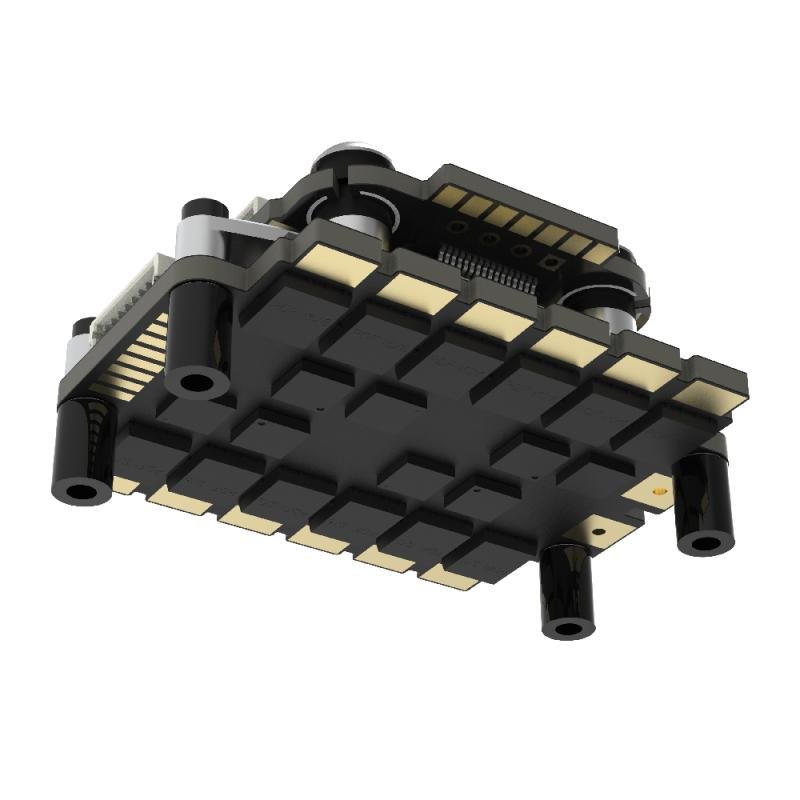

Superior power delivery is additionally achieved by the innovative mounting brackets which avoid the complication of having to run mounting bolts through the middle of the ESC. We call this the “Gorilla” mount.
Frame developers are encouraged to integrate the gorilla mounting pattern into their new and upcoming frames. Backwards compatibility is provided through mounting brackets.
TBS Gorilla 20x20mm Stack Mounting Adapter
TBS Gorilla 30x30mm Stack Mounting Adapter
Specifications:
- ESC software: AlkaMotors32 (AM32)
- ESC target: tbslu6s4in1
- Rated current: 60A x 4, 300 seconds
- Peak Current: 70A x 4, 60 seconds
- Propellers: Up to 9″, over 7″ requires good airflow
- Input: 3-6S Lipo
- Protocol: Bi-directional Dshot 300/600), KISS ESC Telemetry
- ESC Current port: Yes
- BEC: No
- Size: 34mm*44mm
- Mounting: Gorilla-mount (39.5 x 16.0mm) or brackets for 20×20 mm, 30.5×30.5 mm
- Weight: 13.81g, 19g incl. brackets
DOWNLOADS:
- Gorilla mounting pattern
- Frame developer pack for Gorilla mounting pattern
- AM32 Online Configurator
- AM32 Firmware
- TBS Lucid Manual

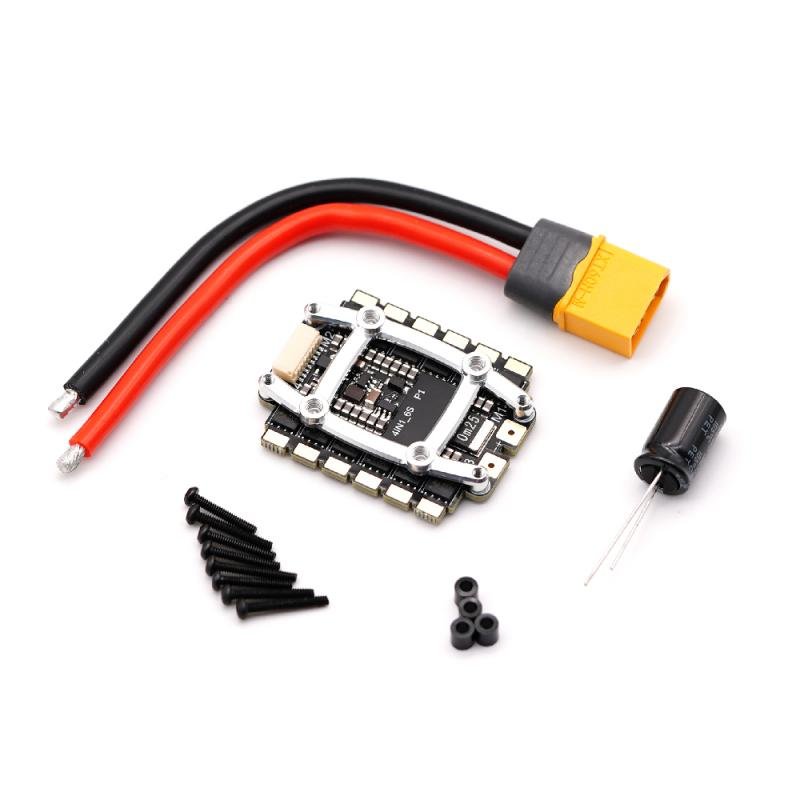

Package Includes:
- TBS Lucid 4in1 ESC
- 4 x 2.2x4mm standoffs
- Aluminum top bracket for 20×20 FCs
- XT60 power connector
- 470uF 6S Capacitor
- 4 x M2x12 screws
- 4 x M2x14 screws
