TweetFPV Grip Tape for FrSky X-Lite (All Models)
Original price was: $7.99.$6.99Current price is: $6.99.
TUNERC 3.5″ Carbon Fiber Frame (Separate Arms) FPV Frame Kit
$16.99
| Weight | 0.045 kg |
|---|
Out of stock
Description
🚀 Looking for an alternative?
This Tunerc item is currently out of stock or discontinued. We highly recommend checking out our premium in-stock alternatives from top brands like T-Motor, GEPRC, and iFlight in the Frames section!
This Tunerc item is currently out of stock or discontinued. We highly recommend checking out our premium in-stock alternatives from top brands like T-Motor, GEPRC, and iFlight in the Frames section!

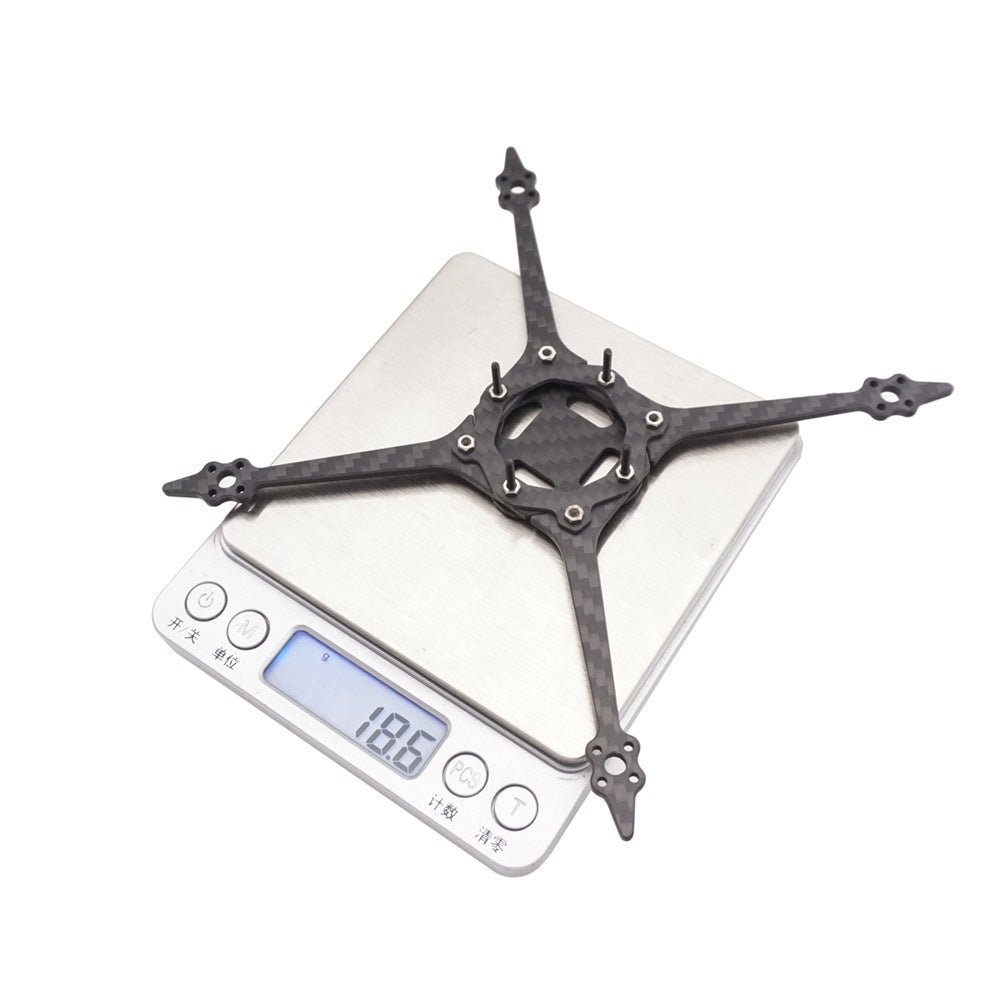

This fresh new 3.5″ frame is specifically designed for lightweight, quite and agile 3.5″ toothpick builds. Fits 25.4mm x 25.4mm mounting pattern AIO board, 9mm x 9mm mounting pattern motors. It only weighs 18.6g, with four arms+ two plates and hardware. Separated arms design makes it easy and cheap to maintain. Dedicated room is reserved for you to tuck the battery strap through the frame, so your build looks much cleaner. Carefully crafted DJI O3 air unit mount makes the air unit fit perfectly on this X configuration frame.
Tip for frame assembly: we highly recommend using medium strength threadlocker during screw installations, this could prevent the screws from loosening during flight.
Specifications:
- Diagonal Length: 154mm
- Arm Thickness: 3mm
- Middle Plates Thickness: 1.5mm

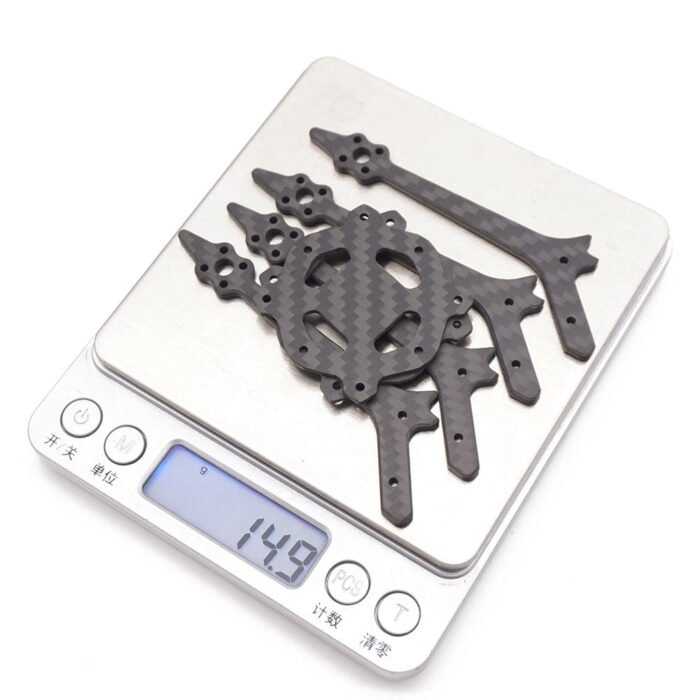

- Weight: 15g (4* frame arms+ 1* top plates+ 1* bottom plates)
- AIO mounting pattern: 25.4mm x 25.4mm
- Motor mounting pattern: 9mm x 9mm
- Arms are well chamfered
Recommended Build:
- Motor: TUNERC 1104 3600KV motors
- AIO: Poly F405 2S-4S AIO
- Props: HQ 3.5 x 2.5 x 3
- VTX: Analog/ DJI O3 air unit
- Battery: 3S 450mah-4s 450mah
3D Printed Canopy Files
Assembly Guides:
3.5inch Frame Assembly Guide for Analog Build
Package Includes:
- 4 * frame arms
- 1 * top plates
- 1 * bottom plates
- 1 * battery strap (suitable for 3s 450mah battery)
- 4 * M2 x 8 socket head cap screws, 4 * M2 x 18 socket head cap screws, 8* M2 nuts
