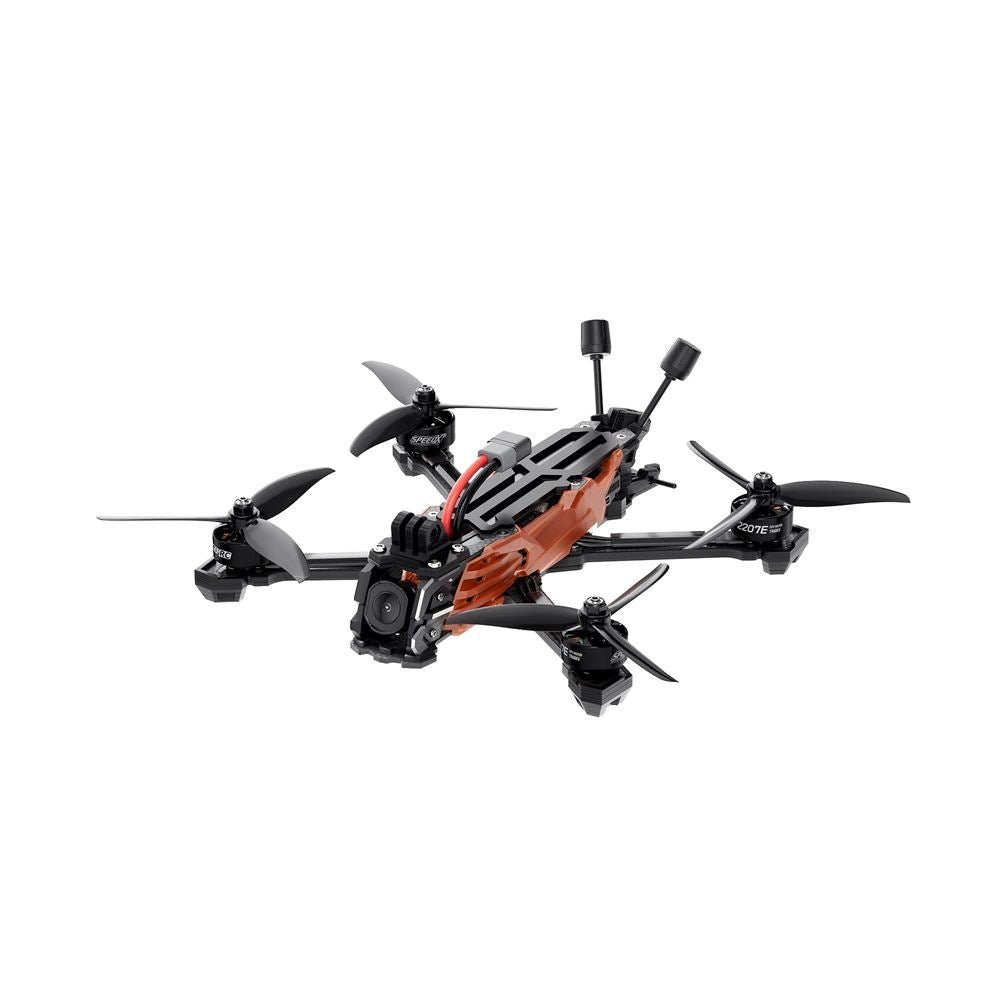

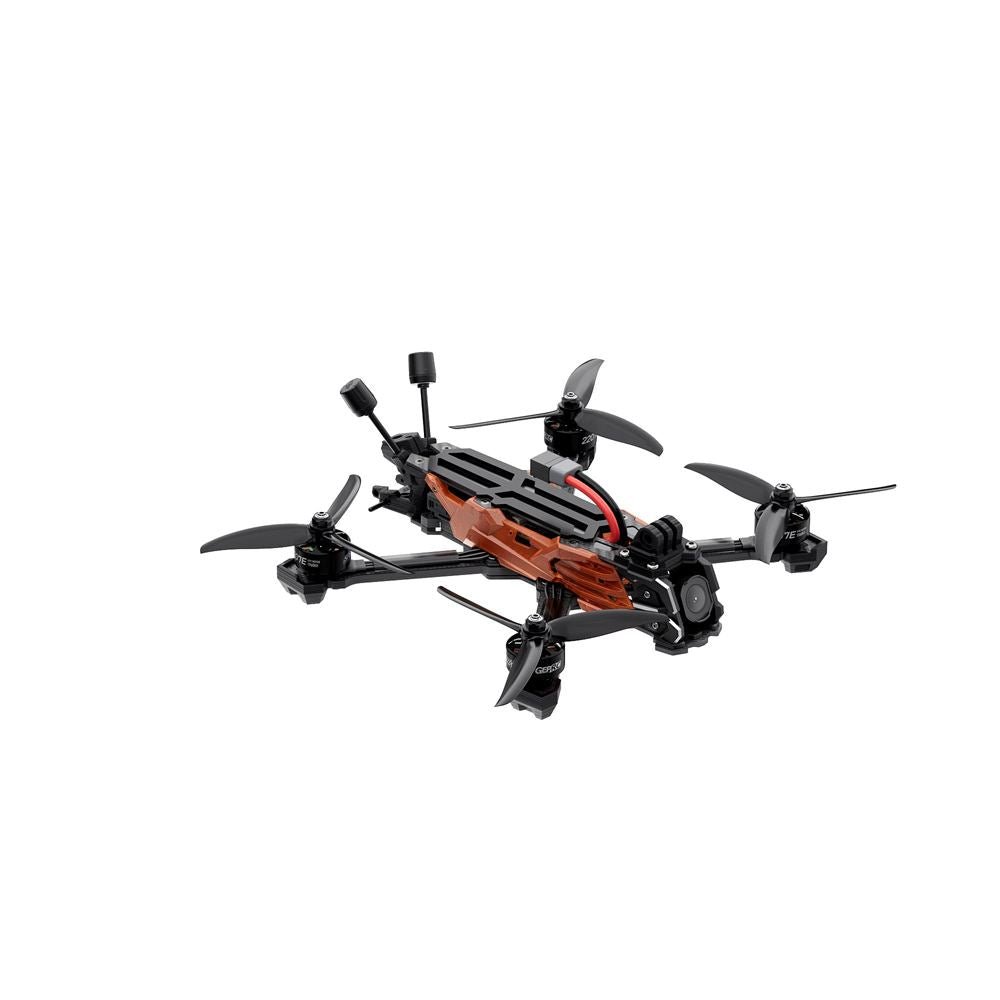

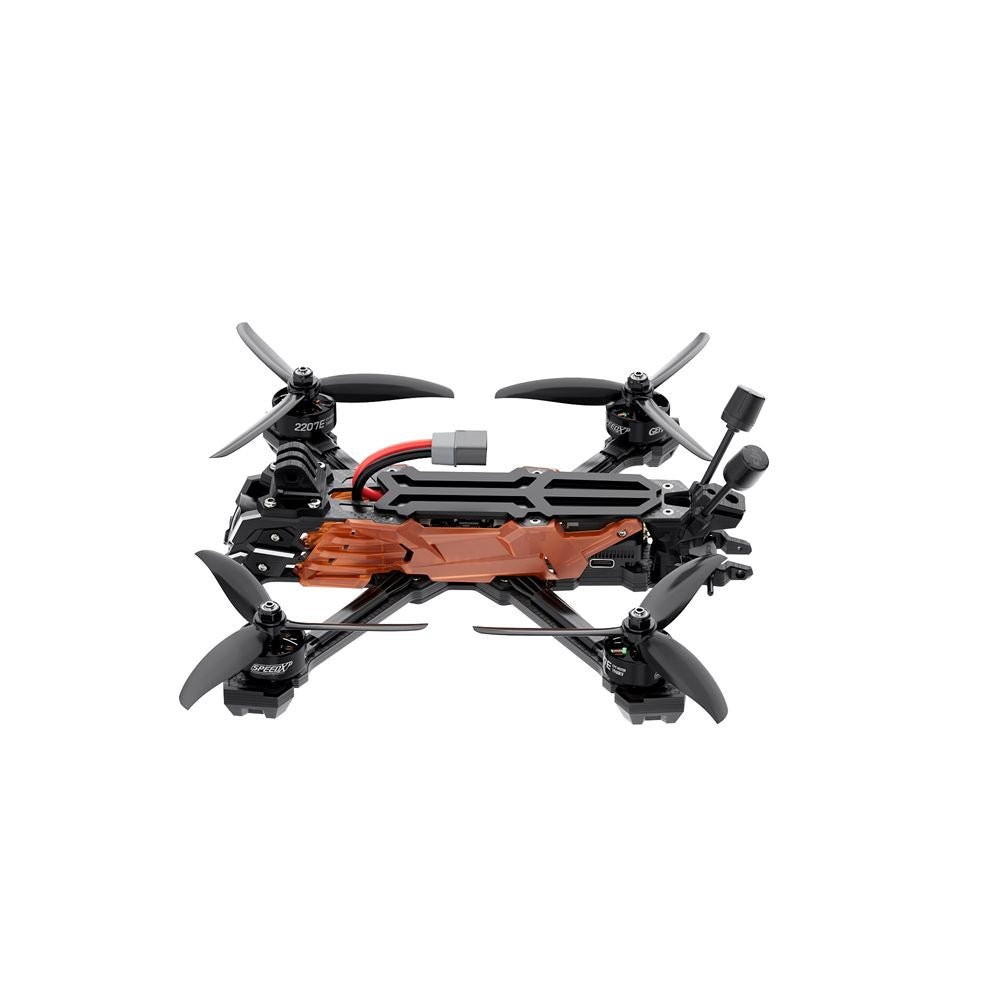

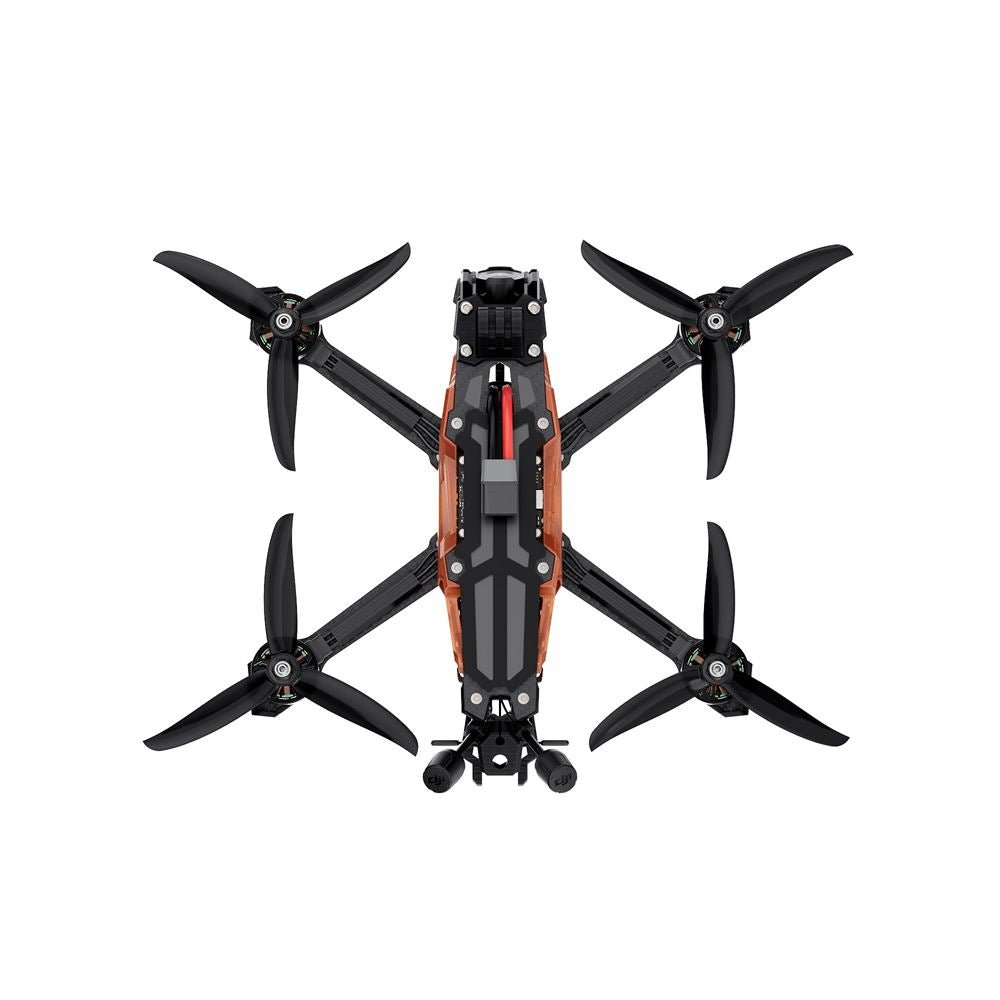

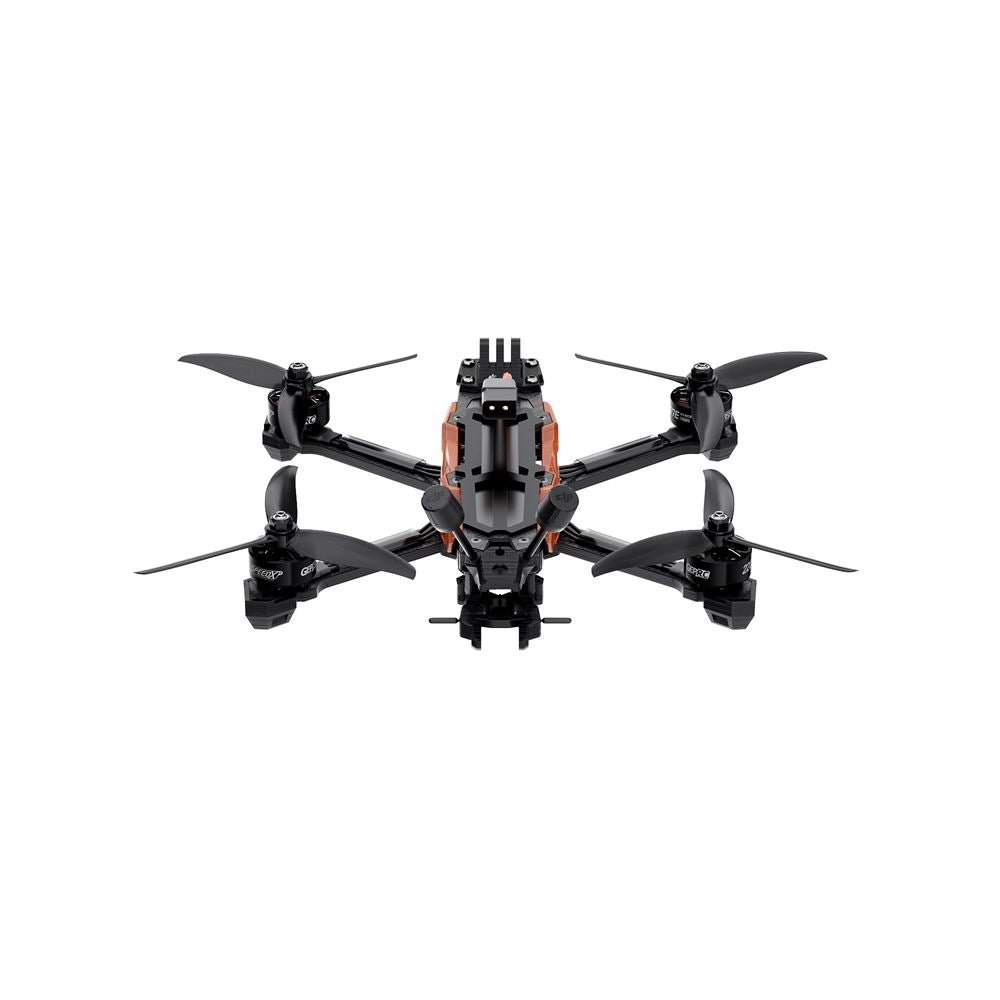

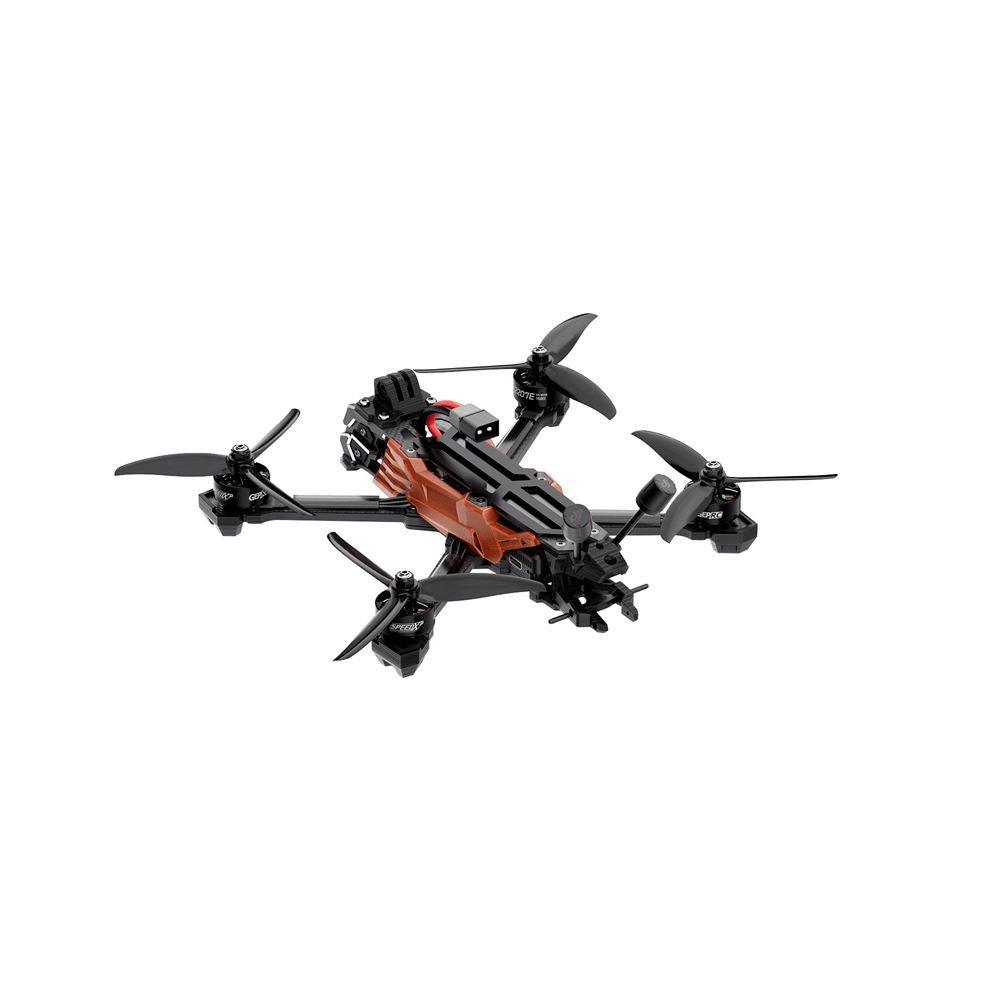

GEPRC Vapor-X5 HD DJI O4 Pro Freestyle 6S 5″ BNF with GPS – Choose Receiver Type

The GEPRC team has redesigned the Vapor series for optimal compatibility with the DJI O4 Air Unit Pro VTX.

New aluminum lens components and shock-absorbing silicone reduce vibrations, while the sharp new side panels give it a bold, mech-inspired look. The DJI O4 Air Unit Pro’s larger CMOS sensor enhances image detail and sensitivity, and the GEPRC-tuned PID settings ensure a smooth and immersive flight experience.

Available in two models, Wide X and DC, to suit different flight needs.

Here You can find all the Vapor Frames and Parts Collection.

Check out our other Digital BNF/PNP/RTFs and the rest of our GEPRC products!

Features:

• DJI O4 Air Unit Pro features a powerful CMOS sensor for improved image clarity and enhanced light sensitivity.
• CNC aluminum lens housing for a durable, bold design.
• GEPRC SPEEDX2 E-series motors for smooth, powerful performance.
• Front lip design provides extra lens protection for confident flying.
• Wider 5mm carbon fiber arms for increased durability and a sleek build.

Specifications:

• Model: Vapor-X5 O4 Pro
• Frame: GEP-Vapor-X5 O4 Pro frame
• Wheelbase: 230 mm
• Top Plate: 2.0 mm
• Middle Plate: 2.0 mm
• Bottom Plate: 2.5 mm
• Arm Thickness: 5.0 mm
• FC: GEP-F722-HD v2
• MCU: STM32F722
• Gyro: ICM42688-P(SPI)
• Barometer: YES
• OSD: Betaflight OSD w/AT7456E
• ESC: TAKER H60_BLS 60A 4IN1 ESC
• VTX: DJI O4 Air Unit Pro
• Camera: O4  Pro Camera
• Antenna: O4  Pro original antenna
• Connector: XT60
• Optional GPS: GEP-M10 GPS
• 5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV
• 5-inch Propeller: GEMFAN 5136
• Vapor-X5 O4  PNP  Version Weight: 409g±5g
• Receiver: PNP/GEPRC ELRS24/TBS Nano RX
• Recommended Battery: 6S LiPo1300mAh – 1800mAh
• Flight Time: 14-19 min

Package Includes:

• 1 x Vapor-X5 O4 Pro
• 2 x GEMFAN 5136
• 2 x Battery anti-slip pads
• 1 x Spare screw pack
• 1 x Vapor side panel
• 2 x M20*250mm battery straps
• 1 x L-shaped screwdriver 1.5mm
• 1 x L-shaped screwdriver 2.0mm
• 1 x GoPro mount

  The spare screws include

• 6 x M3*10mm round head screws
• 6 x M3*8mm round head screws
• 2 x M3*6mm flat head screws
• 1 x M5*28mm thin head screw
• 1 x M5 flange nut
• 4 x M3 rivet nuts
