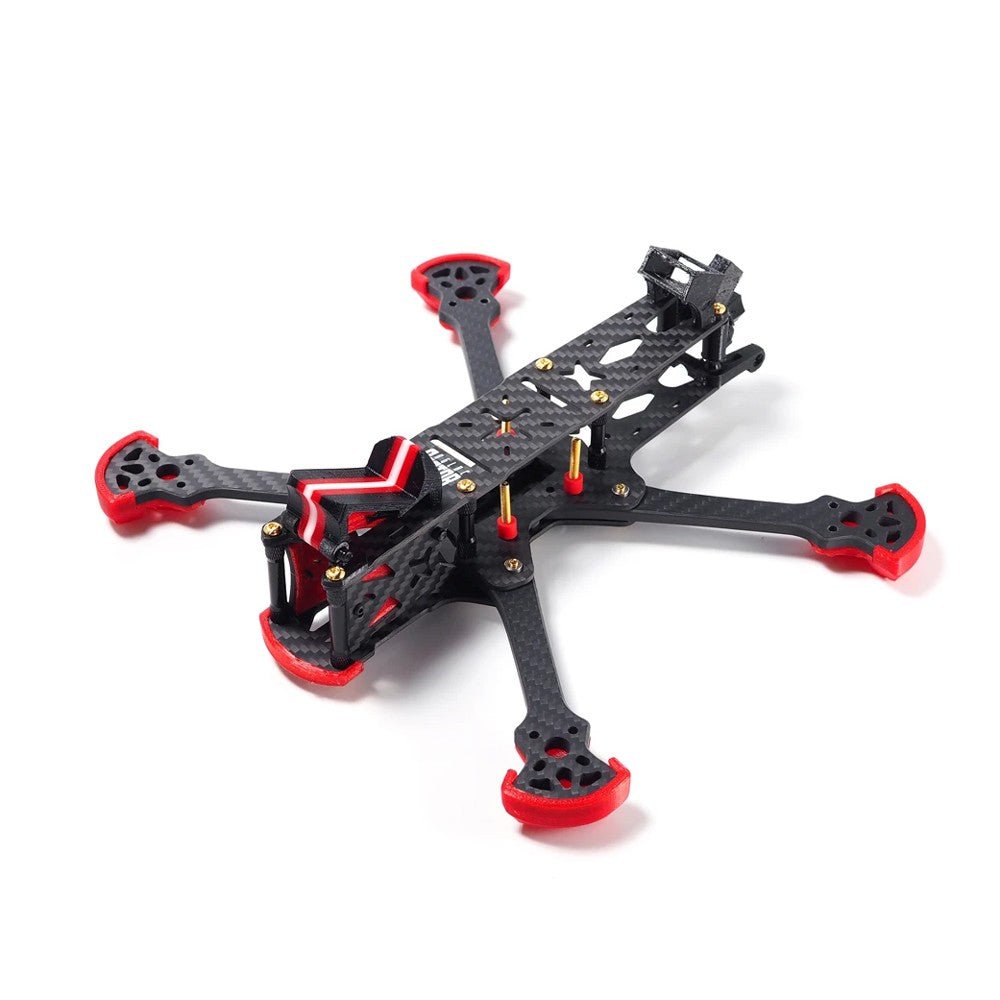

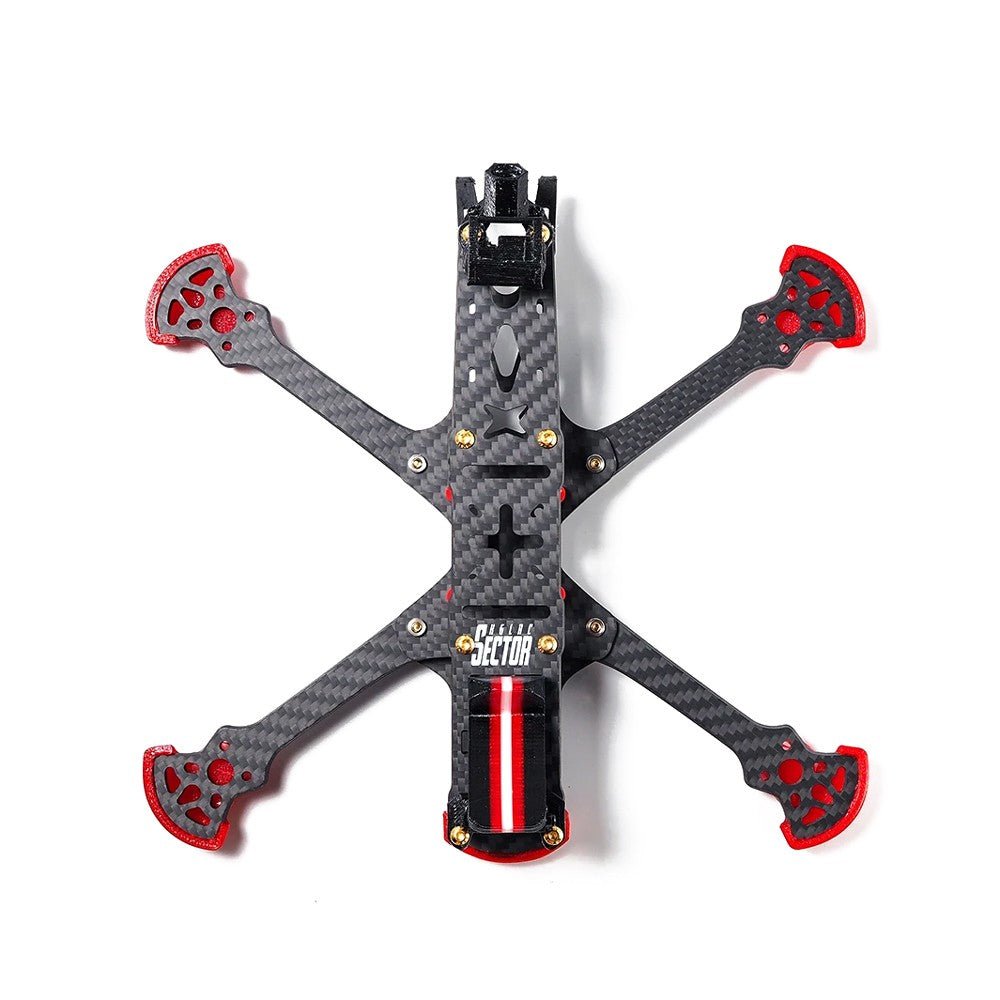

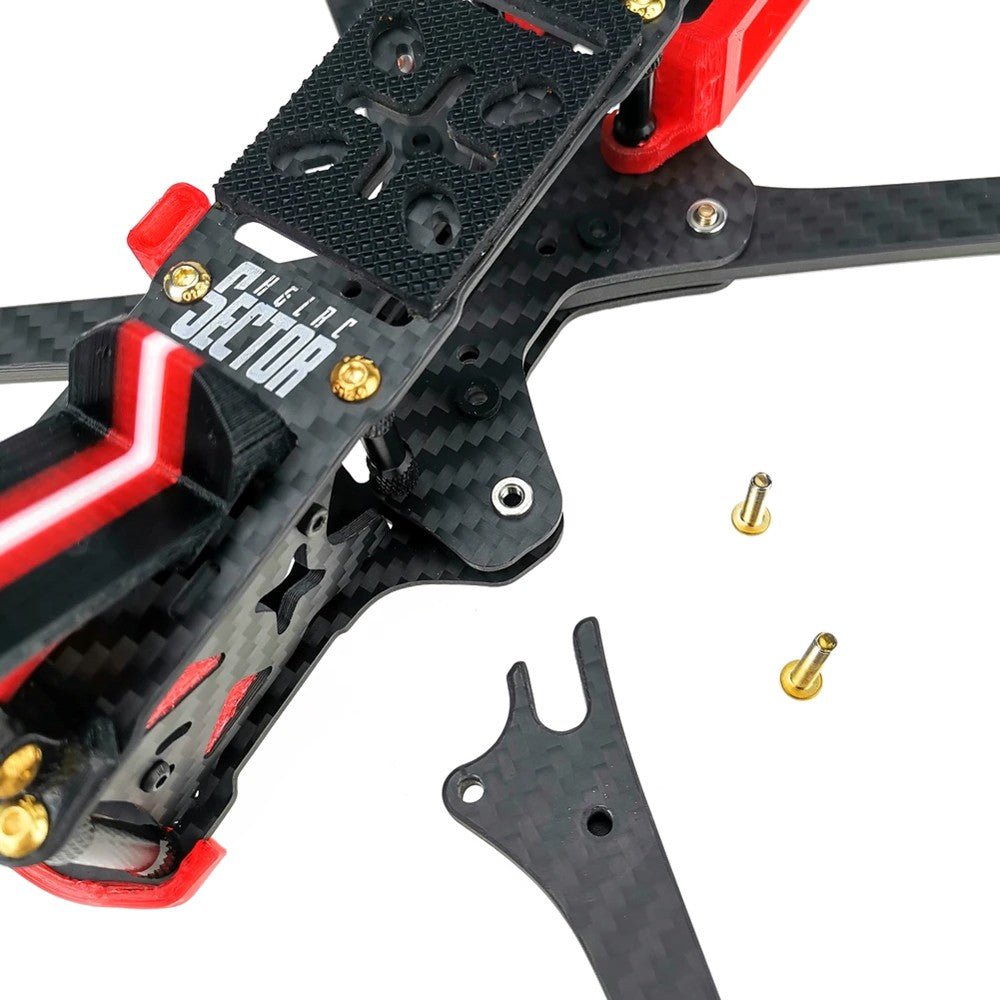

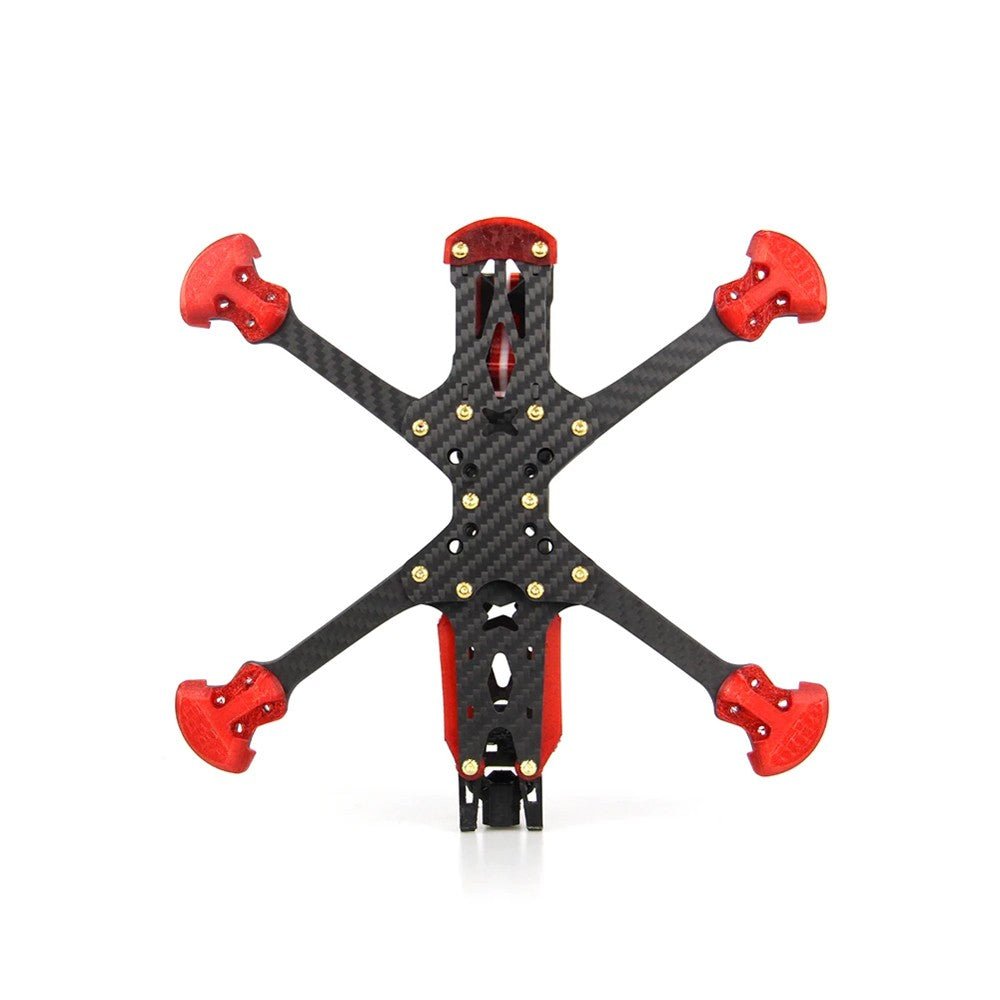

The HGLRC Sector 5/6/7 V3 Freestyle Frame comes in three different sizes: 5″, 6″, and 7″. It features no props in view, so you can enjoy a clear view when flying and you can adjust the camera mount from 25°, 30°, 35° to 40° to suit your needs. Compatible with 5.8G VTX and DJI Digital FPV System.

Check out the Sector 5 V3 Collection. all our 5 Inch Frames and the rest of our HGLRC Products!

Features:

No Props in view
No more props in view with the V3. Enjoy the clear view of flying!
Adjustable camera mount angle
Adjust the angle of the camera mount from 25°, 30°, 35° to 40° to suit your needs.
Capacitor slot to hide the capacitor for a neater look
Cannot find the capacitor in the drone? it is “hidden” somewhere
Flight control installation damping system
GoPro Universal Mount
GoPro fixed bracket
GoPro Mount
GoPro lens protector
Motor protector Mount
T shaped antenna Mount
GPS Mount
SMA antenna Mount
DJI ANT Antenna Mount
Base plate protector Mount
DJI Air Unit Mount
DJI FPV camera lens protector
Power cord fixed Mount
Capacitor mounting slots

Specifications:

Type:5″ frame
Wheelbase:218mm
Support for propellers: up to 5.5 inches
Overall size:172.5 * 136.7mm

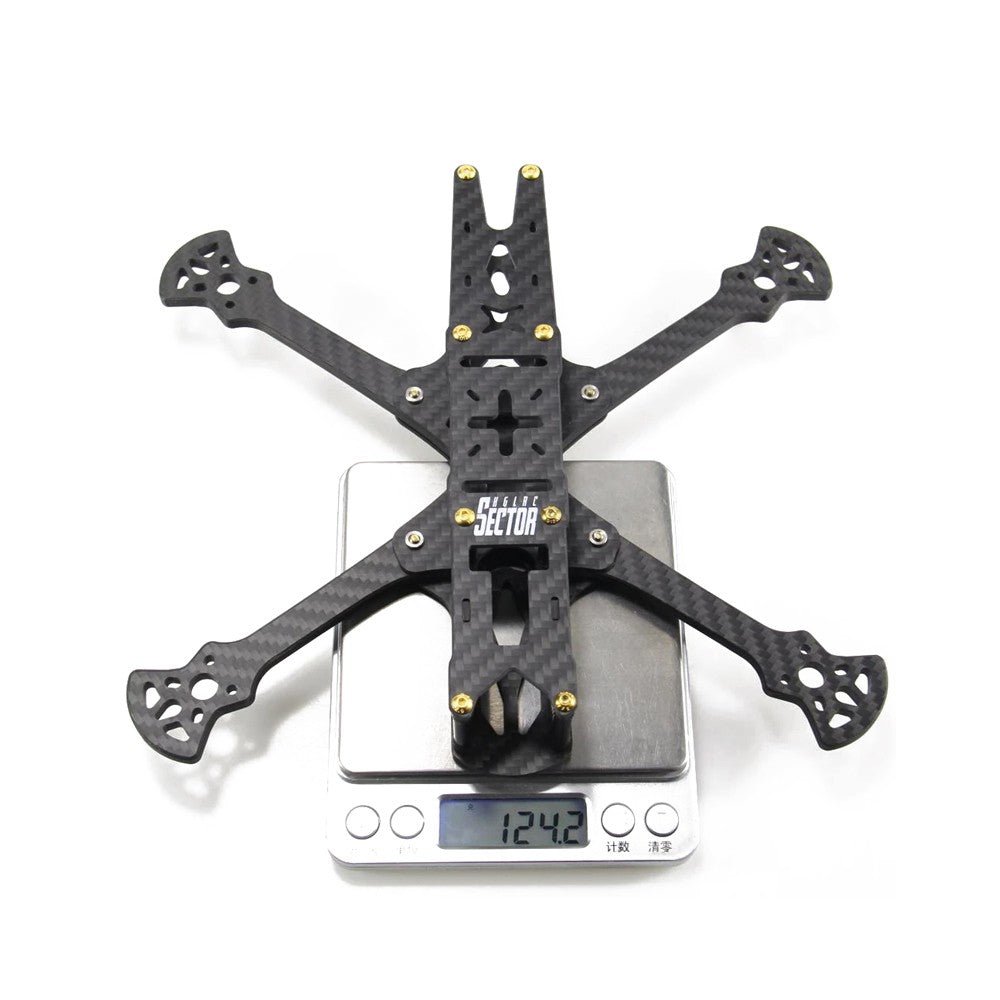

Weight:124.2g (excluding TPU)
Wheelbase:

6” / 260mm
7” / 290mm

Recommended Parts:( Not Included )

Flight Controller:Kiss/F4/F7 FC
Motor:FD2207/FD2306/FD2408
ESC:35A-65A
Camera:19×19/22x22mm size
Propeller:Sector 5 – 5 ~ 5.5 Inch
Battery:4S 1500mAh ~ 6S 1600mAh

Package Includes:

1x 2mm top plate
1x 2mm bottom plate
1x 2mm middle plate
4x 5mm arm
2x 2mm side plate
2x M3*32mm black aluminum column
6x M3*25mm black aluminum column
3x M3*23mm black aluminum column
5x round head screw M3*25
4x round head screw M3*16
4x round head screw M3*12
12x round head screw M3*8
2x round head screw M3*6
1x round head screw M2*30
4x round head screw M2*25
4x round head screw M2*12
2x round head screw M2*6
2x round head screw M2*4
4x M2*5 black nylon column
6x M3 Self-tightening nut
10x M2 Self-tightening nut
4x antenna protection tube
12x M3*6.6 shock absorber ball
8x M2*6 shock absorber ball
2x Battery cable tie 20x200mm
2x Battery cable tie 20x250mm
1x Battery Anti-slip tape
1x Gopro Universal Mount
1x GoPro fixed bracket
1x Motor protector Mount
1x T shaped antenna Mount
1x GPS Mount
1x SMA Antenna Mount
1x Base plate protector
1x DJI Air Unit Mount
1x DJI FPV camera lens protector
1x DJI ANT Antenna Mount
1x Power cord fixed Mount
1x 20 to 30 mounting adapter
