RUSHFPV Rush Blade F722 Flight Controller V2 For DJI Digital FPV System – 30x30mm

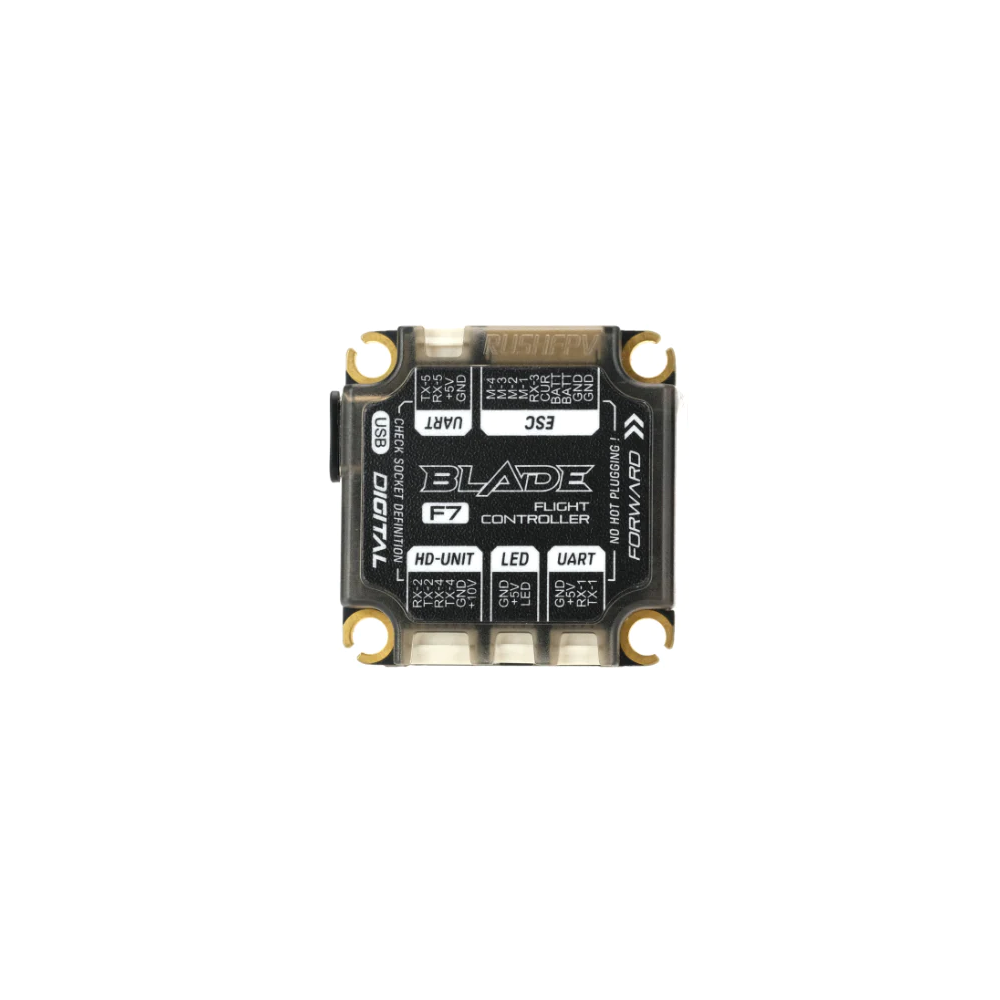

RUSH BLADE F722 30×30 Flight Controller V2 by RUSHFPV for your DJI Digital FPV System. This FC features high-performance STM32 F722 MCU, ICM42688P Gyro, and Onboard OSD.

Check out all our Flight Controllers and the rest of our RushFPV Products!

See all our DJI Plug and Play Flight Controllers and Stacks!

This is a spare part for the RushFPV Blade Stacks!

Features:

• High-performance STM32 F722 MCU with speeds up to 216MHz.
• ICM42688P gyroscope, independent low-noise power supply.
• Built-in analog video OSD, 16M black box,5UART ports, 8PWM output ports, 2ADC ports, 1 I2C port.
• Dual high power synchronous rectifier BEC, supports up to 36V input and provides stable 5V/10V 3A output.
• Modular cable design, with reliable locking structure, can be installed quickly, while retaining full-featured pads on the back, providing more expansion support.
• Single-side layout, lower mounting height, 6-layer PCB, isolated ESC interference.
• PC case is impact resistant and easy to disassemble, isolated from dust and grass clippings

Specifications:

• MCU： STM32F722RET6
• GYRO： ICM42688P
• BLACKBOX ：16MB FLASH
• BEC：INPUT 7-36V / 3-6S LIPO，OUTPUT 1 5V 3A，OUTPUT 2 10V 3A
• PORT： 8×PWM 5×UART 1×I2C
• ADC： V-BATT / CURR-ESC
• LED： WS2812 LED STRIP
• SIZE： 36.5mm*37mm*5.2mm
• BARO：BMP280
• MOUNTING HOLES：30.5*30.5mm
• TARGET： RUSH_BLADE_F7_HD WEIGHT 11g(without cable)

Package Includes:

• 1 x RUSH BLADE F722 V2 30×30 Flight Controller For DJI HD
• 2 x 60MM UART Cable
• 2 x 60MM UART Cable
• 1 x 60MM ESC Cable
• 1 x 60MM ESC Cable
• 1 x 60MM ESC Cable
• 1 x 60MM LED Cable
• 1 x 90MM HD Cable
• 1 x 110MM Air Unit Cable
• 5 x 8MM Grommet
• 5 x 5MM Grommet
