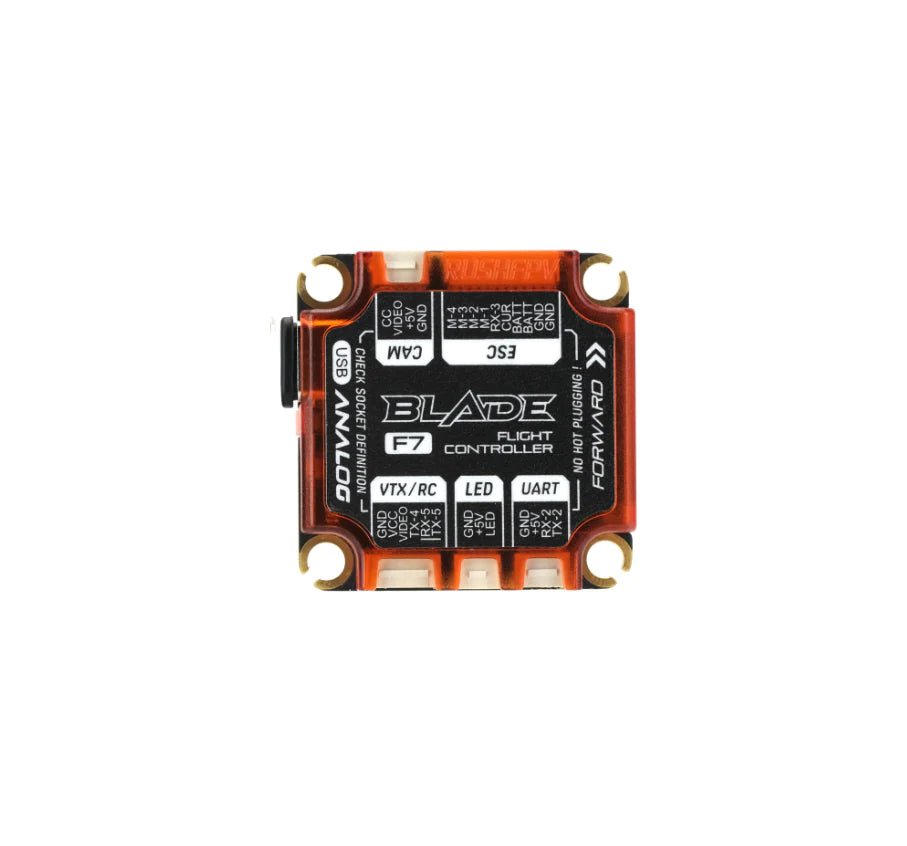

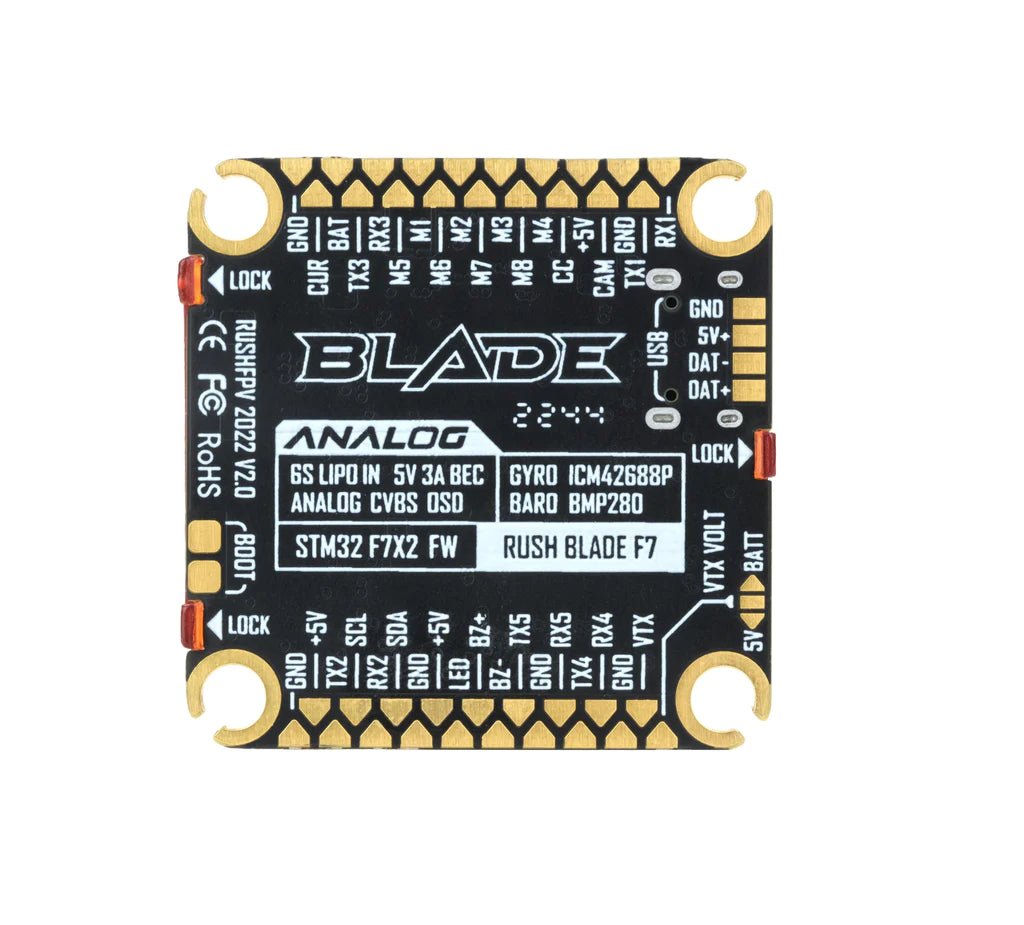

RUSHFPV Rush Blade F722 Flight Controller V2 For Analog – 30x30mm

RUSH BLADE F722 30×30 Flight Controller V2 For Analog by RUSHFPV. This FC features ICM42688P gyroscope, Onboard OSD, and beta flight firmware. Perfect for the RUSHFPV RUSH TANK II.

Check out all our Flight Controllers and the rest of our RushFPV Products!

This is a spare part for the RushFPV Blade Stacks!

Features:

• High-performance STM32 F722 MCU with speeds up to 216MHz.
• ICM42688P gyroscope, independent low-noise power supply.
• Built-in analog video OSD, 16M black box,5UART ports, 8PWM output ports, 2ADC ports, 1 I2C port, 1 camera control port.
• High power synchronous rectifier BEC, supports up to 36V input and provides stable 5V 3A output.
• Modular cable design, with reliable locking structure, can be installed quickly, while retaining full-featured pads on the back, providing more expansion support.
• Single-side layout, lower mounting height, 6-layer PCB, isolated ESC interference.
• PC case is impact resistant and easy to disassemble, isolated from dust and grass clippings.

Specifications:

• MCU：STM32F722RET6
• GYRO：ICM42688P
• BEC： INPUT 7-36V / 3-6S LIPO，OUTPUT 5V 3A
• OSD ：AT7456E CVBS OSD
• BLACKBOX ：16MB FLASH
• TARGET： RUSH_BLADE_F7
• PORT ：8×PWM 5×UART 1×I2C
• ADC： V-BATT / CURR-ESC
• LED：WS2812 LED STRIP
• BARO：BMP280
• MOUNTING HOLES： 30.5*30.5mm
• SIZE ：36.5mm*37mm*5.2mm
• WEIGHT： 11g(without cable)

Package Includes:

• 1 x RUSH BLADE F722 V2 30×30 Flight Controller For ANALOG
• 1 x 60MM UART Cable
•  1 x 60MM ESC Cable
•  1 x 60MM LED Cable
•  1 x Camera Cable
•  1 x VTX Cable
•  5 x 8MM Grommet
•  5 x 5MM Grommet

Wiring Diagram:
