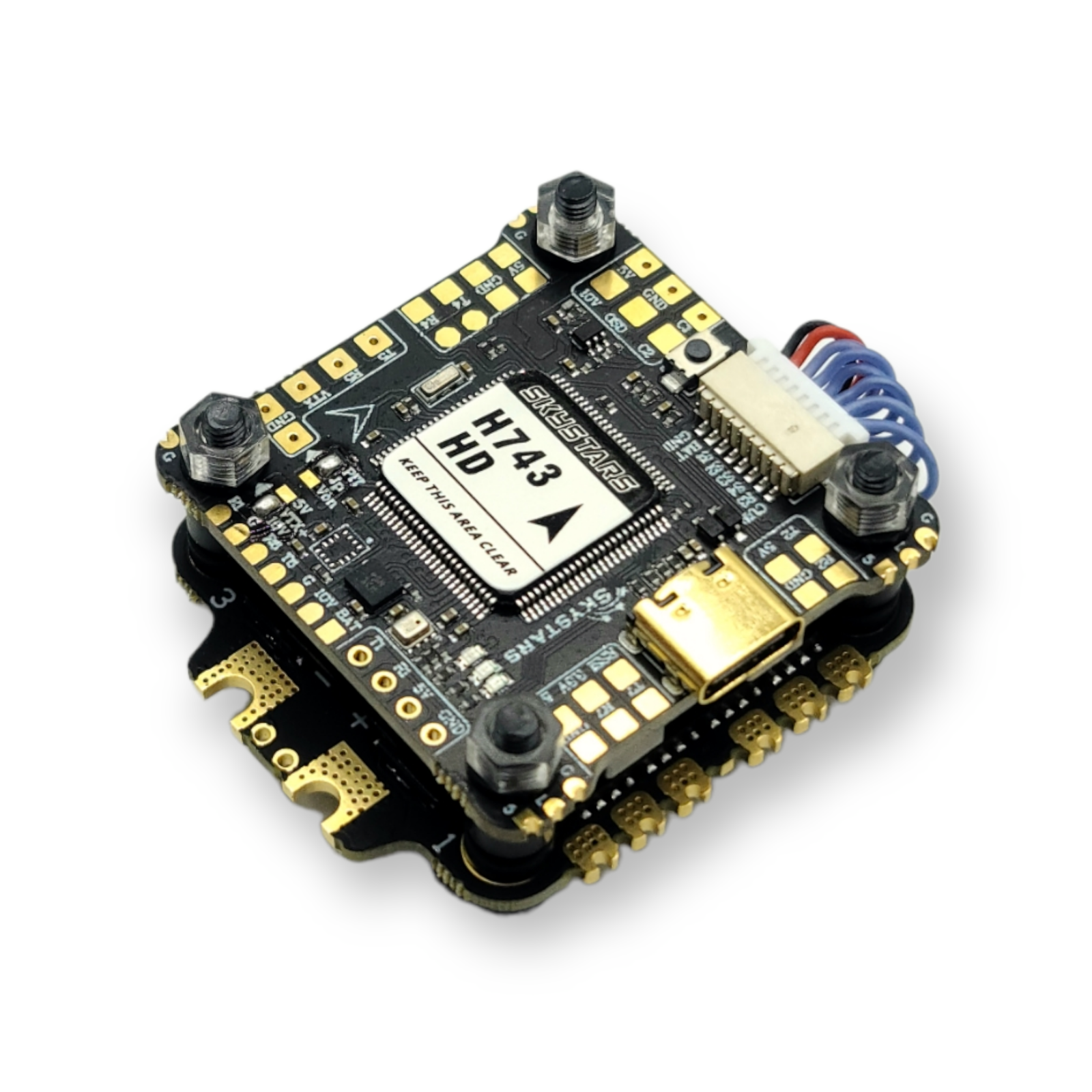

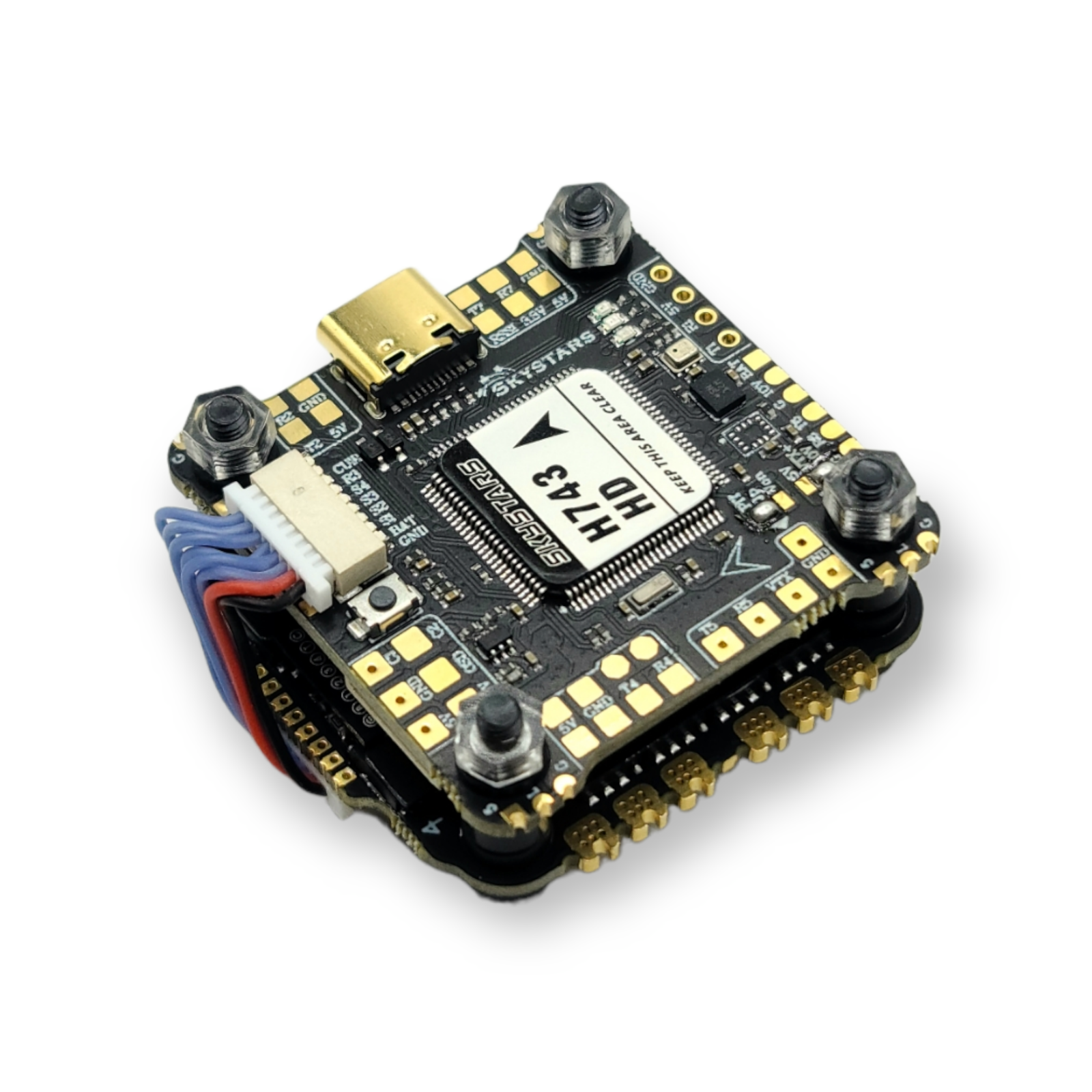

Skystars H7 Single BMI270 Gyro Flight controller and KO60 60A AM32 ESC Stack – 30x30mm

Skystars RC flagship H743 Flight Controller with X8 support, OSD, BMI270 gyro, BMP280 barometer, 16M blackbox, 8 UARTS, and more. The powerful MCU running at 480MHz should future-proof any new firmware updates coming in the next few years.

The Skystars RC KO60 AM32-60A 4-In-1 ESC adopts some of the best PCB materials and production processes.  The board applies the use of high TG materials, 3oz copper PCB & 2μm gold deposition process, and 6-layer layout design of board, allowing it to withstand higher current.  With 24 high-quality 5×6 MOSFETs and the latest AMHeli_32 firmware, 128K PWM output, and more, this ESC provides some of the best performance available.

Check out all our Stacks and the rest of our Skystars Products!

Flight Controller Specifications:

• MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
• Gyro: BMI270
• Baro: BMP280
• OSD: AT7456E
• Blackbox: 16M
• 8x Uarts (1,2,3,4,6,7,8) with built-in inversion.
• 8x PWM outputs
• 1x I2C
• 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
• USB Type-C(USB2.0)
• 2x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
• 1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)
• Dual Camera Inputs switch
• VTX 10V/Vbat filtered power ON/OFF switch
• DJI FPV OSD is supported by any spare UART
• Vbat Input:  7~25V (2~6S LiPo)
• BEC:  5V 2A Continuous (Max 3A)
• LDO 3.3V:  Max 250mA
• Firmware:  Betaflight – SKYSTARSH7HD
• Mounting:  30.5 x 30.5mm
• Dimensions:  39.5 x 39.5 x 7.8 mm

• Weight:  10.1g

KO60 ESC Specifications:

• Mount: 30.5mm x 30.5mm
• Supports 3-6S
• ESC weight: 14.1g
• Continuous current: 60A
• 32-bit ARM Cortex MCU 32F051 48MHz Processor
• Telemetry: YES
• Current Sensor:  YES
• Drive signal: DSHOT150, DSHOT300, DSHOT600 / Proshot1000 / Oneshot / Multishot
• PWM: Up to 128K
• Firmware: AM_32
• BEC: No

Package Includes:

• Skystars H7 Single BMI270 Gyro Flight controller and KO60 60A AM32 ESC Stack – 30x30mm
