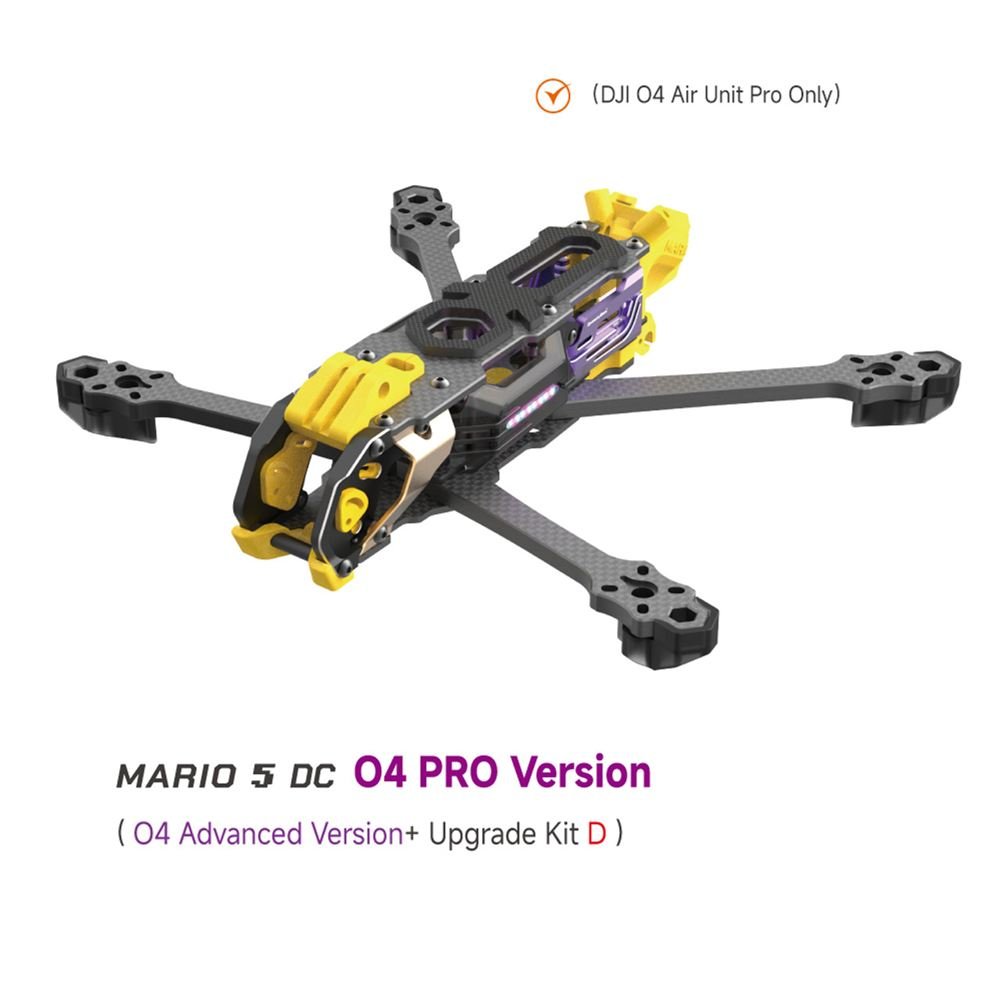

SpeedyBee Mario 5 DC O4 Pro Version 5″ FPV Freestyle Frame

SpeedyBee Mario 5 DC Pro 5″ FPV Freestyle Frame, this is the Pro version of this frame with the extra 3D printed parts, side Air Intakes and the DJI O4 Cooling Side Plates.

You can find the related frames and parts in The SpeedyBee Mario 5  Freestyle Frame Collection

Check out the rest of our 5″ Frames and the rest of our SpeedyBee Products!

Specifications:

• Mario 5 DC Wheelbase 227mm
• Mario 5 DC Weight 129 ±5g (3D Printed Parts Excluded)
• 170 ±5g (3D Printed Parts and Injection)
• Mario 5 XH Wheelbase 226mm
• Mario 5 XH Weight 126 ±5g (3D Printed Parts Excluded)
• 167±5g (3D Printed Parts and Injection)
• Top Plate Thickness 2.5mm(T300 3K)
• Middle Plate Thickness 2.0mm(T300 3K)
• Bottom Plate Thickness 2.5mm(T300 3K)
• Arm Thickness 6mm(T300 3K)
• Camera Mounting Screw 7mm
• 3D Printed Parts Yellow TPU
• Battery Anti-Slip Pad Silicone 3mm
• Motor Spring Hole Position φ8mm
• Compatible Propeller Size Max 5.1 Inch
• Motor Mounting Hole Distance 16-19mm
• FC Mounting Hole 30.5×30.5(M3)
• VTX Mounting Hole 20×20(M2) / 25.5×25.5(M2)
• Head Material Aviation Aluminum Alloy
• Aluminum Column Material 7075 D5*23mm/D46*22mm
• Internal Mounting Height 23-31mm
• Receiver Installation Space 25*13*6mm
• Suitable Capacitor Size φ10mm*20mm
• GPS Installation Size 18*18*7
• Camera Compatibility 19mm/20

Download the Manual Here and the 3D Printed Files Here
